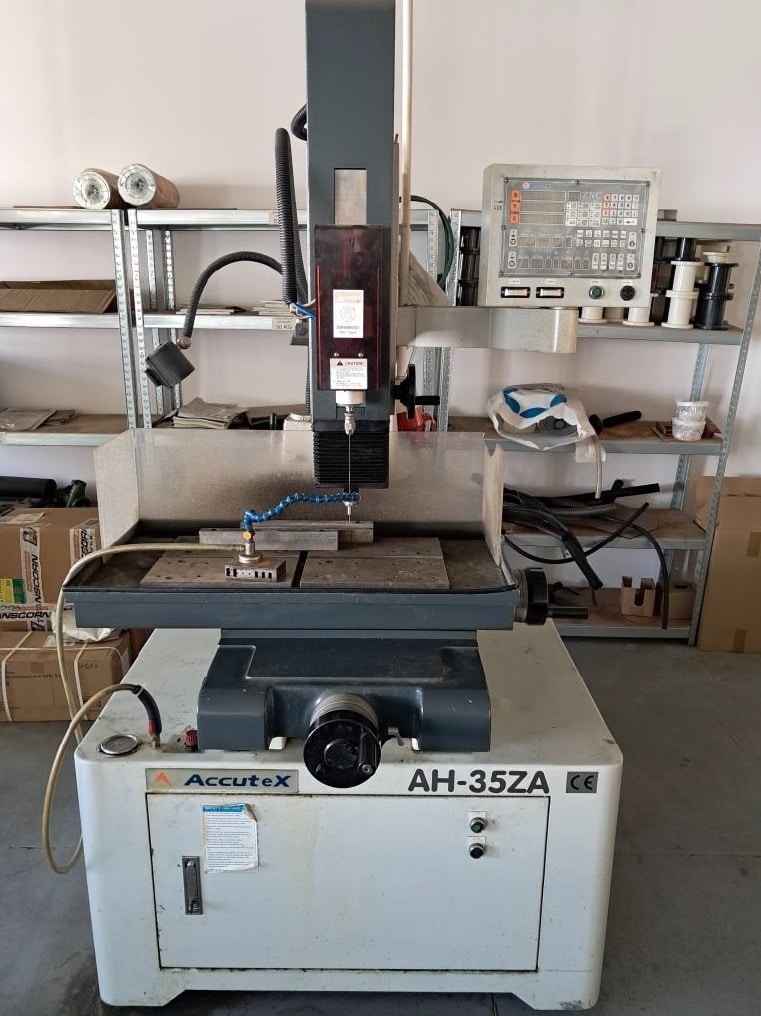

ACCUTEX AH-35ZA EDM drilling machine

ACCUTEX AH-35ZA EDM drilling machine was built in 2007 in Taiwan by ACCUTEX TECHNOLOGIES CO., LTD. The machine is designed for drilling precision starter holes of very small diameters (0.1-6.3 mm). The machining process is performed by means of electrical erosion, in which the material is removed by controlled electrical discharges between the electrode and the workpiece. This solution enables the machining of even the hardest materials, such as high-speed steels and carbides, without the need for other secondary processes. The AH-35ZA EDM drilling machine is the best choice in its class.

Technical specifications of the ACCUTEX AH-35ZA start hole drilling machine

• CNC controller
• feed in the X/Y/Z axis: 350/250/350 mm
• hole diameter range: 0.1-6.3 mm
• maximum workpiece height: 330 mm
• maximum workpiece weight: 250 kg
• work table surface (L x W): 600 x 300 mm
• workspace illumination

(The technical parameters given were obtained from the machine manufacturer’s website. Their accuracy cannot be guaranteed and they may therefore differ slightly from reality.)
