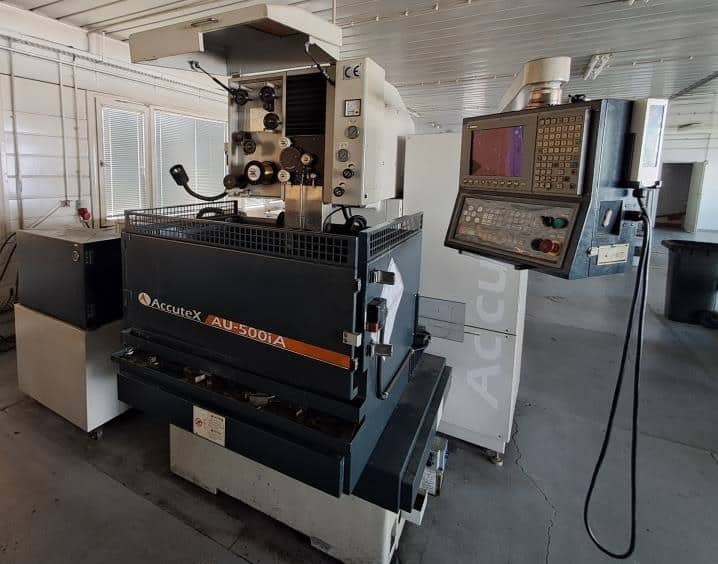

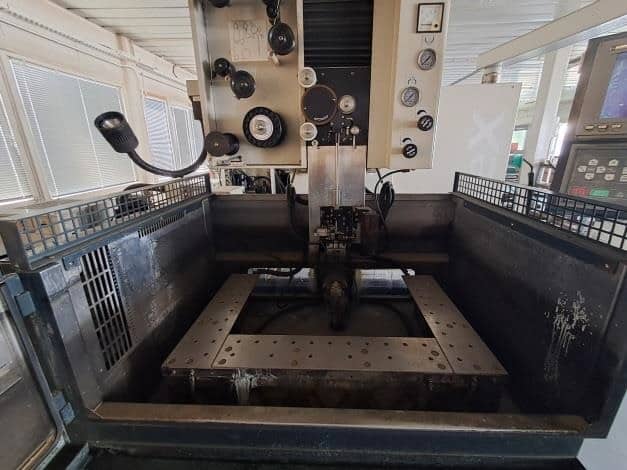

ACCUTEX AU-500iA wire EDM

ACCUTEX AU-500iA wire EDM was built in 2007 in Taiwan by ACCUTEX TECHNOLOGIES CO., LTD. The machine uses advanced electrical erosion technology for precise, 5-axis machining of workpieces with a maximum weight of 400 kg. This method enables difficult shapes to be achieved in even the hardest materials. The need for other secondary processes, such as polishing, is also minimised or completely eliminated. All this makes the offered AU-500iA wire EDM machine the best choice for the production of e.g. dies, tools and punches. The total weight of the machine is approximately 3500 kg.

Technical specifications of the ACCUTEX AU-500iA wire EDM

• CNC controller
• number of axes: 5 (X,Y,Z,U,V)
• feed in the X/Y/Z axis: 500/300/300 mm
• feed in the U/V axis: 100/100 mm
• maximum workpiece weight: 400 kg
• maximum workpiece dimensions (L x W x H): 990 x 560 x 295 mm
• cutting angle: ±22.5°/100 mm
• maximum wire diameter: 0.33 mm
• minimum wire diameter: 0.15 mm

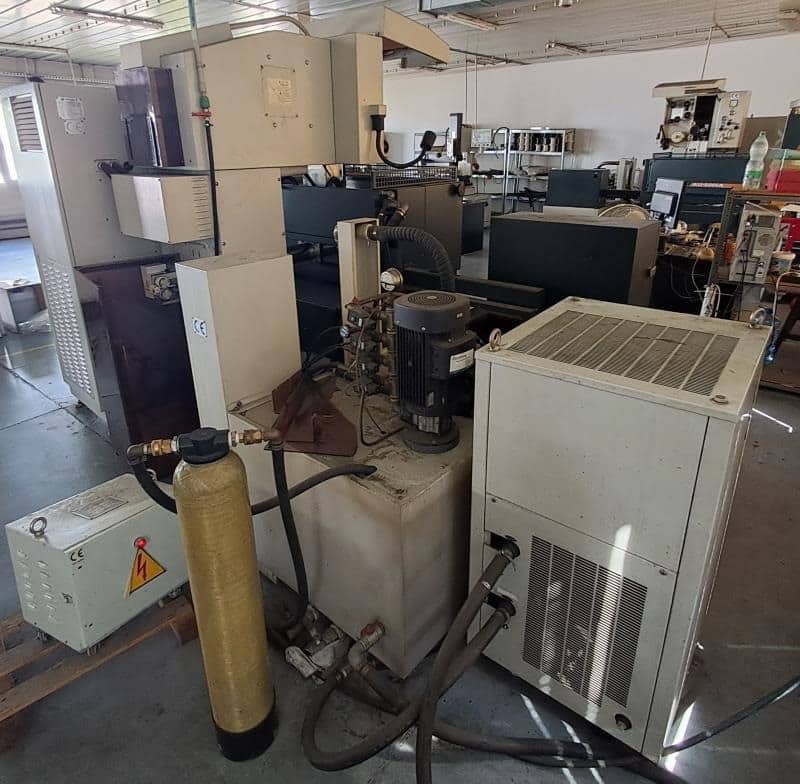

• dielectric tank capacity: 850 l
• power supply: 3x 220 V; 50/60 Hz
• dimensions (L x W x H): 2950 x 2560 x 2210 mm
• weight of the ACCUTEX AU-500iA machine: approx. 3500 kg

(The technical parameters given were obtained from the machine manufacturer’s website. Their accuracy cannot be guaranteed and they may therefore differ slightly from reality.)
