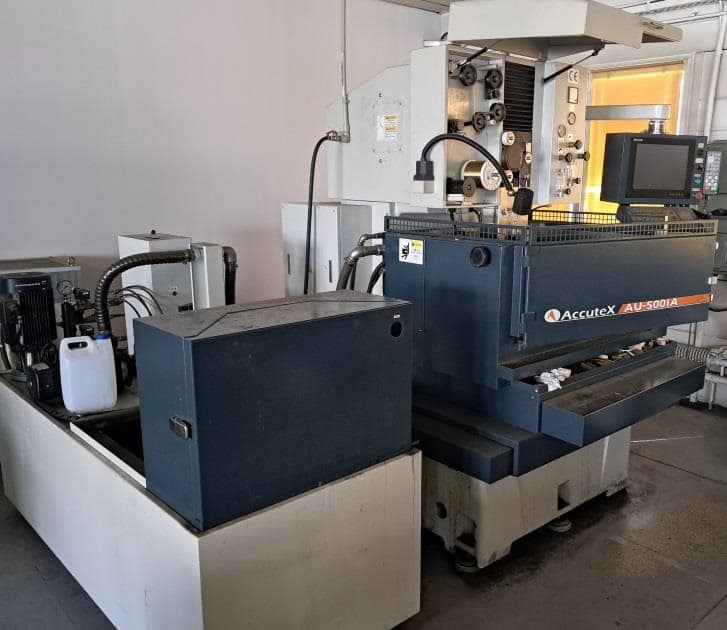

ACCUTEX AU-500iA wire EDM

ACCUTEX AU-500iA wire EDM was built in 2013 in Taiwan by ACCUTEX TECHNOLOGIES CO., LTD. The machine, distinguished by its outstanding precision and reliability, is designed for the production of parts with complex geometries, i.e. precision dies, punches and tools. The machining process is performed by means of electrical erosion, which makes it possible to achieve difficult shapes in even the hardest materials. This method also minimises or completely eliminates the need for other secondary processes, such as polishing. The AU-500iA wire EDM machine on offer features, among others, 5 axes and an intelligent CNC control in which advanced machining programmes are created in just a few steps. The total weight of the machine is approximately 3500 kg.

Technical specifications of the ACCUTEX AU-500iA wire EDM

• CNC controller
• number of axes: 5 (X,Y,Z,U,V)
• feed in the X/Y/Z axis: 500/300/300 mm
• feed in the U/V axis: 100/100 mm
• maximum workpiece weight: 400 kg

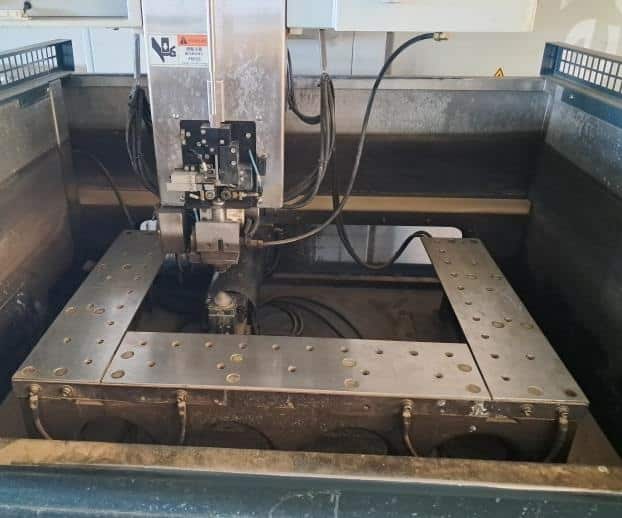

• maximum workpiece dimensions (L x W x H): 990 x 560 x 295 mm
• cutting angle: ±22.5°/100 mm
• maximum wire diameter: 0.33 mm
• minimum wire diameter: 0.15 mm

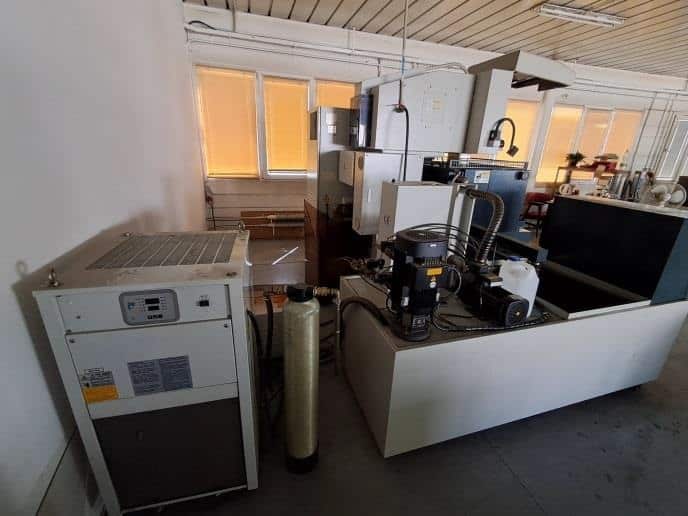

• dielectric tank capacity: 850 l
• power supply: 3x 220 V; 50/60 Hz
• dimensions (L x W x H): 2950 x 2560 x 2210 mm
• weight of the ACCUTEX AU-500iA machine: approx. 3500 kg

(The technical parameters given were obtained from the machine manufacturer’s website. Their accuracy cannot be guaranteed and they may therefore differ slightly from reality.)
