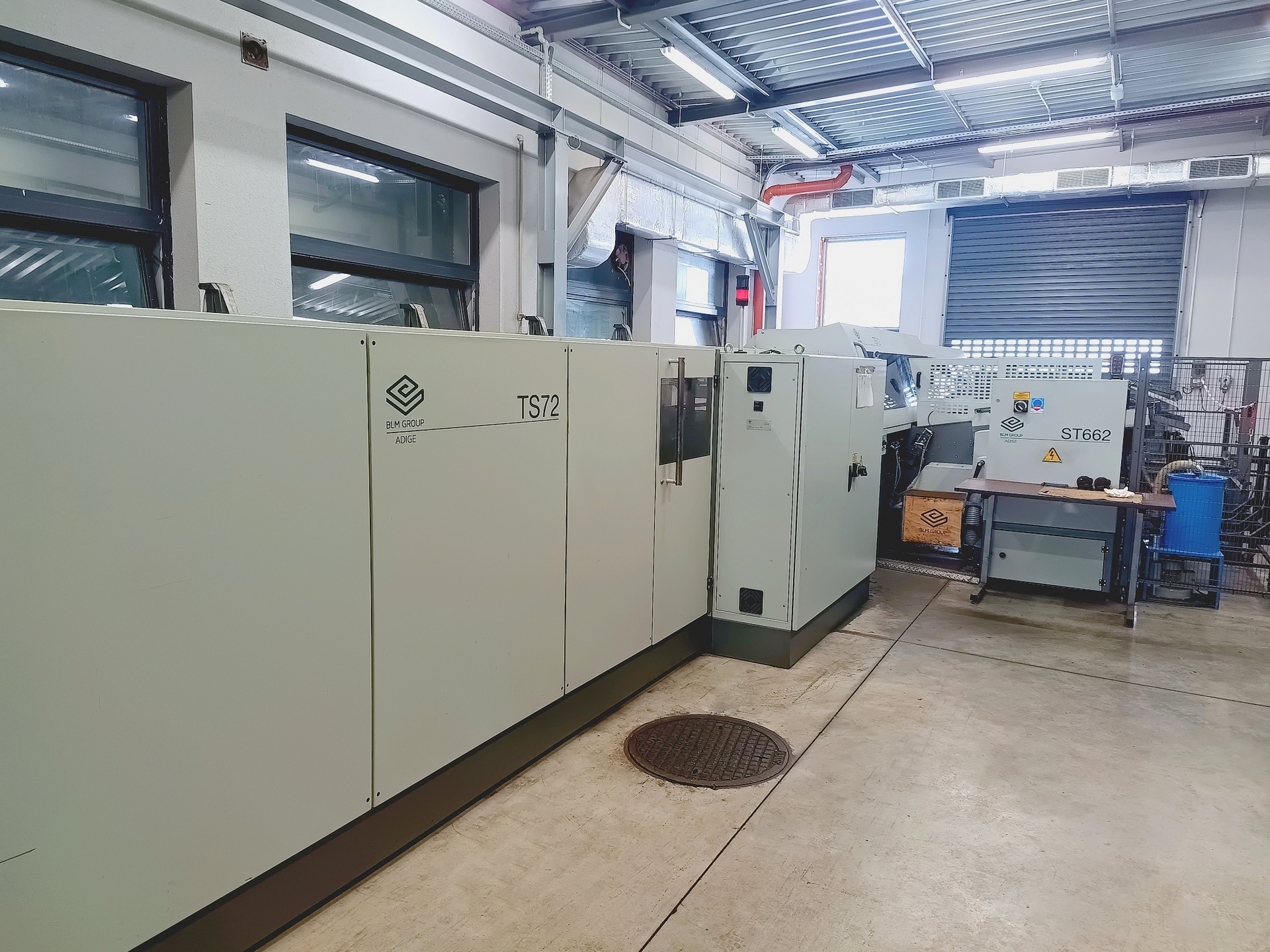

ADIGE BLM TS72 automatic circular sawing machine

ADIGE BLM TS72 automatic circular sawing machine was built in 2020 in Italy by BLM Group. The machine, designed for precision machining of bars, tubes and profiles, is an excellent choice for any industrial plant. This is because the technical solutions used enable maximum material utilisation by fully automatic cutting of up to four workpieces of different lengths from a single piece.

The machining process is performed by means of a cutting disc with twin clamps material clamps on either side of the saw blade. During the return movement, both the cutting disc and the clamps detach from the material to prevent unnecessary wear. At the very end, the edges of tubes and profiles are smoothed by a special ADIGE ST662 device. The ADIGE BLM TS 72 circular sawing machine on offer also features a feeder, which allows more than one material (bundle) to be automatically loaded into the workspace, without the use of special devices.

Technical specifications of the ADIGE BLM TS72 circular sawing machine

• cutting disc diameter: 200-350 mm
• cutting capacity (solid cross-section): 12-40 mm
• cutting capacity (round cross-section): 12-102 mm
• cutting capacity (square cross-section): 10×10-80×80 mm
• cutting capacity (rectangular cross-section): 10×15-100×80 mm
• maximum cutting length: 3250 mm
• minimum cutting length (with extender): 20 mm
• minimum cutting length (without extender): 130 mm
• unloading positions: 3+1 (waste)

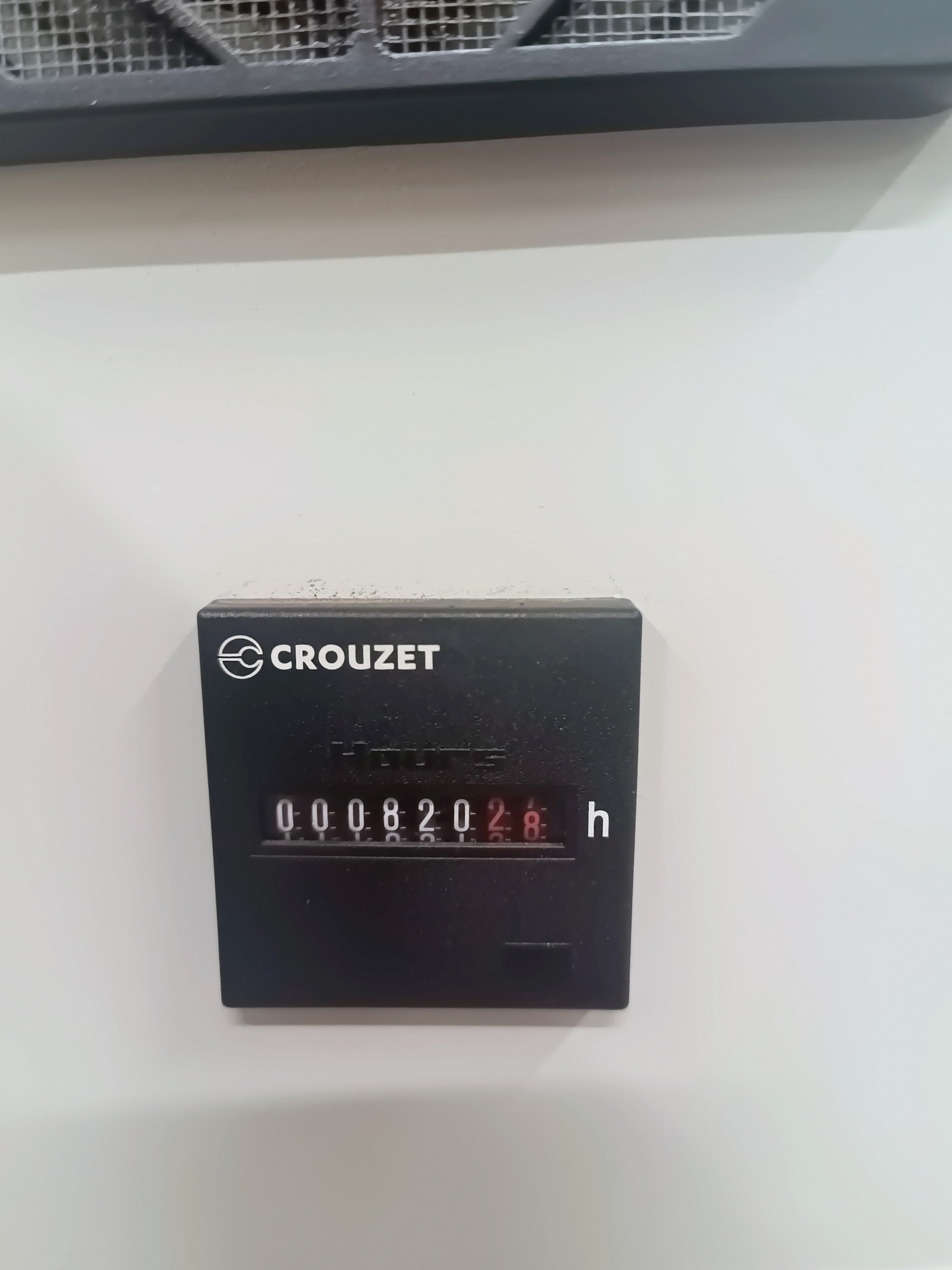

• operating hours: 820 h
• lubrication and cooling system
• oil tank capacity: 2345 l
• pressure in hydraulic system: 70 bar
• pressure in pneumatic system: 6 bar
• ambient temperature: +5°C/+40°C
• relative humidity: 5-75%
• power supply: 3x 400/480 V; 50/60 Hz
• dimensions (L x W x H): approx. 5541 x 1398 x 1843 mm
• weight of the BLM ADIGE TS72 machine: approx. 3800 kg

Technical specifications of the equipment of the ADIGE BLM circular sawing machine

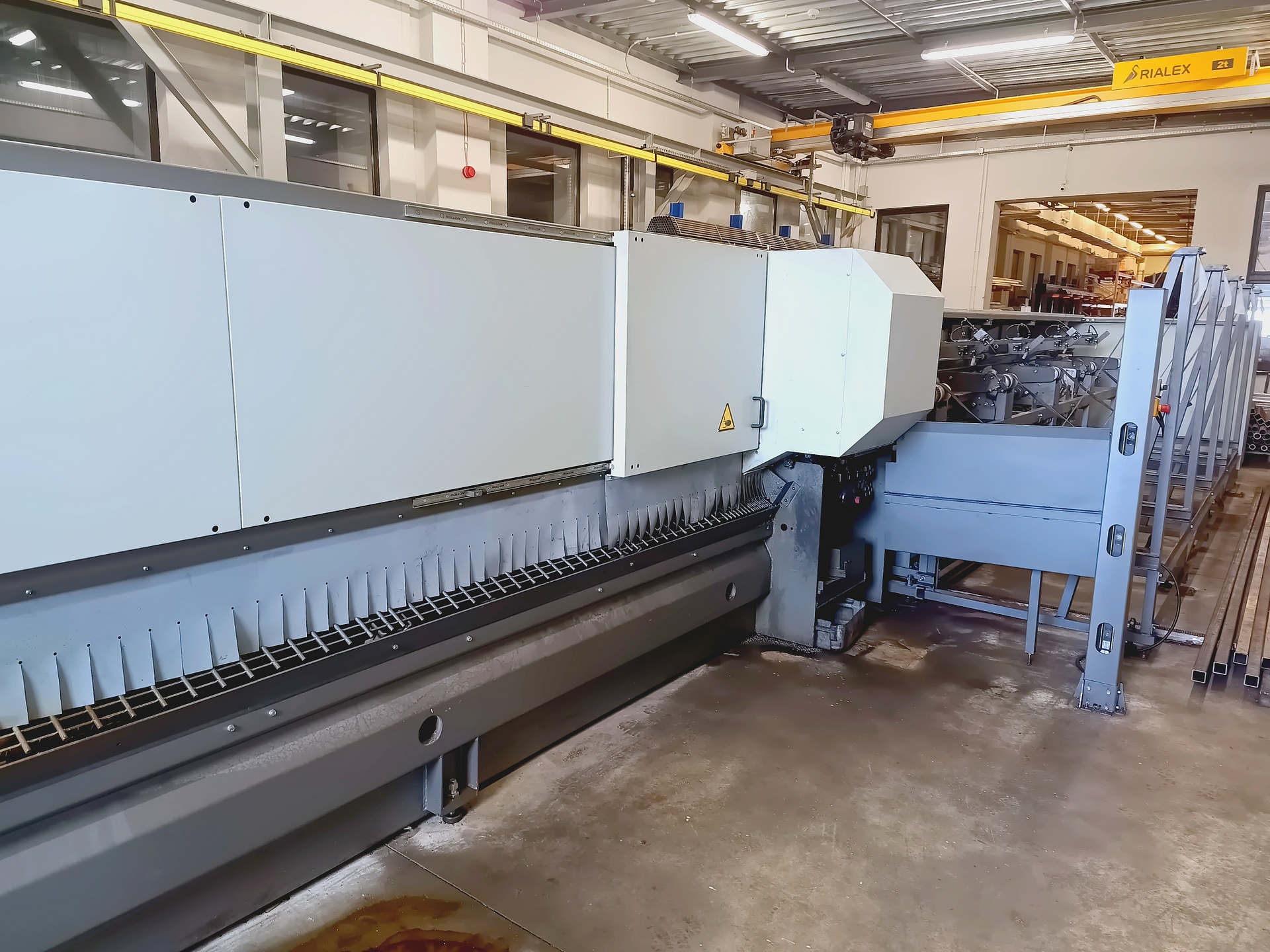

Feeder for tubes with round, rectangular and square cross-section and profiles with round cross-section

• maximum load capacity: 4000 kg
• bar diameter: 12-40 mm
• bar length: 2000-6500 mm
• tube diameter: 12-103 mm
• weight: 2100 kg

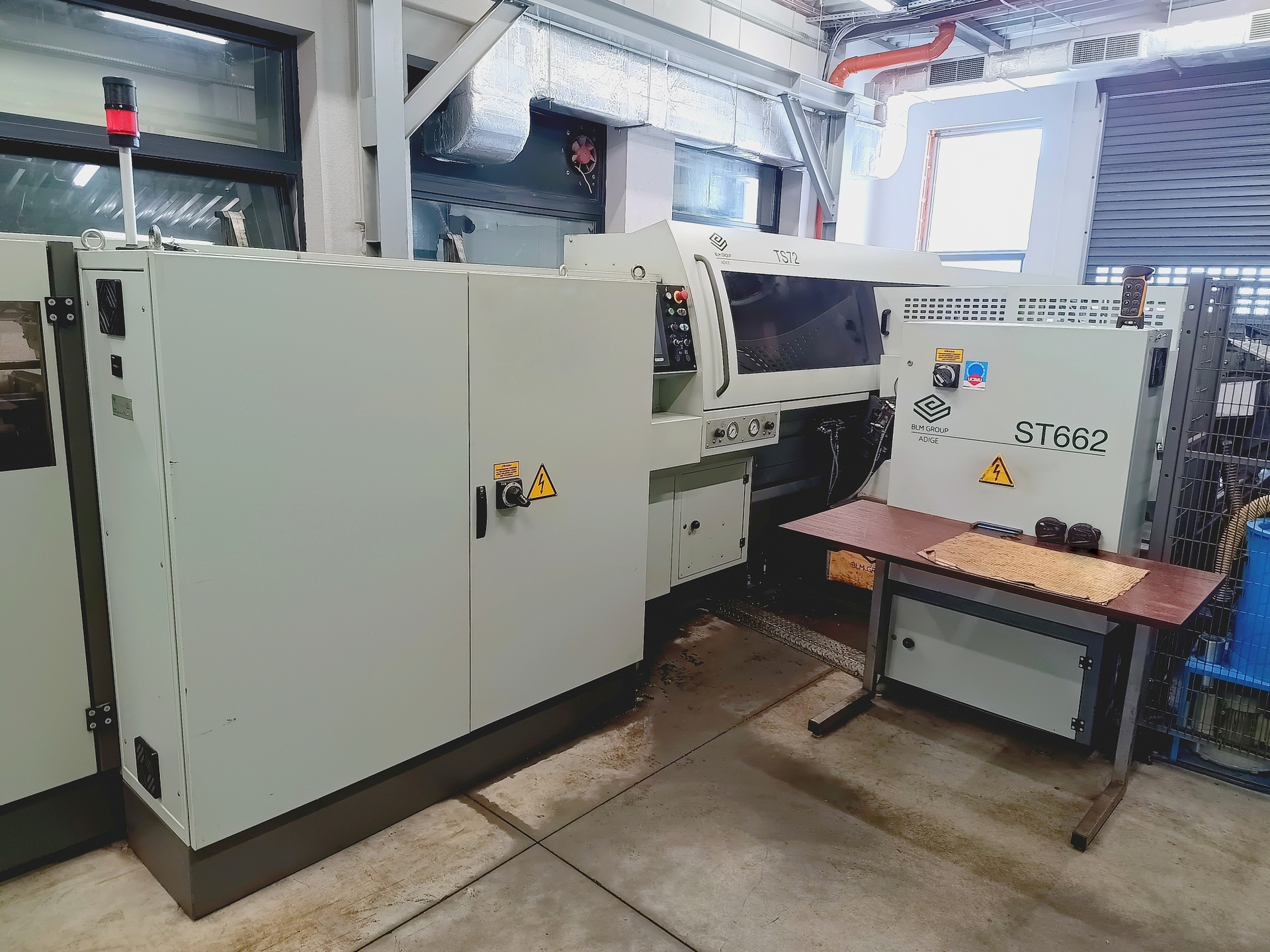

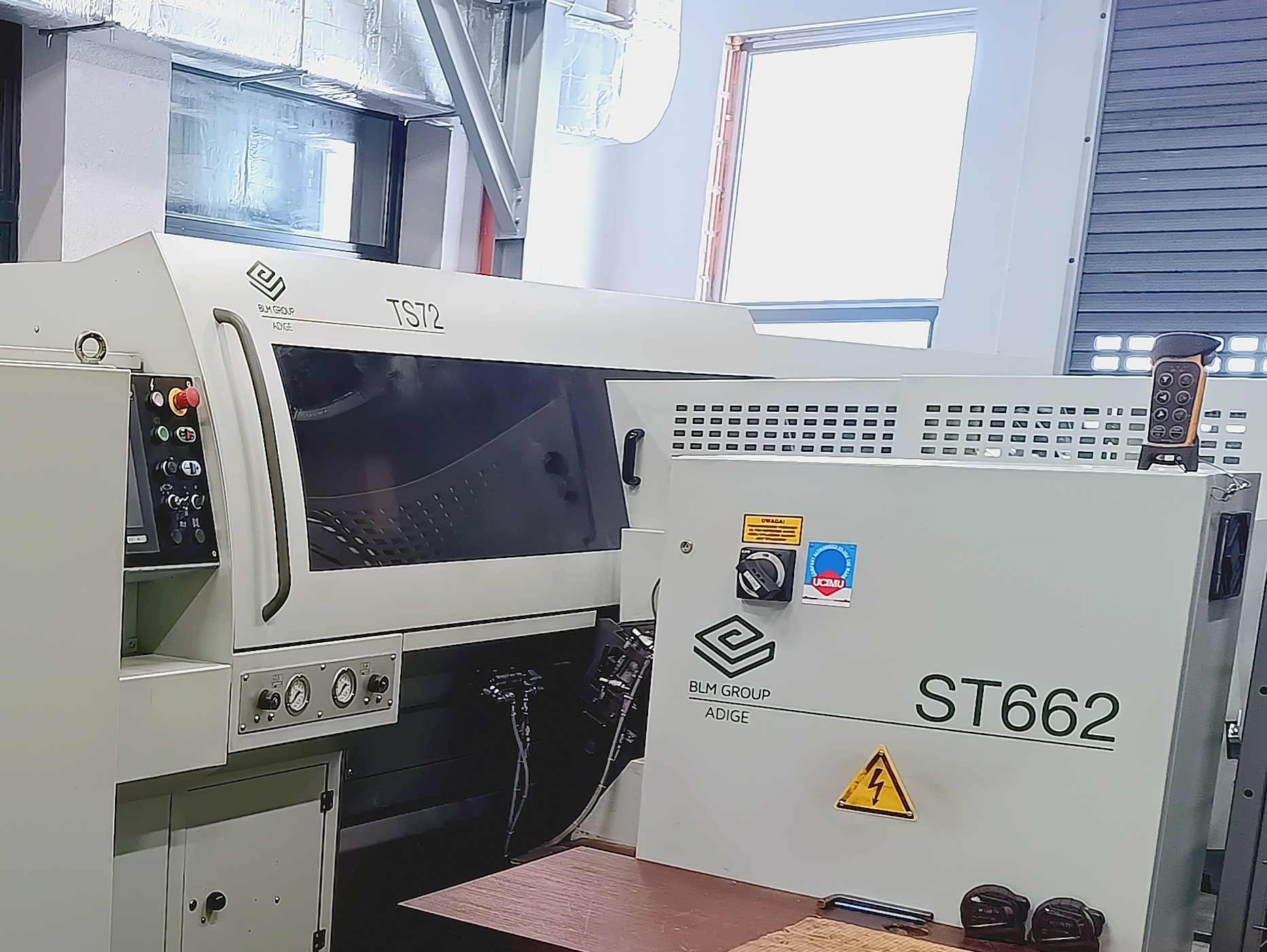

ADIGE ST662 deburring machine

• weight: 2460 kg

(The technical parameters given were obtained from the machine manufacturer’s website. Their accuracy cannot be guaranteed and they may therefore differ slightly from reality.)
