ADIGE CM501 automatic circular sawing machine

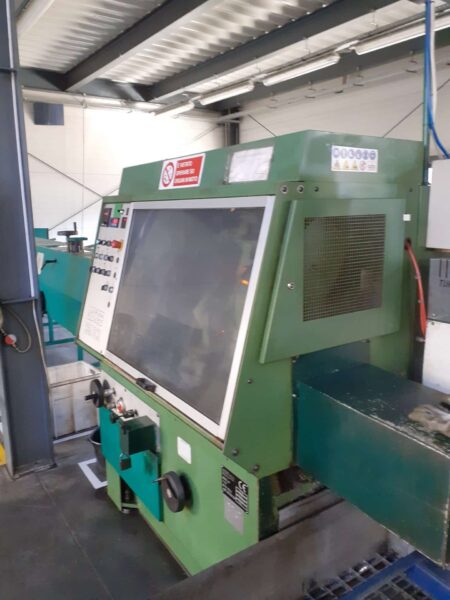

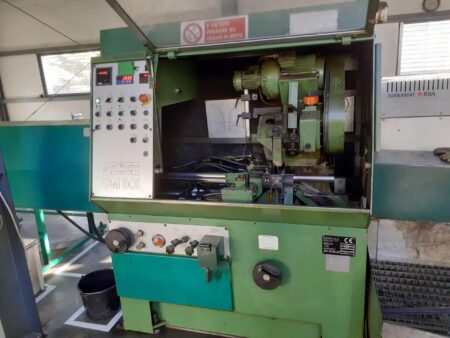

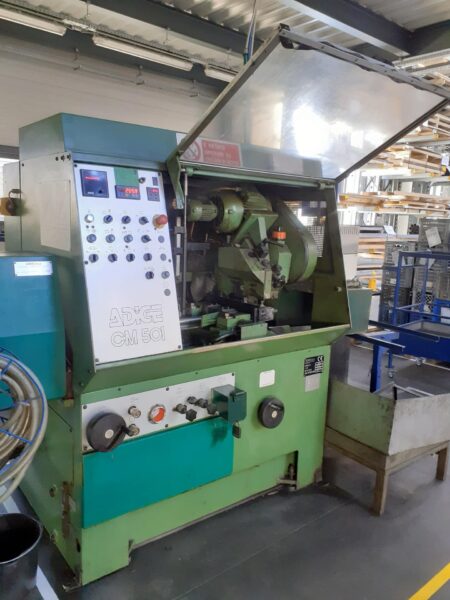

ADIGE CM501 automatic circular sawing machine, built in Italy in 1995, is used in production plants for the fully automatic cutting of solid surfaces, tubes and profiles, made of steel, brass, aluminium and other light alloys. The hydraulic saw makes it possible to significantly speed up and improve the work being carried out, thanks to the use of a mobile carriage with an installed jaw for feeding the workpieces.

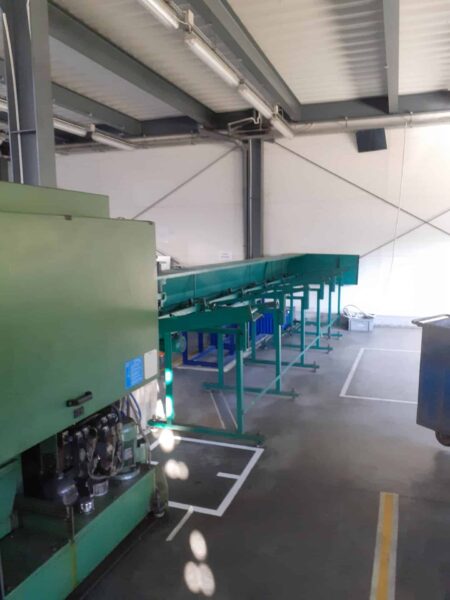

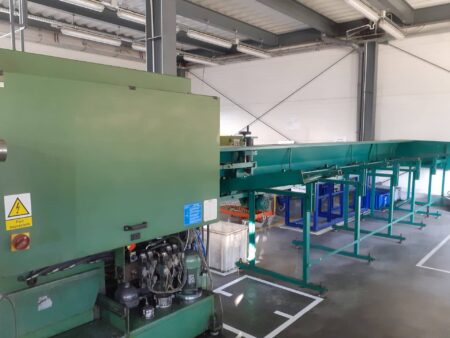

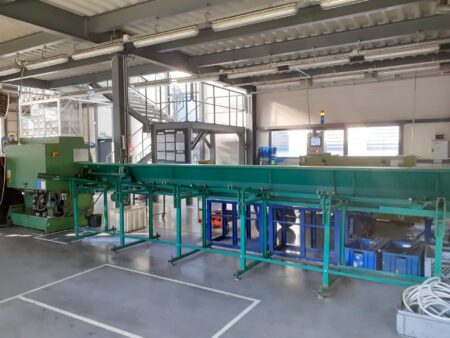

The ADIGE CM 501 sawing machine can also be equipped with an additional device for feeding the material, in order to obtain 3 infeed paths and a machining length of up to 2100 mm. The total weight of the machine is 1800 kg.

Technical parameters of the ADIGE CM501 circular sawing machine

• cutting length: 2100 mm
• maximum workpiece diameter (round cross-section): 85 mm
• maximum workpiece size (square section): 75 x 75 mm
• main motor power: 4,5 kW
• DTR – technical and propulsory documentation
• power supply: 3x 380 V ± 10%; 50 Hz ± 0,1%
• dimensions (L x W x H): 8020 x 1200 x 1800 mm
• weight of machine CM501: 1800 kg
