AMADA VIPROS 358 KING punching machine

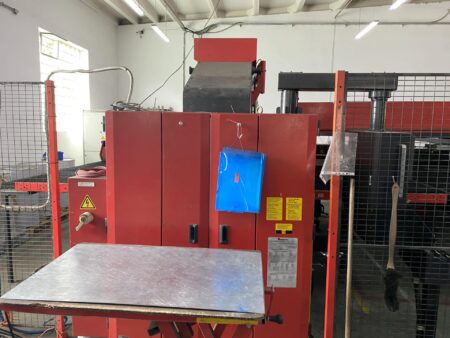

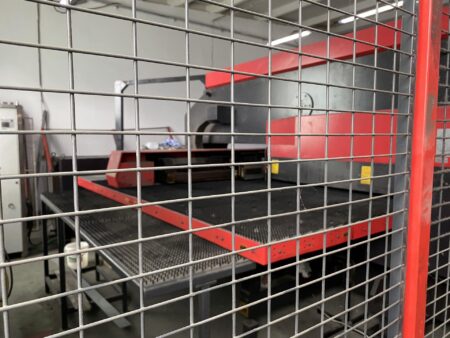

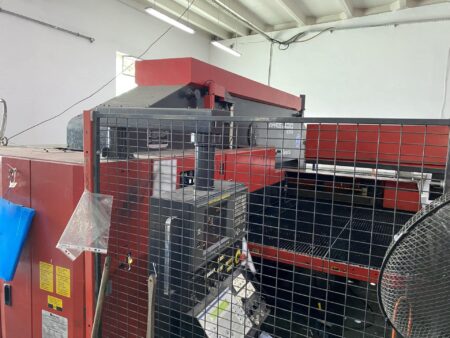

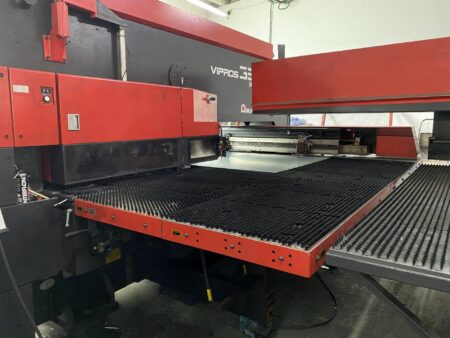

AMADA VIPROS 358 KING punching machine was manufactured in Japan in 1999. The machine is designed for precise punching of holes in workpieces having a maximum length of 1250 mm, 3000 mm width and 50 kg weight, made of mild steel, stainless steel or aluminium. Low noise level and protection of the sheet metal surface from scratches and scrapes caused by the punching process are guaranteed by a machine brush table equipped with two hydraulic clamps to hold the workpiece during the machining process.

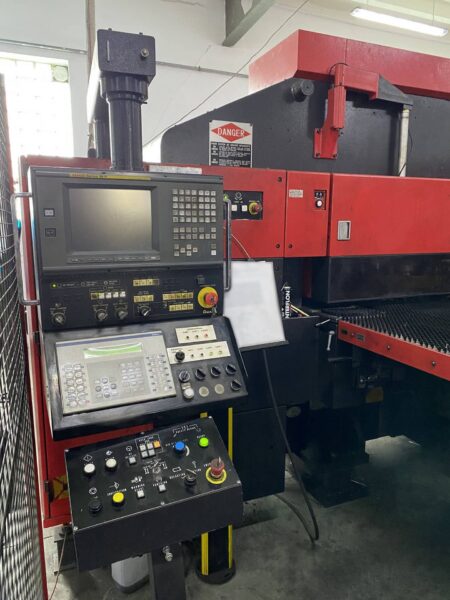

The punching machine is able to perform up to 1200 punches per minute with a press force of 30 tonnes. The machine is equipped with a FANUC AC Servo X and Y axis drive, 58 tool stations (including four auto index stations) and a control panel with a installed FANUC Series 18-P CNC controller for full control of the punching machine operation. The AMADA VIPROS 358K punching machine has been regularly serviced and has worked a total of 83995 hours during its service life. The total weight of the machine is 16000 kg.

Technical data of the AMADA VIPROS 358 KING punching machine

• press force: 30 t (294 KN)
• number of tool stations: 58 – including:

– station A: 24
– station B: 26 (2 auto index)
– station C: 4
– station D: 2
– station E: 2 (2 auto index)

• maximum sheet length: 1250 mm
• maximum sheet width: 3000 mm
• maximum sheet thickness (mild steel): 3.2 mm
• maximum workpiece weight: 50 kg
• punched materials: mild steel, stainless steel, aluminium
• maximum number of punches: 1200/min
• minimum hole diameter: 12 mm
• maximum hole diameter: 114 mm
• feed rates in the X/Y axis: 1270/4000 mm
• rapid feed rate in the X and Y axes: 113 m/min
• turret rotational speed: 30 rpm
• punching accuracy: ± 0.01 mm
• man-hours: 83995 h
• punch counter: 44222800
• total power requirement: 28 kVA
• overall dimensions (L x W x H): 4580 x 4120x 2450 mm
• VIPROS 358 KING machine weight: 16000 kg

Equipment of the punching machine

• CNC controller: FANUC Series 18-P
• X,Y axis drive: FANUC AC Servo
• brush table
• hydraulic sheet metal clamps: 2 pcs.
• central lubrication
