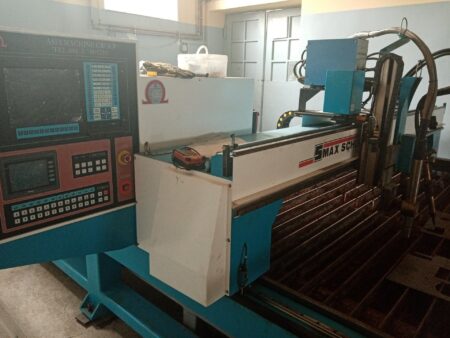

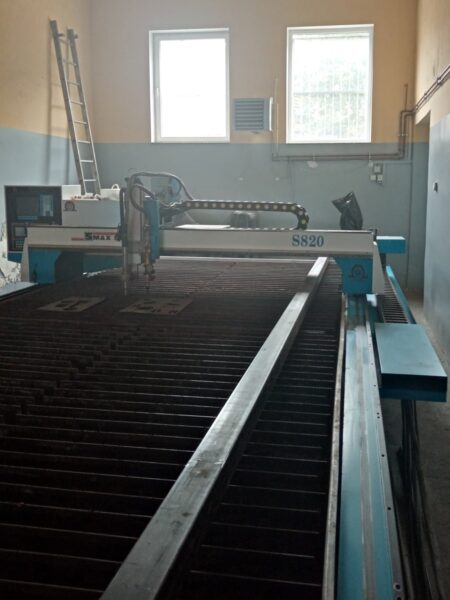

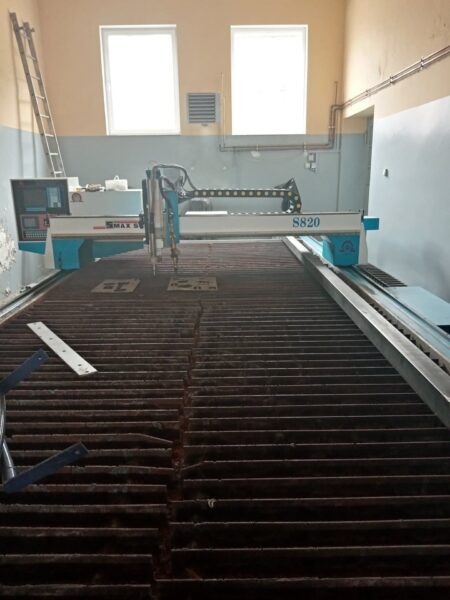

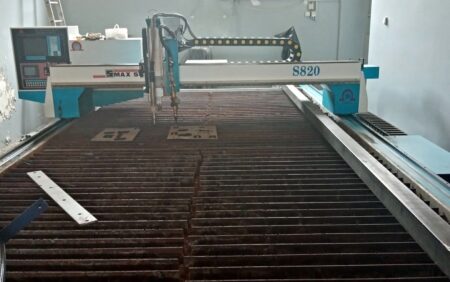

AMG S820 plasma-gas cutting machine

AMG S820 plasma-gas cutting machine built by the Taiwanese company ASIA MACHINE GROUP in 2013, is used for precision cutting of workpieces made of carbon steel and acid-resistant steel. The machine characterised by a robust and high-quality construction has two torches – a HYPERTHERM plasma torch with THC voltage height adjustment and collision protection, and a KOIKE gas torch with functions for automatic piercing.

The plasma cutting machine performs workpiece cutting processes on a large work table of surface area (L x W) 6100 x 2500 mm with an additional laser pointer to facilitate workpiece positioning on the table. In order to eliminate any contamination generated during laser and gas cutting, the usual exhaust extraction has been replaced by an waterbed table powered by water with a pressure of up to 2 bar. The water mirror in the table’s bath effectively absorbs the exhaust fumes, ensuring a high level of operational safety.

The X and Y axes of the AMG S820 machine are driven on high-quality rack-and-pinion gears by MITSUBISHI servo motors with backlash-free transmission, which responds instantly to changes in direction. Thanks to this solution, workpieces are cut with high stability, high accuracy and at a speed of up to 9000 mm/min.

The plasma cutting machine comes with additional equipment, consisting of e.g. a TAIWAN PLASMA CORPORATION AP201 plasma source of 200 A and an industrial PC with CAD/CAM FASTCAM software with AUTO NESTING function. The total weight of the machine is 3500 kg.

Technical data of the AMG S820 plasma-gas cutting machine

• working hours: 10 h
• work table surface (L x W): 6100 x 2500 mm
• maximum sheet thickness (carbon steel, gas torch): 200 mm
• maximum sheet thickness (acid-resistant steel, plasma torch): 25 mm
• maximum sheet thickness (carbon steel, plasma torch): 25 mm
• cutting thickness from sheet metal edge (plasma torch): 40 mm
• cutting speed: 9000 mm/min
• positioning speed: 12000 mm/min
• positioning accuracy: ± 0.1 mm
• positioning repeatability: ± 0.1 mm
• plasma source power: 200 A
• installed power: 6 kW (gas cutting), 35 kW (plasma cutting)
• weight of AMG S820 machine: 3500 kg

Equipment of the plasma-gas cutting machine

• CAD/CAM software: FASTCAM with AUTO NESTING function
• plasma source: TAIWAN PLASMA CORPORATION AP201
• industrial PC: 2.8 GHz, 512 MB RAM, 1 GB HDD
• plasma torch: HYPERTHERM
• gas torch: KOIKE
• X axis servo motor: MITSUBISHI, 400 W (1 pc.)
• Y axis servo motor: MITSUBISHI, 400 W (2 pcs.)
• backlash-free servo motor transmission
• waterbed table
• laser pointer to facilitate sheet positioning on the table
• X and Y-axis cable paths of width: 100/200 mm
• EMI filters to protect the servo motors
• cooling/heating system for CNC
• AVR microcontroller for CNC voltage stabilisation
• USB port
• operating manual in Polish language

The S-820 plasma-gas cutting machine had been in operation for just 10 hours after an operational start-up.
