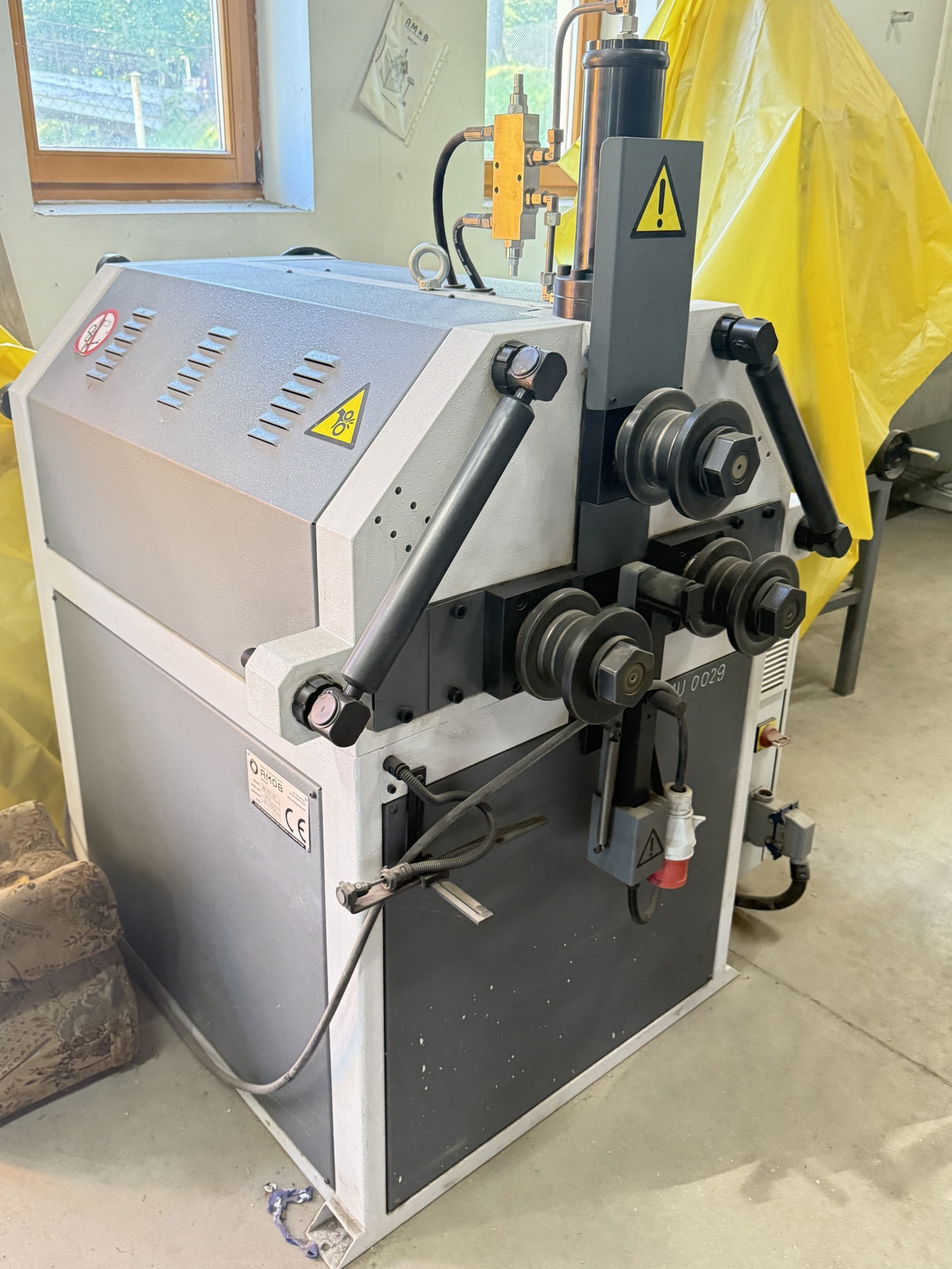

AMOB MAH 40/3 CNC 3-roll bending machine

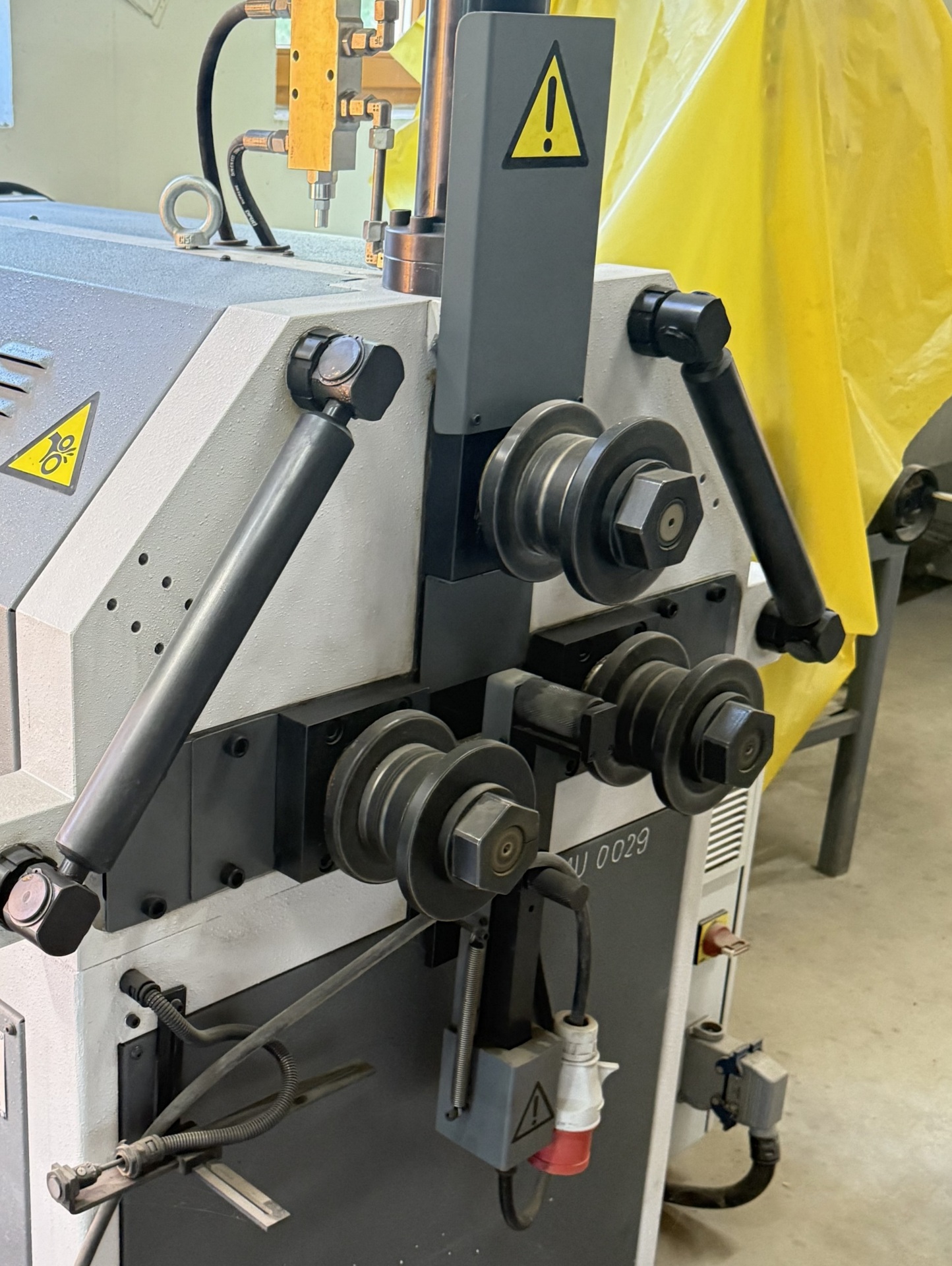

AMOB MAH 40/3 CNC 3-roll bending machine was built in 2021 in Portugal by AMOB Group. The machine, designed for bending tubes and profiles, ensures the highest precision and repeatability of the produced parts. The machining process is performed by three hardened rollers, of which the upper roller has hydraulic adjustment. Each of these is driven by a reliable, high-power motor, which is located inside a fully welded body. This solution enables bending of even the most complex shapes both vertically and horizontally. All this is complemented by an advanced CNC control with memory for numerous programmes. The MAH 40/3 CNC tube and profile bending machine weighs 540 kg.

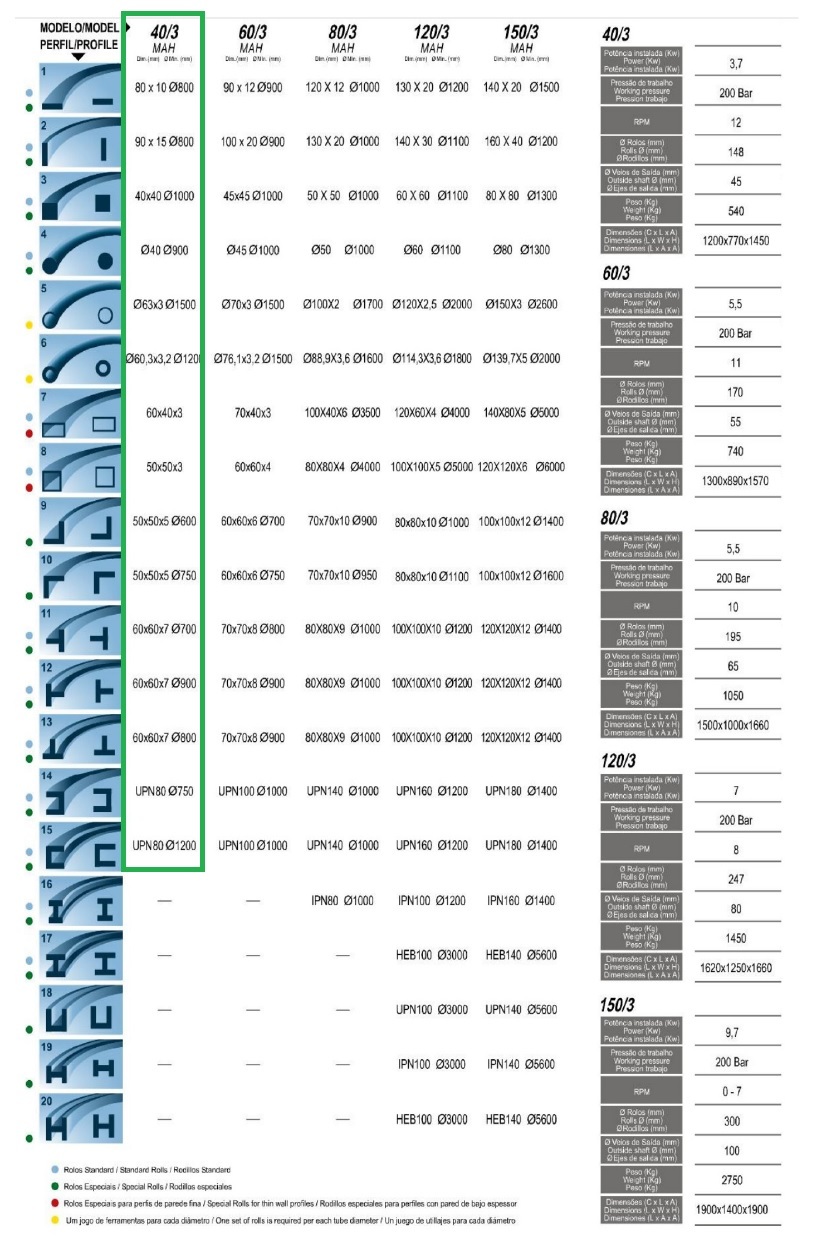

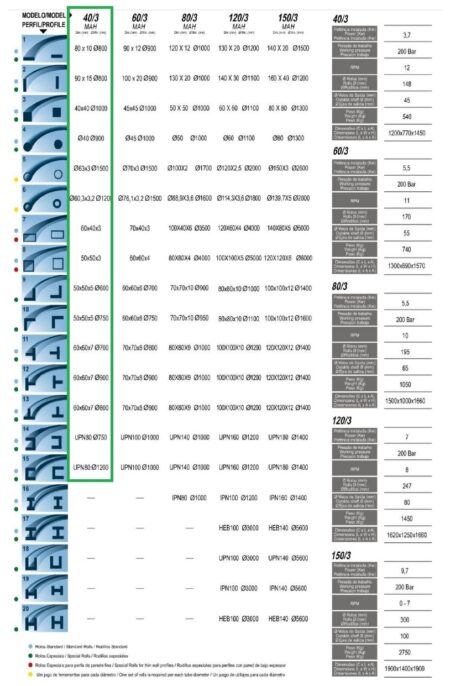

Technical specifications of the AMOB MAH 40/3 CNC bending machine

• control panel with CNC control
• number of rollers: 3
• roller diameter: 148 mm
• roller rotational speed: 12 rpm
• number of shafts: 2
• shaft diameter: 45 mm
• motor power: 3.7 kW
• operating pressure: 200 bar
• dimensions (L x W x H): 1200 x 770 x 1450 mm
• weight of the AMOB machine: 540 kg
