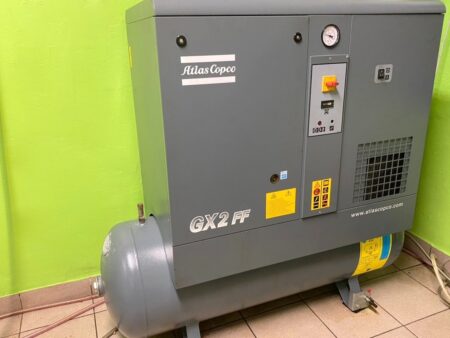

ATLAS COPCO GX2 FF screw compressor

ATLAS COPCO GX2 FF screw compressor was built in 2006. The versatile device with integrated refrigerant dryer provides the user with the highest quality compressed air, free of water vapour that is harmful to tools and machinery. ATLAS COPCO oil-injected screw compressor is a combination of reliable components, durable sound-insulated casing and an easy-to-use control panel that ensures high energy efficiency and reliability of use. To ensure uninterrupted operation even under the heaviest loads, all machine components inside the casing, i.e. the powerful electric motor with drive belt, are cooled by a low-temperature air flow. The GX2 FF screw compressor weighs 187 kg.

Technical specifications of the ATLAS COPCO GX2 FF compressor

• working pressure: 10 bar
• motor power: 2.2 kW
• pressure dew point: 3°C
• input power at maximum operating pressure: 4.1 kW
• maximum inlet temperature: 40°C
• oil volume: 2,5 l
• refrigerant: R134a
• refrigerant quantity: 0.17 kg
• thermostatic valve adjustment: 71°C
• integrated refrigeration dryer
• working pressure (dryer): 10 bar
• motor power (dryer): 0.24 kW
• pressure drop (dryer): 0.15 bar
• pressure tank
• working hours: 2059 h
• power consumption at full load (dryer): 0.3 kW
• power consumption at no load (dryer): 0.2 kW
• maximum ambient temperature: 40°C
• noise level: 61 dB(A)
• power supply: 3x 400 V; 50 Hz
• weight of machine: 187 kg
