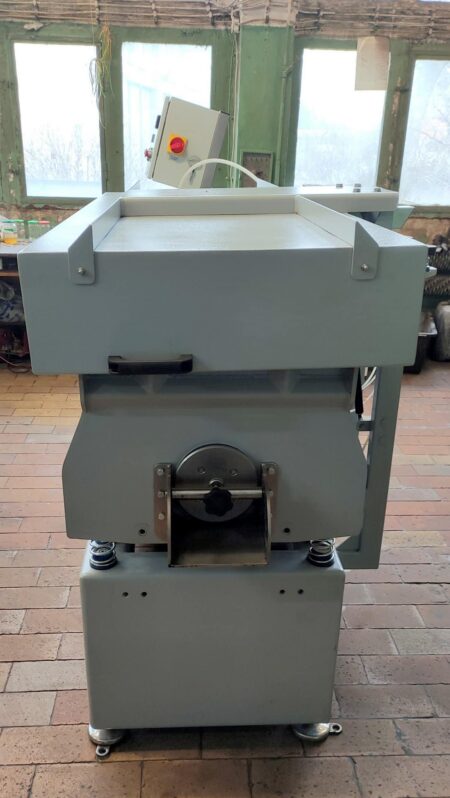

AVALON WR120 trough vibratory machine

AVALON WR120 trough vibratory machine built in 2017 in Poland, uses ceramic or resin shapes introduced into vibration for mass deburring, smoothing, edge rounding and cleaning metal workpieces. Efficient machining over the entire working surface is achieved thanks to the high amplitude and low frequency of the vibrations.

Vibratory finishing set composition:
– vibratory trough finishing machine: AVALON WR120

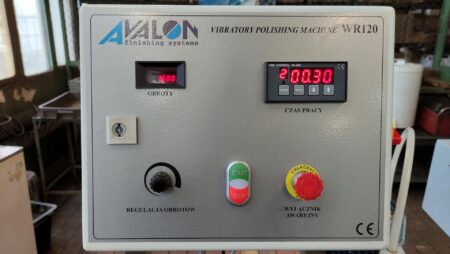

– control panel with timer and frequency converter mounted on stand
– sound-absorbing chamber cover
– machining fluid metering pump: WR120/TE60 (TEKNA)

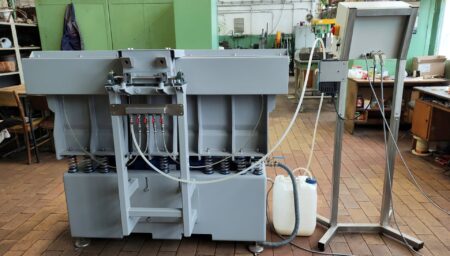

– machining fluid distribution system: COMMONRAIL WR120

The working chamber of the trough vibratory machine was made of high-quality material with almost 8 times the abrasion resistance of steel. The trough vibratory machine was used for a small amount of time – it worked a total of around 100 hours. The total weight of the machine is 610 kg.

Technical data of the AVALON WR120 trough vibratory machine

• working chamber volume: 120 l
• working chamber dimensions (L x W x H): 1200 x 350 x 425 mm
• motor power: 1,2 kW
• machine overall dimensions (L x W x H): 1510 x 920 x 1200 mm
• power supply: 230 V
• weight of the WR 120 machine: 610 kg
