AVIA FND 32AT universal milling machine

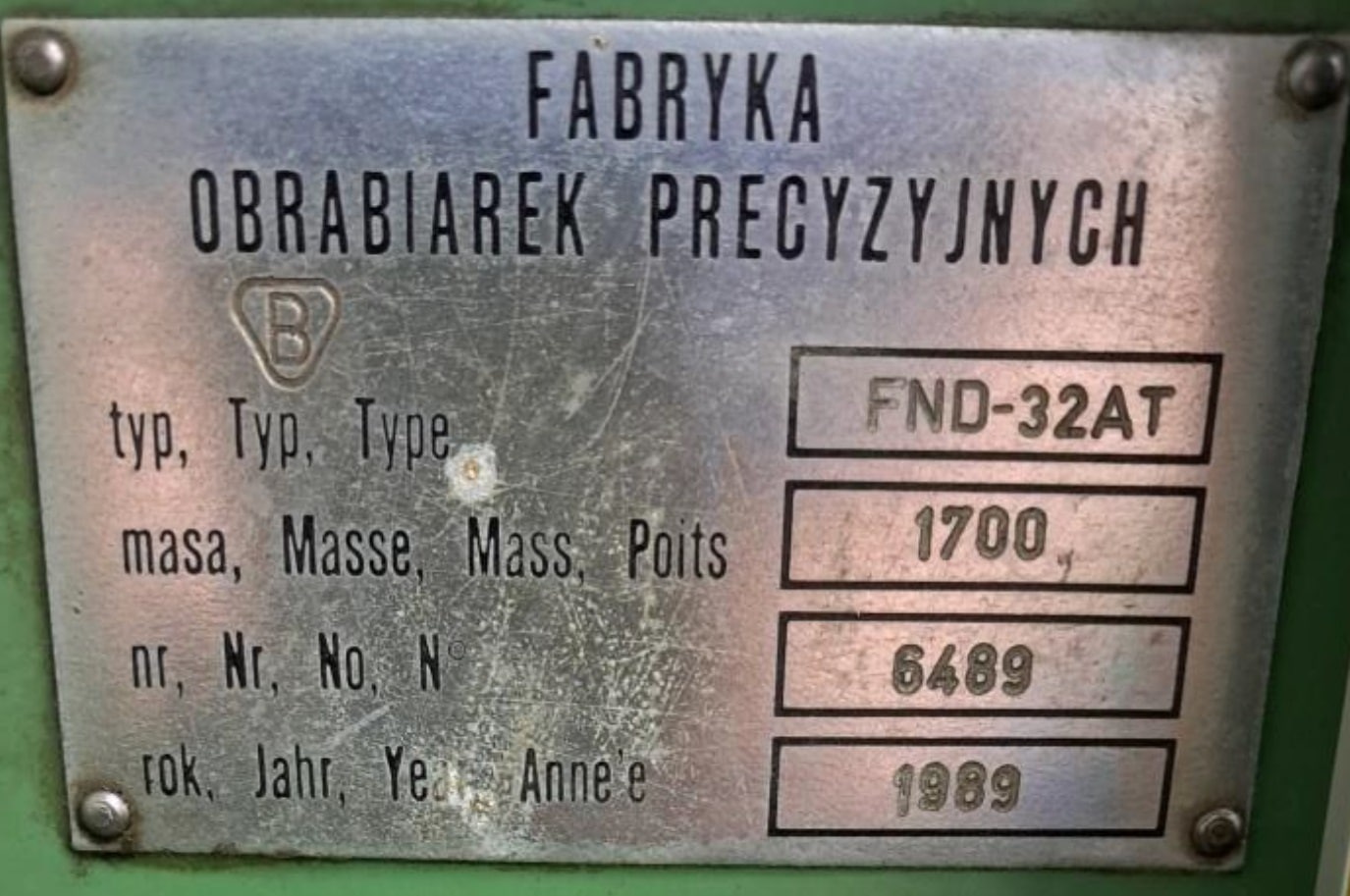

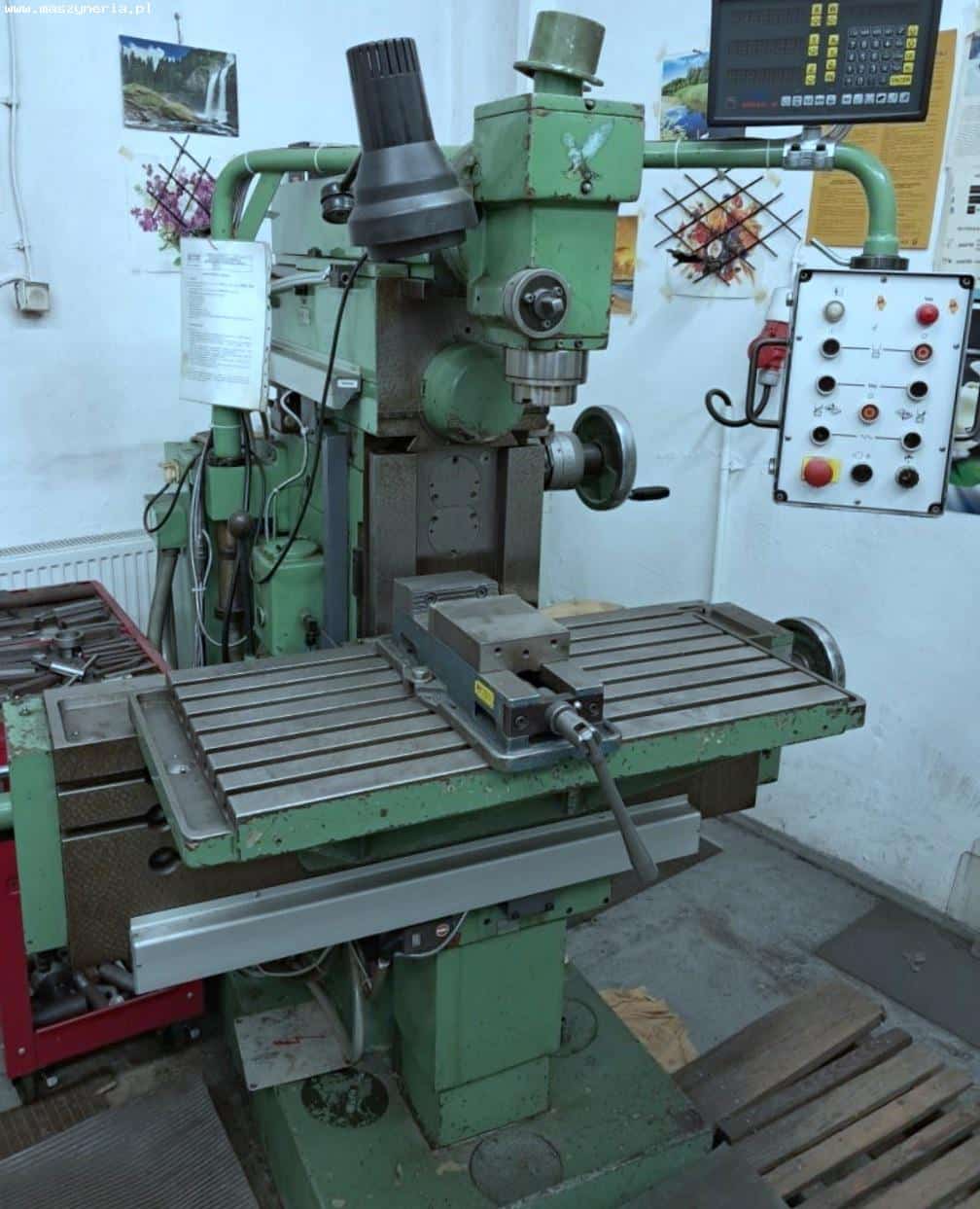

AVIA FND 32AT universal milling machine was built in 1989 in Poland by Fabryka Obrabiarek Precyzyjnych AVIA S.A. The machine, designed for precision machining of workpieces with a maximum weight of 300 kg, is an excellent choice for both unit and small batch production. Ball screws in all axes, combined with precisely machined guideways, guarantee high repeatability of the produced parts even during the most intensive challenges. The machine also features a digital readout and a lamp that illuminates the workspace. The FND 32 AT conventional milling machine weighs 1700 kg.

Technical specifications of the AVIA FND 32AT milling machine

• horizontal work table dimensions (L x W): 800 x 400 mm
• T-slot number in horizontal work table: 7
• vertical work table dimensions (L x W): 1100 x 315 mm
• T-slot number in vertical work table: 3
• maximum workpiece weight: 300 kg
• number of spindle rotational speed adjustment stages: 18
• spindle rotational speed range: 35.5-1800 rpm
• digital readout
• workspace illumination
• dimensions (L x W x H): 2130 x 1870 x 1950 mm
• weight of the AVIA FND 32AT machine: 1700 kg
