AXXAIR orbital welding system

AXXAIR orbital welding system was built in 2020 in France. It is an extremely easy-to-use and efficient solution for precision welding of tubes with a maximum diameter of 170 mm. The mechanised orbital welding is performed using the TIG method, in which a torch with a non-fusible tungsten electrode moves around a stationary workpiece. In this way, welds of the highest quality, repeatability and cleanliness are produced.

The orbital welding system is offered with all the necessary components including
– orbital welding power source AXXAIR SAXX-210
– open head for orbital welding SATO-170E41
– orbital cutting machine AXXAIR CC172

Technical specifications of the individual components of the AXXAIR orbital welder

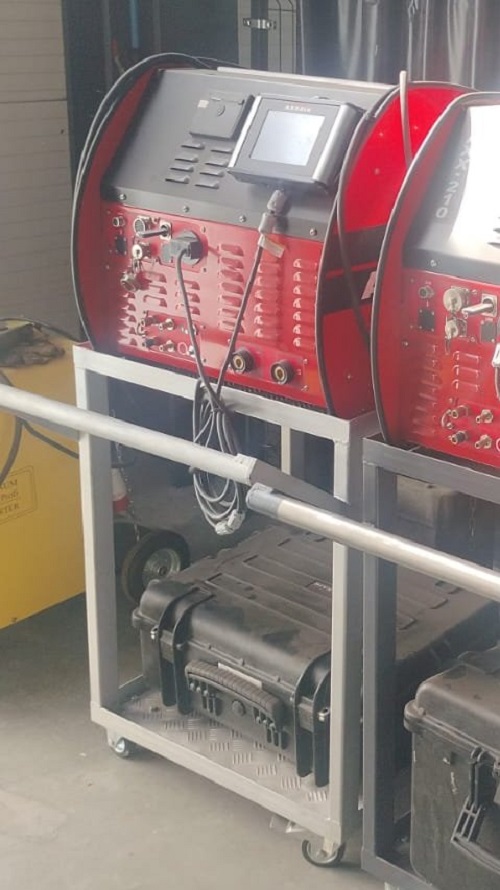

Power source

• single-phase network with earthing
• supply voltage 110-230 V ± 15%
• frequency: 50/60 Hz
• input current consumption (at 230 V): 25 A
• input current consumption (at 110 V): 32 A
• memory with capacity for 200 programmes in up to 20 sectors

Head

• diameter range: 25-170 mm
• liquid cooling system
• weight: 8 kg

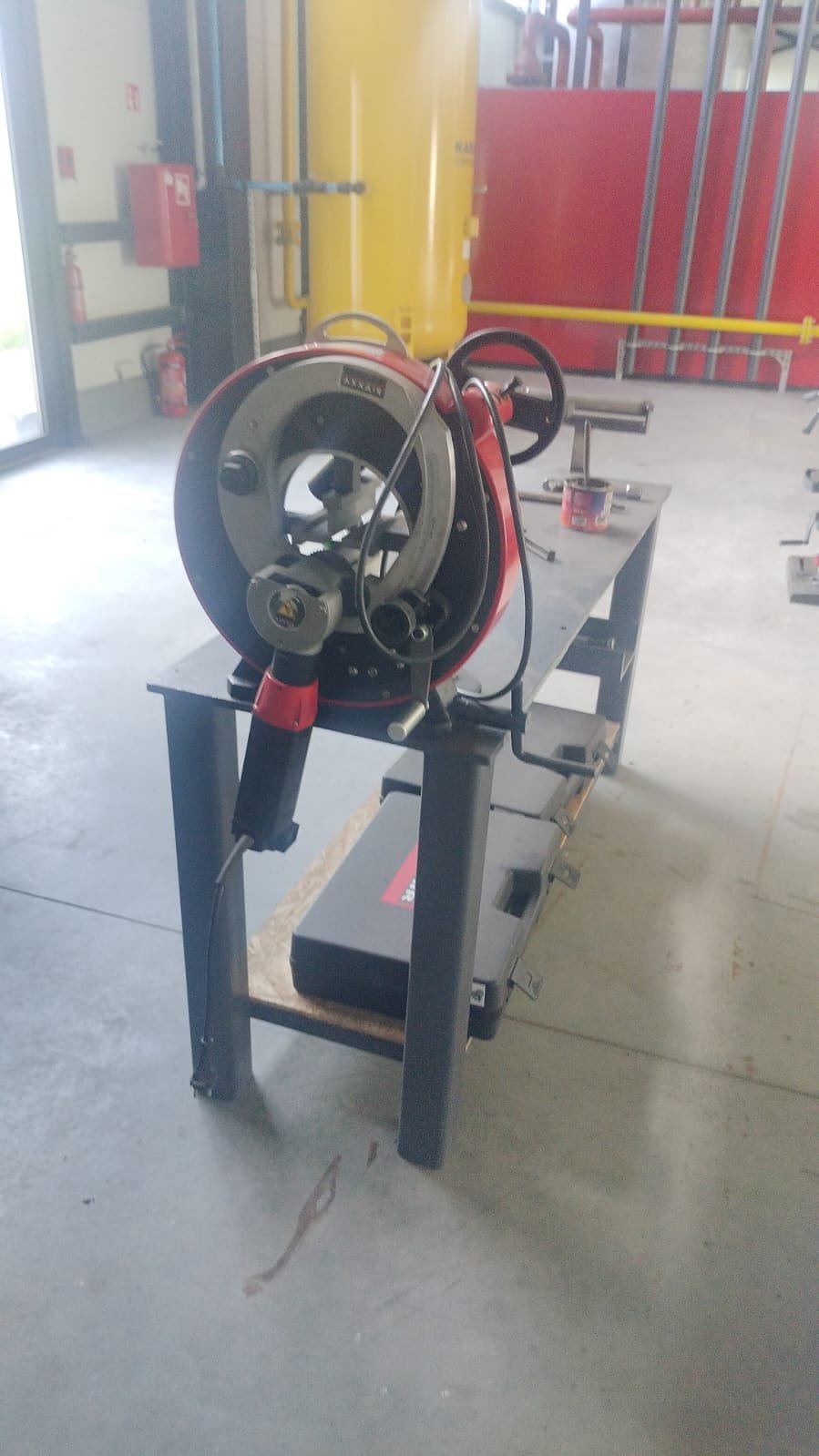

Orbital cutting machine

• basic stainless steel jaws ⌀ 74-173 mm
• auxiliary stainless steel jaws ⌀ 16-116 mm
• cutting precision (perpendicular cut): <0.25 mm
• possibility of bevelling and orbital welding
• motor with 2 blade positions
• weight: 51 kg
