AXXAIR orbital welding system

AXXAIR orbital welding system was built in 2020 in France. The system, designed to weld tubes with a maximum diameter of 220 mm, proves itself wherever the highest quality, repeatability and cleanliness of joints are required. The mechanised orbital welding is performed using the TIG method, in which a torch with a non-fusible tungsten electrode moves around a stationary workpiece. The use of this solution guarantees welds of the highest quality, repeatability and cleanliness.

The orbital welding system on offer is fully complete and consists of the following parts:
– orbital welding power source AXXAIR SAXX-210
– open head for orbital welding SATO-220E41
– orbital cutting machine AXXAIR CC222

Technical specifications of the individual components of the AXXAIR orbital welder

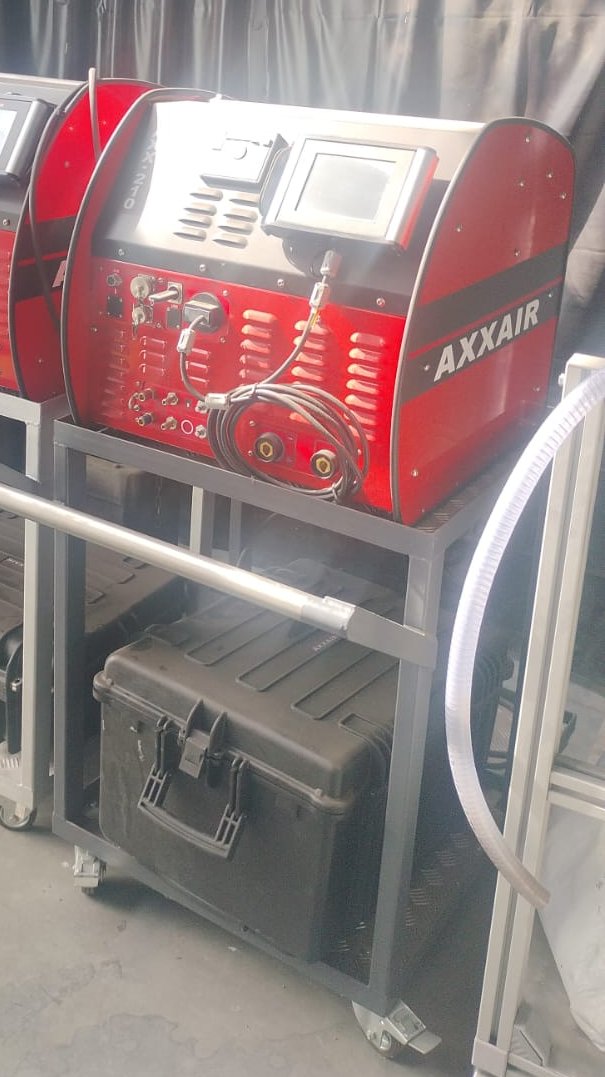

Power source

• single-phase network with earthing
• supply voltage 110-230 V ± 15%
• input current consumption (at 230 V): 25 A
• input current consumption (at 110 V): 32 A
• frequency: 50/60 Hz
• memory with capacity for 200 programmes in up to 20 sectors

Head

• diameter range: 38-220 mm
• liquid cooling system
• weight: 9.4 kg

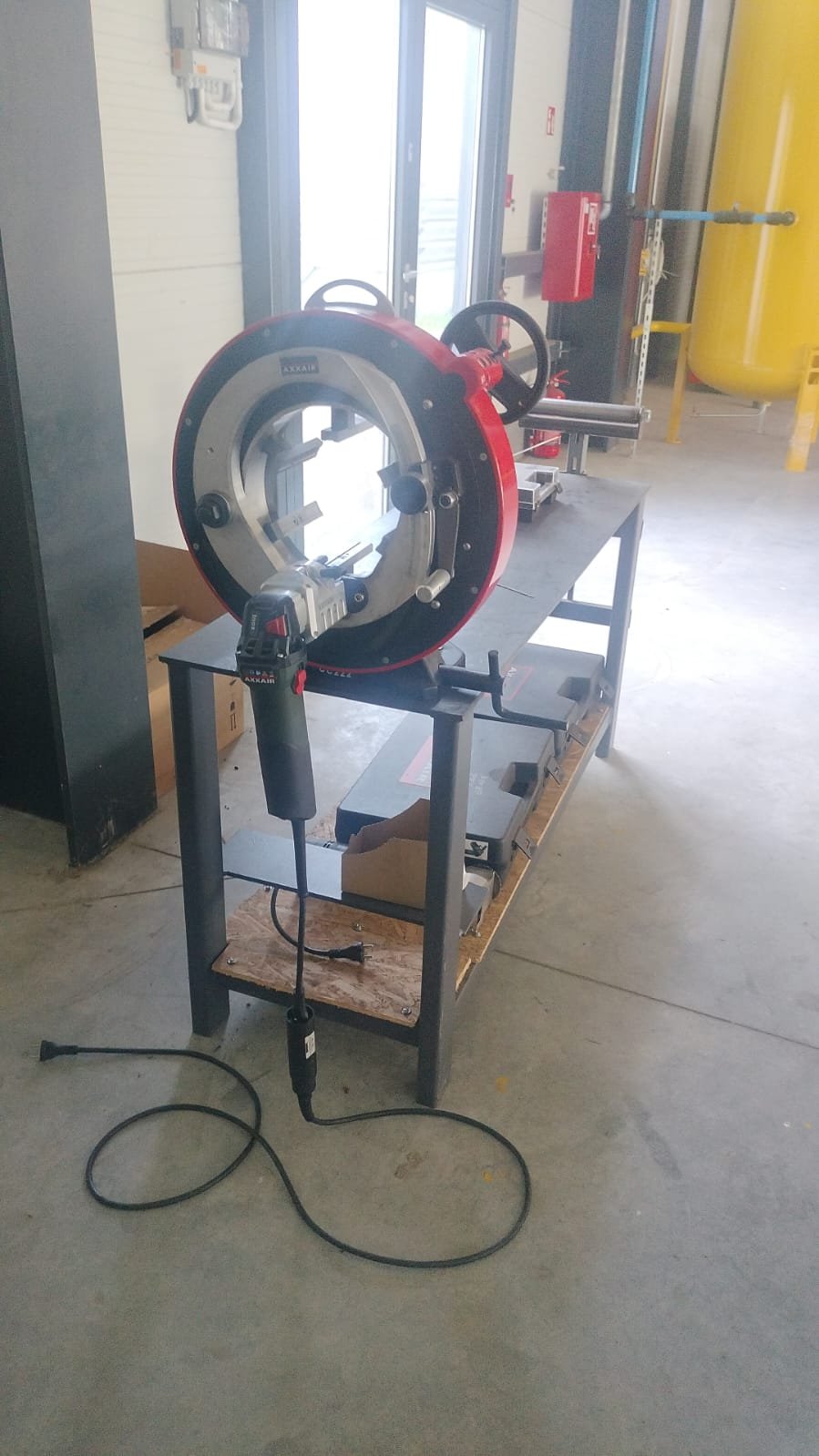

Orbital cutting machine

• basic stainless steel jaws ⌀ 128-228 mm
• auxiliary stainless steel jaws ⌀ 55-155 mm
• cutting precision (perpendicular cut): <0.25 mm
• possibility of bevelling and orbital welding
• motor with 2 blade positions
• weight: 59 kg
