BAYKAL BPS3006 plasma cutting machine

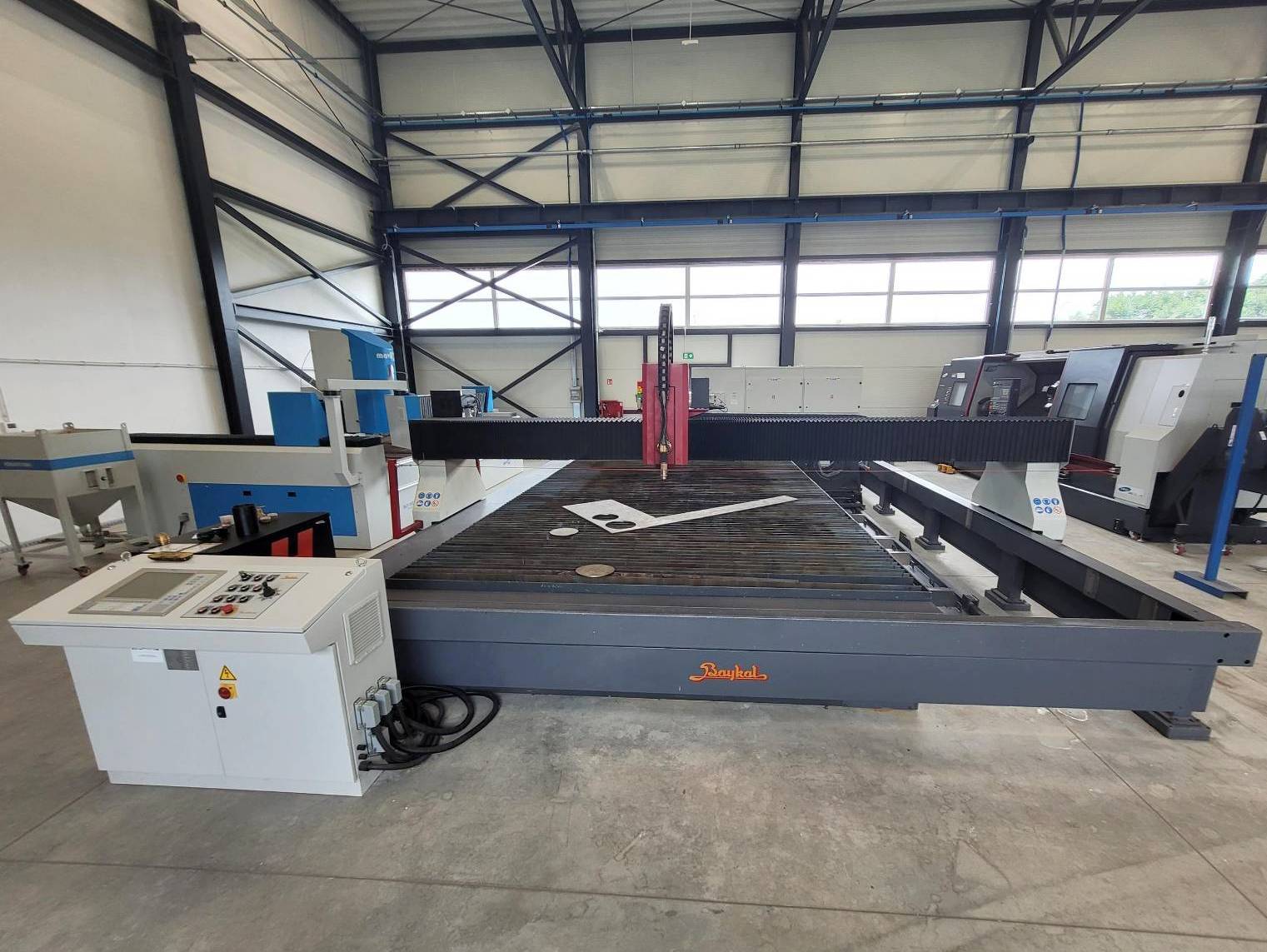

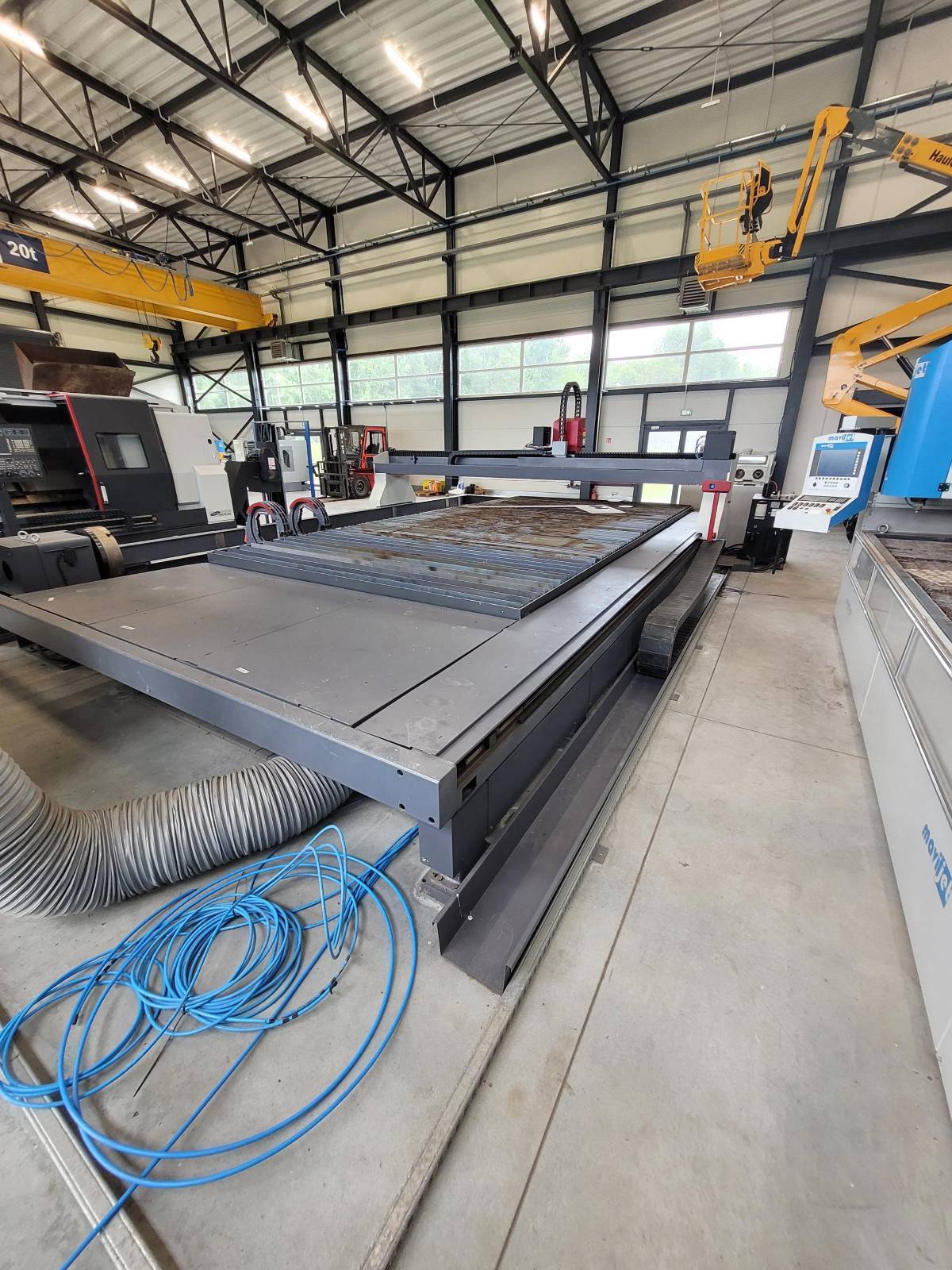

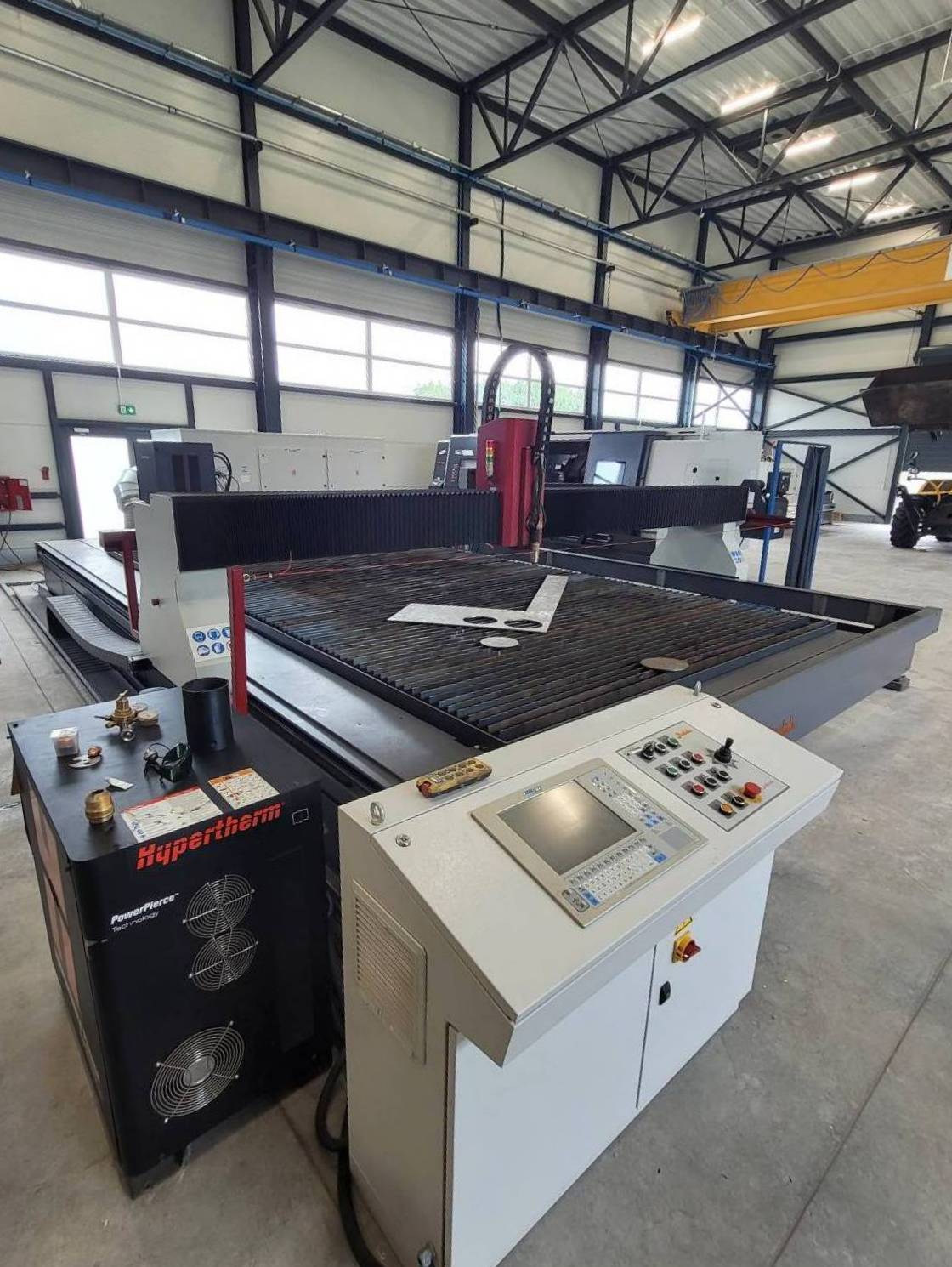

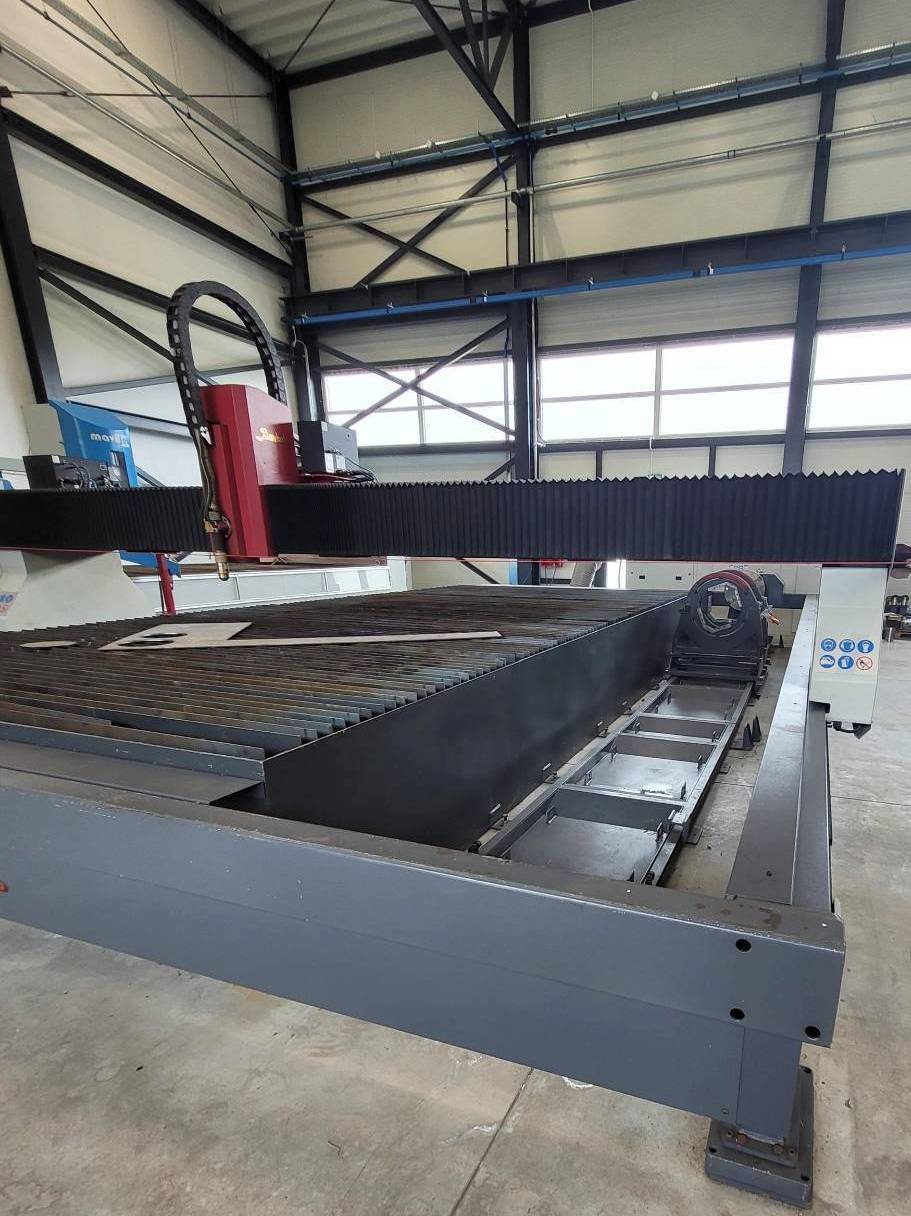

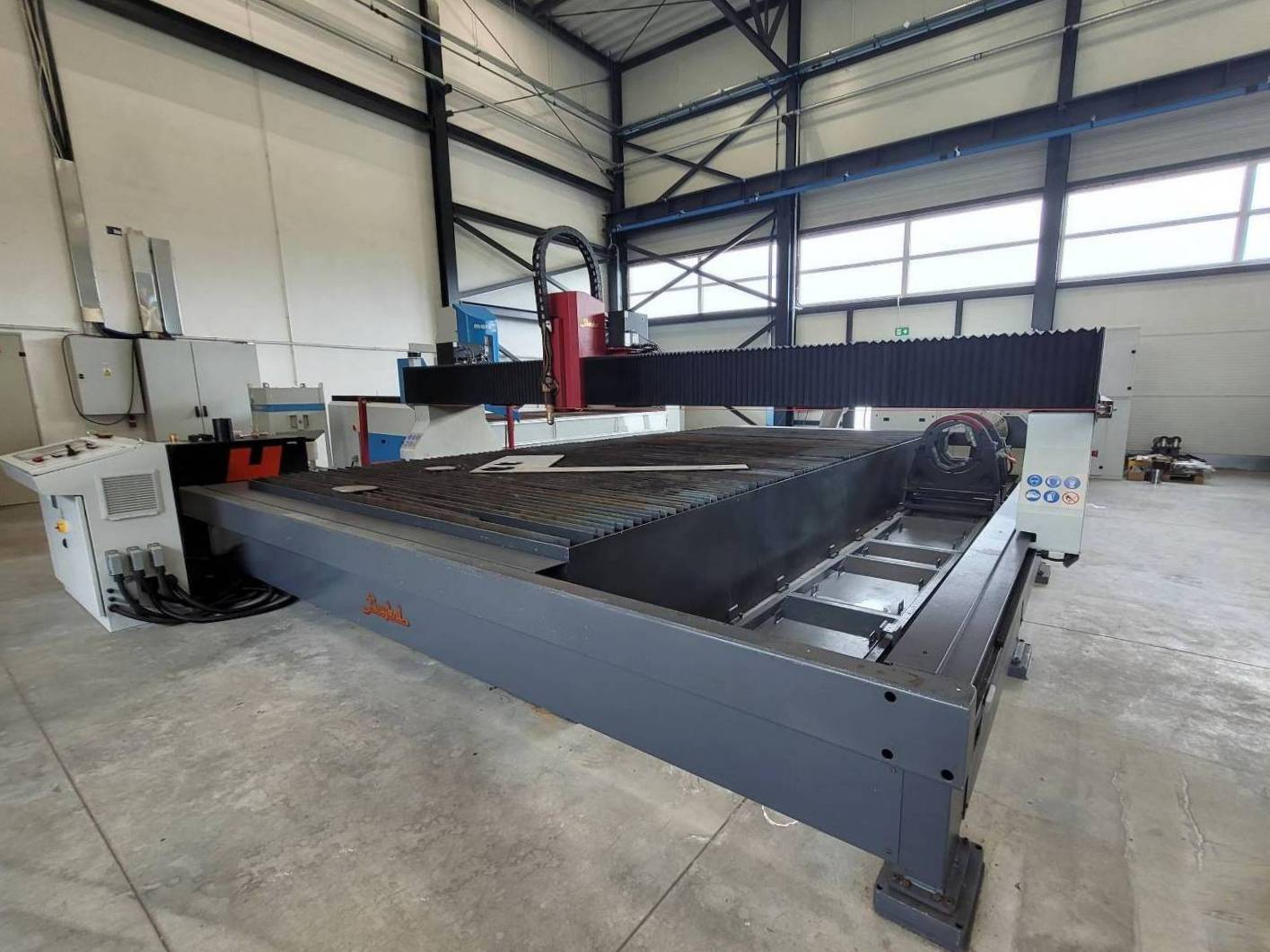

BAYKAL BPS3006 plasma cutting machine was built in 2020 in Turkey by BAYKAL MAKINA SANAYI VE TICARET A.Ş. The machine is designed for precision plasma cutting of sheet metal and tubes. The machining process is performed on a large work table with a length of 6000 mm and a width of 3000 mm with an extraction system. This system is integrated with an industrial filtration unit, which removes any contamination generated during the cutting process on an ongoing basis. The plasma torch with an anti-collision system and automatic height adjustment is in turn powered by a powerful HYPERTHERM plasma source of the highest energy efficiency. The innovative True Hole cutting technology for mild steel ensures significantly better hole quality than was ever possible with the use of plasma. All this is complemented by extensive equipment, consisting of, among others, an intelligent CNC control and automatic Nesting software. The BPS-3006 plasma cutting machine weighs 9500 kg.

Technical specifications of the BAYKAL BPS3006 plasma cutting machine

• work table dimensions (L x W): 6000 x 3000 mm
• axis positioning speed: 30 m/min
• mechanical accuracy: ± 0.1 mm
• air pressure: 8.5 bar
• power: 50 kW
• power supply: 220/380 V
• dimensions (L x W x H): 8100 x 5500 x 2500 mm
• weight of the BAYKAL BPS3006 machine: 9500 kg

Equipment of the BAYKAL CNC plasma cutting machine

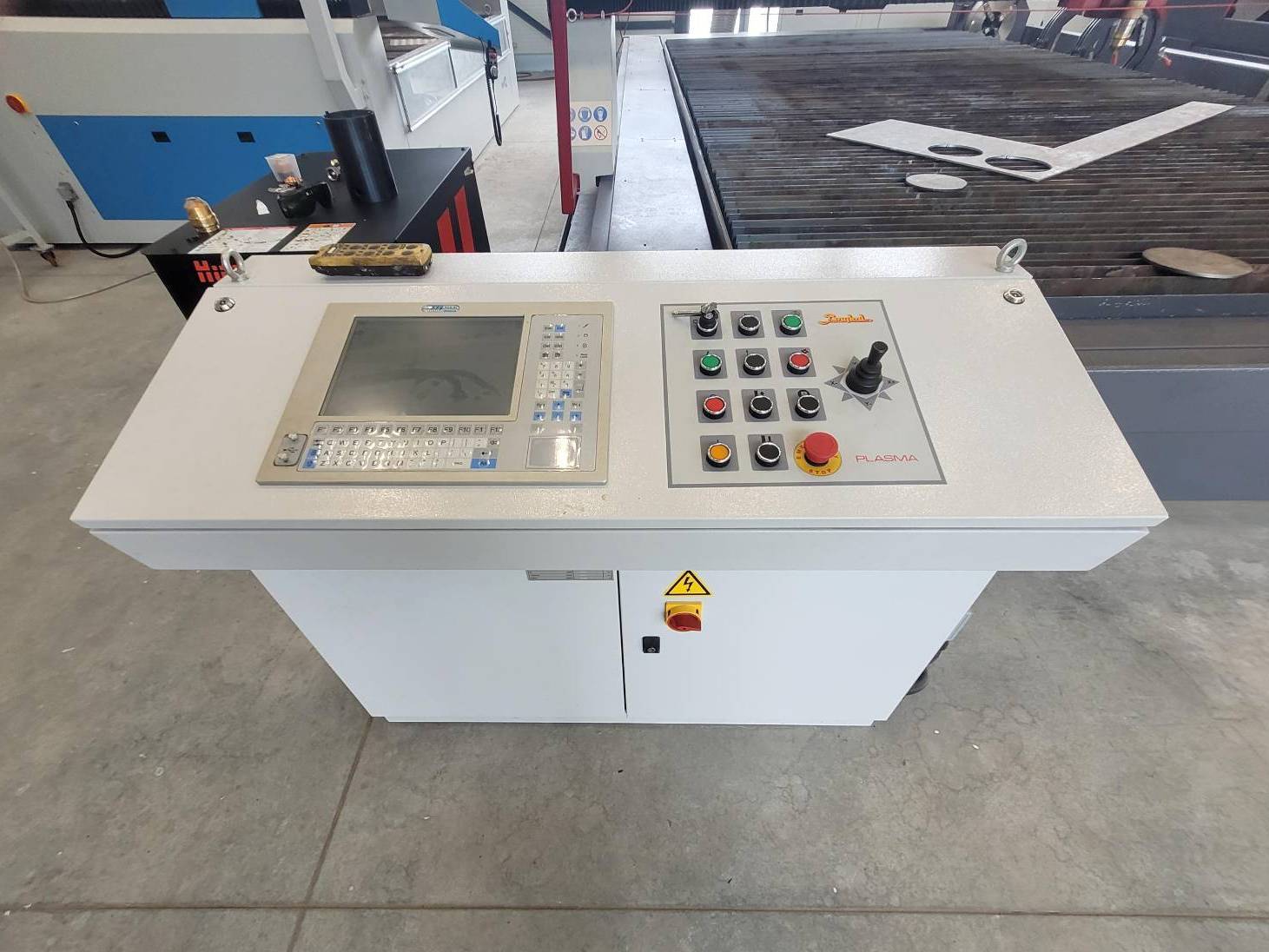

• TECNOS PC 12 CNC controller based on Windows operating system
• automatic Nesting software

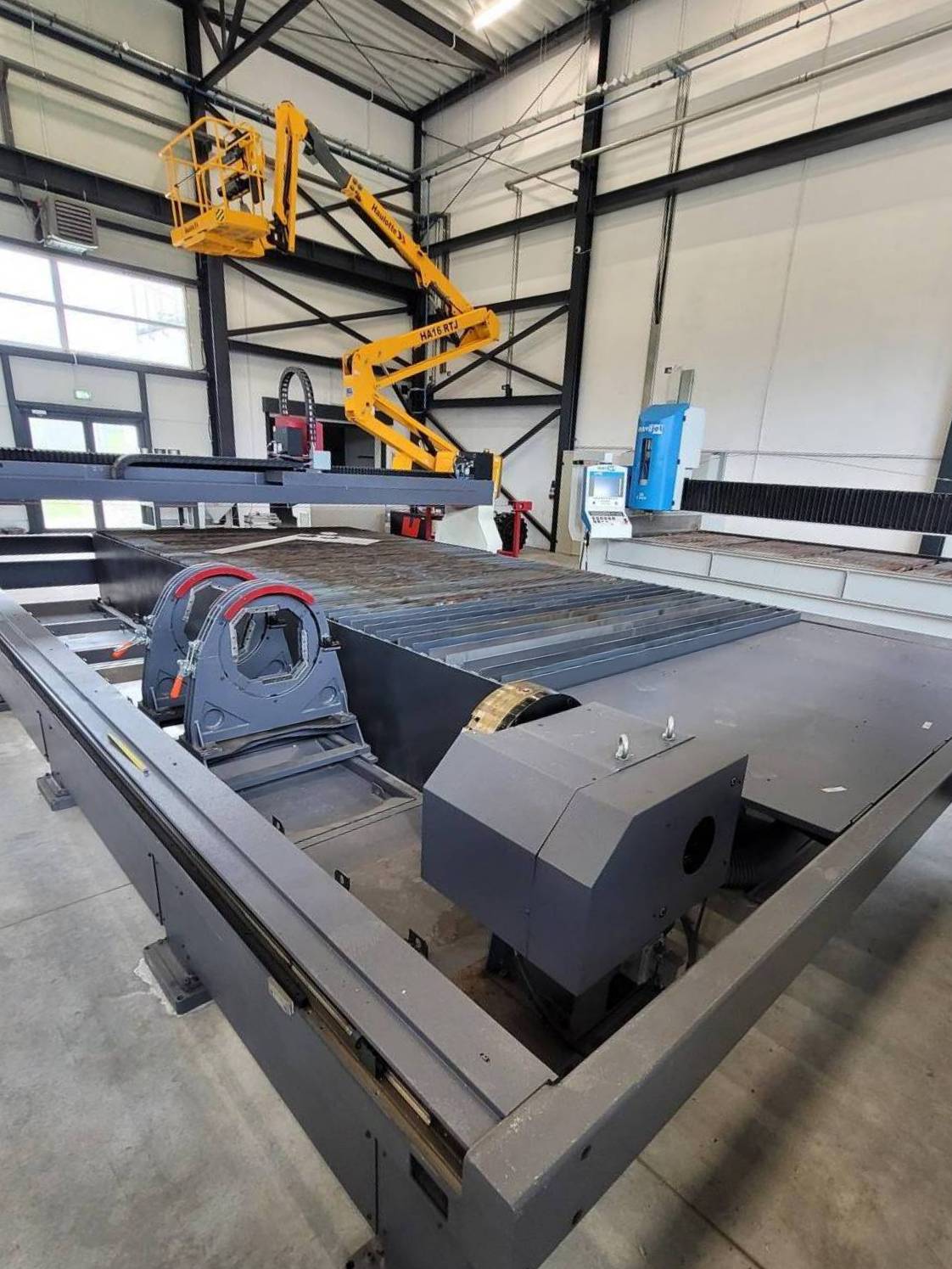

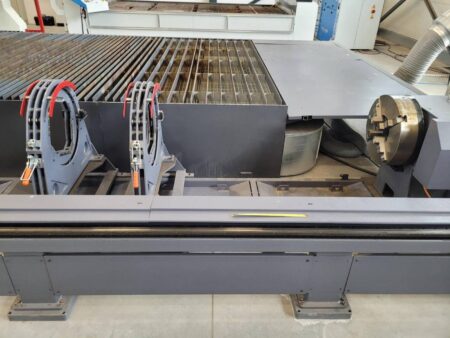

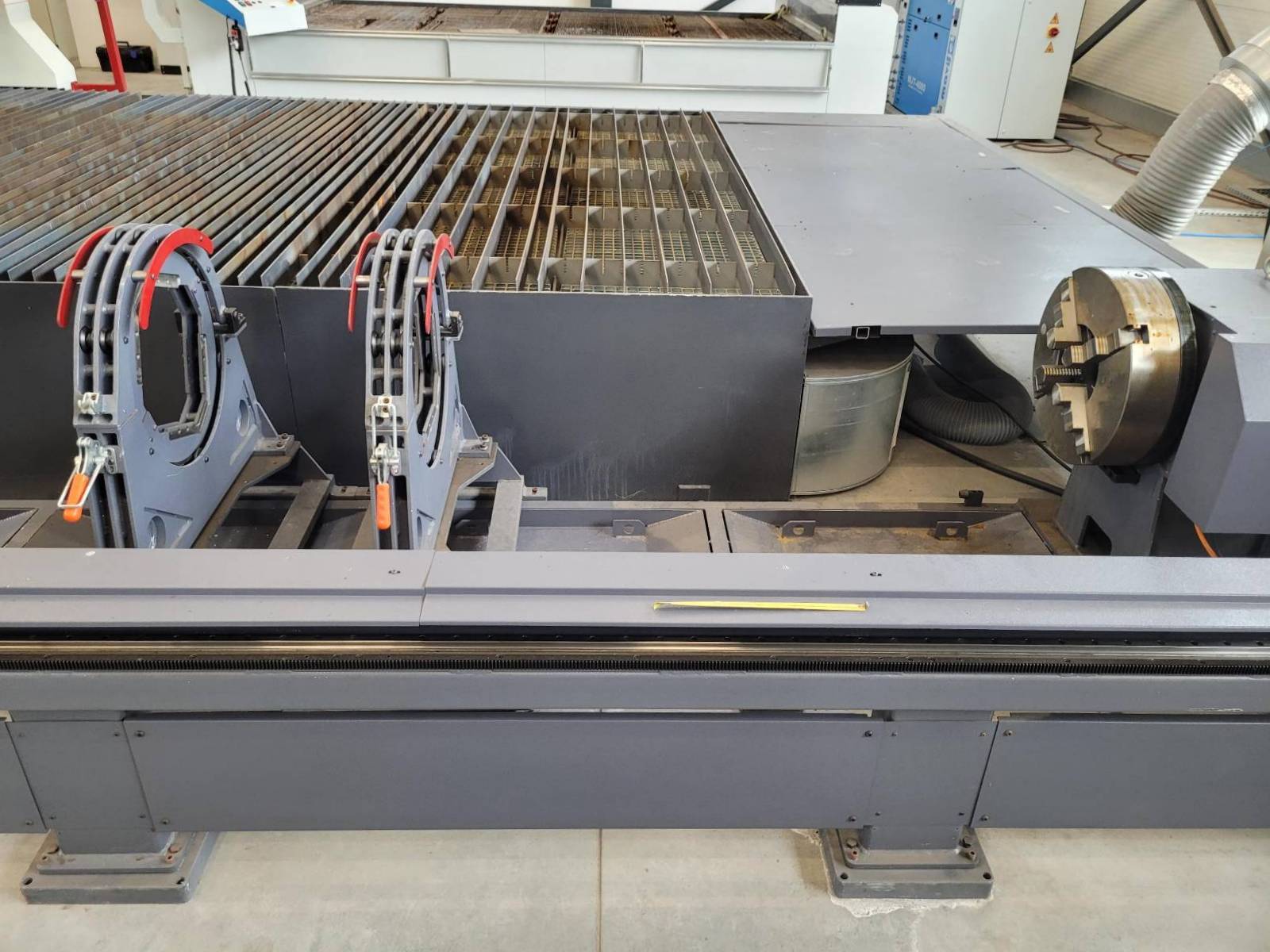

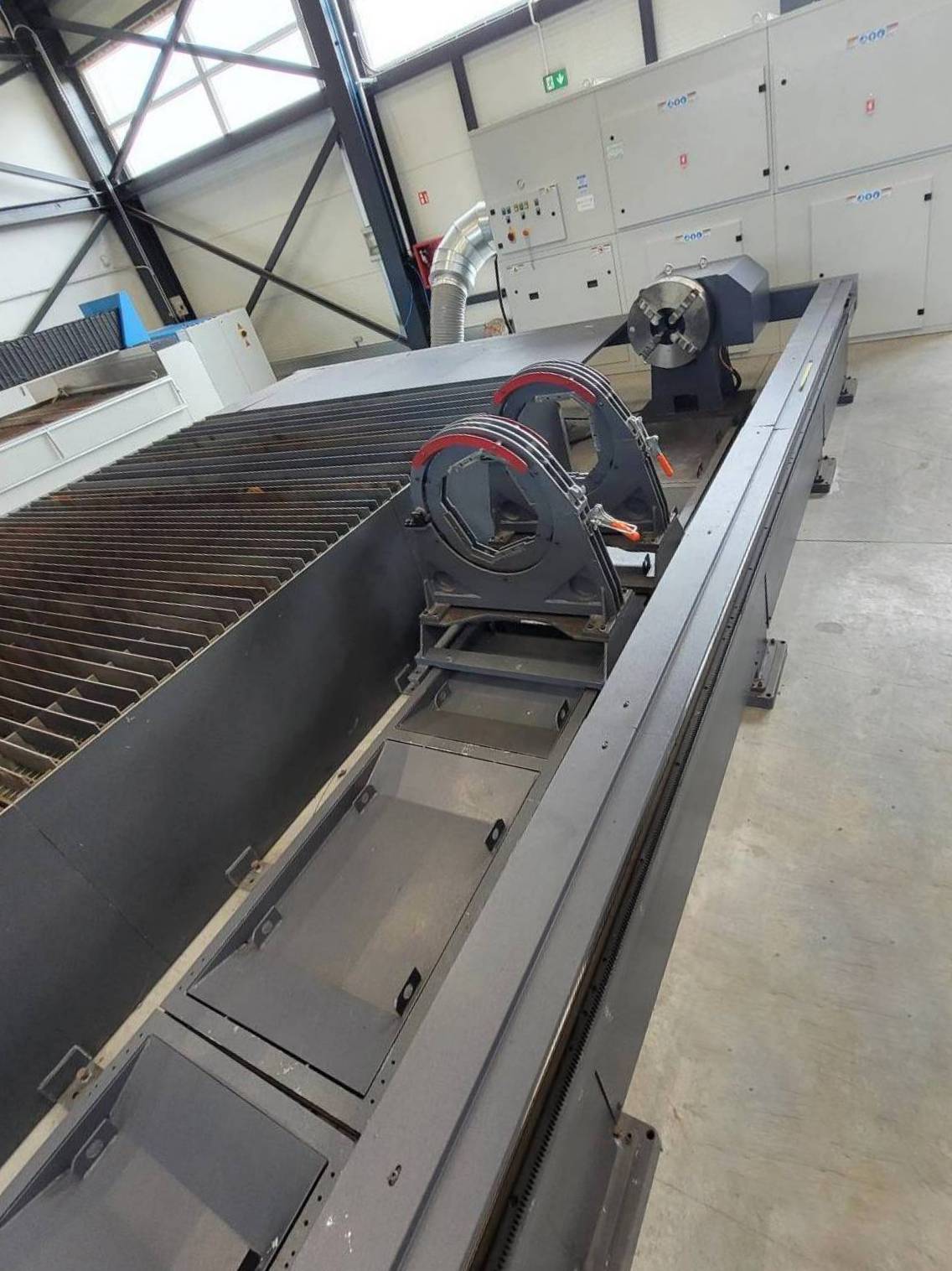

• tube cutting system

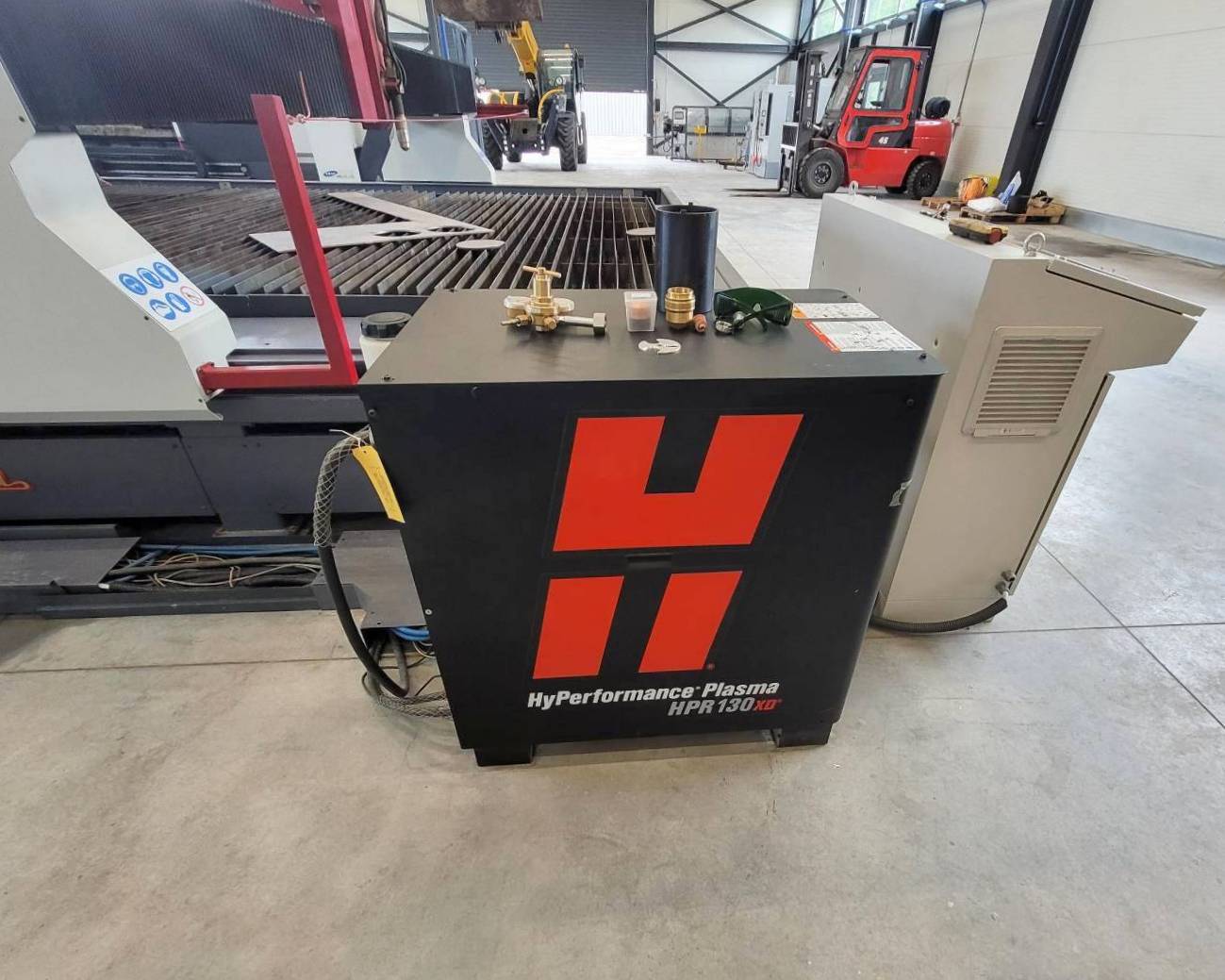

• plasma source: HYPERTHERM HyPerformance HPR 130XD

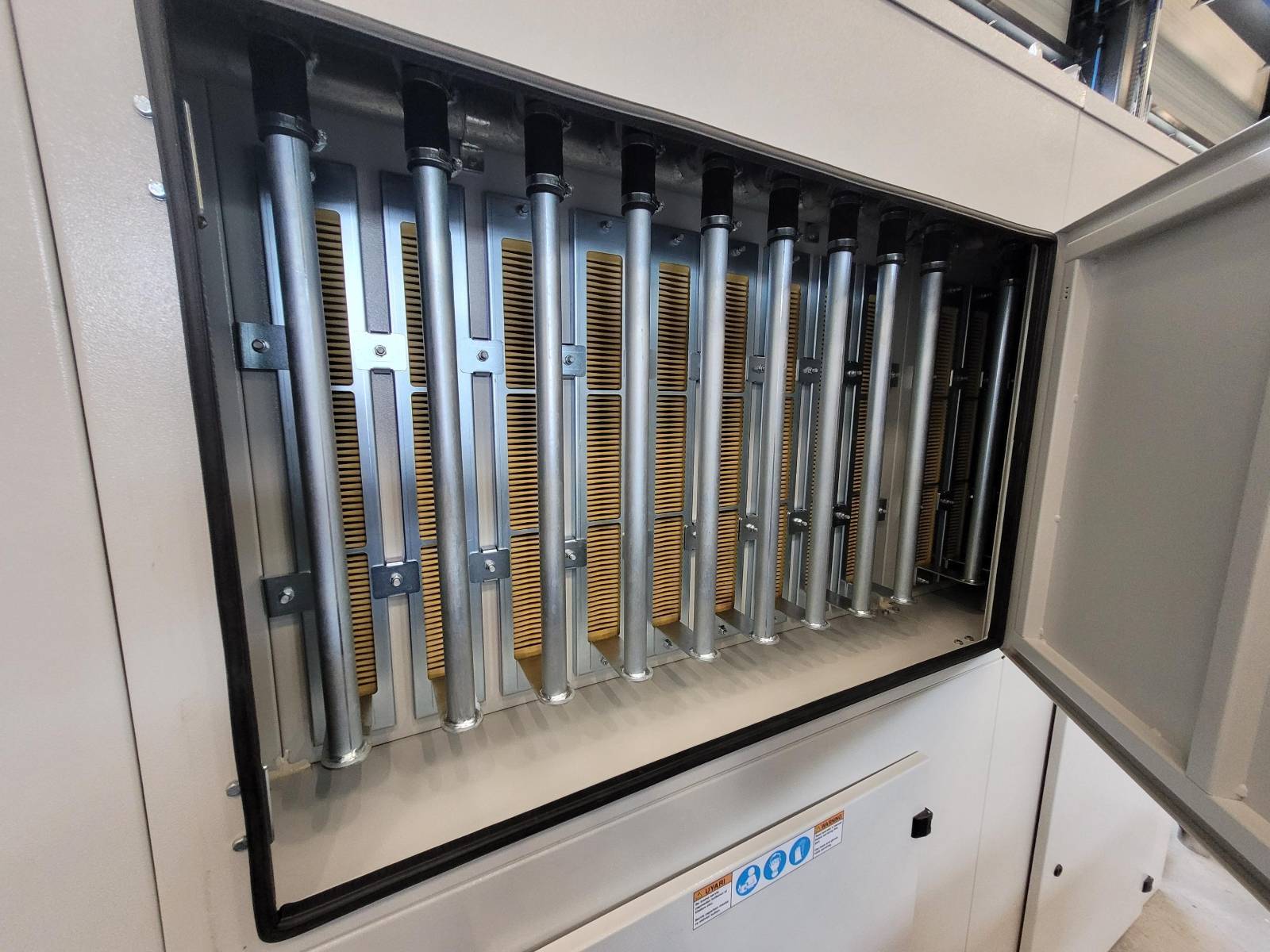

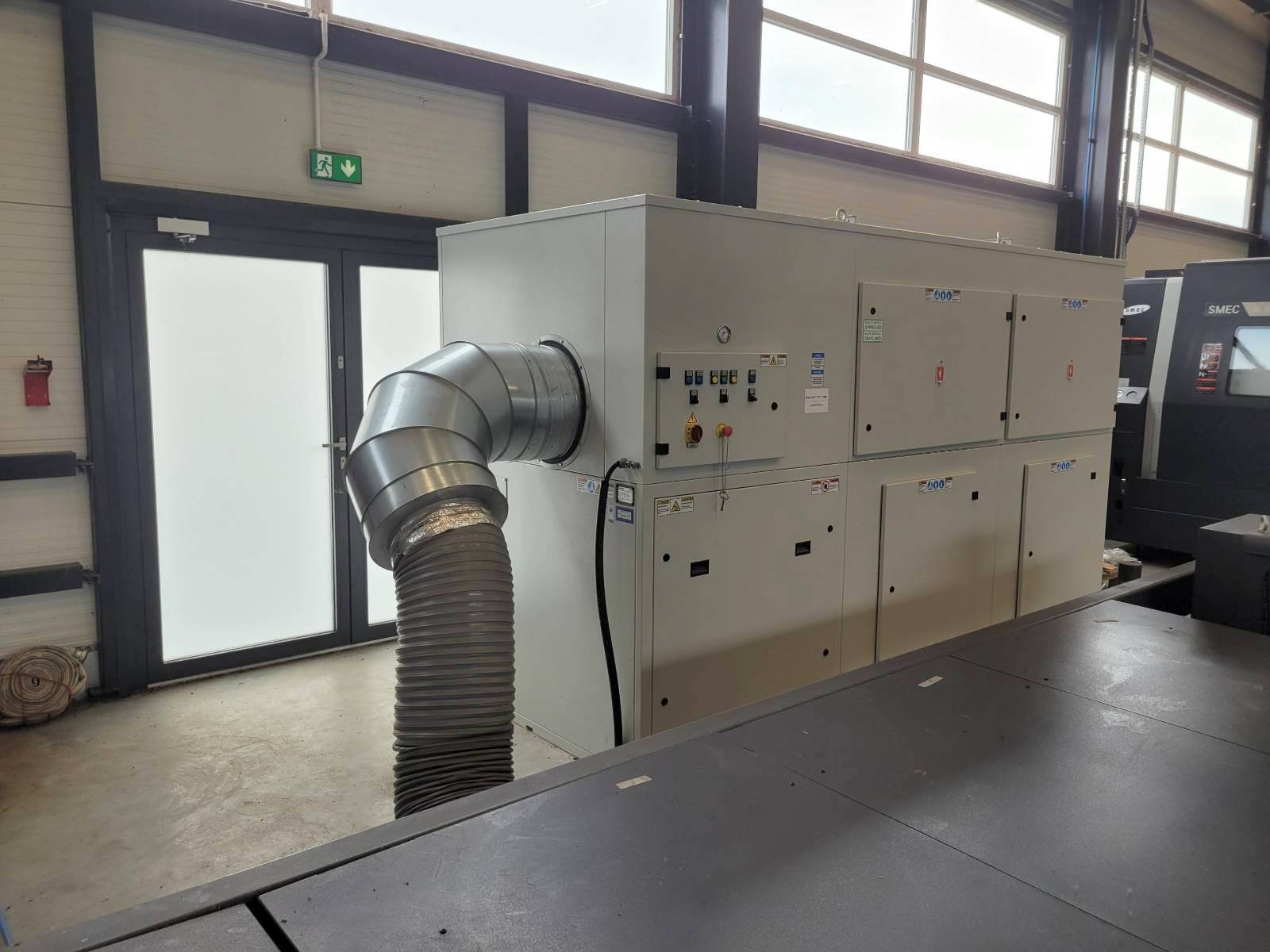

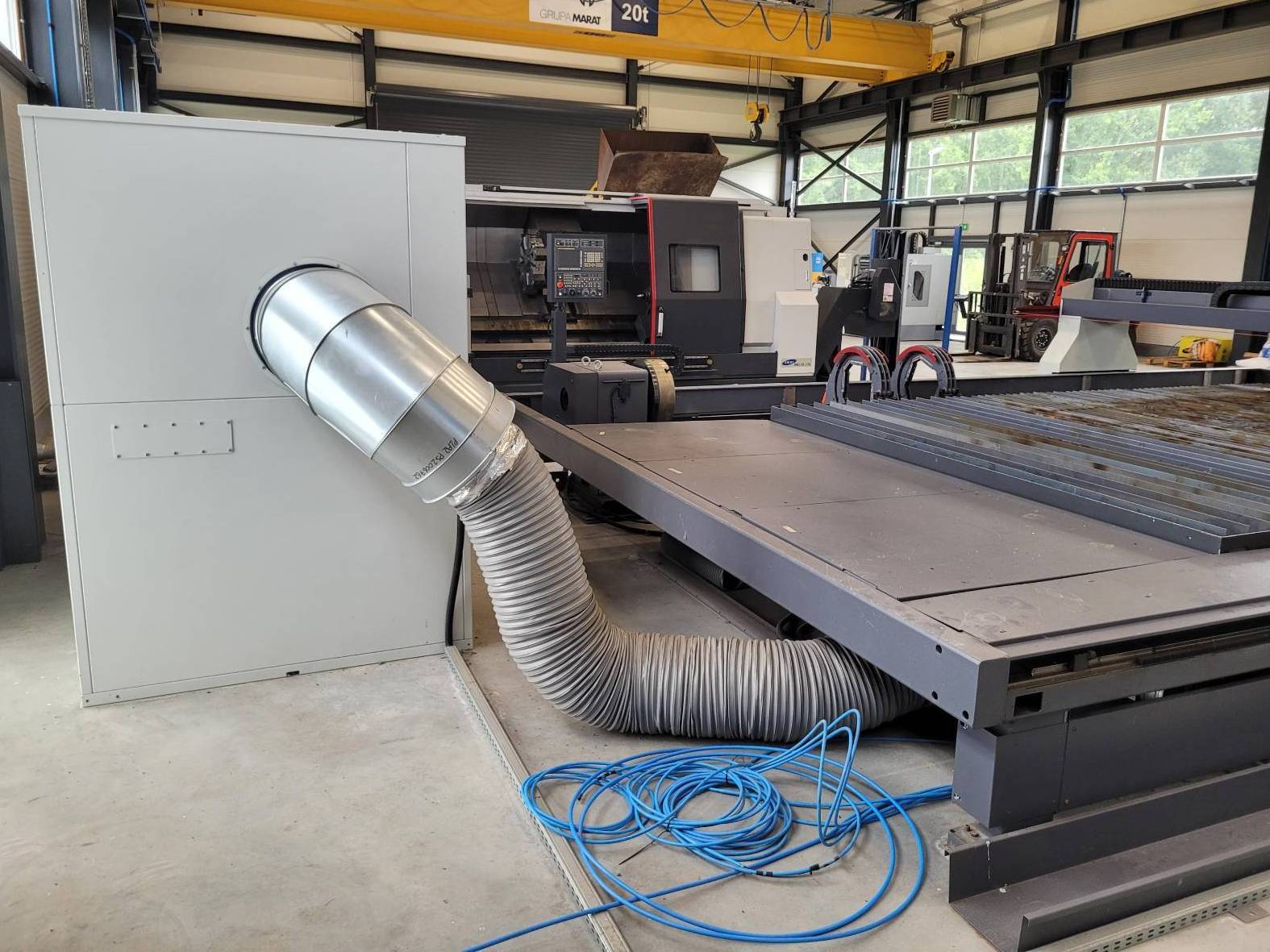

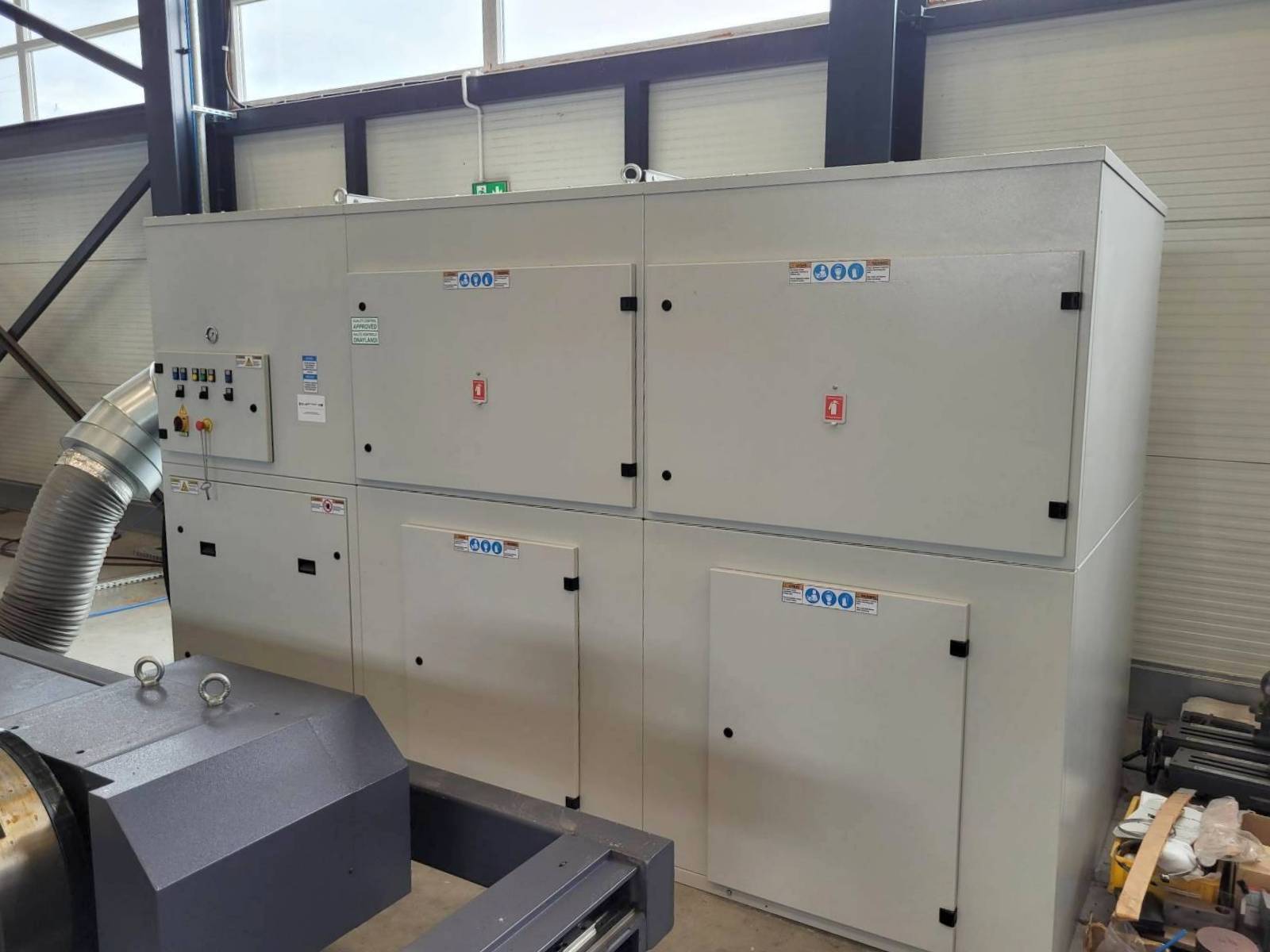

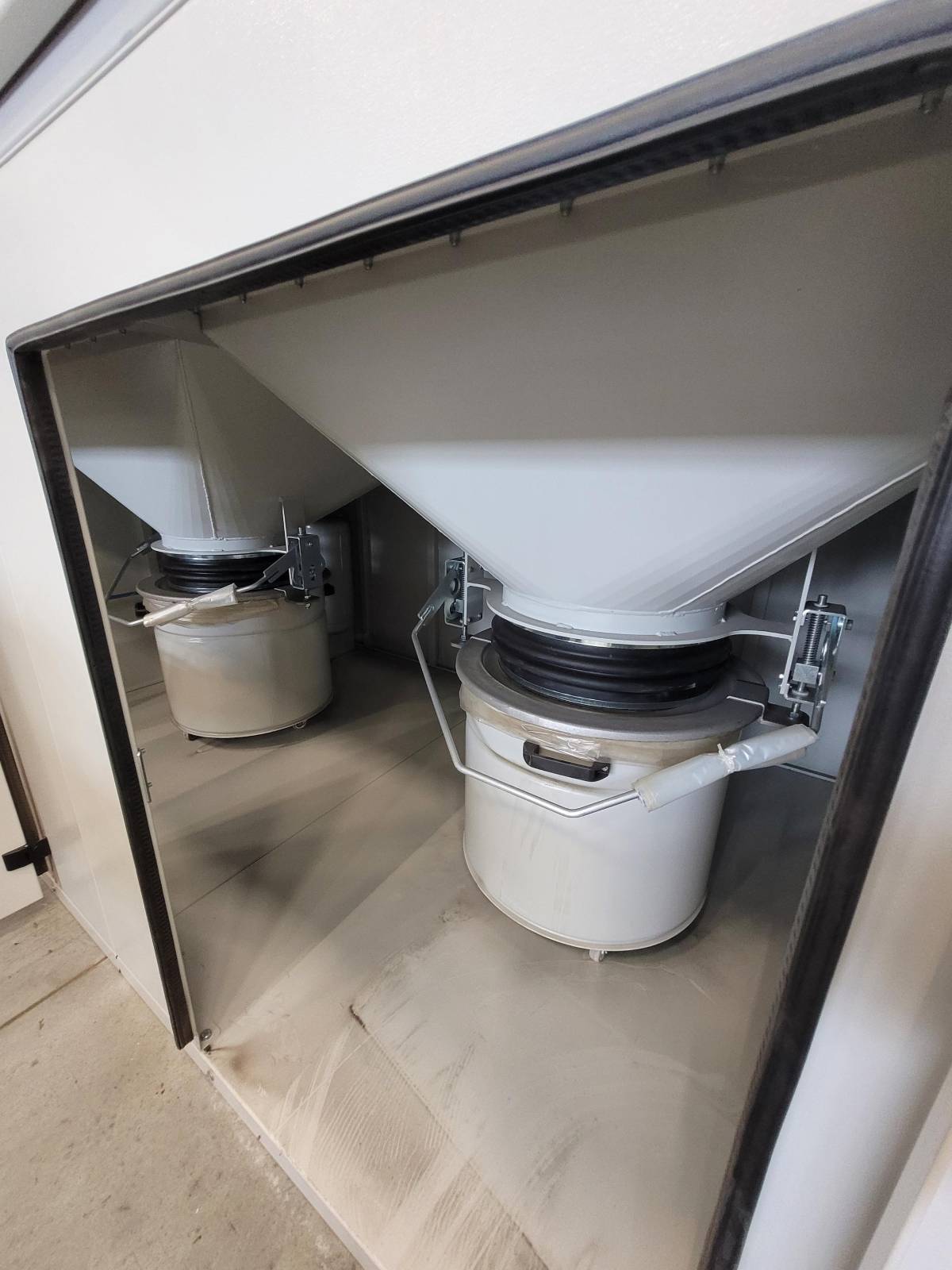

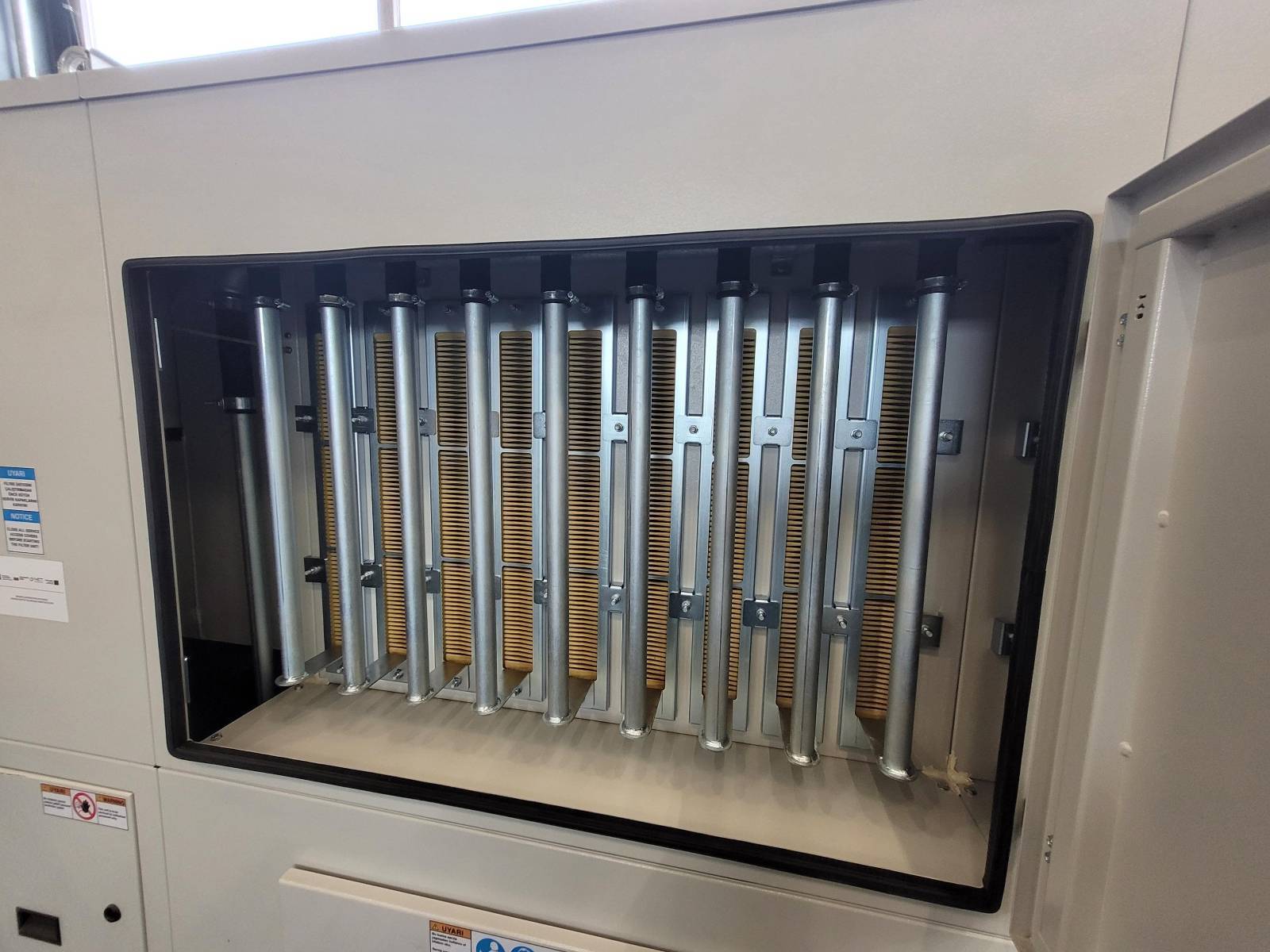

• dust collection system: VANTERM PL-12000
• brushless AC servo motors in the X and Y axis
• sectional extraction table

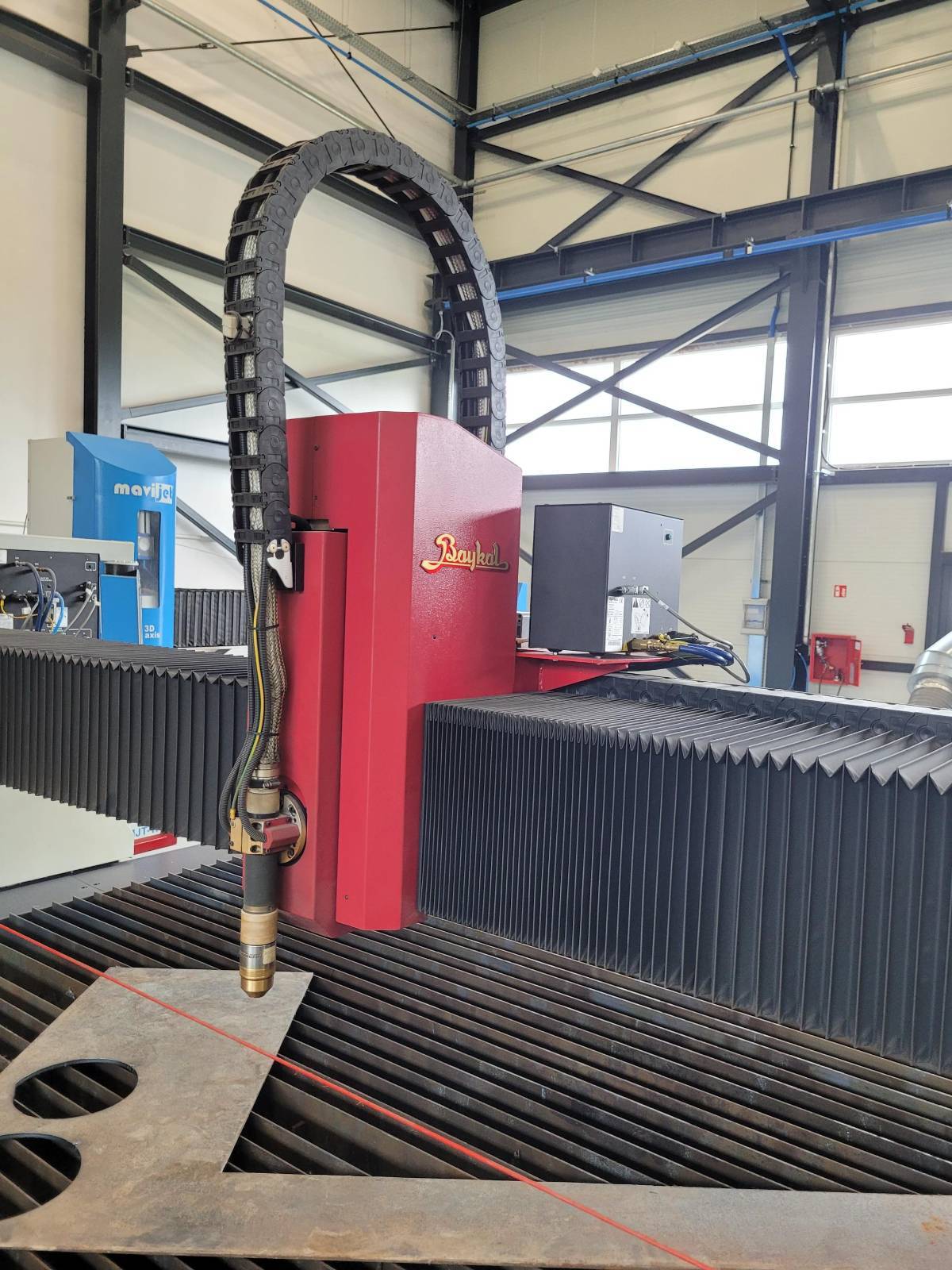

• plasma torch with anti-collision system and automatic height adjustment
