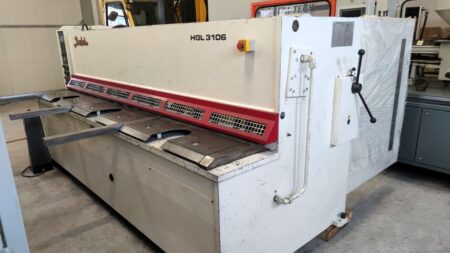

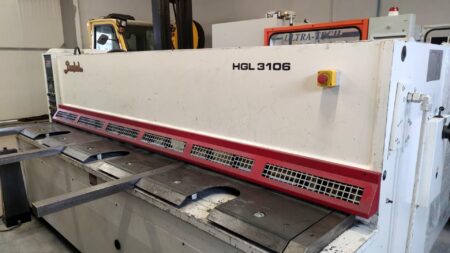

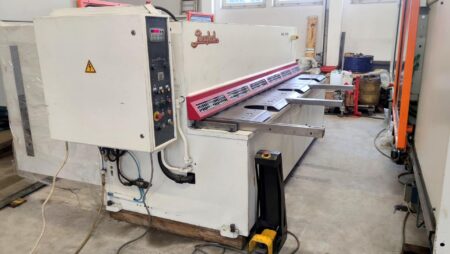

BAYKAL HGL 3106 guillotine shears

BAYKAL HGL 3106 guillotine shears were manufactured in Turkey in 2014. A reliable machine characterised by an extremely robust structure, uses high-quality cutting knives set at an angle of 1.6° for precise processing of sheets with a maximum length of 3060 mm and a thickness of 6 mm. The body of the BAYKAL HGL 3106 x 6 guillotine features an operator panel with NC controller, which allows, among other things, adjustment of the knife gap setting or repositioning of the back stop.

The machine has a number of conveniences and features to improve operator safety and comfort, such as light curtains to prevent unwanted entry into the working area, a foot pedal for more comfortable guillotine operation and an emergency stop button. The total weight of the guillotine shears is 5500 kg.

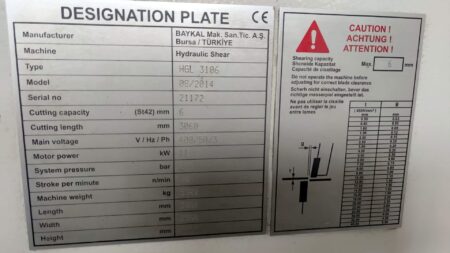

Technical specifications of the BAYKAL HGL 3106 guillotine shears

• maximum sheet length: 3060 mm
• maximum sheet thickness: 6 mm
• maximum number of strokes: 20/min
• cutting angle: 1,6°
• back stop stroke: 750 mm
• motor power: 11 kW
• hydraulic pressure: 200 bar

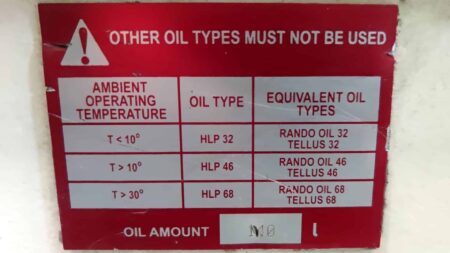

• oil tank capacity: 160 l
• power supply: 3×400 V; 50 Hz
• overall dimensions (L x W x H): 3860 x 2560 x 1560 mm
• total weight of HGL 3106 machine: 5500 kg

Equipment of the guillotine

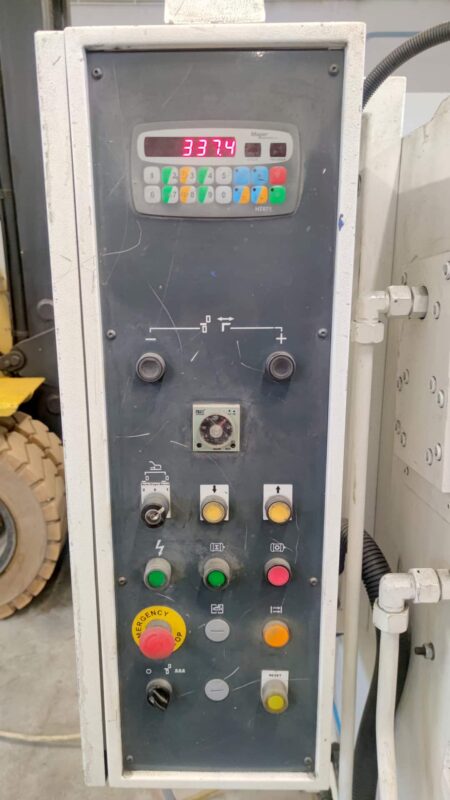

• NC control
• inverter

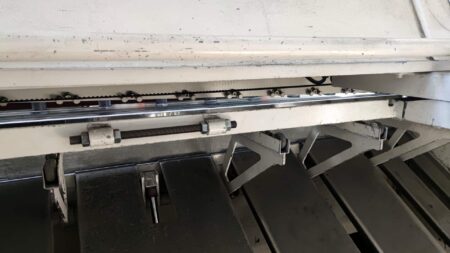

• clamps holding the workpiece: 17 pcs

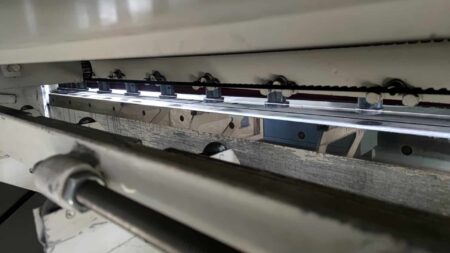

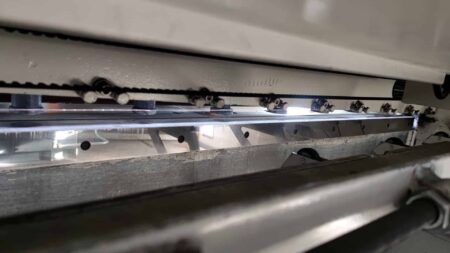

• upper and lower cutting blades

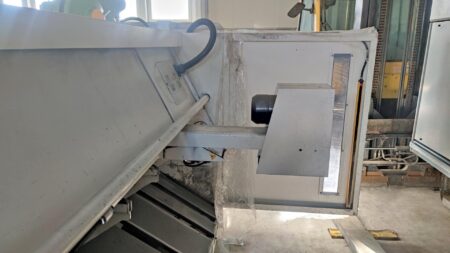

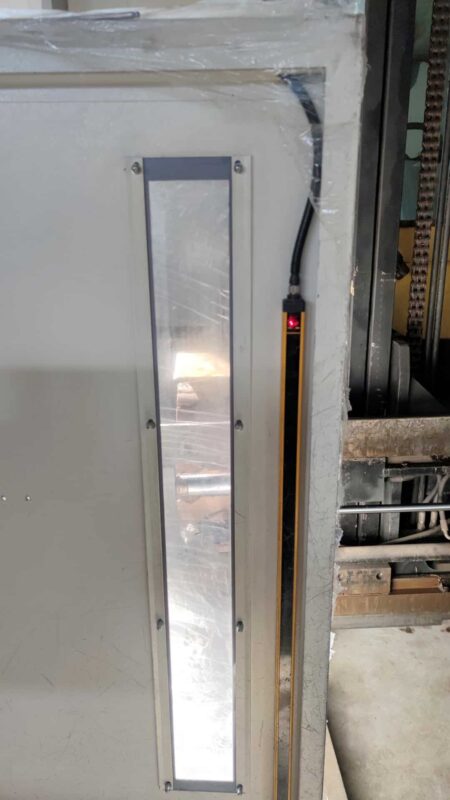

• light curtains
• pedal for foot control
• electrically-pneumatically operated back stop
• back stop position controller
• adjustment of the gap between the knives depending on the thickness of the cut sheet
• emergency stop button
