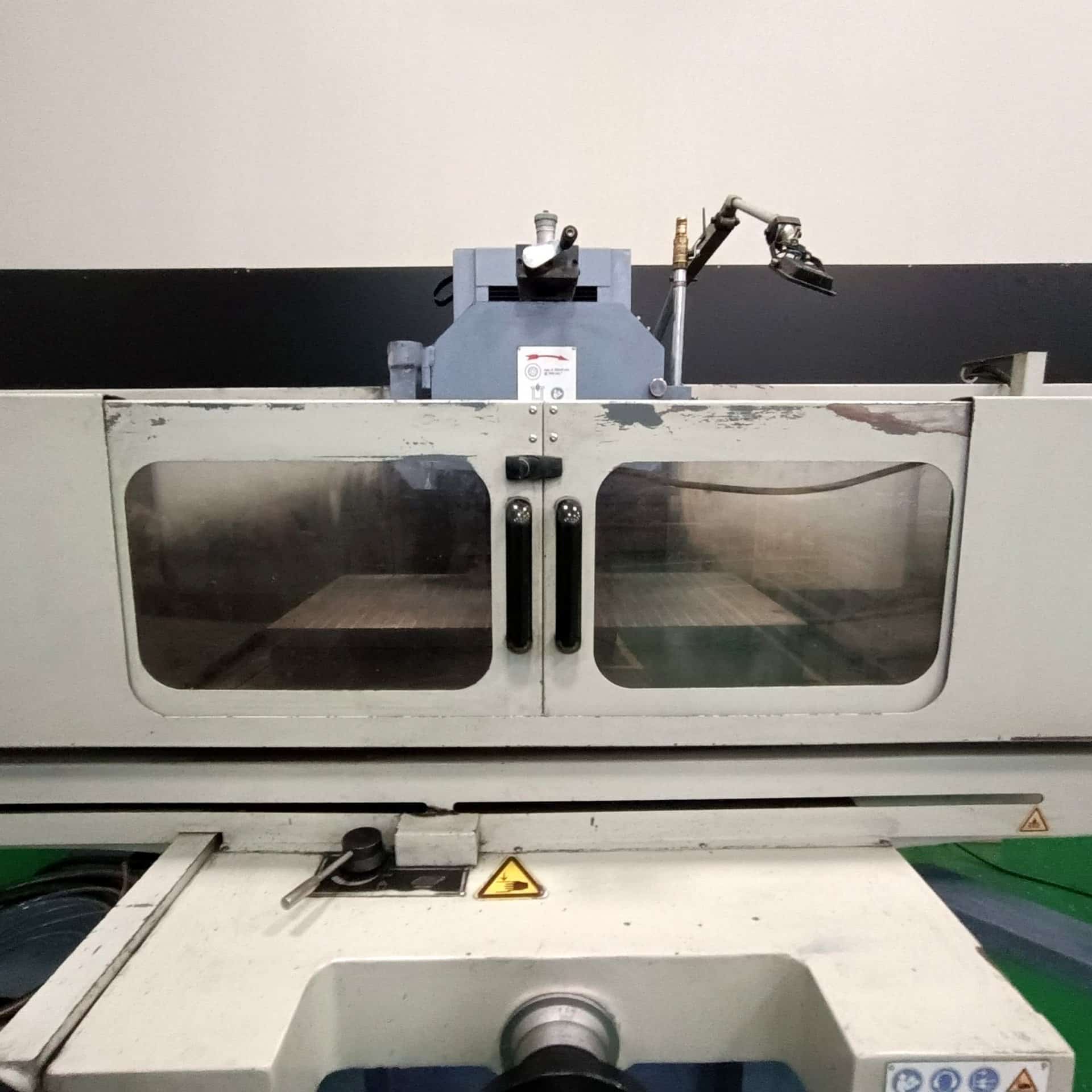

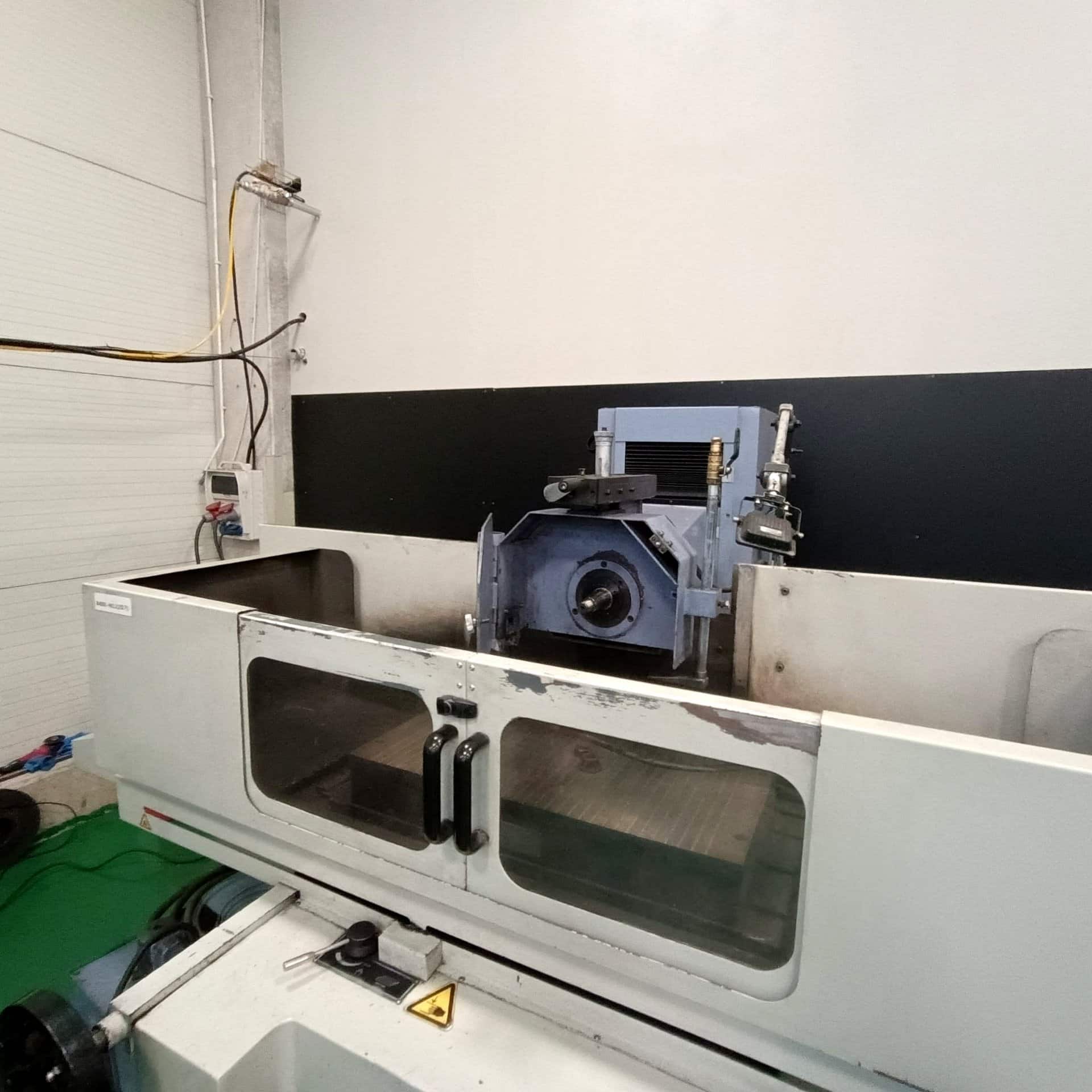

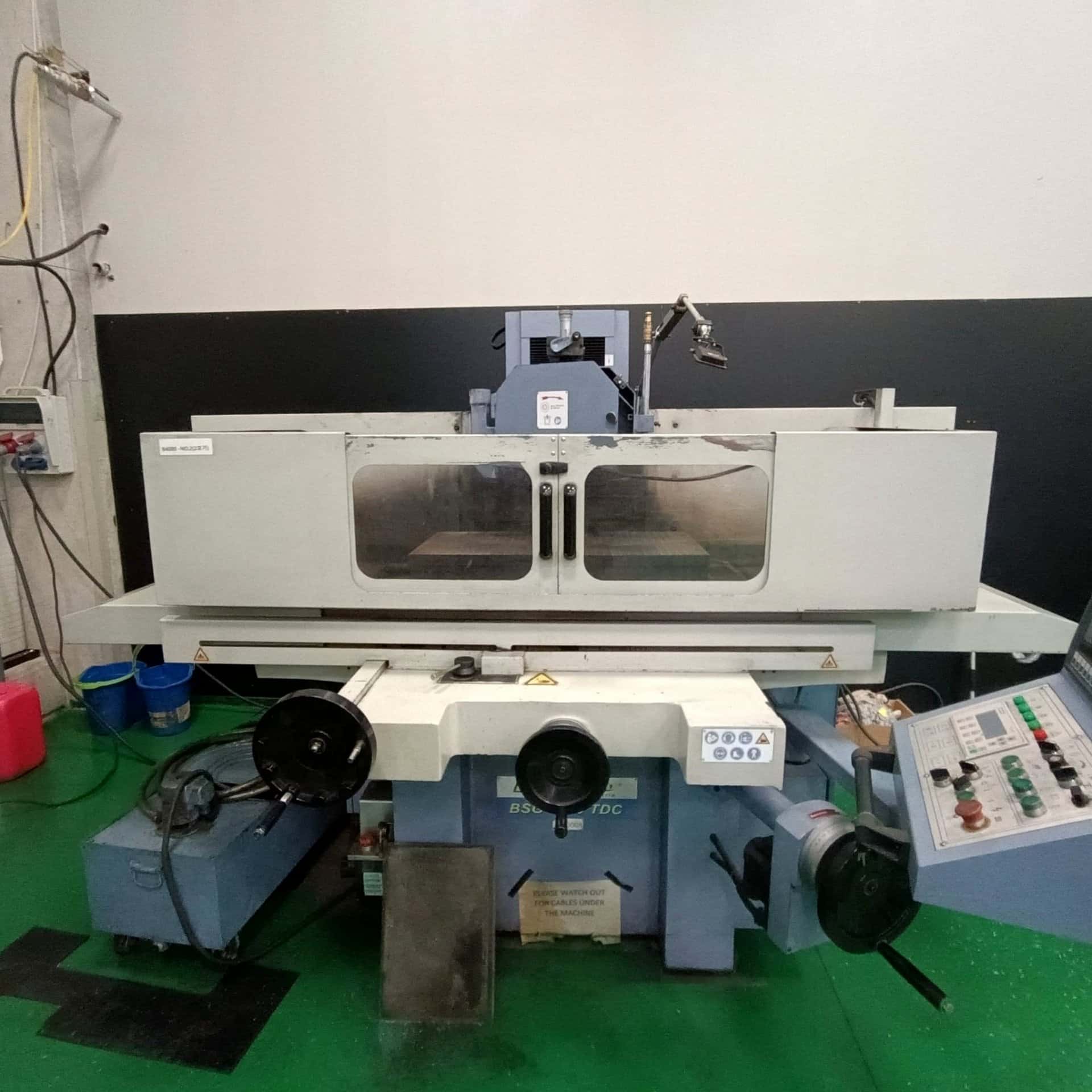

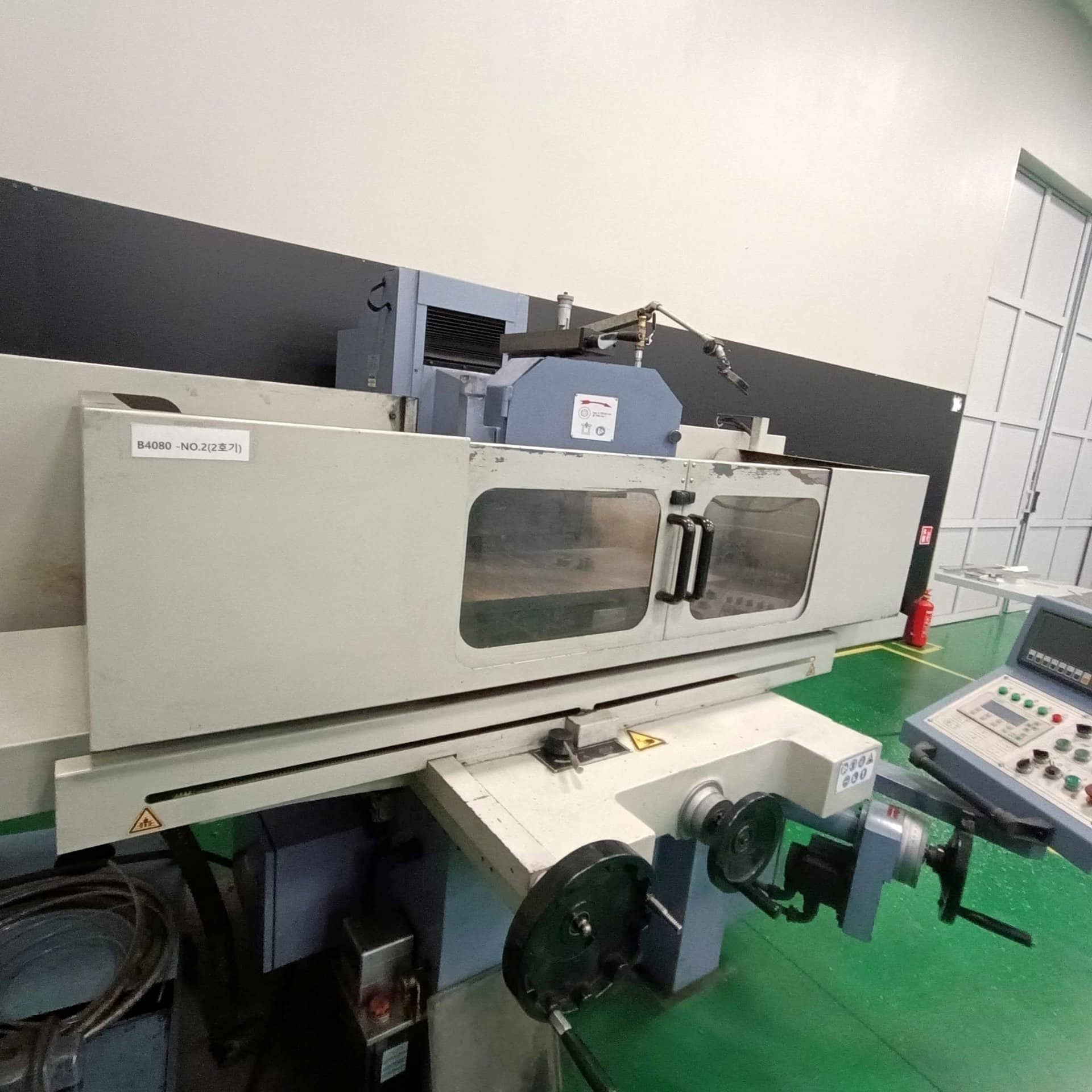

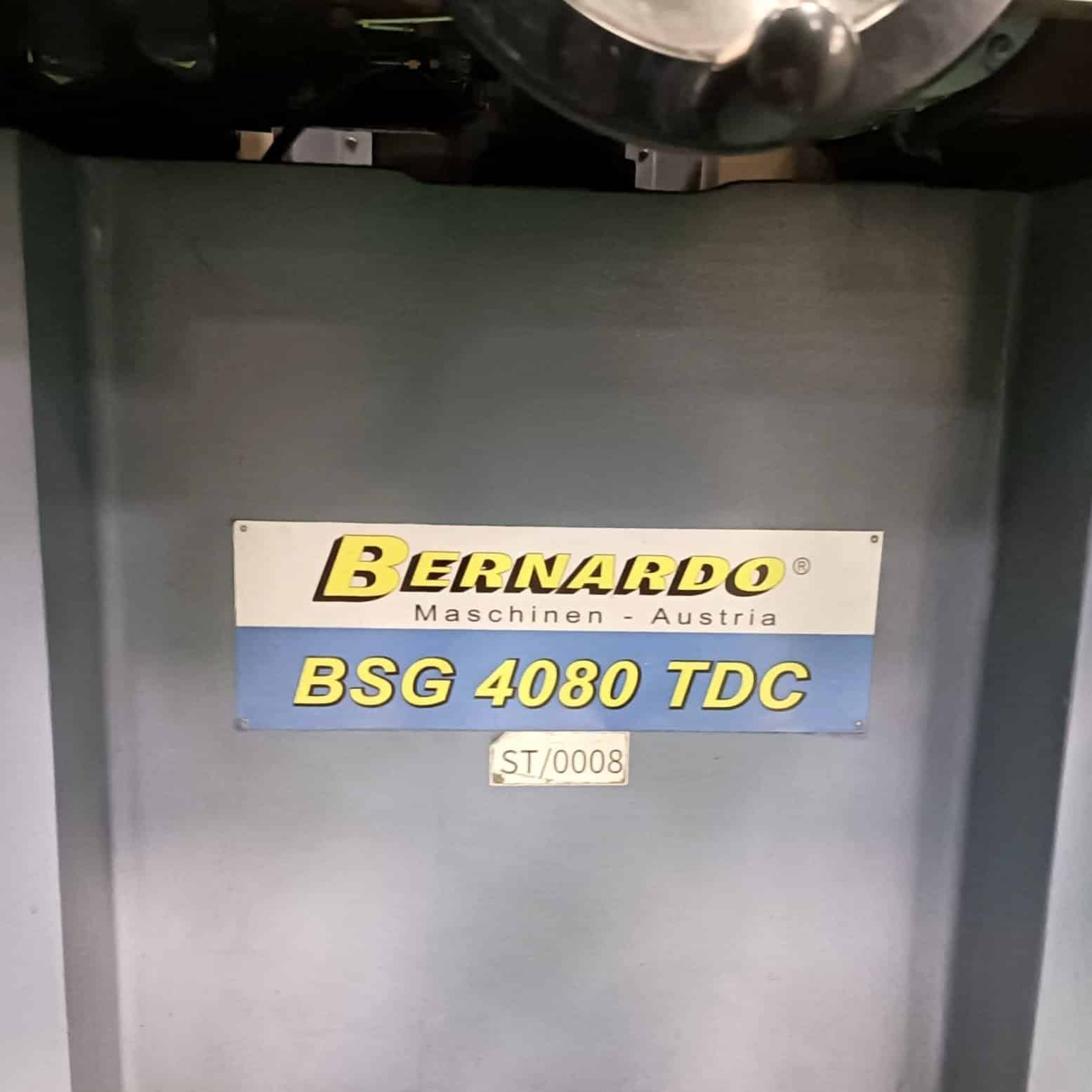

BERNARDO BSG 4080 TDC surface grinding machine

BERNARDO BSG 4080 TDC surface grinding machine was built in Austria in 2018. Designed for fully professional production applications, the machine machines workpieces placed on a magnetic plate or directly on the work table with the utmost precision and accuracy. The hydraulically driven work table with a large magnetic platen moves on hardened and ground guideways, which have been additionally coated with a special Turcite-B coating to increase abrasion resistance. The hydraulic drive, in the form of a separate hydraulic unit with heat exchanger, prevents vibration and overheating, and also ensures safe table feed even under heavy loads. Radial and axial forces are evenly distributed on special bearings without play in the grinding wheel spindle. The BERNARDO magnetic grinding machine weighs 3400 kg.

Technical specifications of the magnetic surface grinding machine BERNARDO BSG 4080 TDC

General data

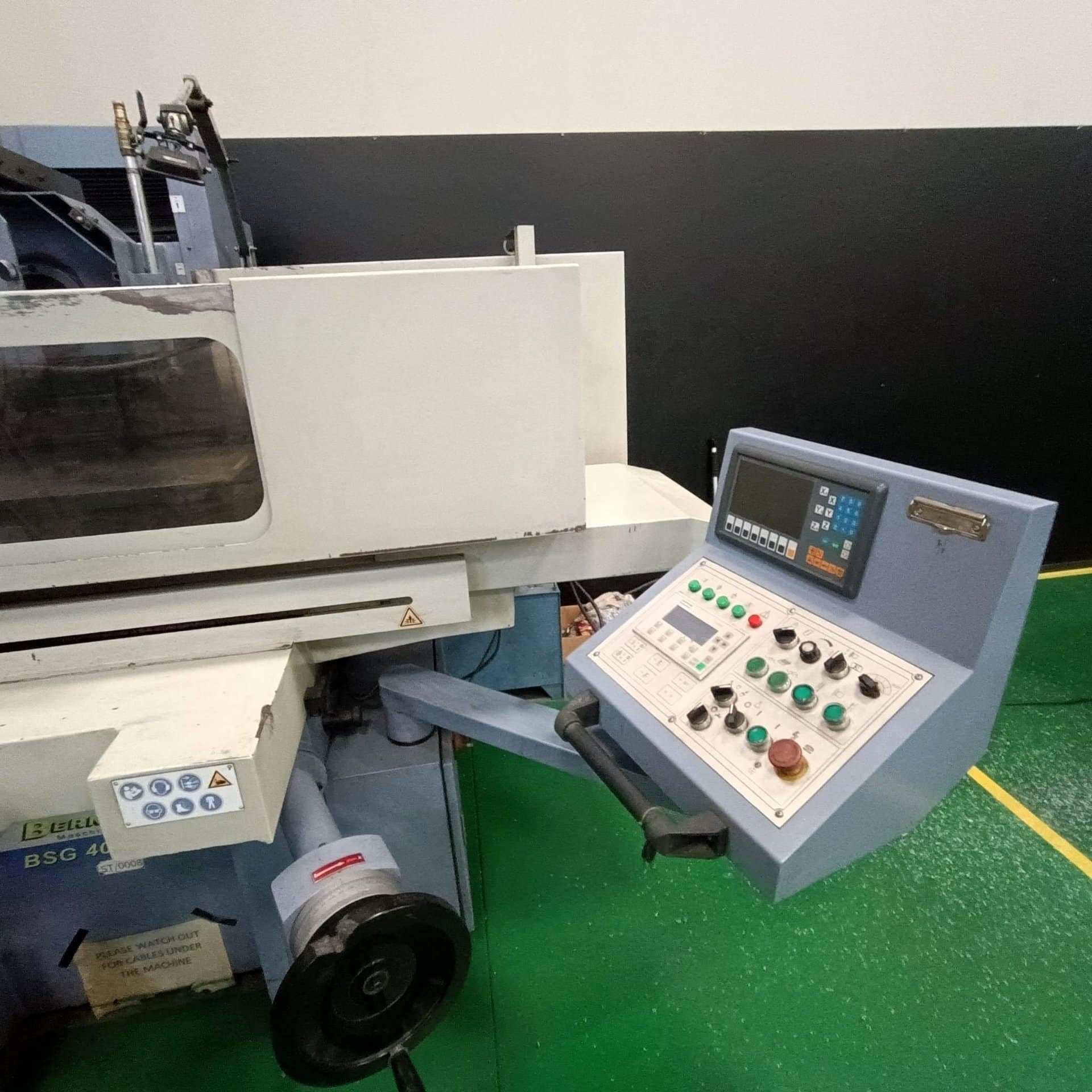

• digital readout: ES-12 H
• feed rate in X/Z axis: 900/450 mm
• maximum workpiece weight: 500 kg
• work table dimensions (L x W): 815 x 405 mm

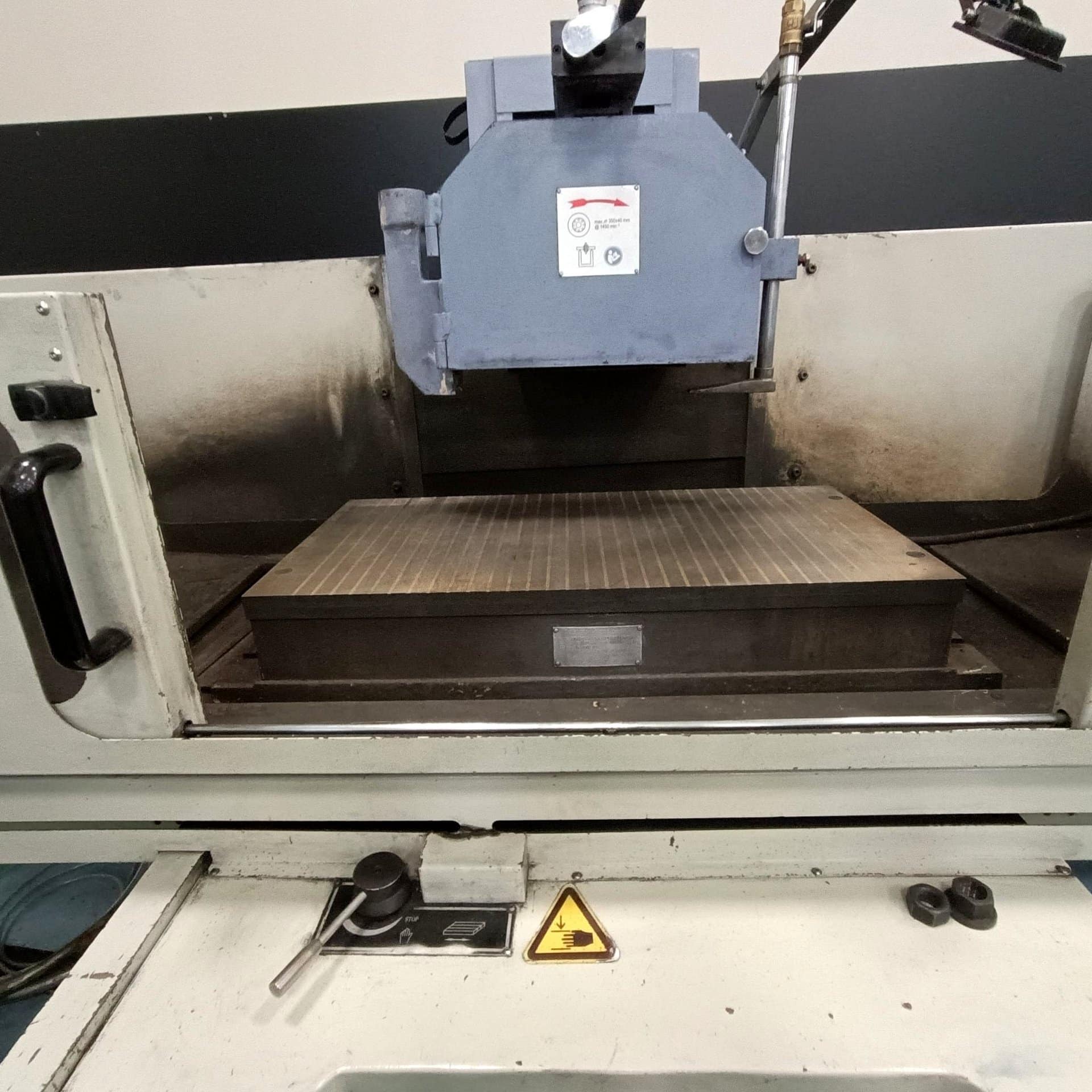

• electromagnetic platen dimensions (L x W): 800 x 400 mm
• maximum spindle rotational speed: 1450 rpm
• grinding wheel dimensions (diameter x width x bore): 350 x 40 x 127 mm
• grinding wheel spindle motor power: 4 kW
• work table feed rate range: 5-25 m/min
• distance between mandrel centre and work table: 580 mm
• number of T-slots: 3
• width of T-slots: 14 mm
• workspace illumination
• hydraulic drive power: 2.2 kW
• vertical feed motor power: 0.5 kW
• noise level: < 85 dB(A)
• power supply: 3x 400 V; 50 Hz
• dimensions (L x W x H): 2650 x 2200 x 1900 mm
• weight of machine: 3400 kg

Cross adjustment

• automatic adjustment: 0.5-8 mm/stroke
• rapid traverse: 990 mm/min
• cross adjustment per handwheel rotation: 5 mm/rev
• scale division on handwheel: 0.02 mm

Vertical adjustment

• automatic adjustment: 0.005/0.01/0.02/0.03/0.04/0.05 mm
• rapid traverse: 480 mm/min
• vertical adjustment per handwheel rotation: 2 mm/rev
• scale division on handwheel: 0.005 mm
