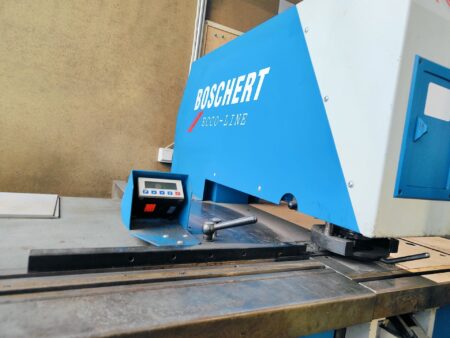

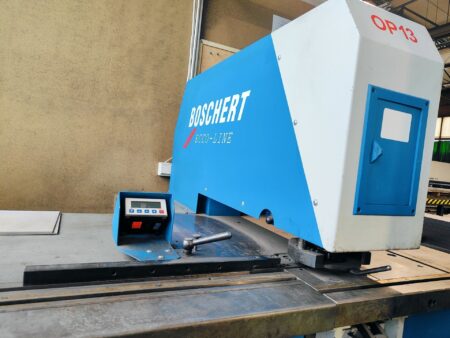

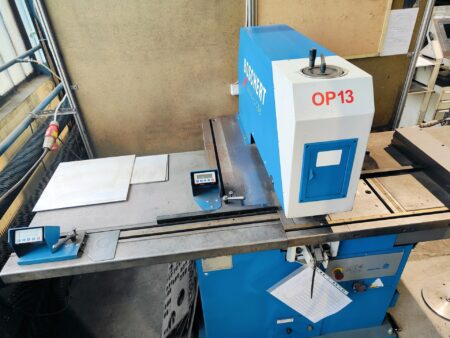

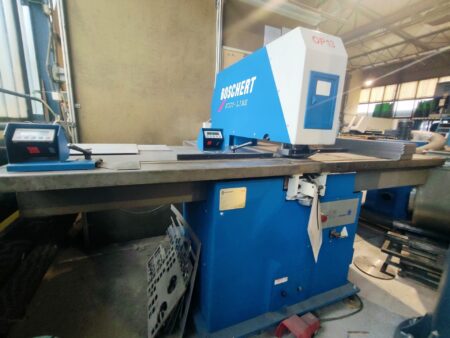

BOSCHERT EL 500 Digital hydraulic punching machine

BOSCHERT EL 500 Digital hydraulic punching machine was built in 2015 in Germany by Boschert GmbH & Co. KG. The machine is used for precision machining of workpieces with a maximum thickness of 6 mm. The combination of a sturdy construction and a reliable hydraulic system ensures excellent precision and high productivity, even during the most intensive challenges. The ECCO LINE EL-500-Digital punching machine has worked for a total of 2075 hours. The total weight of the machine is 2000 kg.

Technical specifications of the BOSCHERT EL 500 Digital punching machine

• maximum press force: 28 t
• work table dimensions (L x W): 1000 x 500 mm
• maximum workpiece thickness (punching diameter 40 mm): 6 mm
• maximum die diameter (workpiece thickness 1 mm): 105 mm
• number of strokes: 180/min

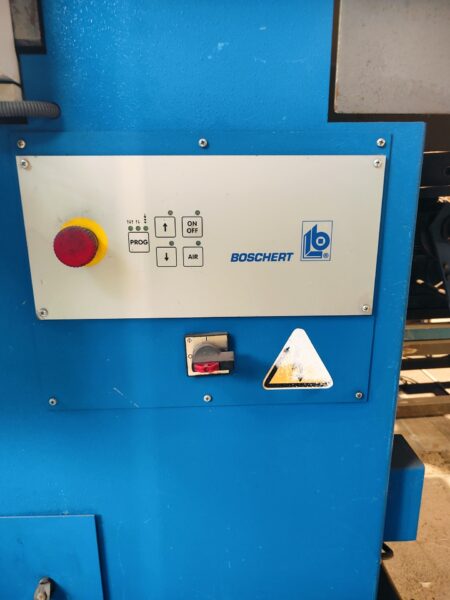

• foot switch control
• operating hours: 2075 h
• connection power: 5 kW
• power supply: 3x 400 V; 50 Hz
• dimensions (L x W x H): 2400 x 1580 x 1540 mm
• weight of the machine: approx. 2000 kg
