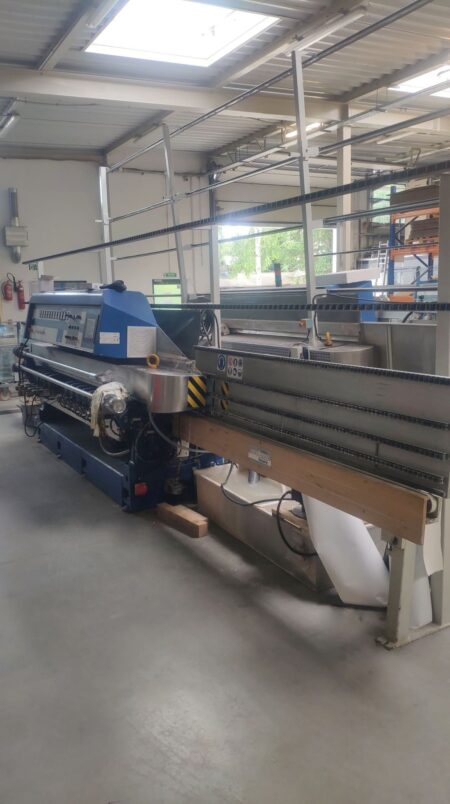

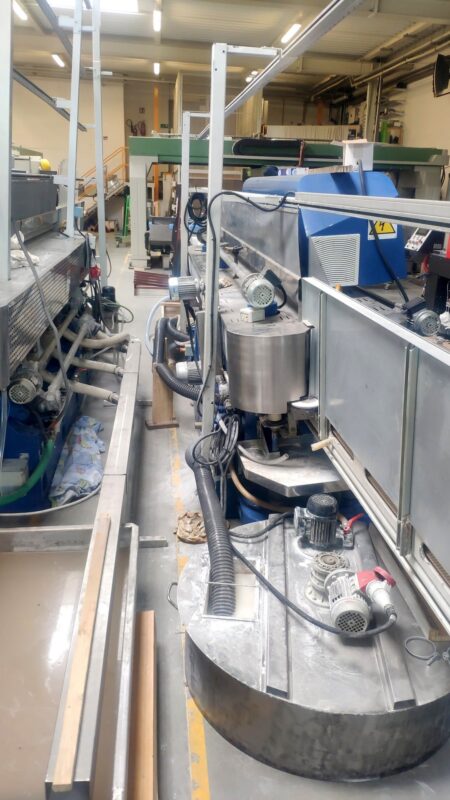

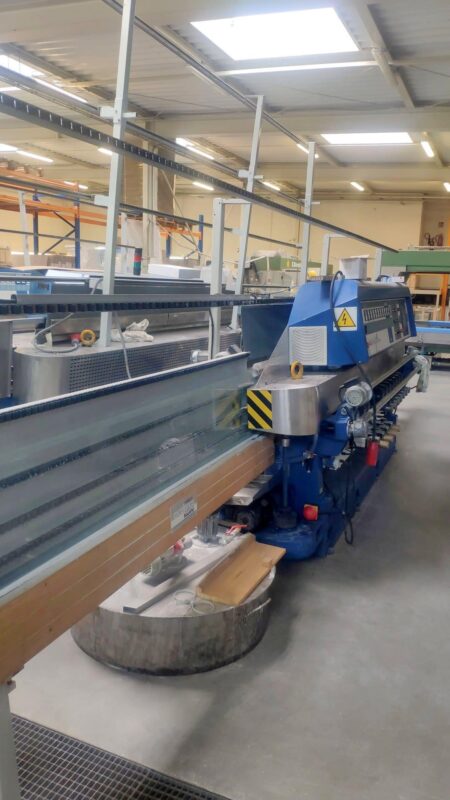

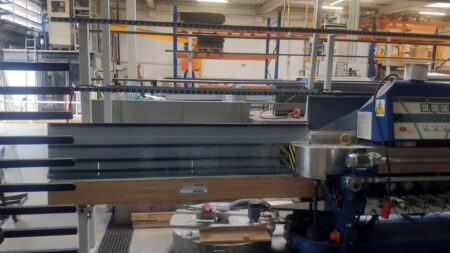

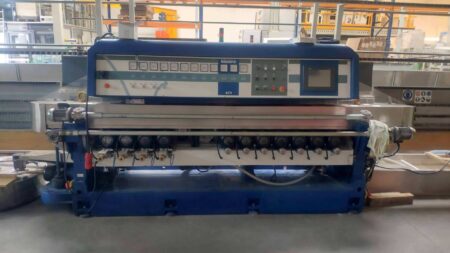

BOVONE BISELLATRICE 471 glass beveling machine

BOVONE BISELLATRICE 471 glass beveling machine was manufactured in Italy in 2012. The machine designed to meet even the most diverse customer requirements, proves ideal for the precise machining of even the smallest glass sheets with a thickness of up to 25 mm. Made from the highest quality cast iron, the body of the glass bevelling machine guarantees high reliability, efficiency and stability during the working process. Flat and oblique glass edges are ground using 12 grinding wheels (including felt, diamond and peripheral grinding wheels), the configuration of which enables operation at very high working speeds. The total weight of the machine is 4400 kg.

Technical specifications of the BOVONE BISELLATRICE 471 glass bevelling machine

• maximum glass thickness: 25 mm
• minimum glass thickness: 3 mm
• minimum glass dimensions: 35×35 mm, 25×500 mm
• number of spindles: 12
• working speed: 0.35-5.4 m/min
• power: 24.5 kW
• power supply: 400 V; 50 Hz
• dimensions (L x W x H): 8200 x 1300 x 2200 mm
• weight of machine BISELLATRICE 471: 4400 kg

During a major overhaul carried out in 2022, machine components such as the front sawmill race, bearings on the sawmills, front and rear conveyor belts, front conveyor slide, inter-chamber seals and spindle seals were replaced with new ones.
