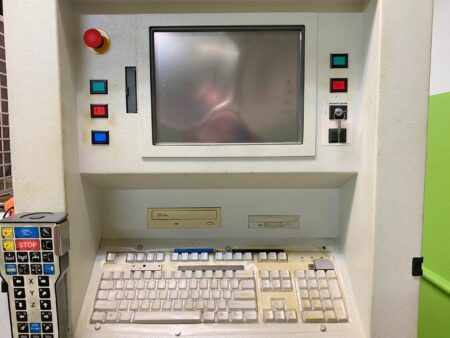

CHARMILLES ROBOFIL 240 CC wire EDM machine

CHARMILLES ROBOFIL 240 CC wire EDM machine was built in 2005. The highly efficient machine is designed for machining workpieces in 5 axes (X,Y,Z,U,V) at an angle of 30° or 45° using the electrical erosion method, allowing for the creation of difficult and intricate shapes. Inside the polymer concrete body of the machine, there is a high-speed digital generator CleanCut, which prevents the creation of electrolytic effect during machining and also allows to achieve high cutting speeds. The wire EDM machine also features anti-collision protection and optical scales to ensure high precision. The CHARMILLES wire EDM machine weighs 2100 kg.

Technical specifications of the CHARMILLES ROBOFIL 240 CC wire EDM machine

• number of axes: 5 (X,Y,Z,U,V)
• feed rates in the X/Y/Z/U/V axis: 350/220/350/220 mm

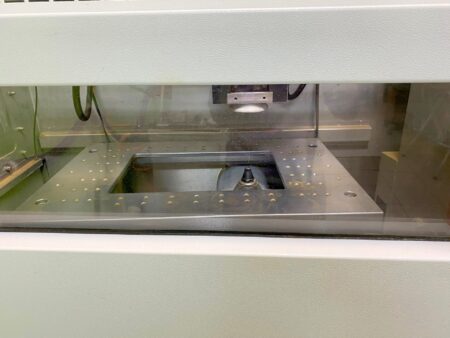

• work table dimensions (L x W): 680 x 450 mm
• maximum workpiece dimensions (L x W x H): 1000 x 550 x 220 mm
• maximum workpiece weight: 750 kg
• cutting angle: ± 30° or ± 45° (additional module)
• cutting height: 220 mm
• optical scales in all axes

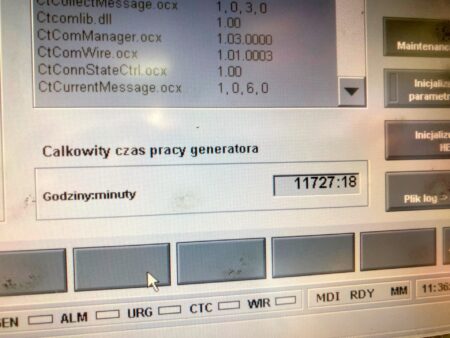

• digital generator CleanCut
• ThermoCut system (automatic wire threading through guides with zero backlash)
• anti-collision protection
• distance from floor to work table: 1000 mm

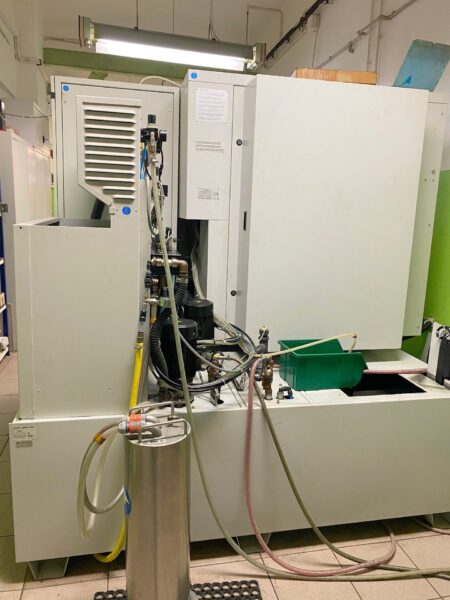

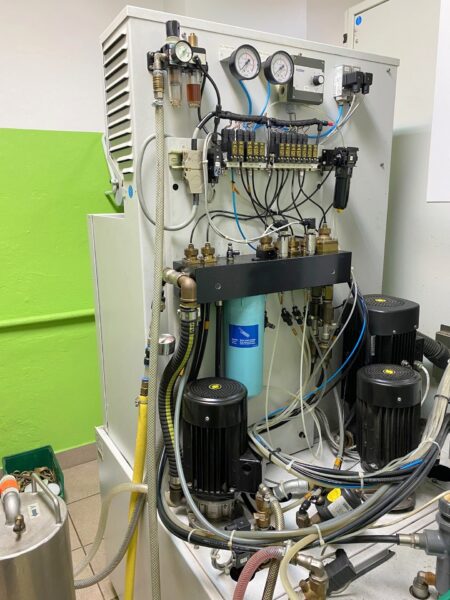

• capacity of dielectric tank: 760 l
• power supply: 3x 400 V; 50/60 Hz
• dimensions (L x W x H): 2020 x 2050 x 2000 mm
• weight of machine: 2100 kg
