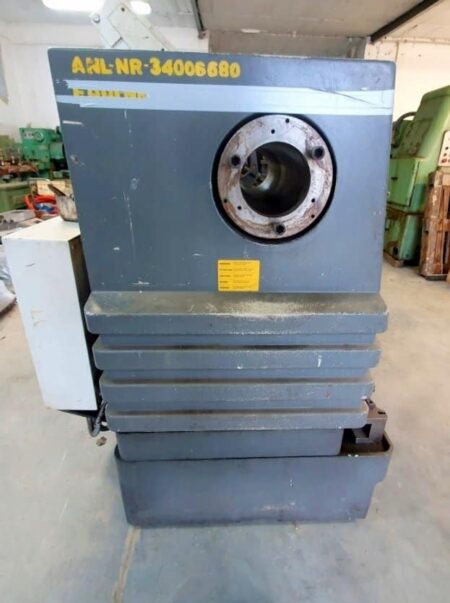

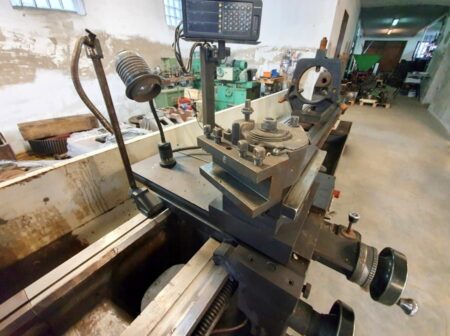

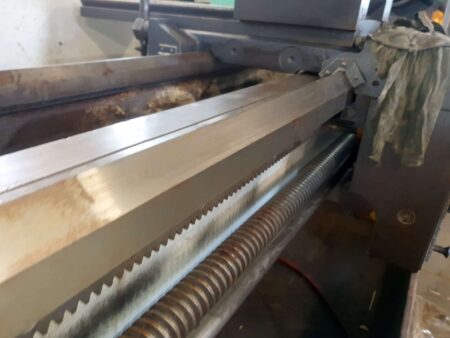

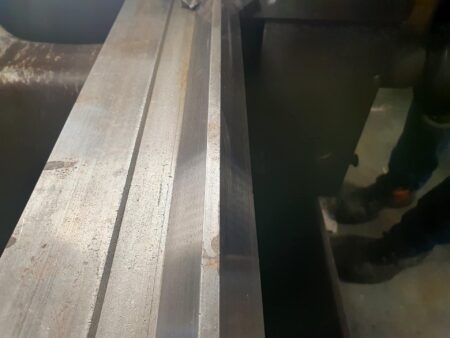

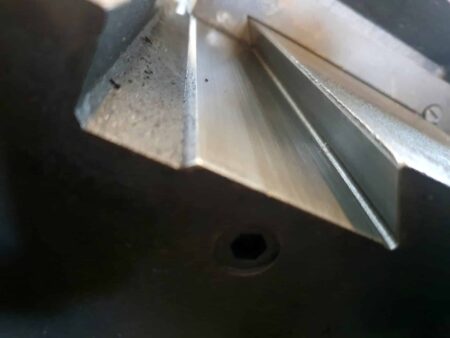

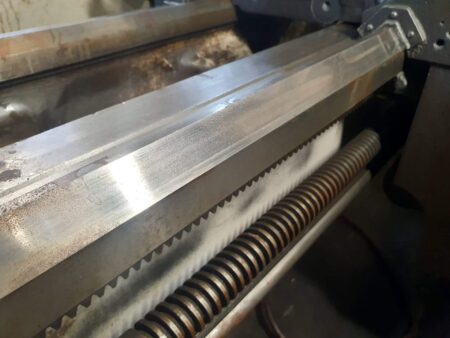

COLCHESTER MAGNUM LB 800 universal lathe

COLCHESTER MAGNUM LB 800 universal lathe was manufactured in 1992 in Great Britain. The machine allows machining a workpiece with a maximum diameter of 760 mm (above the bed) or 520 mm (above the support). The spindle operates at speeds from 10 to 800 rpm and has a bore of 168 mm diameter. The tailstock quills with a diameter of 95 mm are mounted using MK 6 mountings. The distance between the lathe tines is 4000 mm and the tines themselves rise 380 mm. The total weight of the lathe with reading is 5200 kg.

Technical data of the lathe COLCHESTER MAGNUM LB 800

• turning diameter above the bed: 760 mm
• turning diameter over the support: 520 mm
• turning diameter after removal of the bridge: about 1000 mm
• spindle speed: 10 – 800 rpm

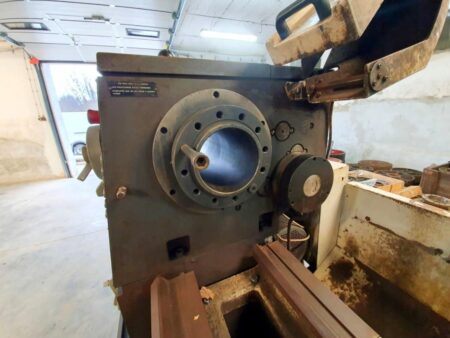

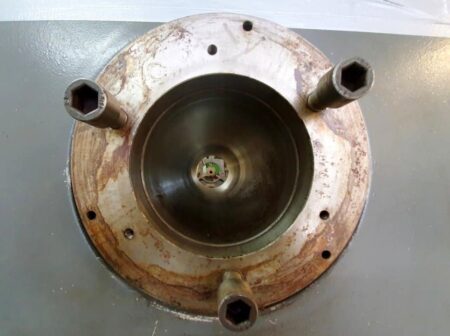

• spindle bore diameter: 168 mm
• bridge length before clamping bracket: 300 mm
• rise of tines: 380 mm
• distance between tines: 4000 mm
• stroke of pull bolt: 12 mm
• lateral travel: 380 mm
• feed rate: 0.05 – 3.2 mm

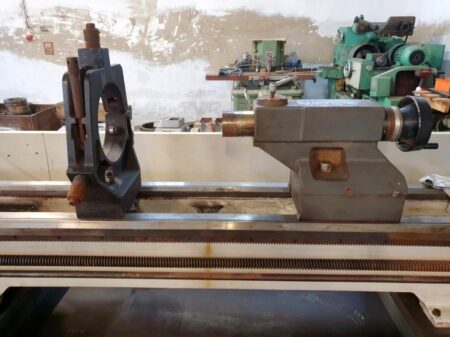

• tailstock travel: 190 mm
• tailstock quill diameter: 95 mm
• tailstock quill mount: MK 6
• motor: 15 kW
• machine weight: 5200 kg
