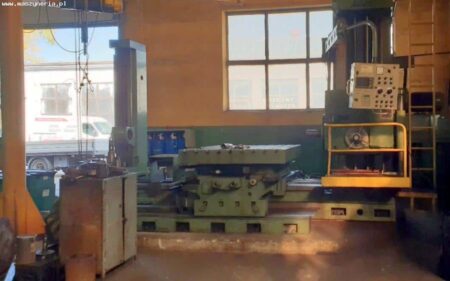

The DEFUM AD125 horizontal drilling and milling machine was produced in 1978. The boring machine allows you to process details with a maximum weight of up to 10 tons, and the X / Y / Z travels are 1600, 2000 and 1500 mm, respectively. The machine is equipped with: vertical milling head, facing disc, boring bars, steady rest and four boring shafts. It also has a table with dimensions (L x W) 1500 x 1800 mm. The machine is fully operational and ready to work.
Technical data of a horizontal drilling and milling machine DEFUM AD125
– travels (X / Y / Z): 1600/2000/1500 mm
– table dimensions (length x width): 1500 x 1800 mm
– maximum table load: 10 tons
– spindle diameter: fi 125 mm
– spindle extension: 900 mm
– maximum planning diameter: fi 1200 mm
Equipment for the DEFUM AD125 horizontal drilling and milling machine
– boring shafts: 4 pcs.
– she bored
– steady rest
– vertical milling head
– planning disc
