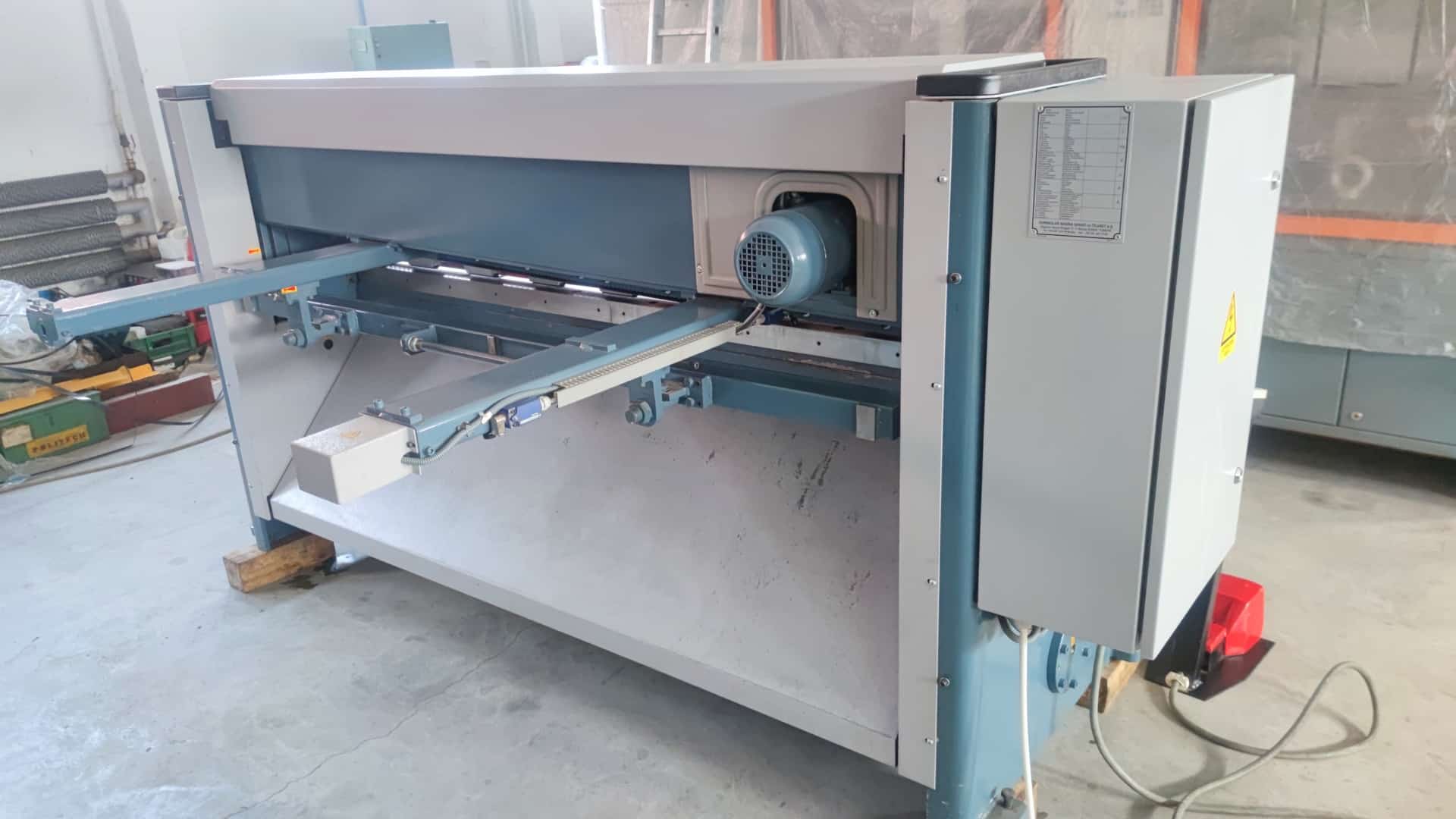

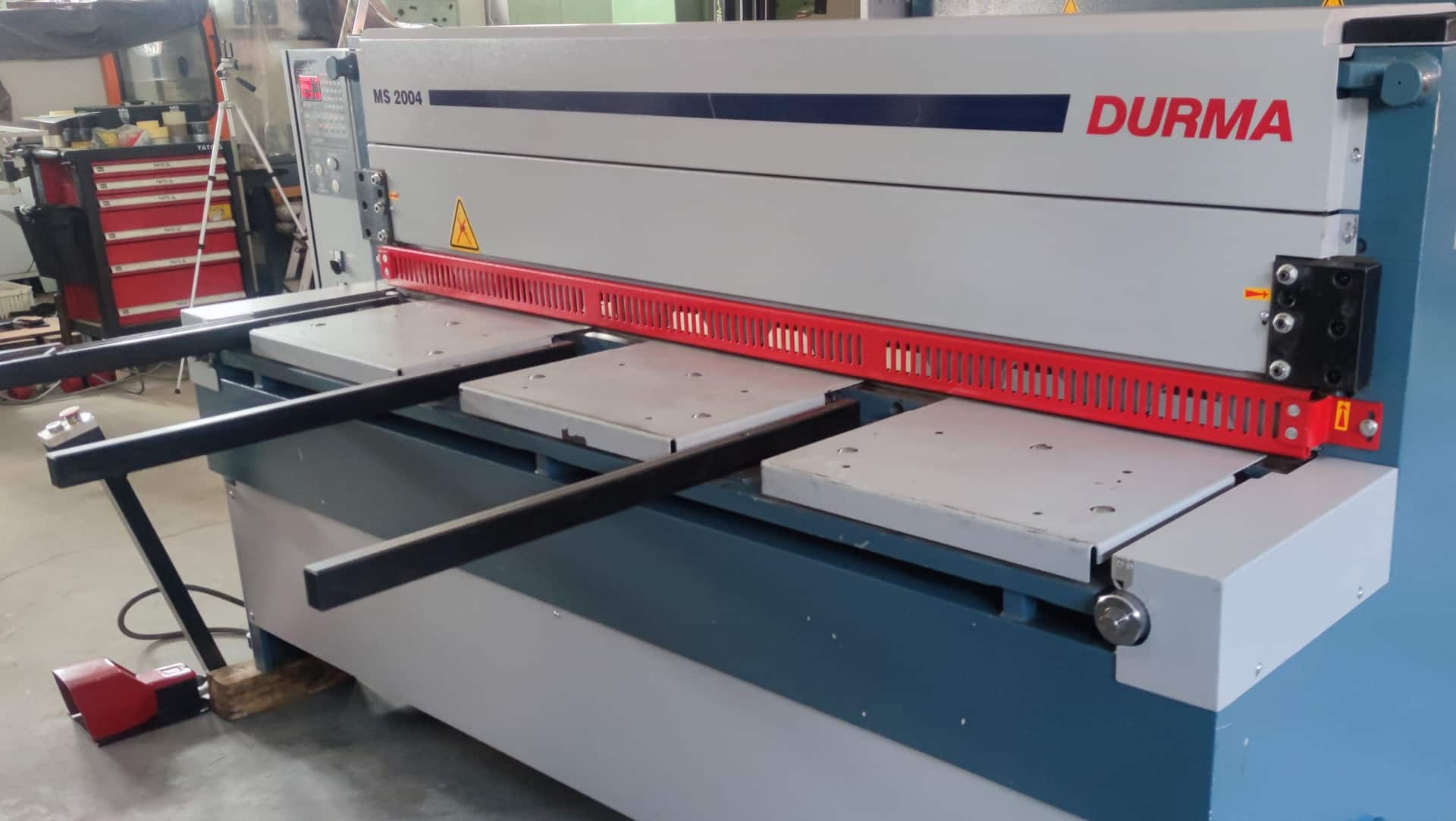

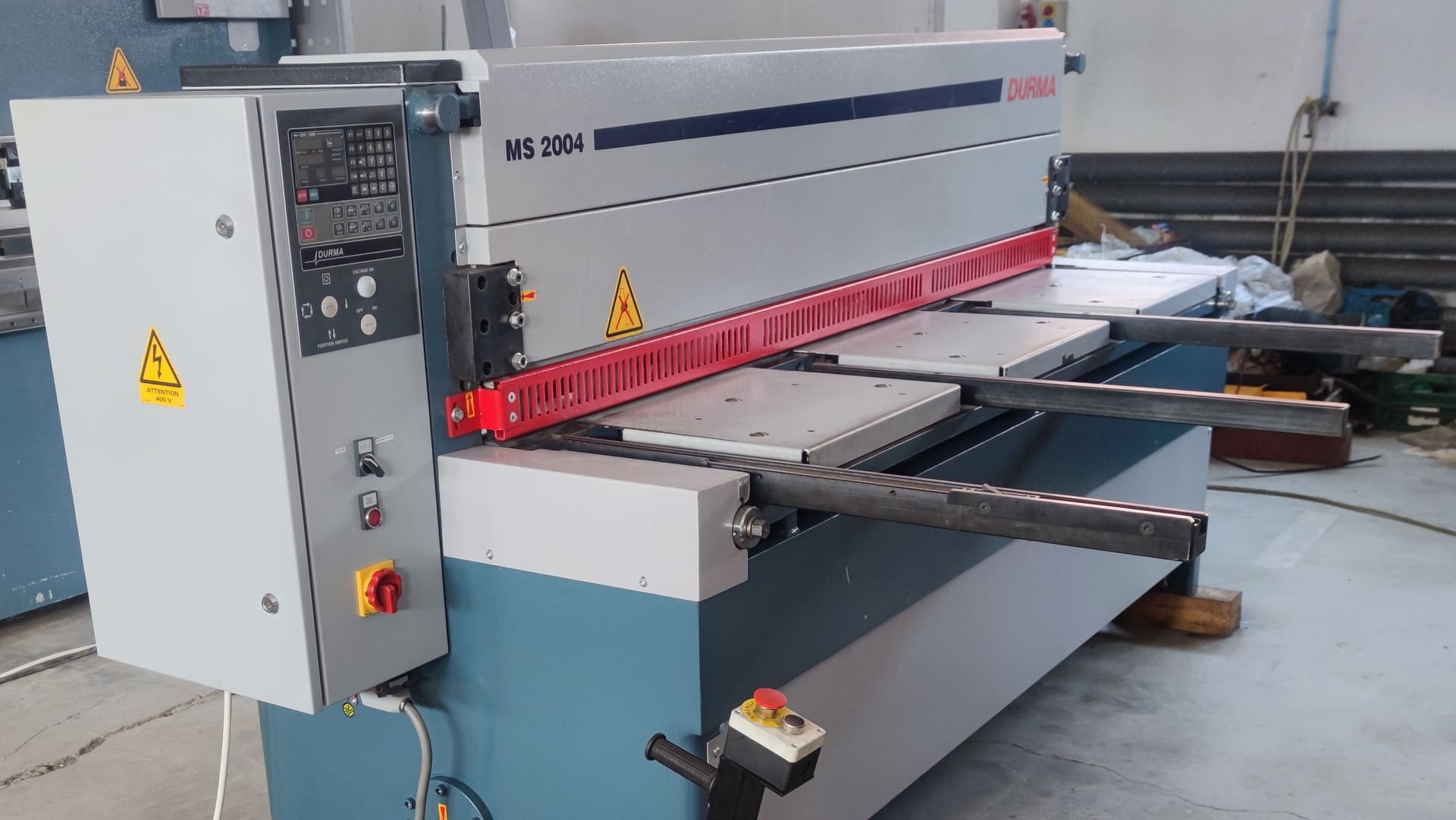

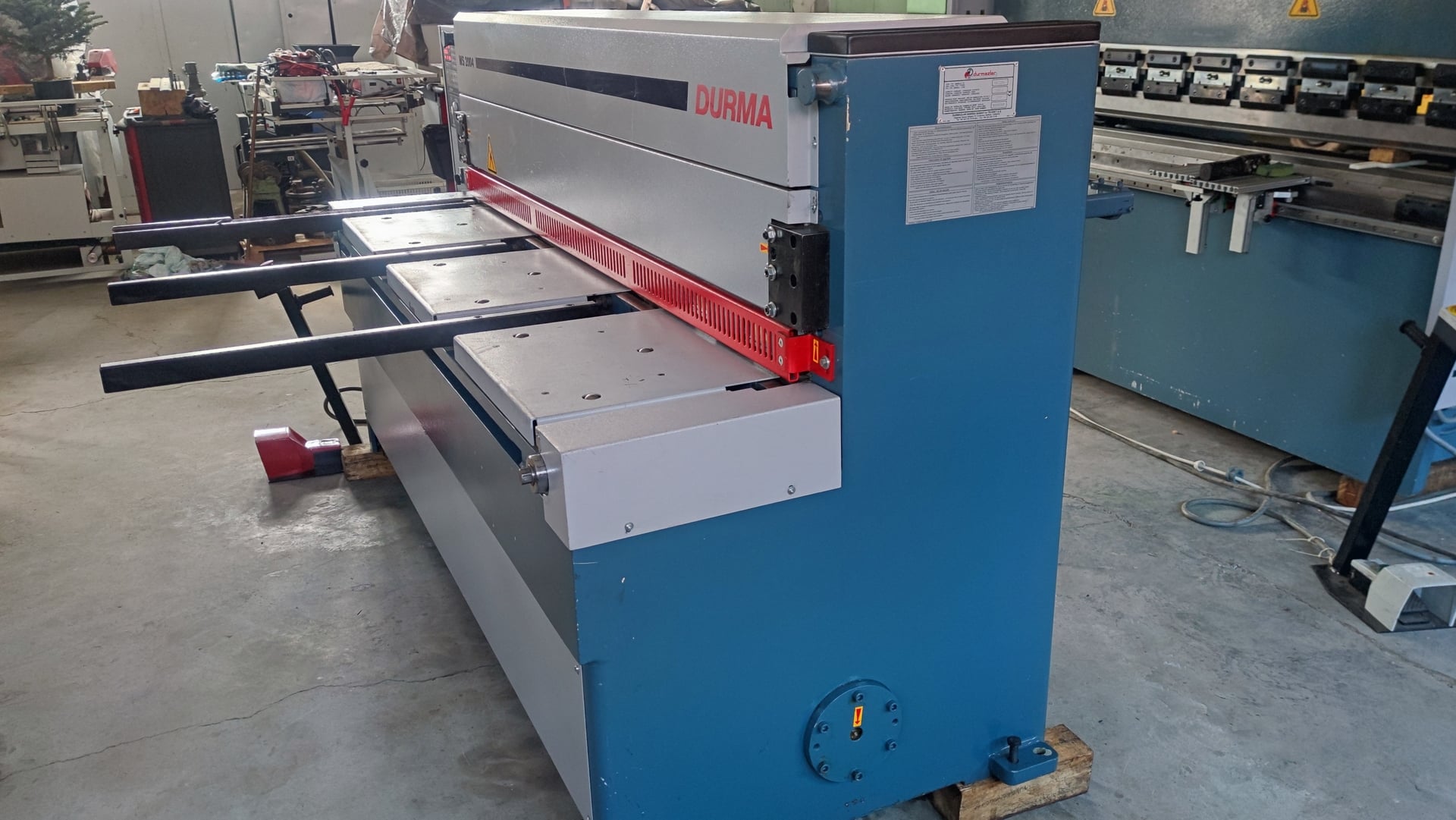

DURMA MS 2004 guillotine shears

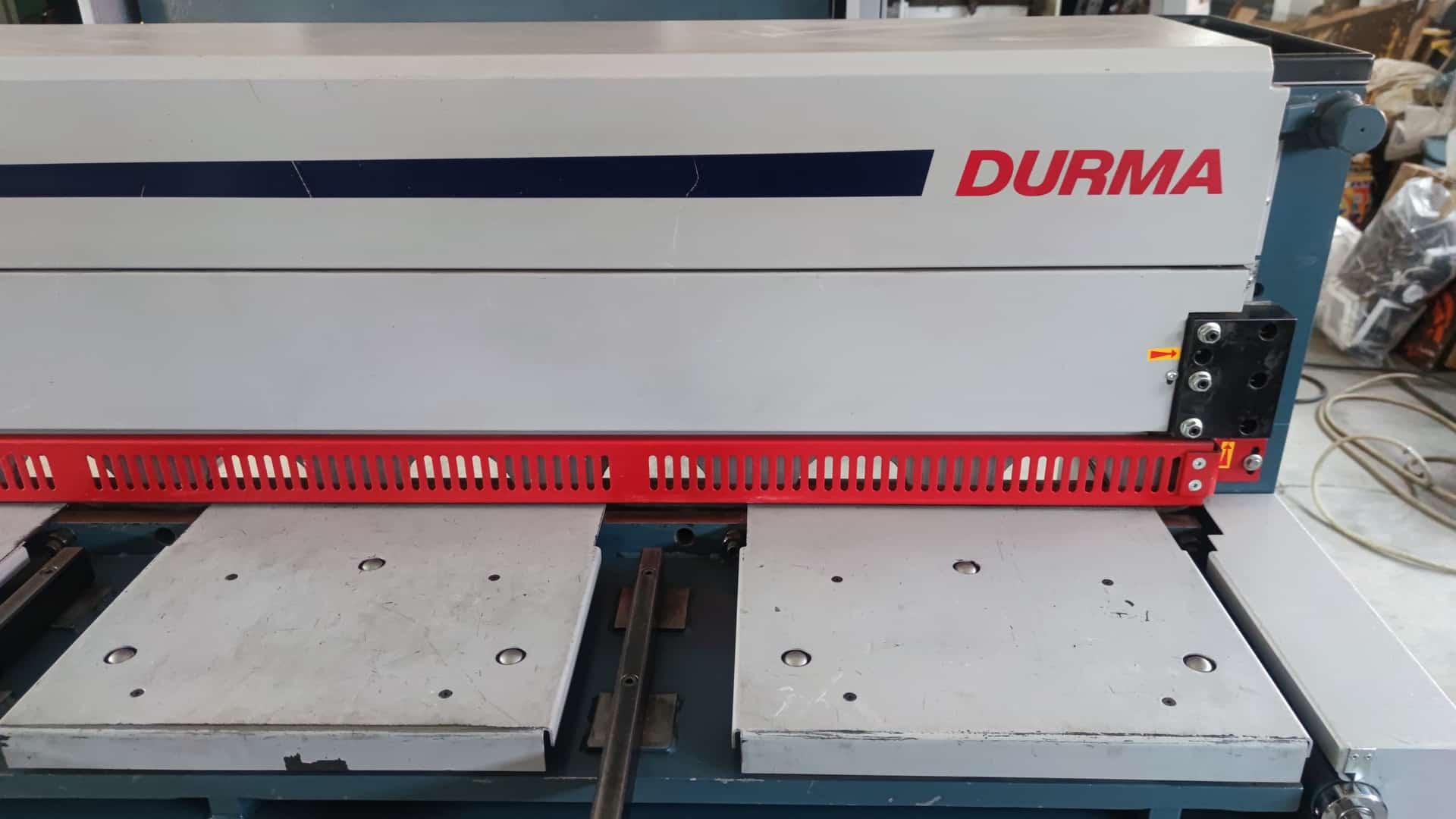

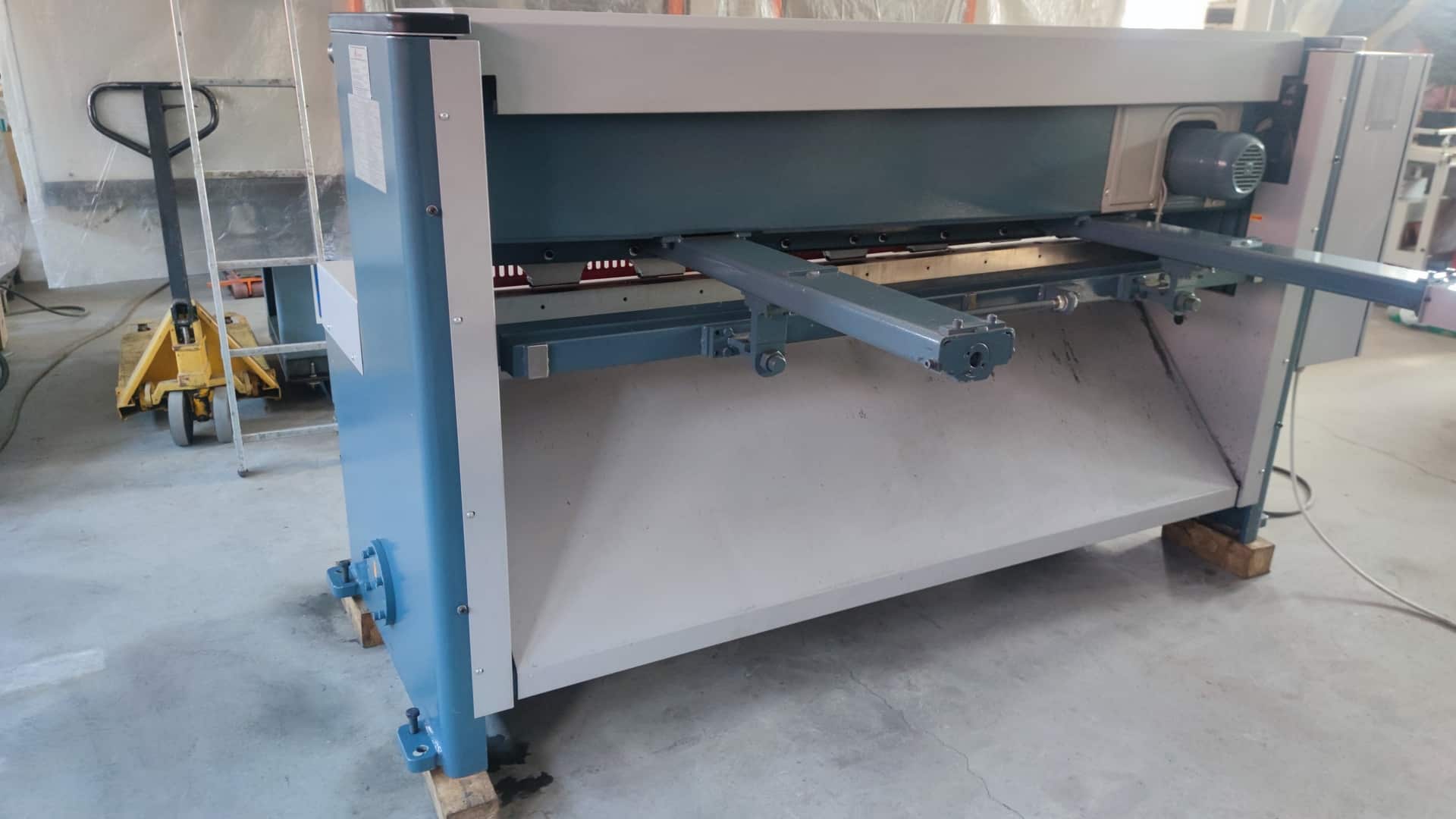

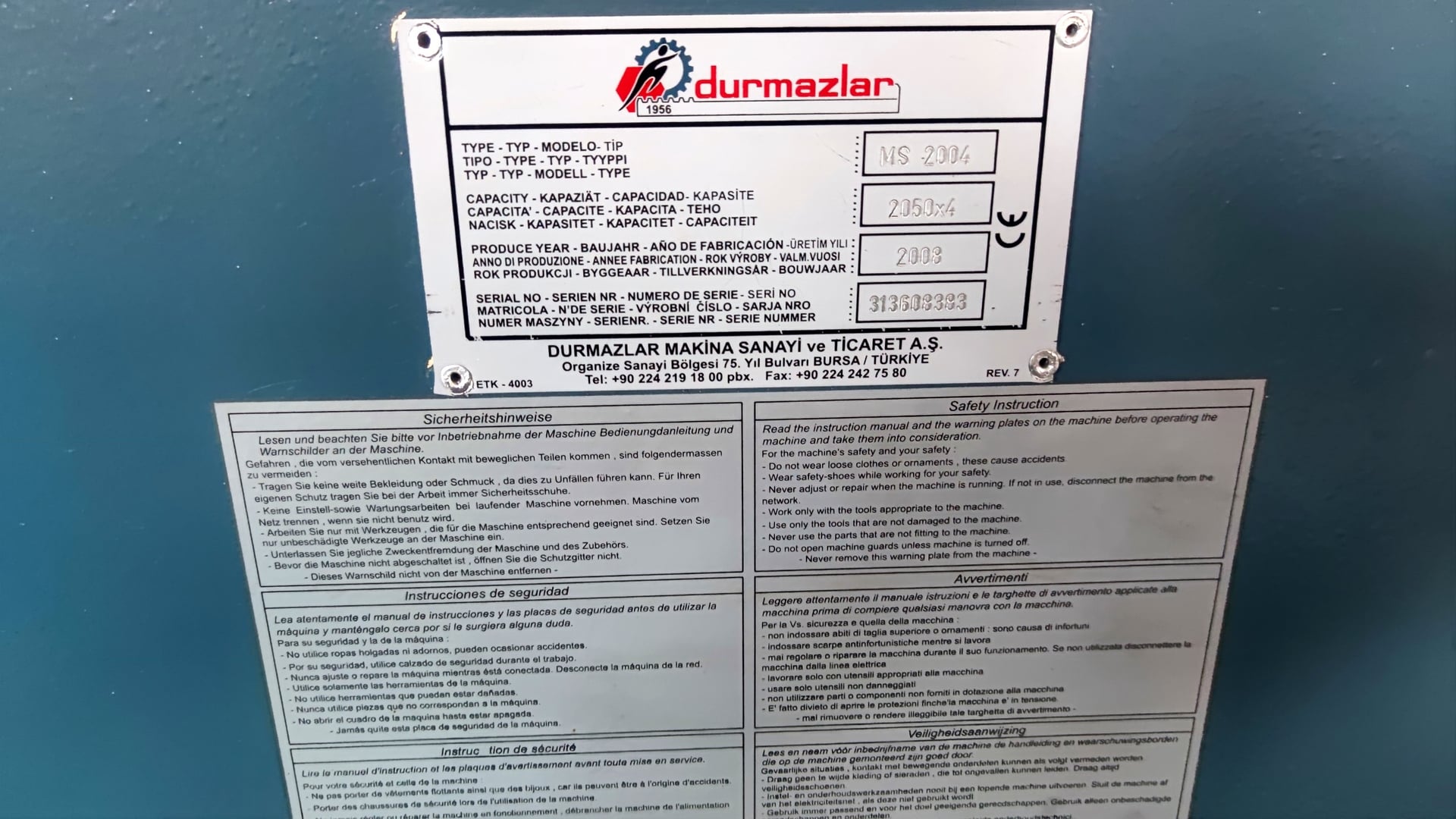

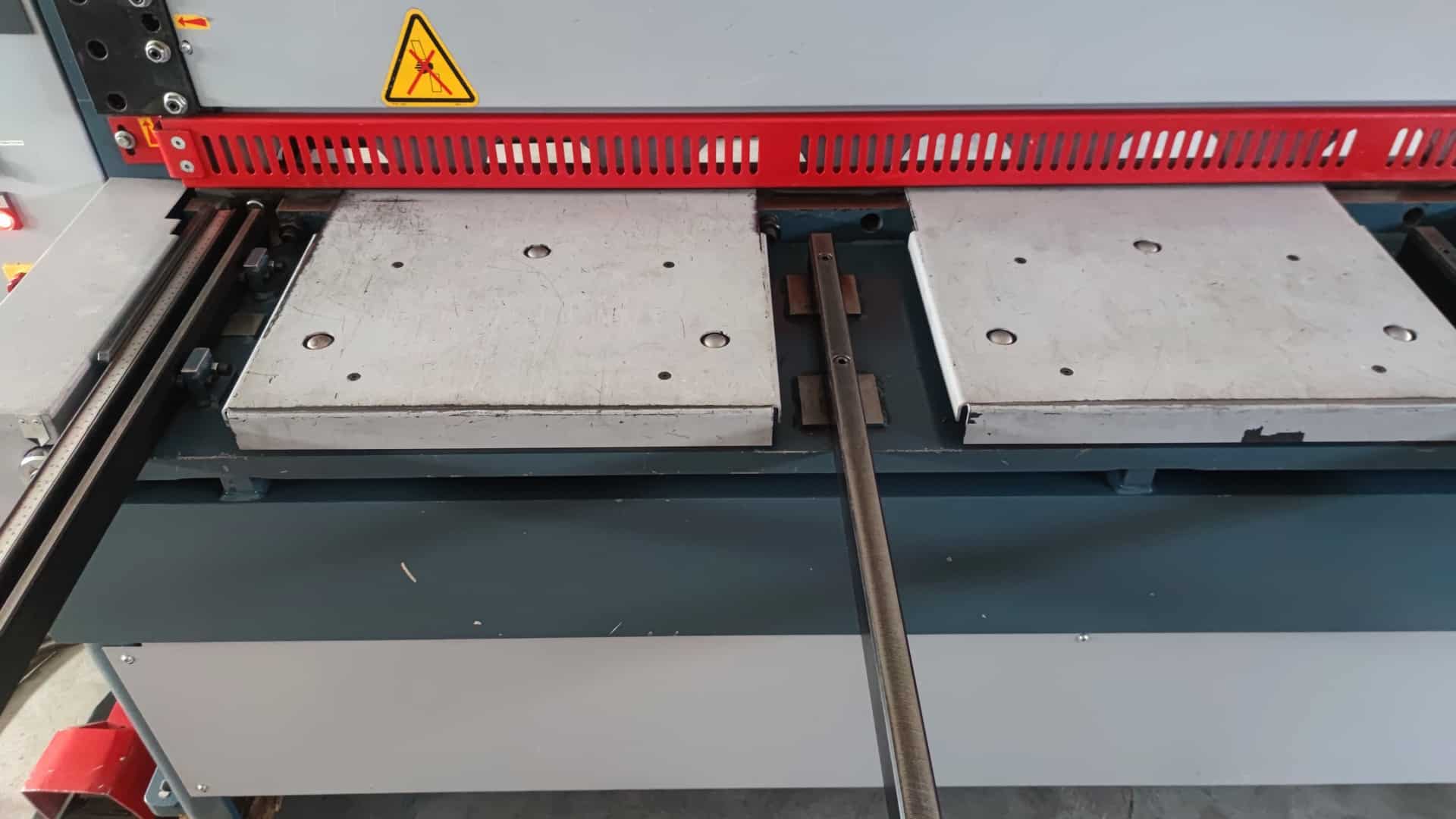

DURMA MS 2004 guillotine shears were built in 2008 in Turkey. The machine, characterised by the application of many facilities and modern solutions, guarantees precise and efficient machining of, among others, stainless steel, aluminium, copper and plain steel. A sheet metal with a maximum thickness of 4 mm is fed through ball transfers built into the work table, whose design protects the surface of sensitive materials from scratches and nicks.

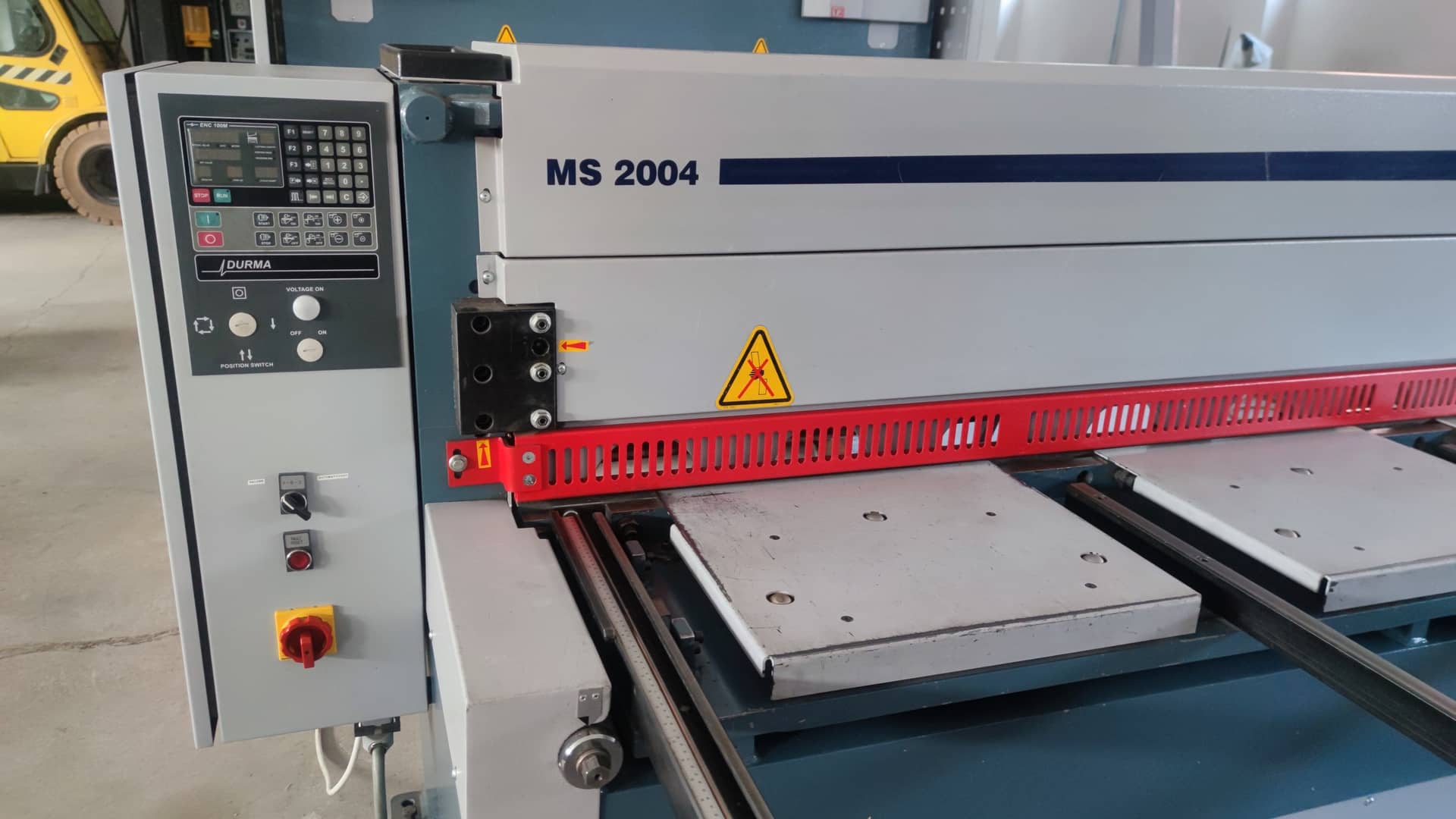

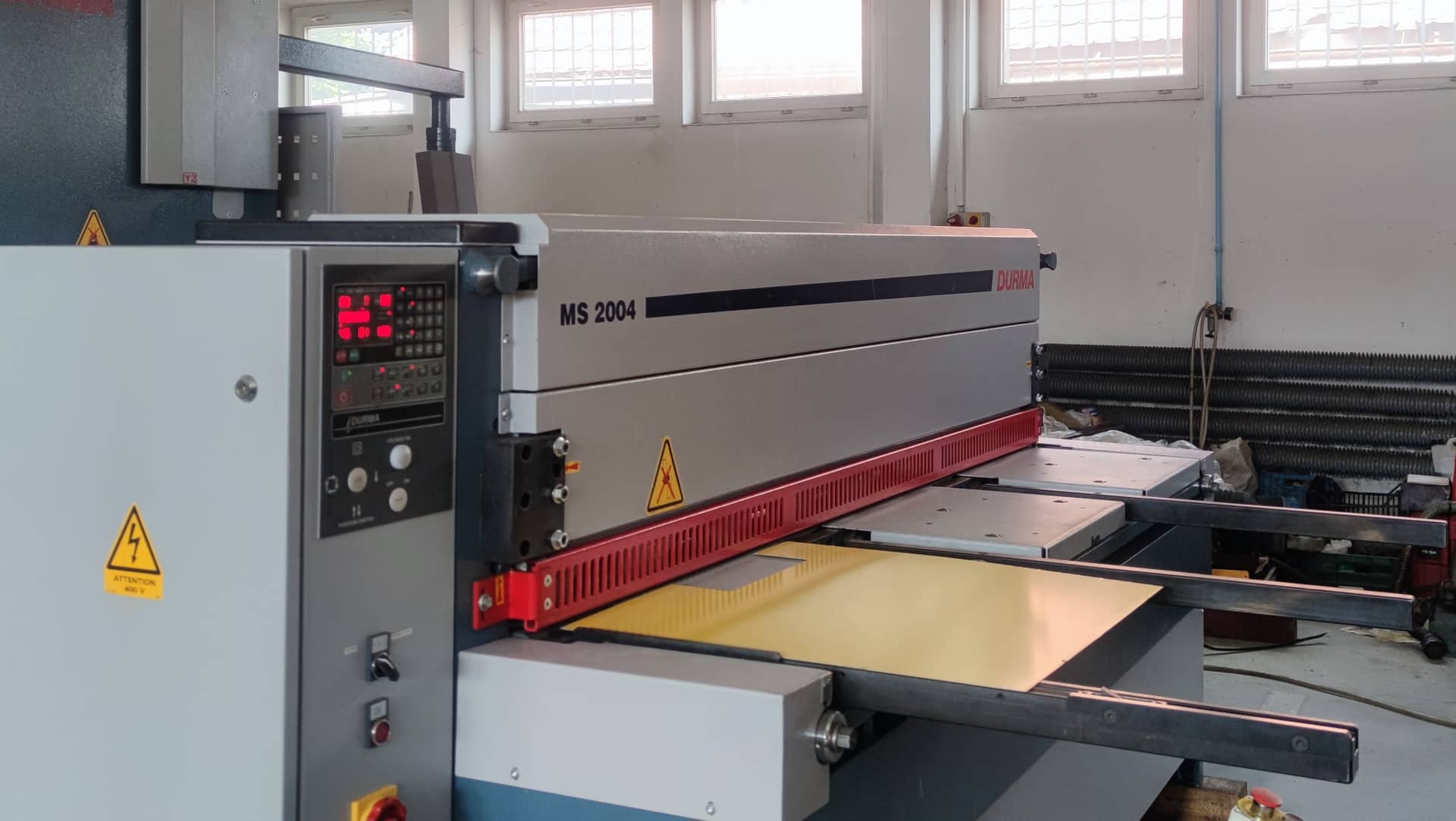

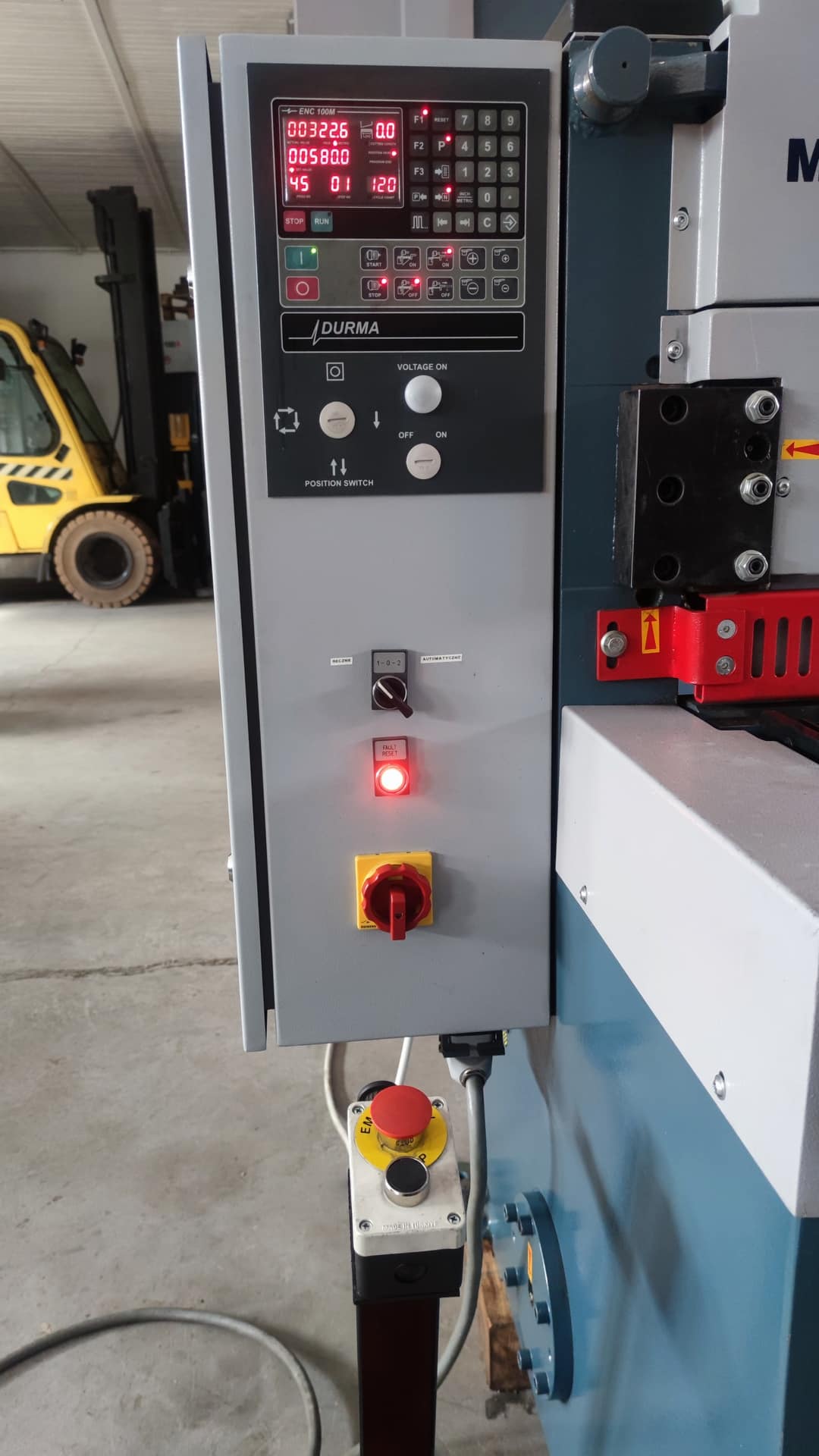

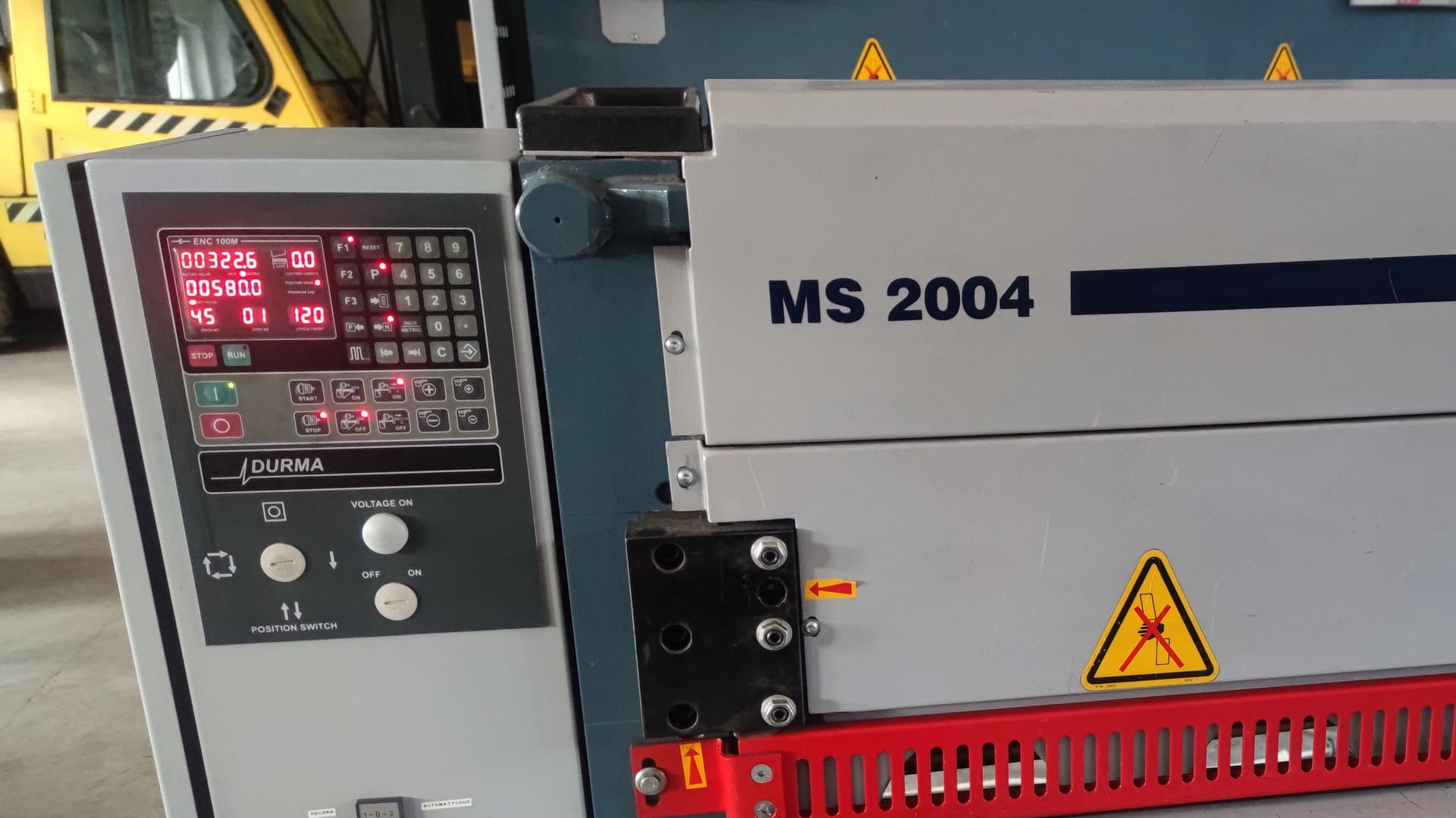

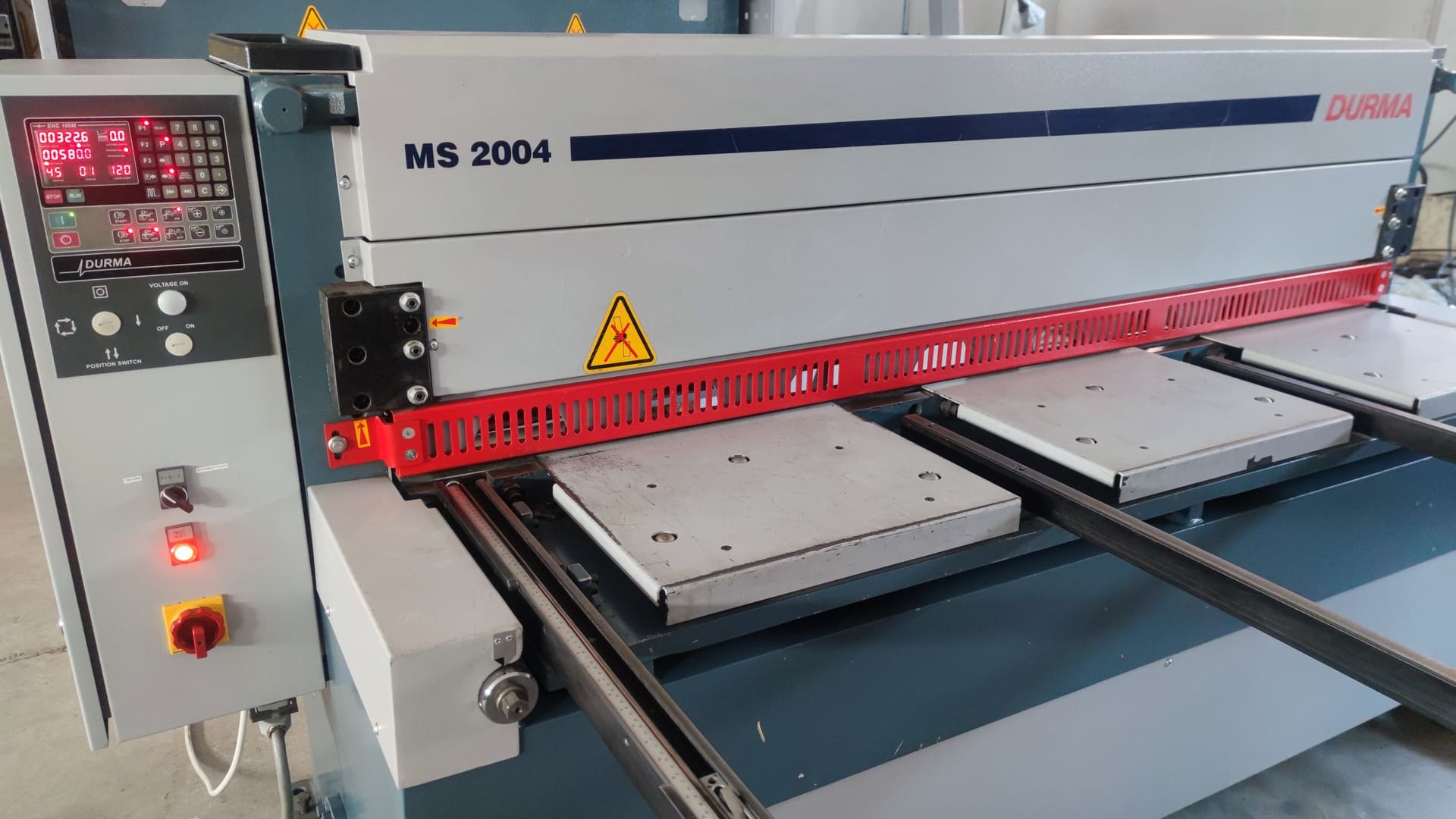

All machining process parameters are programmed on the intuitive DURMA ENC-100M control panel with a clear LCD display and memory for 50 programmes. During the cutting process, the rigid design of the machine ensures that sheet deformations are within tolerance, making both the workpiece and the cut-off ready for further machining. The DURMA MS-2004 mechanical guillotine shears are offered with direct drive, high-quality cutting knives with adjustable gap and a simple sheet metal hold-down system. The total weight of the machine is 2300 kg.

Technical data of the DURMA MS 2004 guillotine shears

• control panel: DURMA ENC-100M
• maximum cutting length: 2050 mm
• maximum workpiece thickness: 4 mm
• cutting angle: 1°30′
• number of strokes: 42/min
• table dimensions (W x H): 450 x 800 mm
• maximum back stop distance: 750 mm

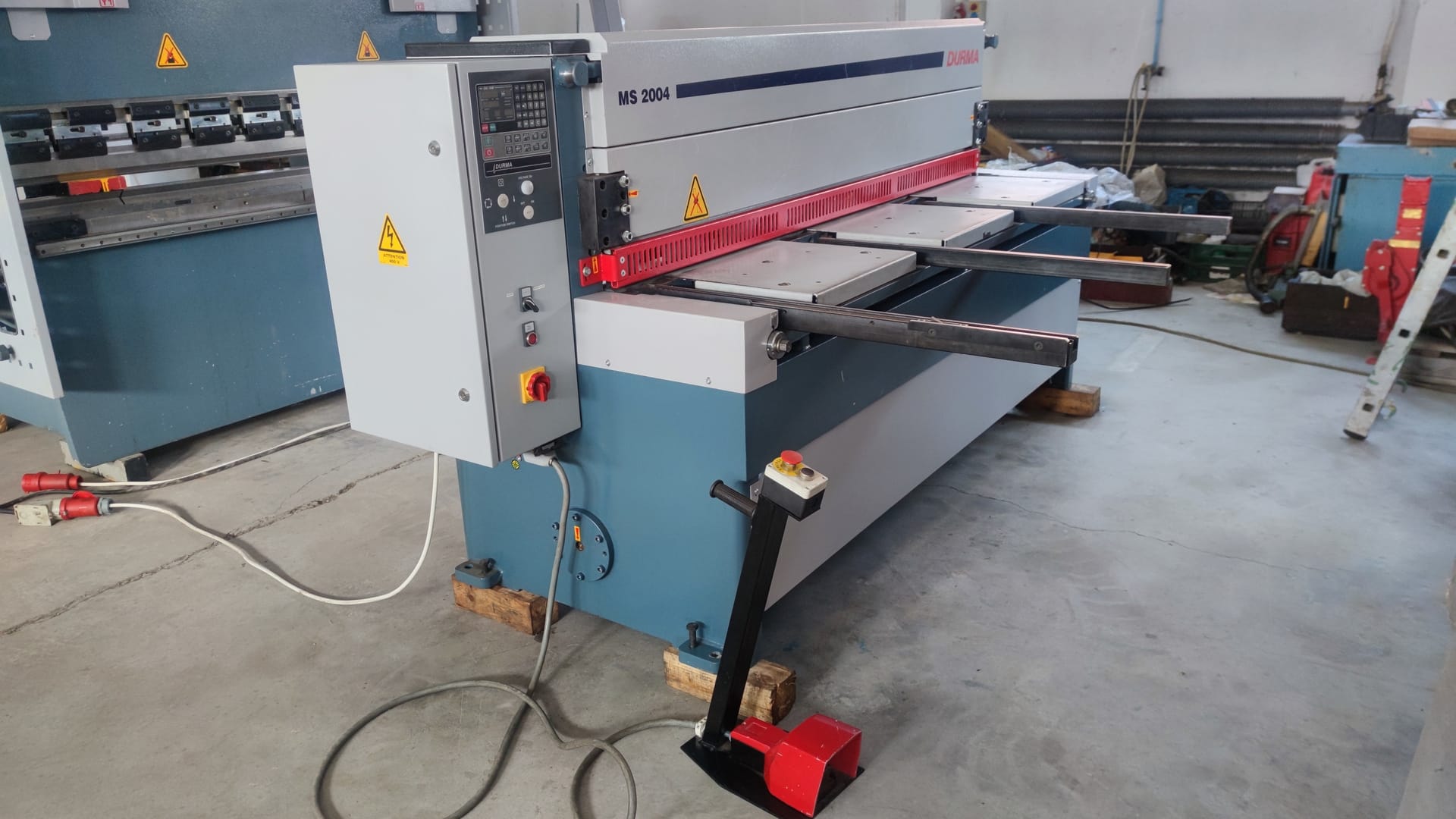

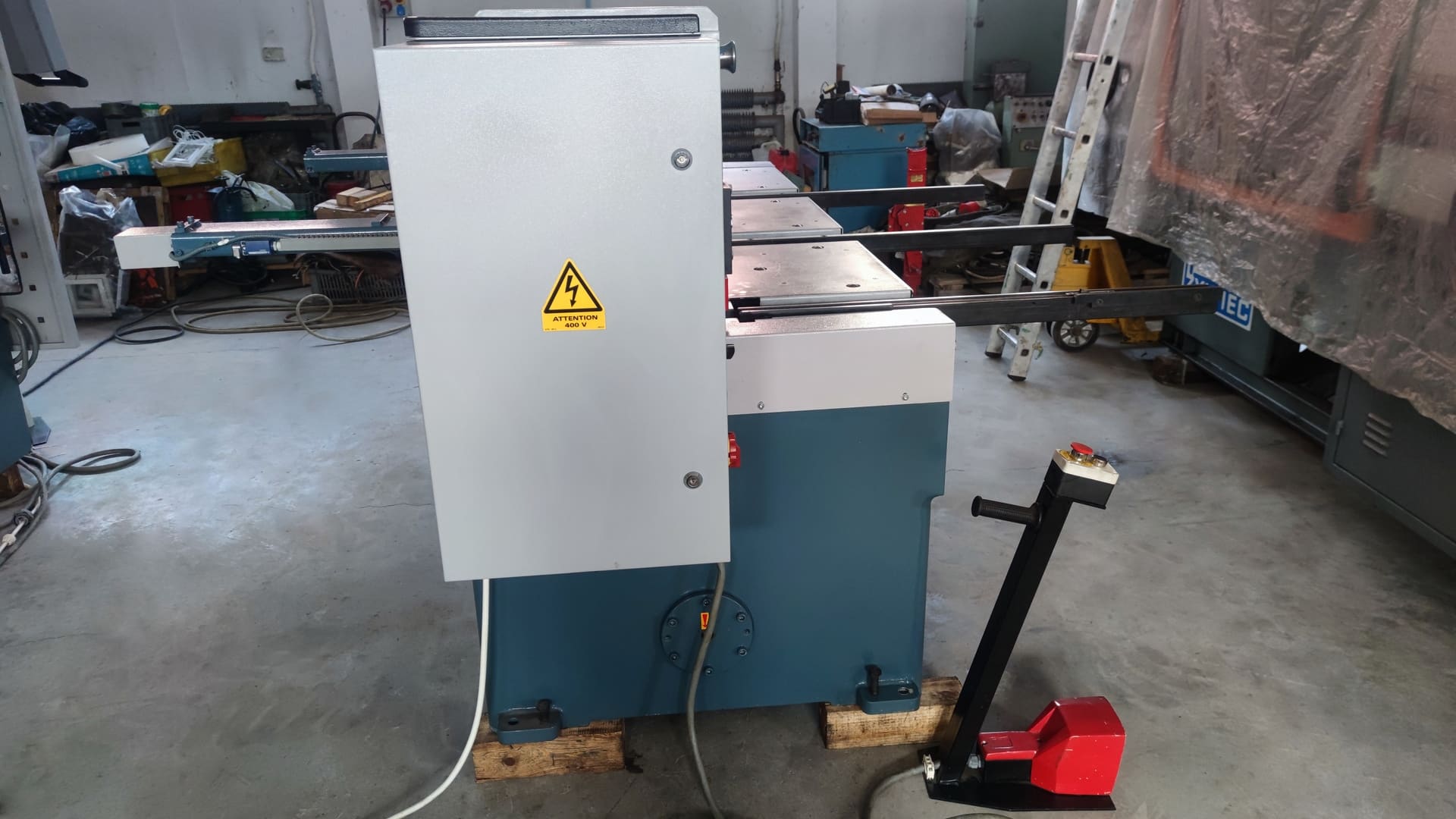

• foot control

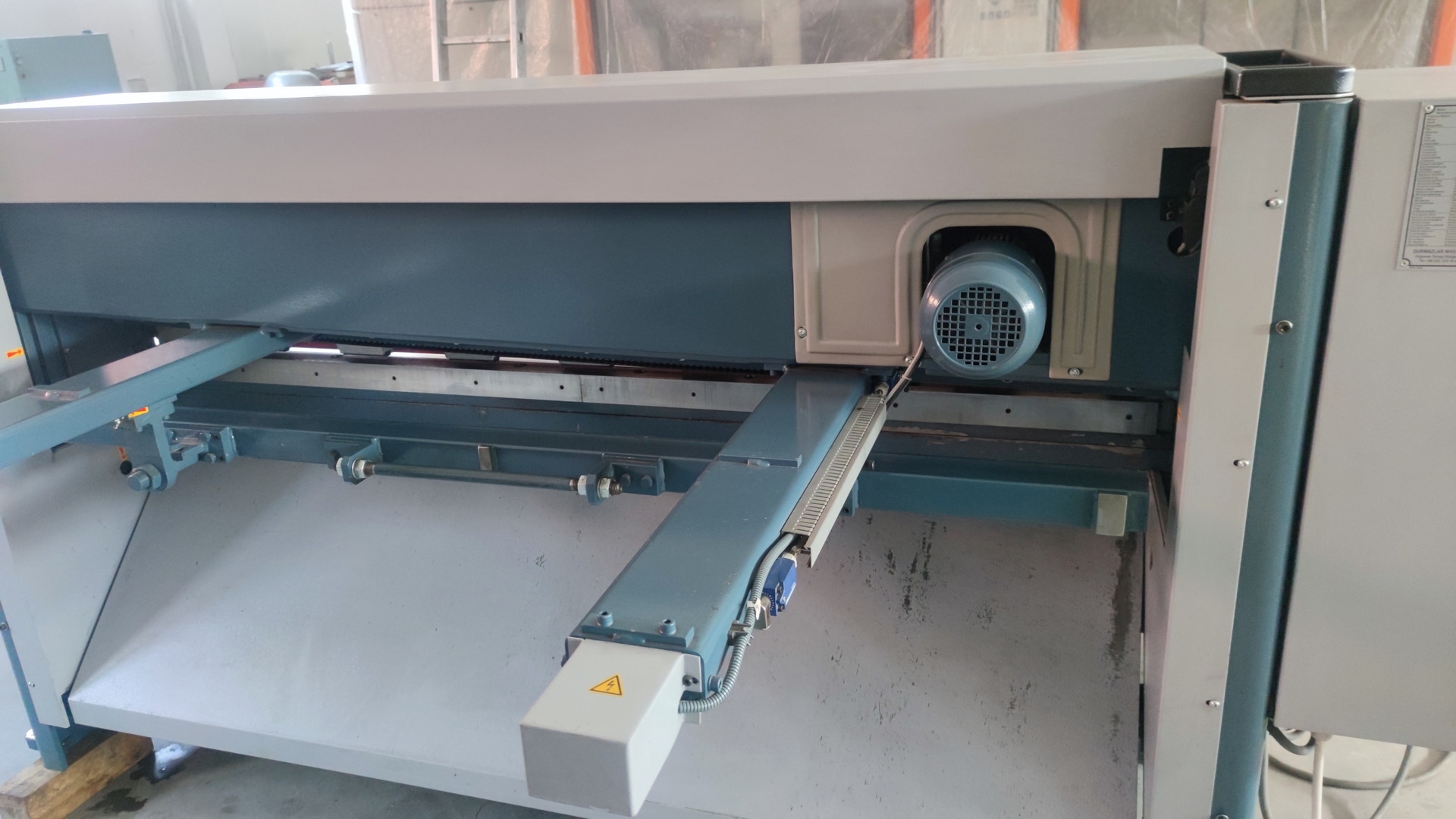

• motor power: 7.5 kW

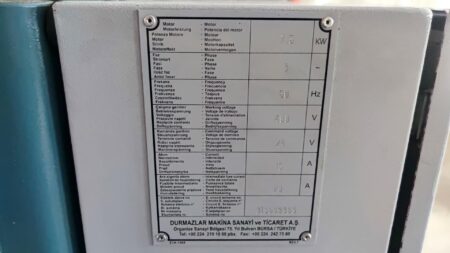

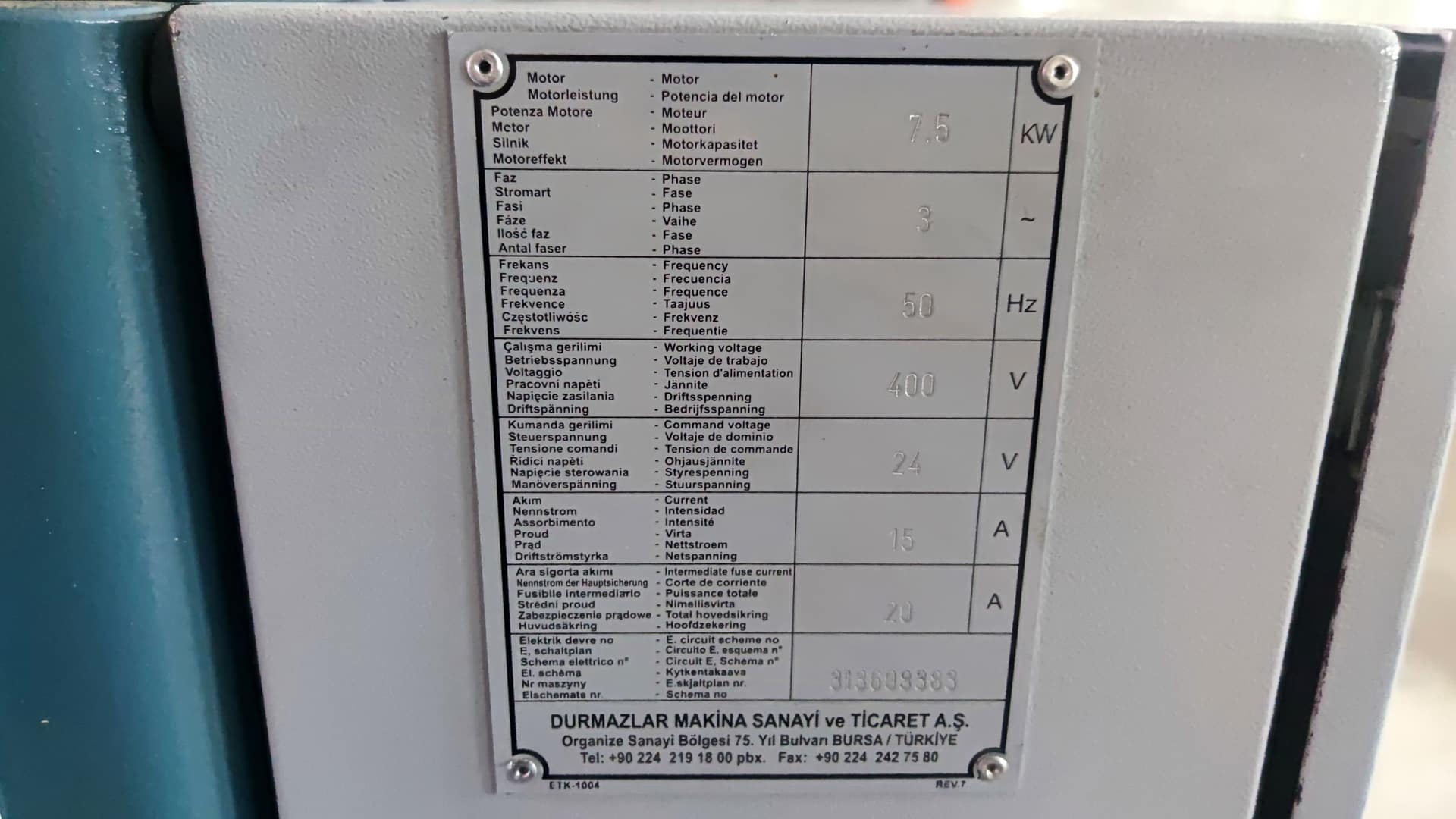

• power supply: 3x 400 V; 50 Hz
• dimensions (L x W x H): 2550 x 2260 x 1330 mm
• weight of machine: 2300 kg
