ECKERT AGAT SPEED gas cutting machine

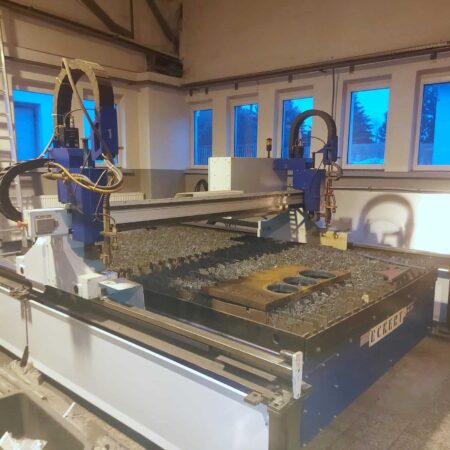

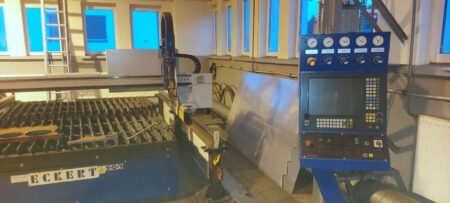

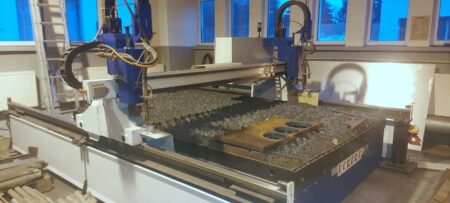

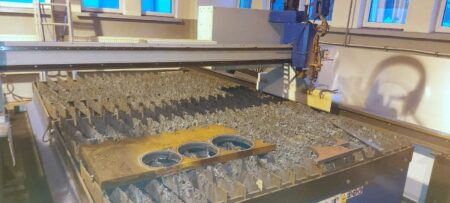

ECKERT AGAT SPEED gas cutting machine was manufactured in Poland in 2014. The machine designed for precision cutting of metal sheets with a maximum thickness of 100 mm is distinguished by a high-quality portal with an open structure, ensuring excellent stability during the performed cutting process and free access of the operator to the working space. The contamination generated during the cutting process is continuously removed by a sectional extraction table covering the entire working area of the machine. The ECKERT gas cutting machine is also equipped with, among others, a state-of-the-art CNC ECS 872 controller and an oxygen torch support with capacitive distance sensor.

Technical data of the ECKERT AGAT SPEED CNC cutting machine

• CNC control: ECS 872
• maximum workpiece thickness: 100 mm
• work table surface (L x W): 3000 x 2000 mm
• oxygen torch support with capacitive distance sensor and HARRIS oxygen torch and automatic igniter
• manual gas console with electrovalves
• propane gas suport (2 pcs.)
• oxygen and flammable gas regulators
• sectional extraction table
• power supply: 230 V
• rated current: 12 A

The AGAT SPEED gas cutting machine and all cables and hoses have been adapted to the possible extension of the machine to a length of 6000 mm.
