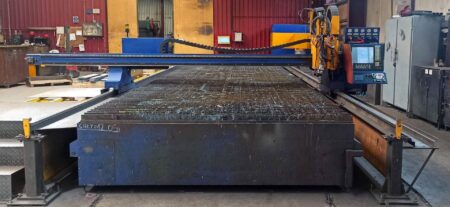

ECKERT JANTAR 2 plasma cutting machine

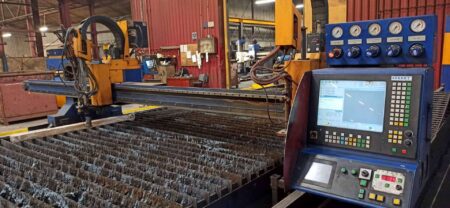

ECKERT JANTAR 2 plasma cutting machine was manufactured in 2008 in Poland. The machine equipped with a large working table of 12500 x 2500 mm (length x width) is designed for cutting oversized metal sheets made of carbon and low-alloy steel of maximum thickness of 25 mm (plasma cutting) or 110 mm (oxygen cutting). The torches are powered by a highly efficient HYPERTHERM HPR260 plasma source with a power of 260 A, guaranteeing excellent precision and many years of trouble-free operation.

The ECKERT JANTAR 2 12.5×2.5 m plasma-gas cutting machine ensures a high level of safety. A KEMPER filtration system with self-cleaning filters and an extraction table eliminate contamination generated during workpiece machining. The plasma cutting machine is numerically controlled by an ECS 859 controller with all the necessary functions for efficient use of the machine.

Technical parameters of the ECKERT JANTAR 2 plasma-gas cutting machine

• maximum workpiece thickness (oxygen torch): 110 mm
• maximum workpiece thickness (plasma torch): 25 mm

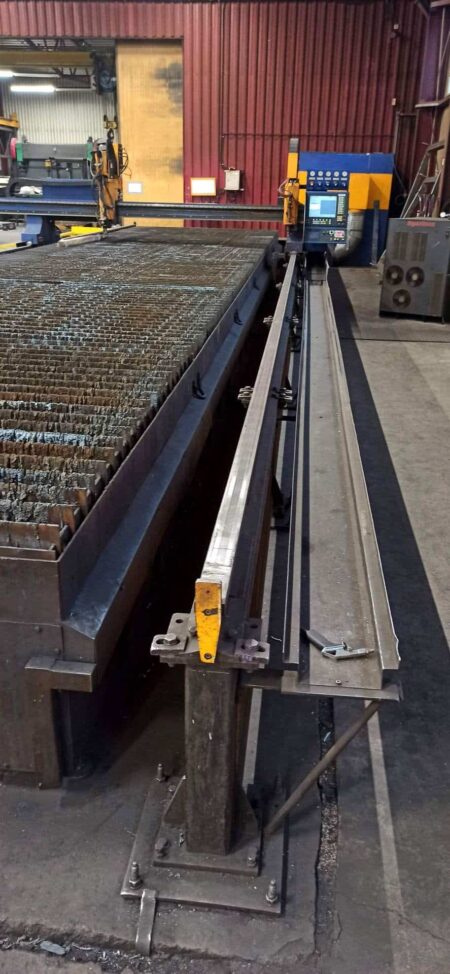

• work table dimensions (L x W): 12500 x 2500 mm
• travel speed: 10-10000 mm/min
• slide working stroke: 125 mm
• table height: 760 mm
• plasma source power: 260 A
• power supply of JANTAR 2 machine: 230 V

Equipment of the plasma-gas cutting machine

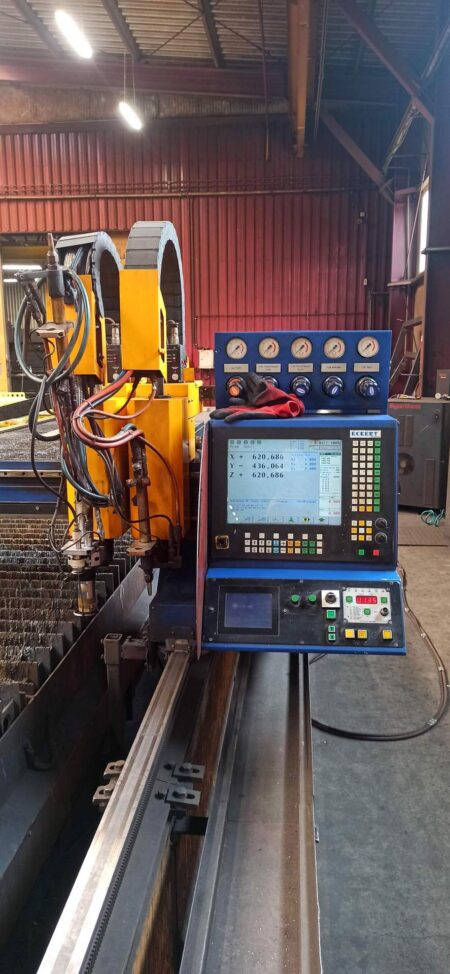

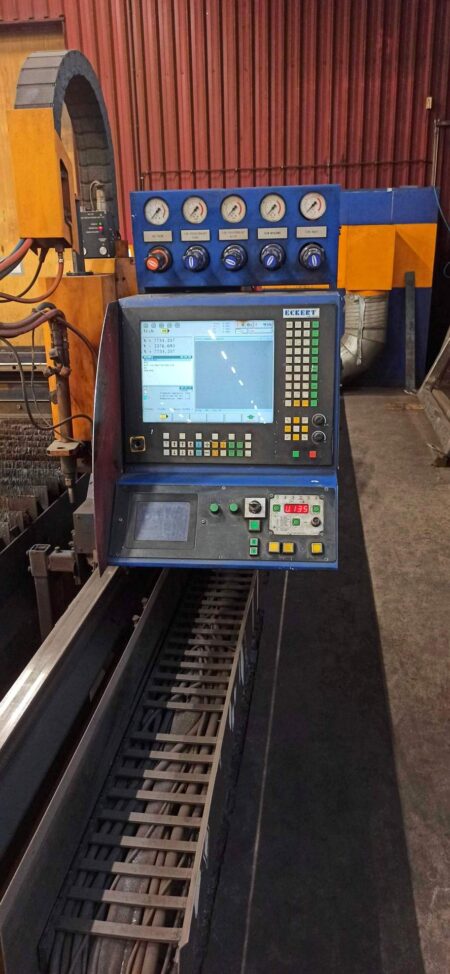

• CNC controller: ECS 859

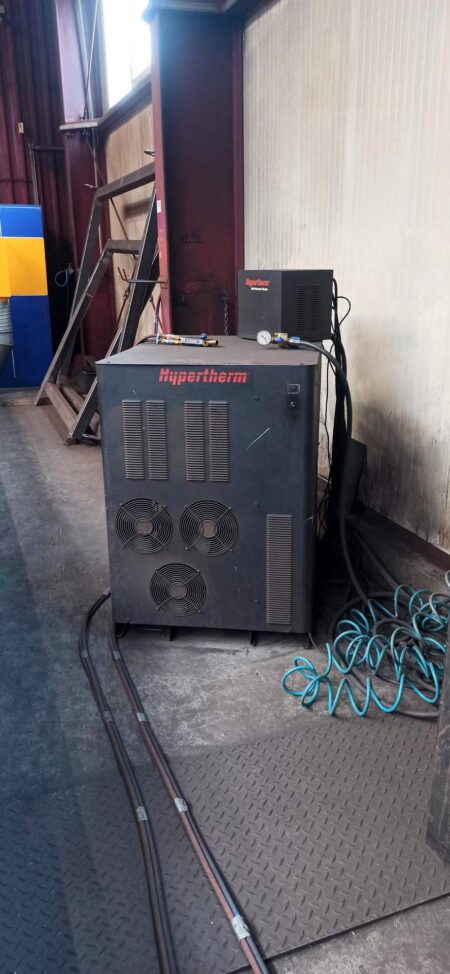

• plasma source: HYPERTHERM HPR260
• extraction table

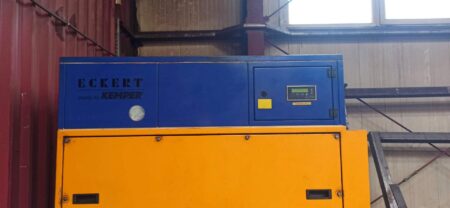

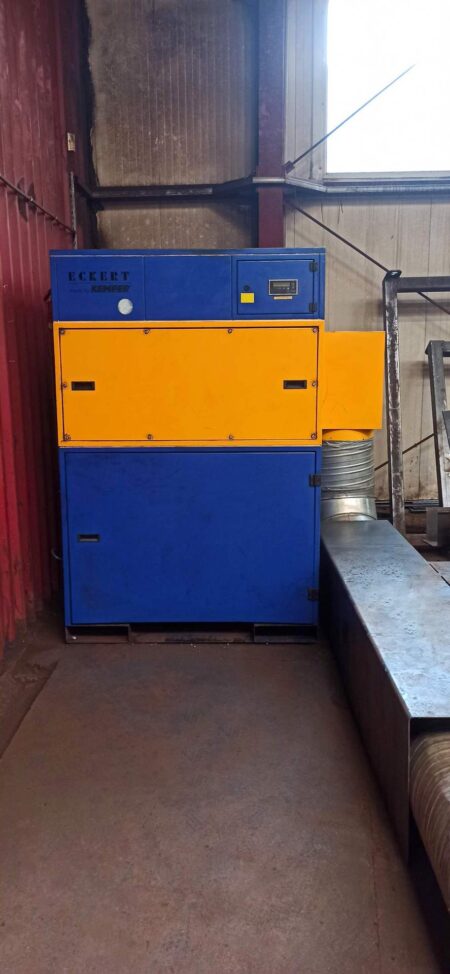

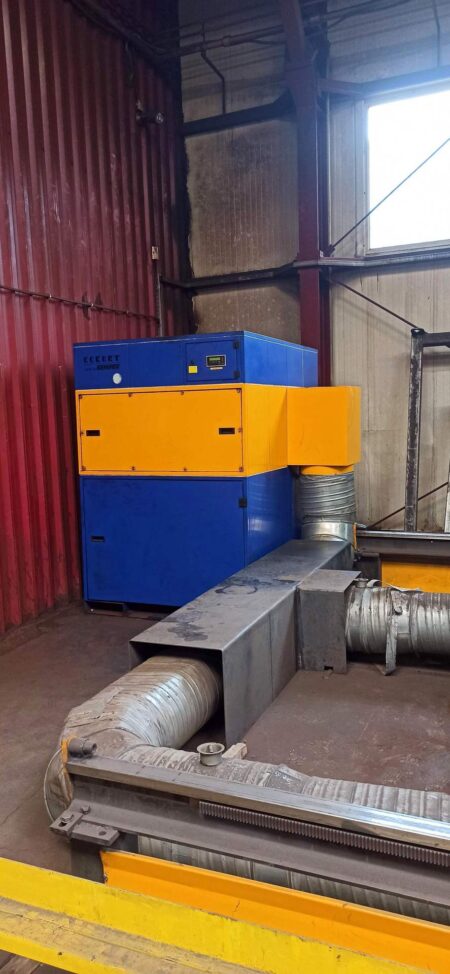

• filter fan: KEMPER
• plasma torch with maximum piercing capacity of 30 mm
• HARRIS oxygen torch with maximum piercing capacity of 45 mm
• Ethernet interface
