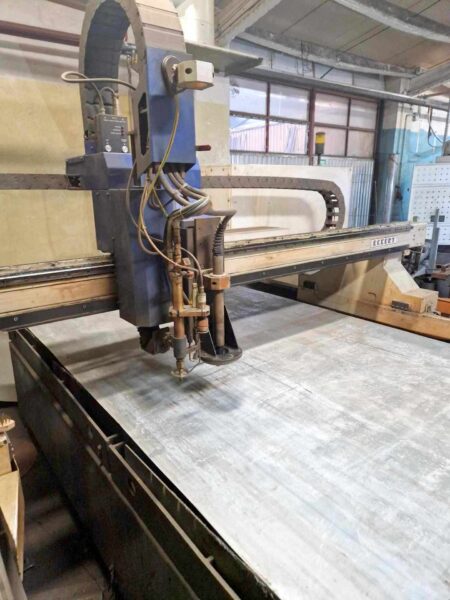

ECKERT JANTAR 2 plasma-gas cutting machine

ECKERT JANTAR 2 plasma-gas cutting machine was manufactured in Poland in 2013. The machine designed for even the most intensive and demanding workpiece machining provides excellent cutting precision, high level of safety and trouble-free operation throughout its service life. The sturdy design combined with a powerful and efficient plasma source allows for reliable cutting of workpieces with a maximum thickness of 100 mm (oxygen cutting) or 50 mm (plasma cutting). All process parameters are programmed in the intuitive ECS 872 CNC control with high-end components, which performs the machining cycles fully automatically and minimises the necessity of machine operation by the operator.

Technical data of ECKERT JANTAR 2 plasma-gas cutting machine

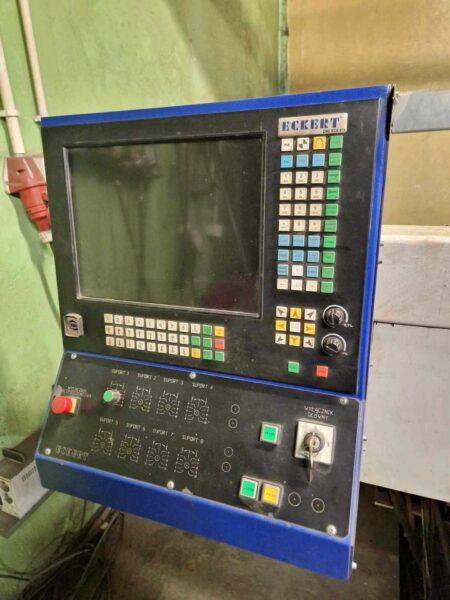

• CNC control: ECS 872
• work table dimensions (L x W): 3000 x 1500 mm
• maximum sheet metal thickness (oxygen cutting): 100 mm
• maximum sheet metal thickness (plasma cutting): 50 mm
• plasma source: HYPERTHERM POWERMAX 105
• power supply: 230 V
