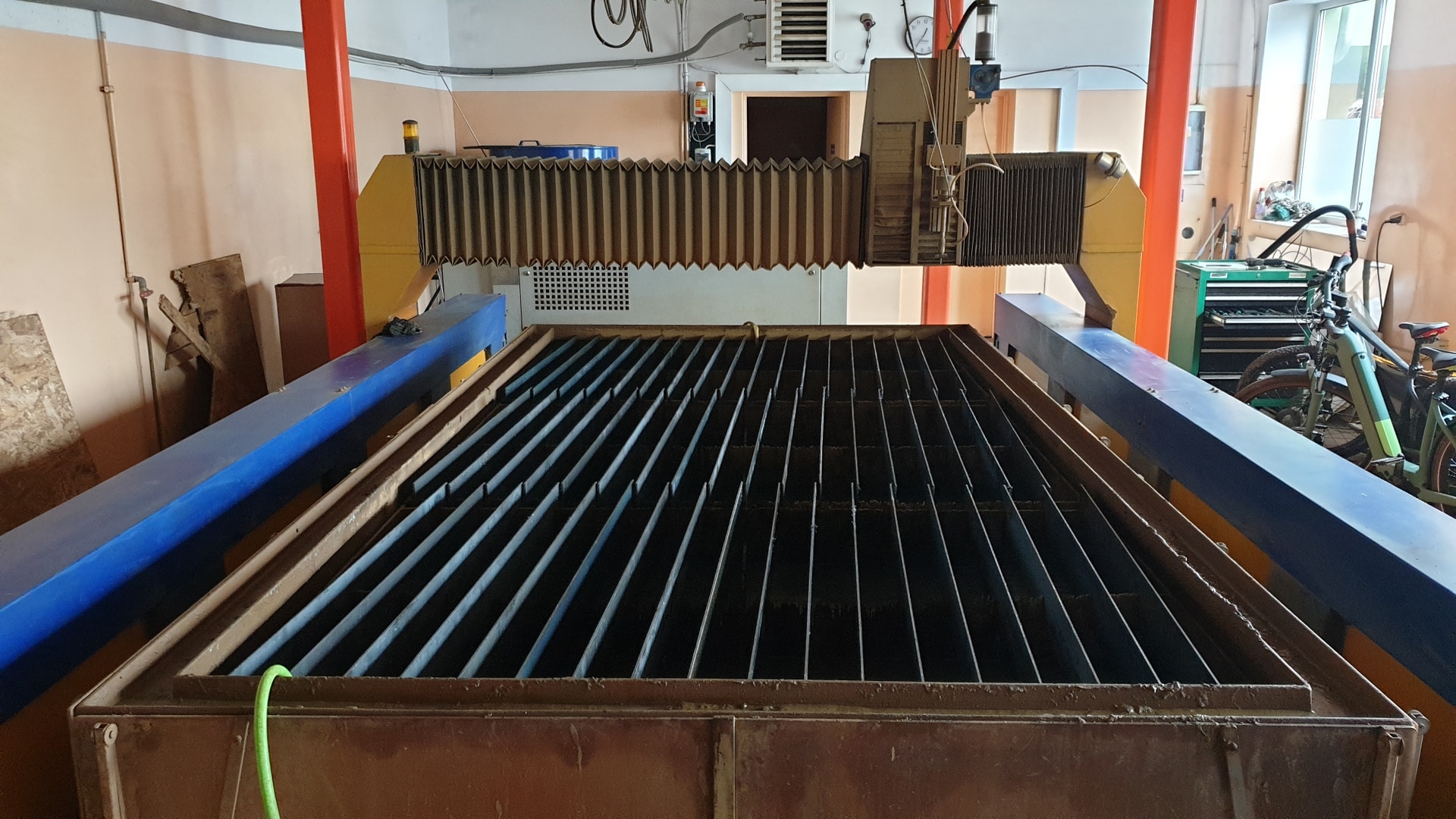

ECKERT Opal WaterJet COMBO waterjet cutting machine

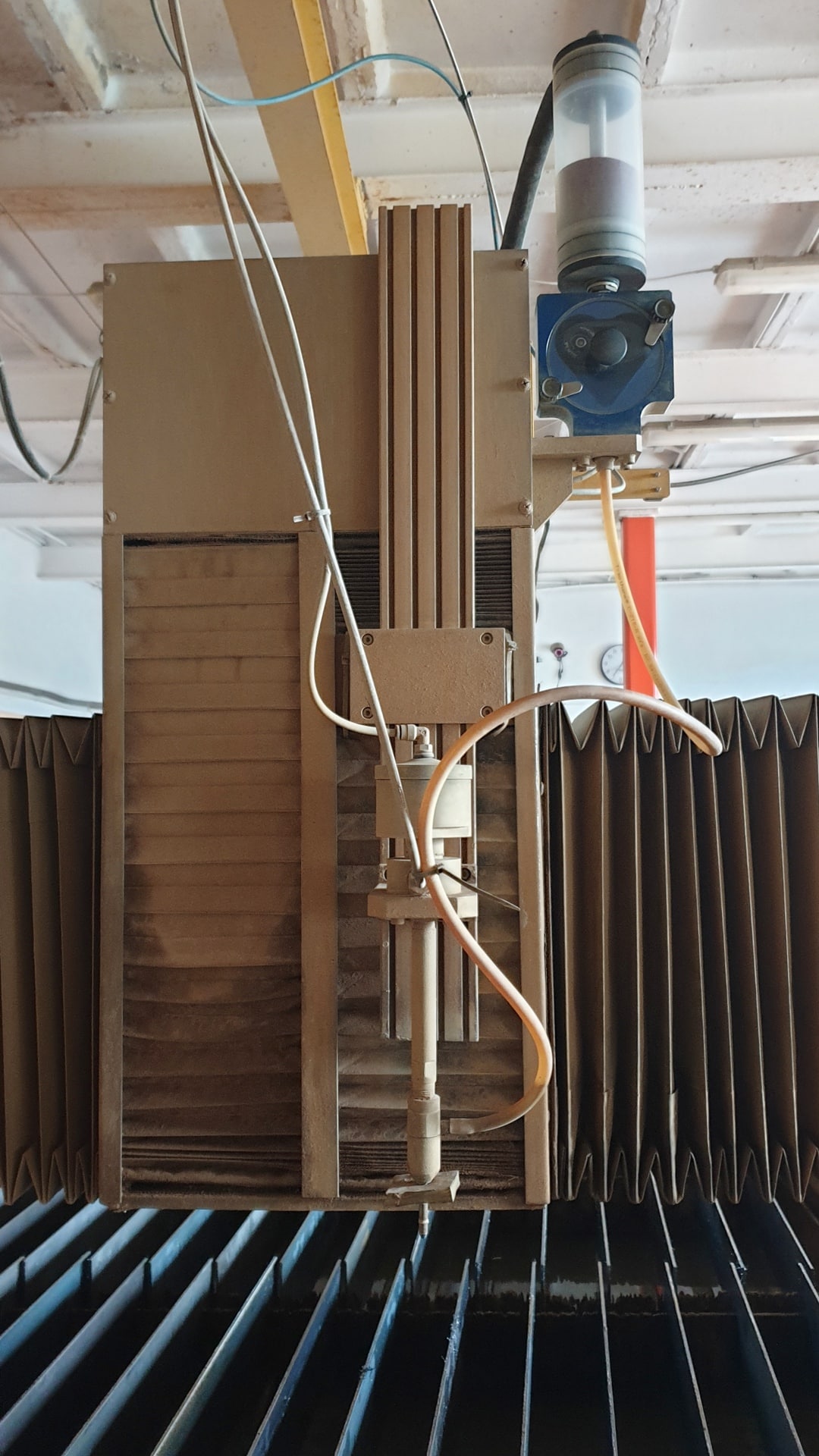

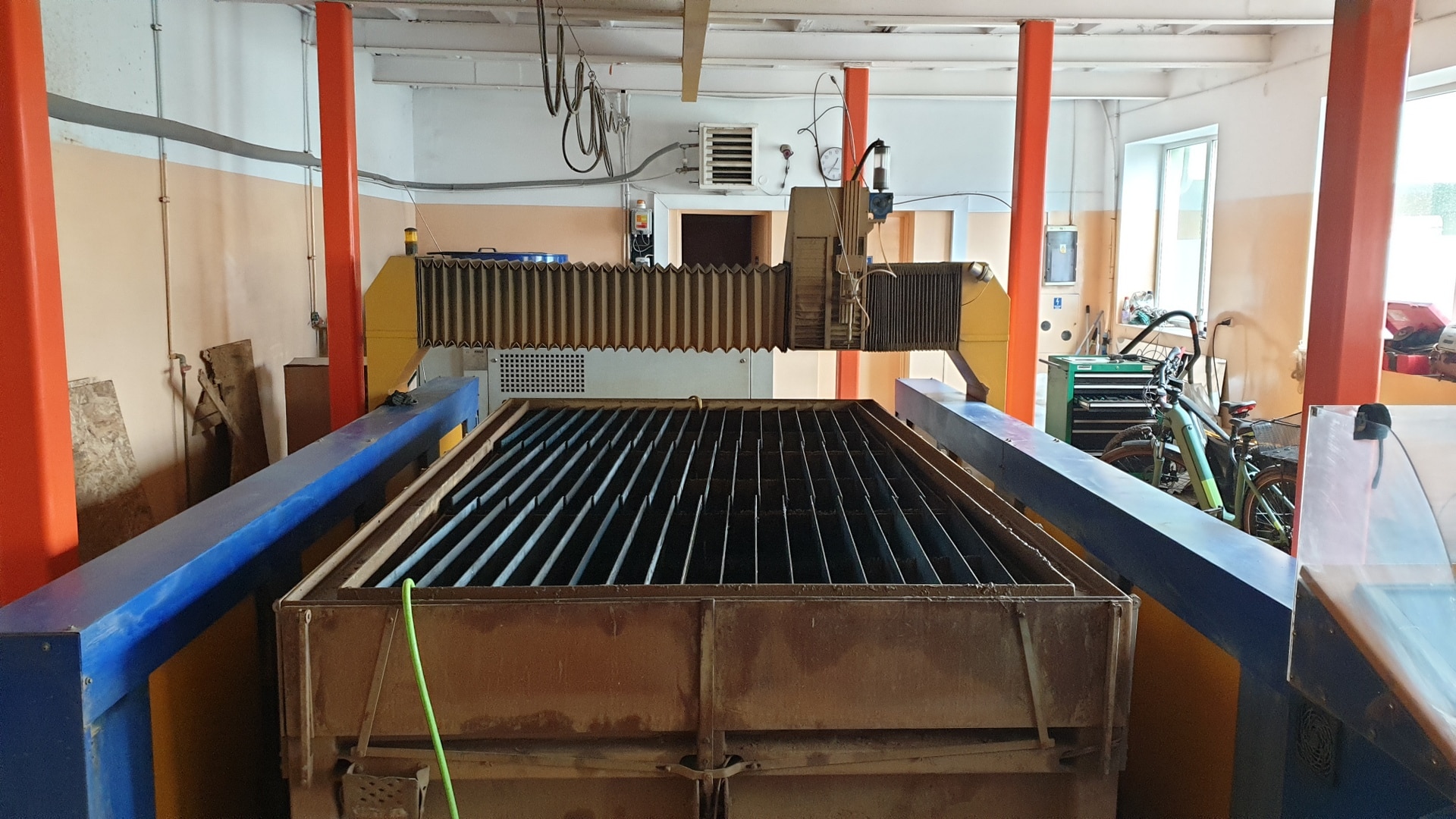

ECKERT Opal WaterJet COMBO waterjet cutting machine was built in 2011 in Poland by ECKERT AS Sp. z o.o. The machine, designed for precision machining of workpieces with a maximum thickness of 250 mm, combines all the benefits of plasma and waterjet cutting. The machining process is performed on a robust, large work table by means of a powerful cutting head. All table travel components are protected by bellows guards to ensure uninterrupted operation for many years of use. The design made of high-quality closed steel profiles, in turn, guarantees the highest stability during even the most demanding challenges. The ECKERT Opal COMBO WaterJet is offered with, among others, CAD/CAM software and a 37 kW high-pressure pump.

Technical specifications of the ECKERT Opal WaterJet COMBO water cutting machine

• maximum workpiece thickness (water machining): 250 mm
• feed rate: 25000 mm/min

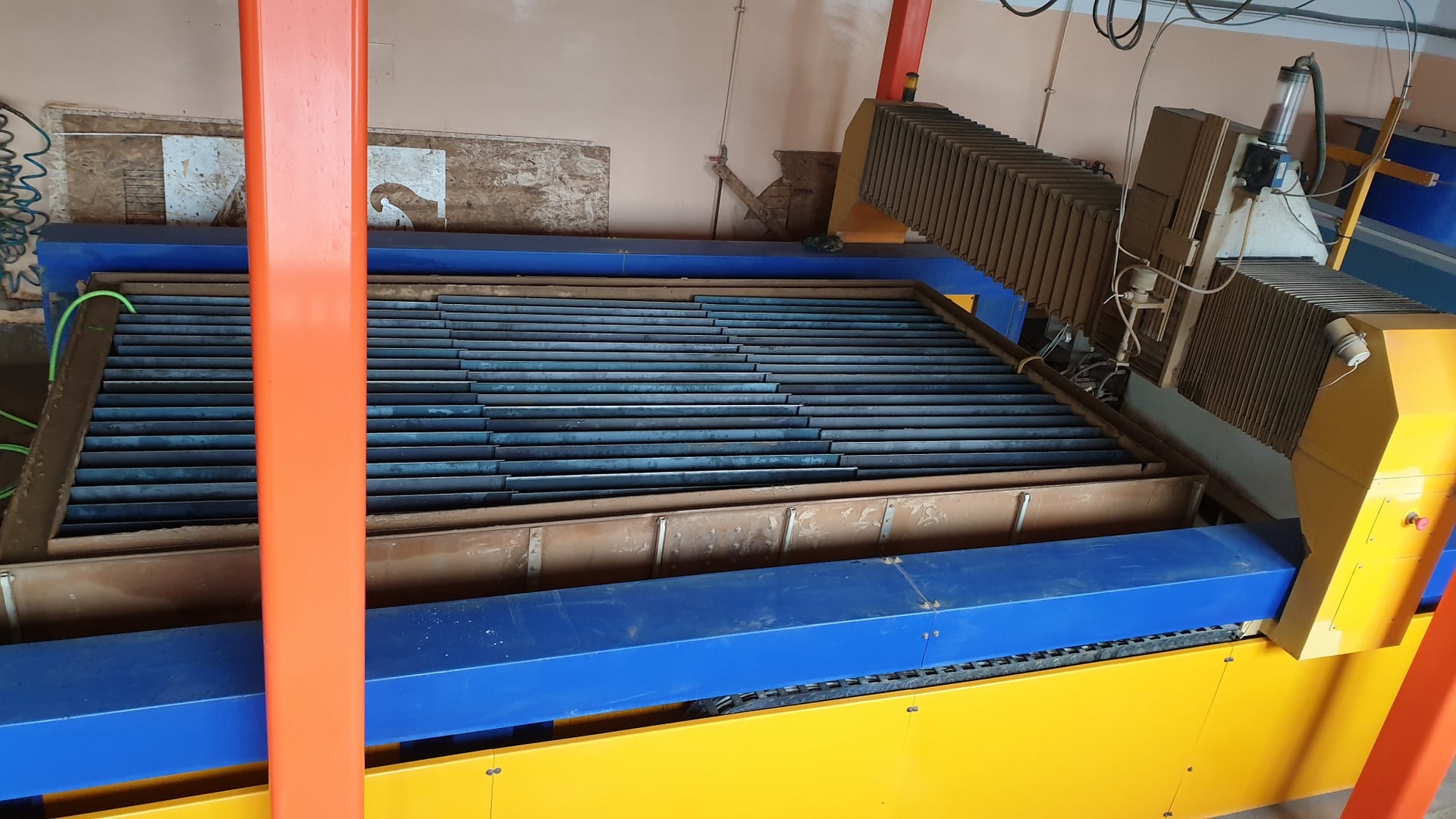

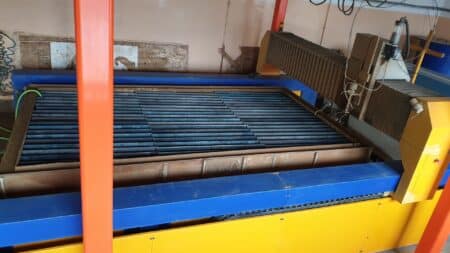

• work table dimensions (L x W): 3000 x 1500 mm
• positioning accuracy: ± 0.025 mm
• power of high-pressure pump: 37 kW
• maximum pressure of high-pressure pump: 4000 bar

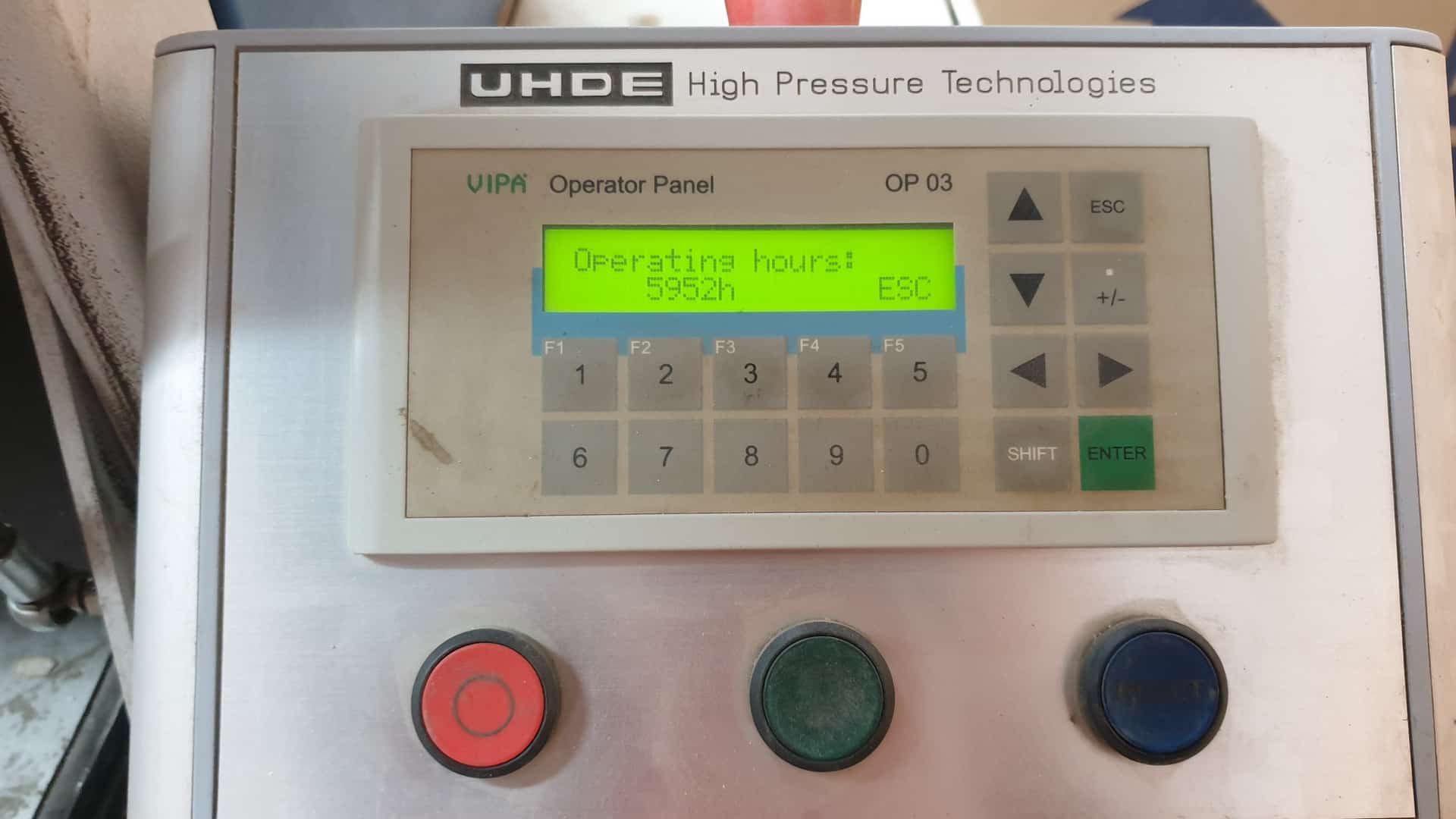

• operating hours of high-pressure pump: 5952 h
• programming format: NCP
• operating hours of machine: approx. 6000 h

Equipment of the ECKERT waterjet cutting machine

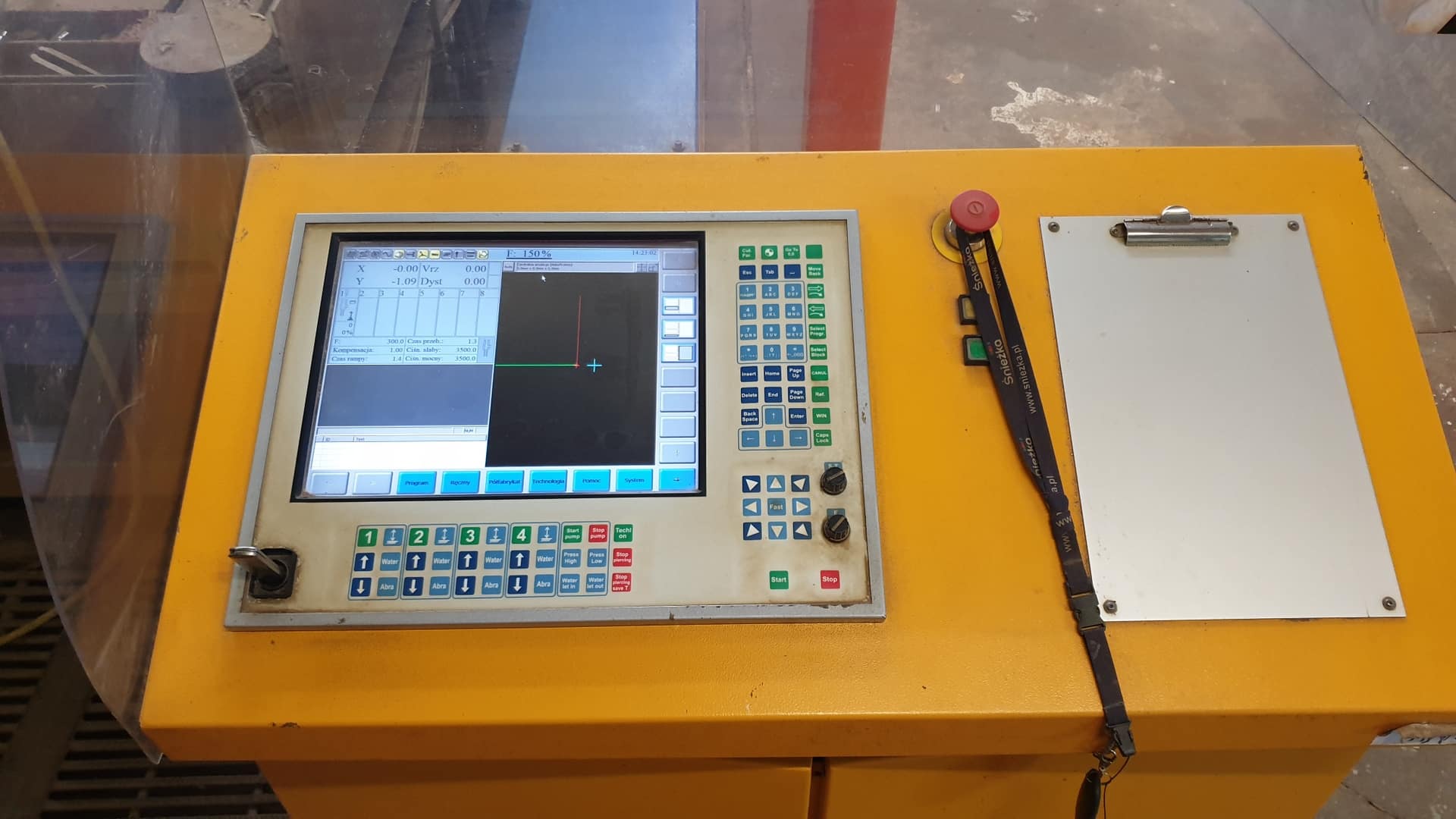

• controller

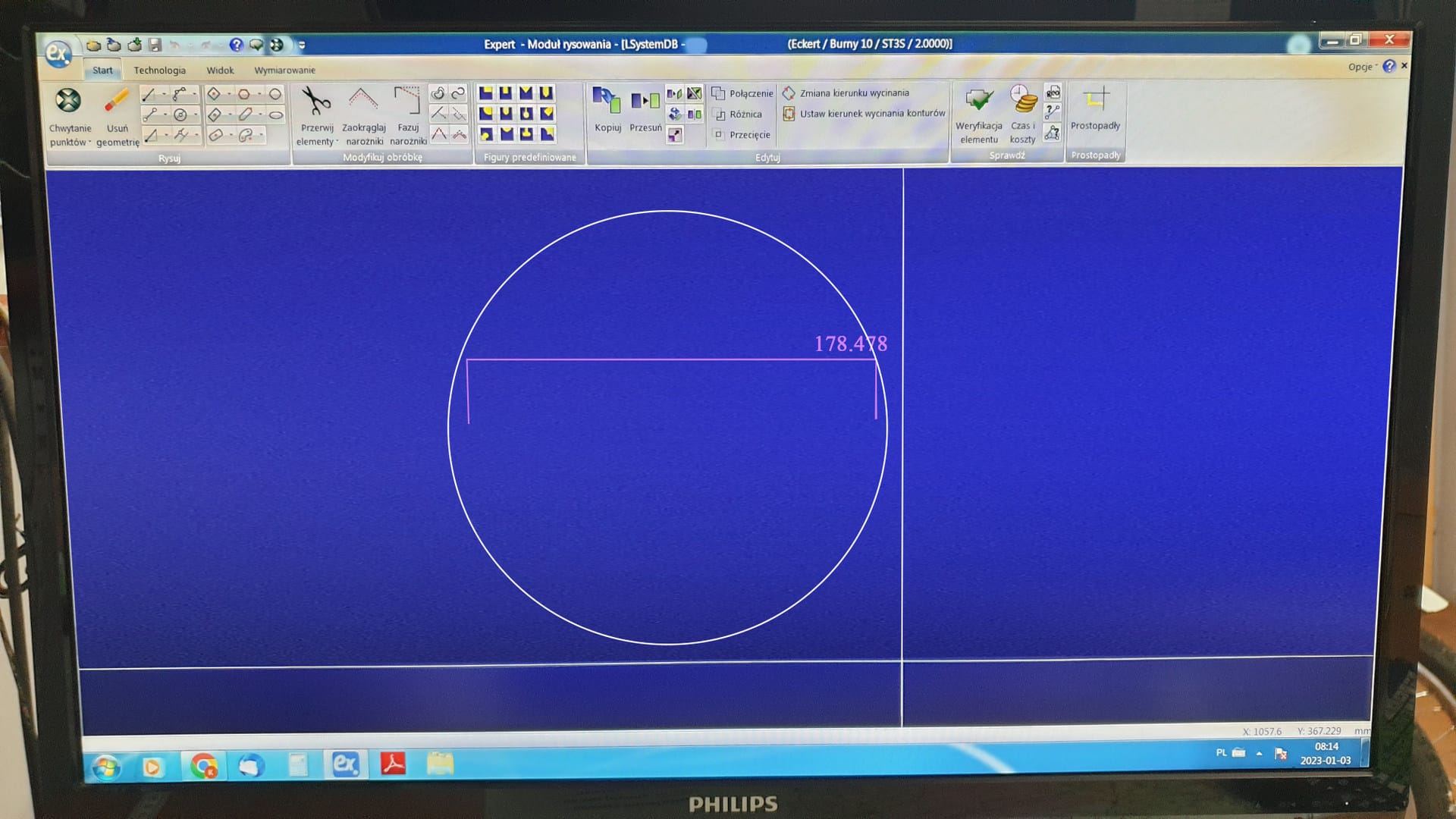

• CAD/CAM software: Latek Expert

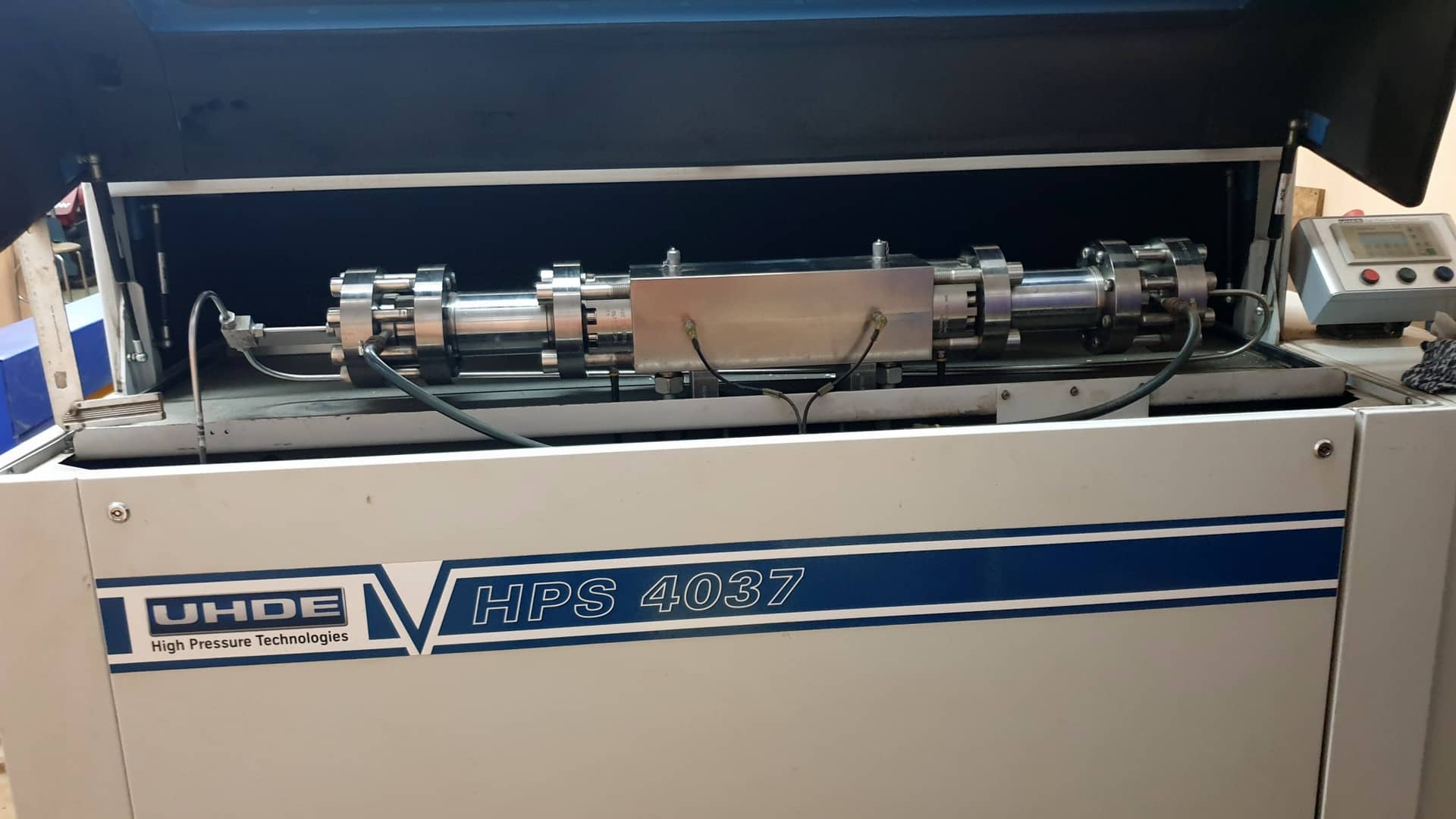

• high-pressure pump: UHDE HPS 4037
• plasma cutting head
