EKOTON PRODEKO-EŁK GK-8.230.20.H filter press

EKOTON PRODEKO-EŁK GK-8.230.20.H filter press was built in 2018 in Poland by PRODEKO-EŁK. The machine is used for the economic dehydration of sludge, based on the principle of filtering solids from the liquid. The slurry pumped in flows through chambers with filter plates, on which the solids are retained. The sludge that accumulates in this way forms a so-called “filter cake”, which, after filling the space of the chambers, falls out into a container or onto a conveyor. The use of this solution significantly minimises waste disposal costs in many industrial sectors, such as the metallurgical industry, chemical industry and mining. The GK-8.230.20.H membrane filter press weighs 37000 kg.

The offered PRODEKO-EŁK KMF GK-8.230.20.H chamber filter press is fully complete and consists of the following parts:

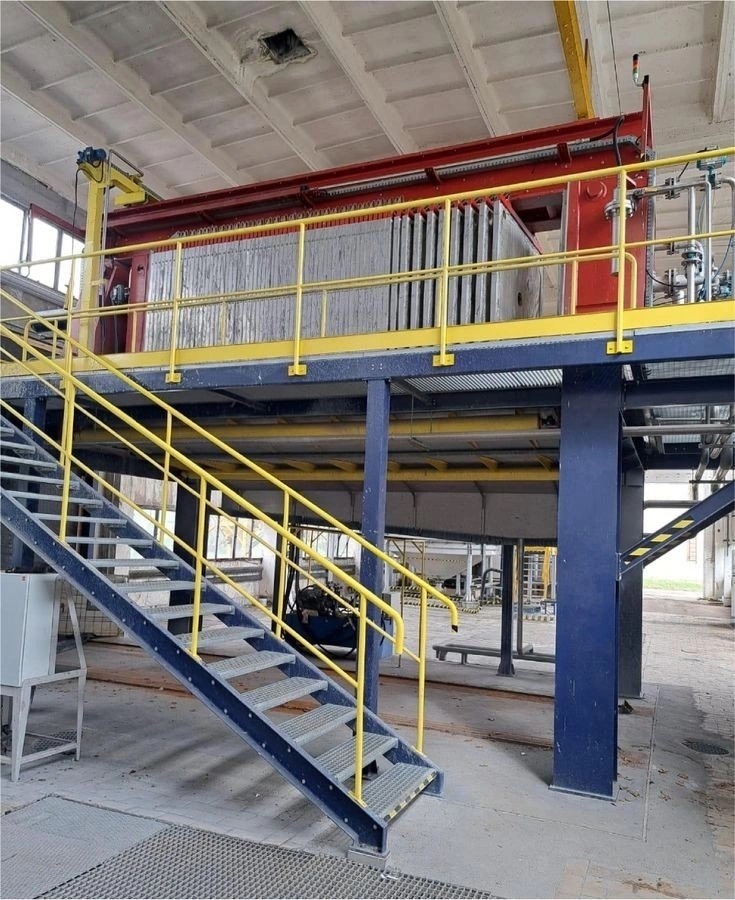

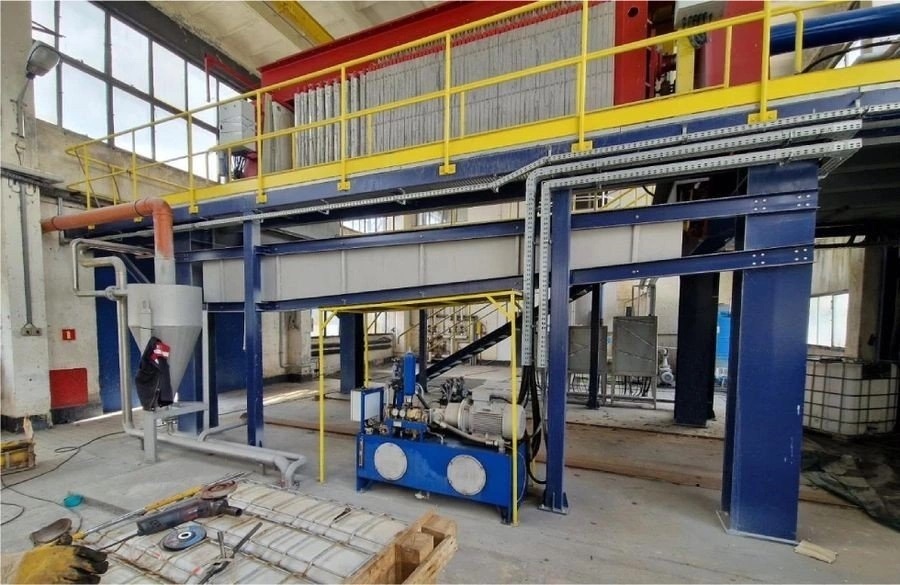

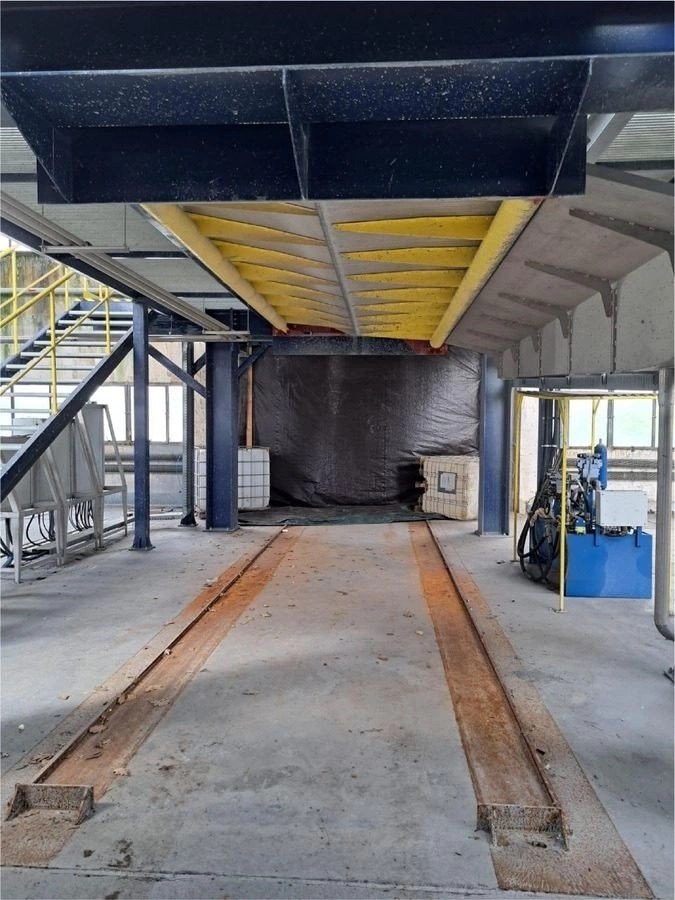

– support structure with platforms

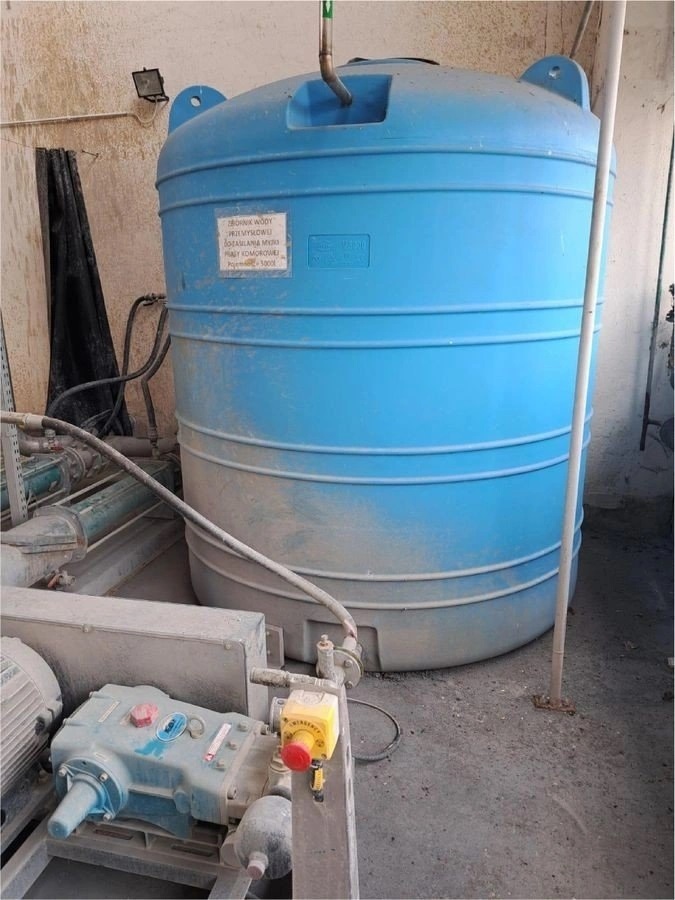

– tank for clean water

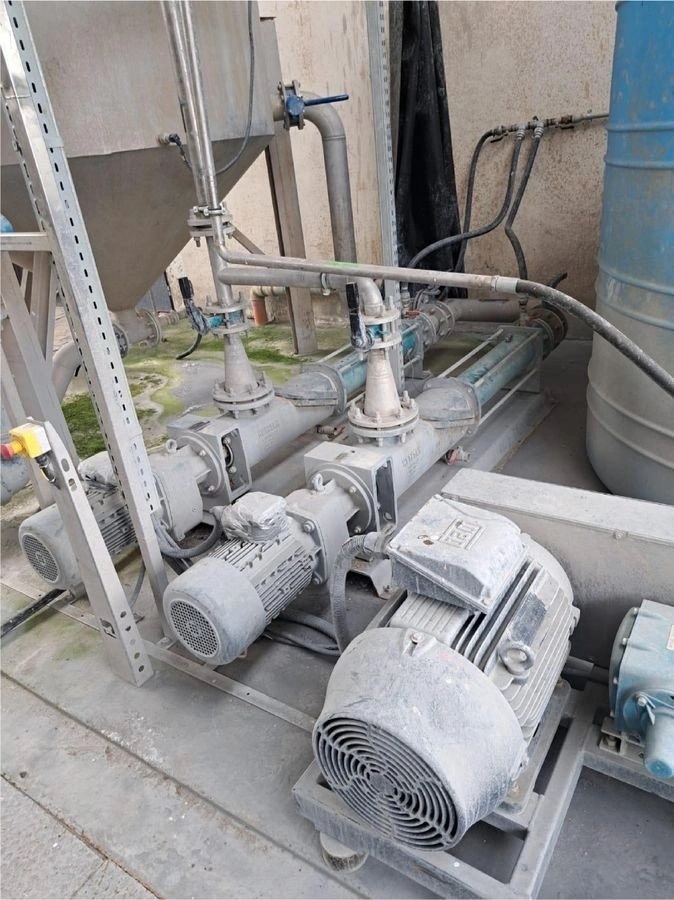

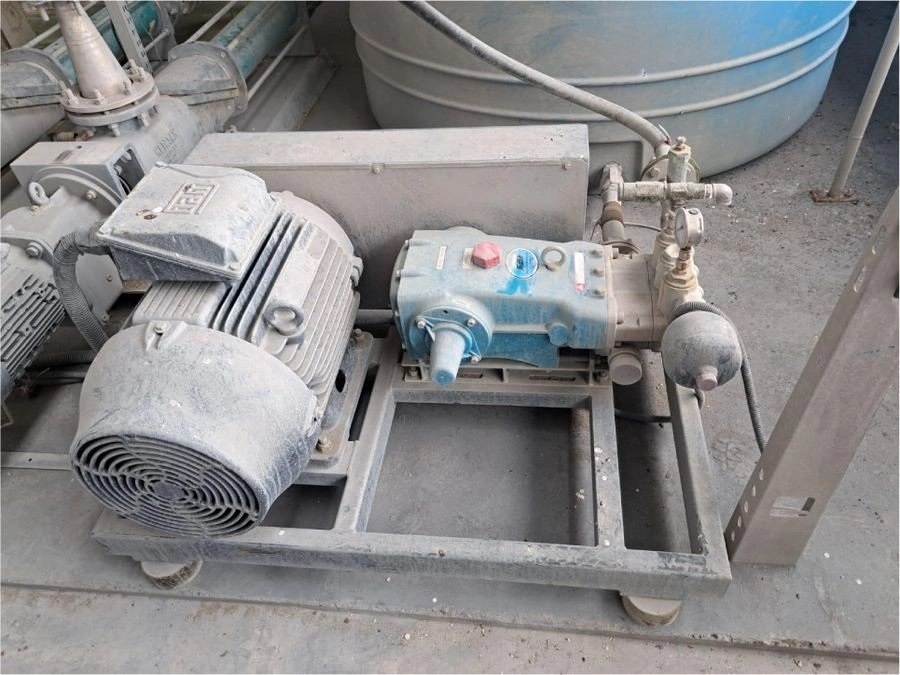

– pressure pump for cleaning the filter plates

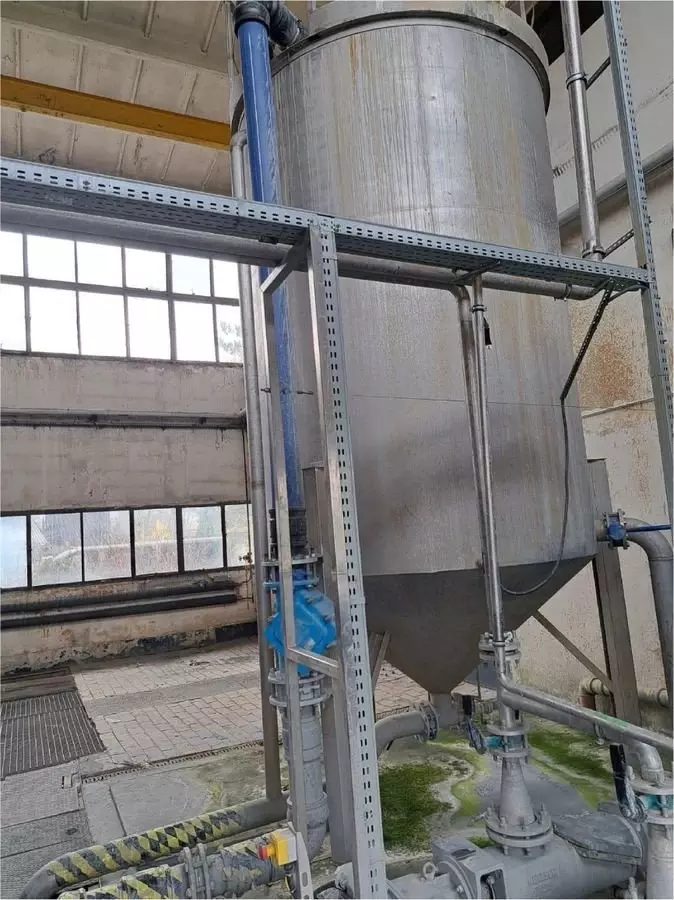

– tank with agitator

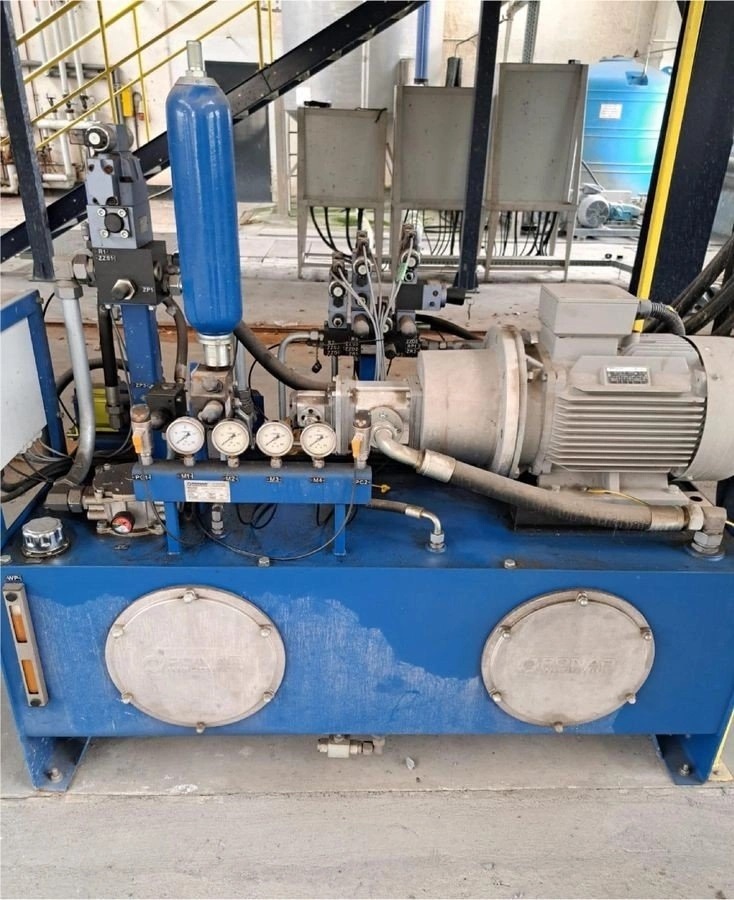

– hydraulic unit

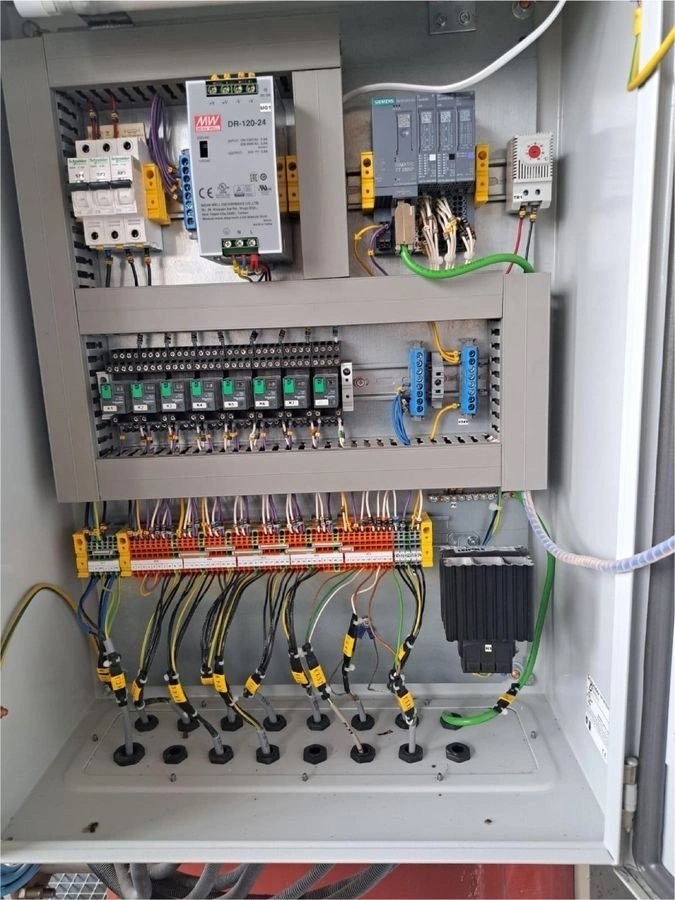

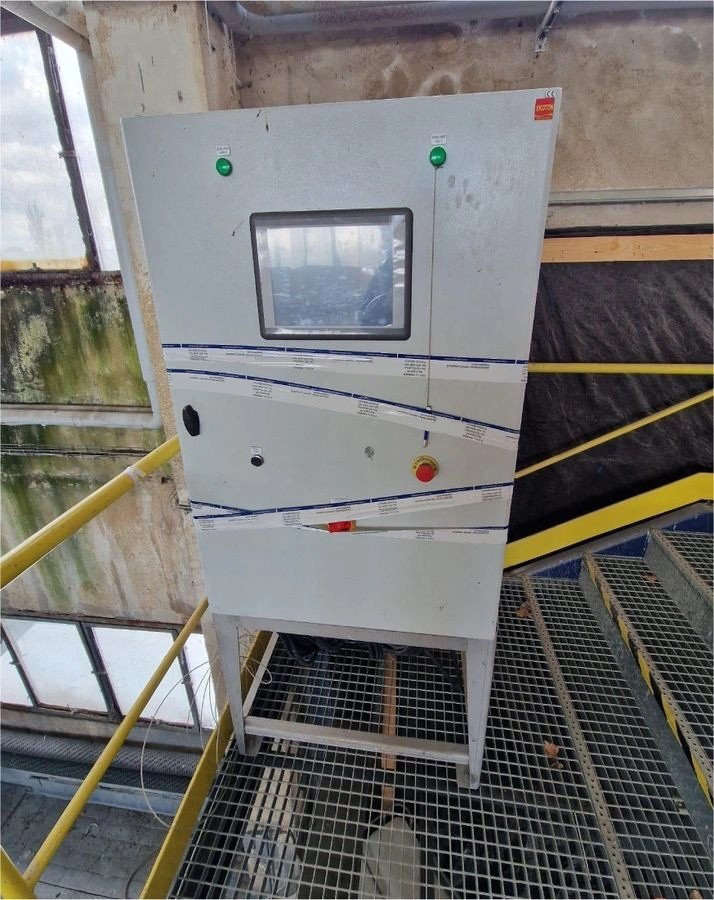

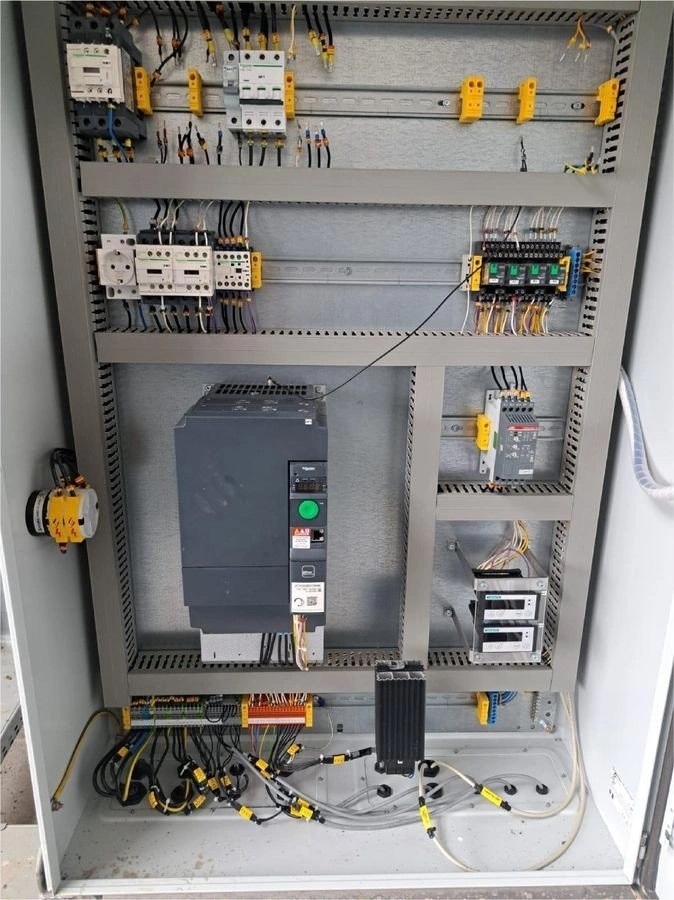

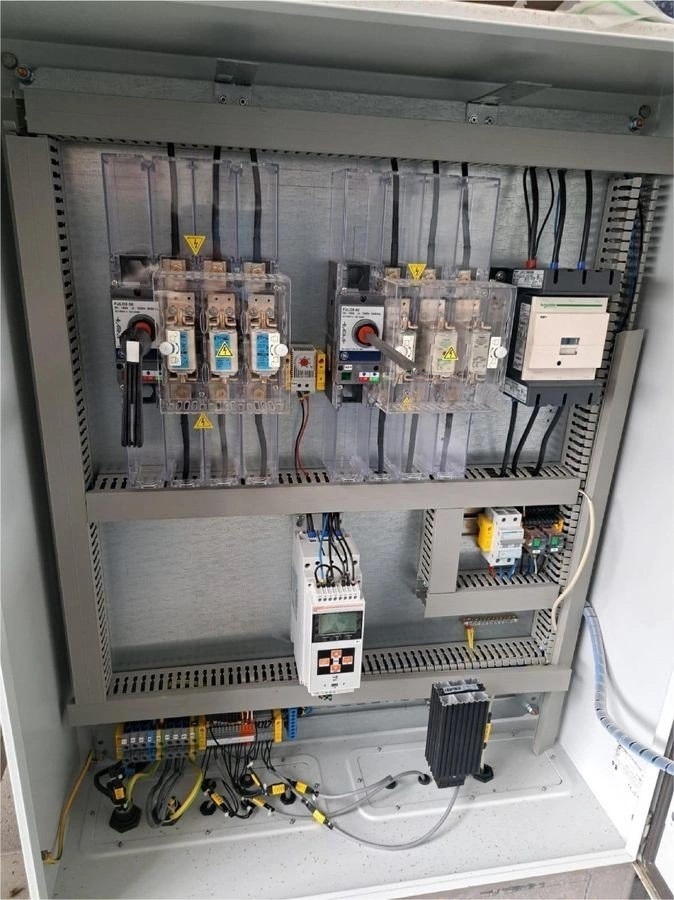

– control cabinets

Technical specifications of the EKOTON PRODEKO-EŁK GK-8.230.20.H chamber filter press

• filtration area: 230 m2
• sludge thickness: 20 mm
• number of chambers: 66 pcs.
• chamber volume: 2200 l

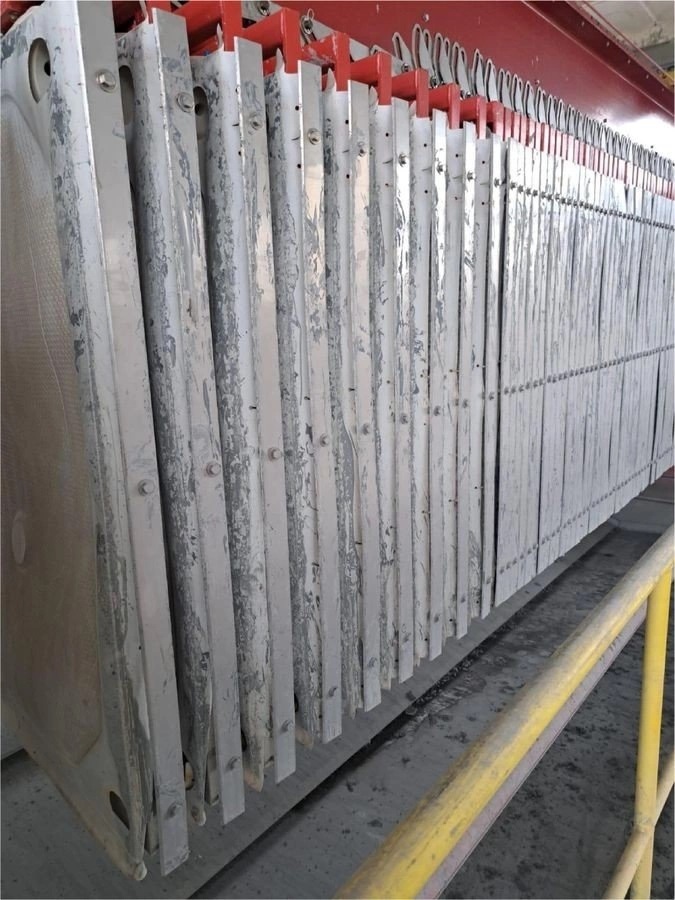

• number of filter plates: 67 pcs.
• filter plate dimensions (L x W): 1500 x 1500 mm

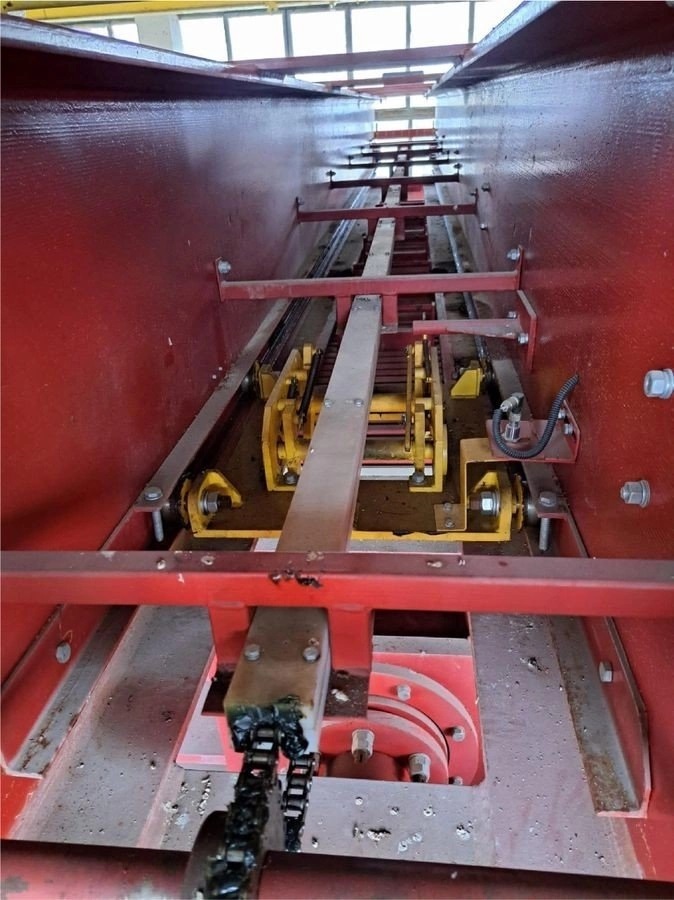

• plate transport: sectional

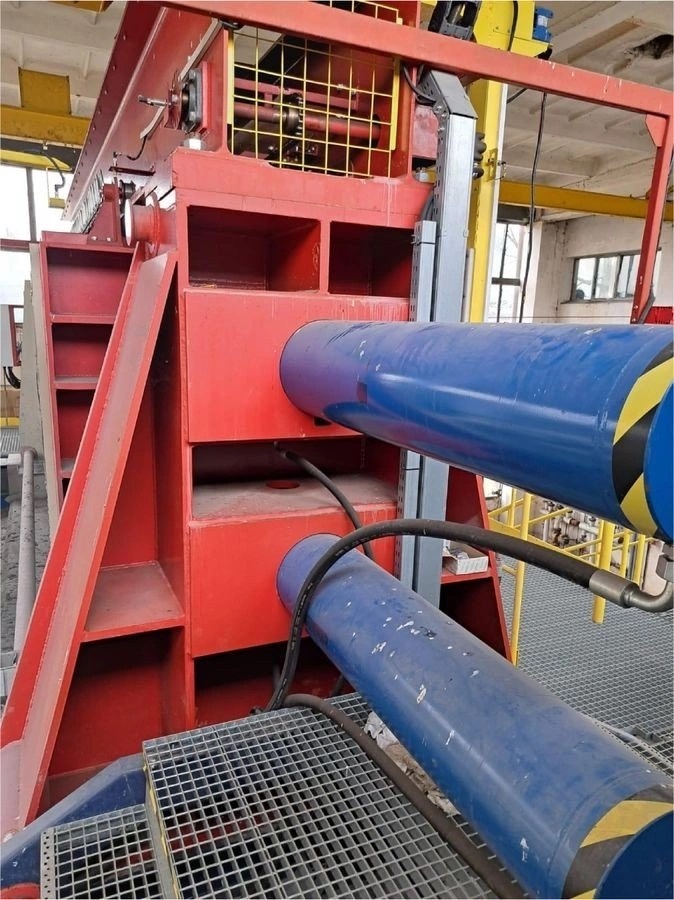

• plate clamping: hydraulic
• clamping plate force: 2000 kN
• clamping plate feed: 1400 mm

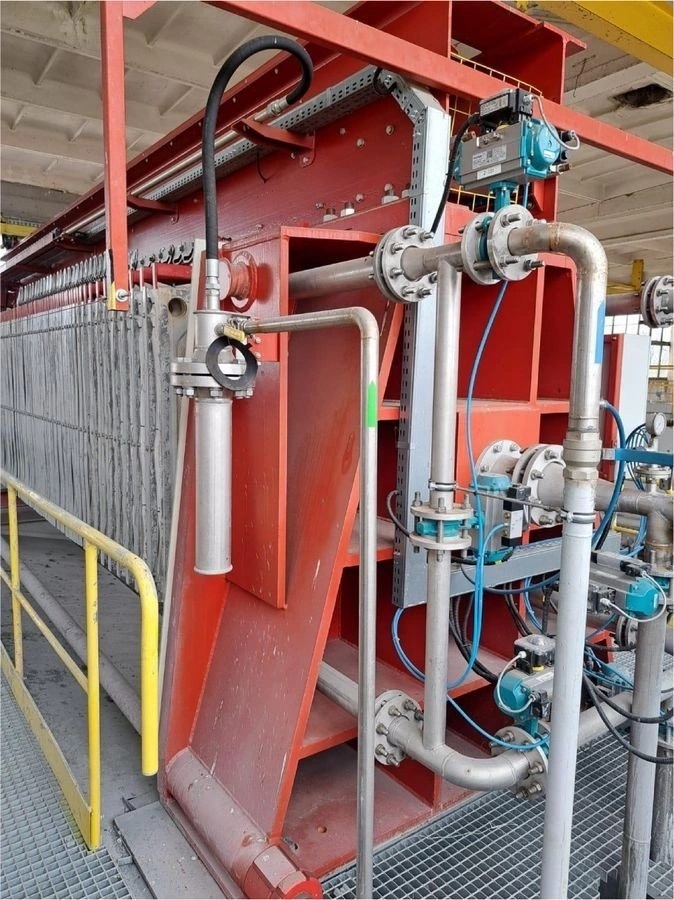

• valve type: disc
• valve drive: pneumatic
• hydraulic pallet for water discharge (2 pcs.)
• conveyor for water discharge (1 pc.)
• sludge drip tray (1 pc.)
• maximum operating temperature: 80°C
• maximum operating pressure: 8 bar
• installed power: 15 kW

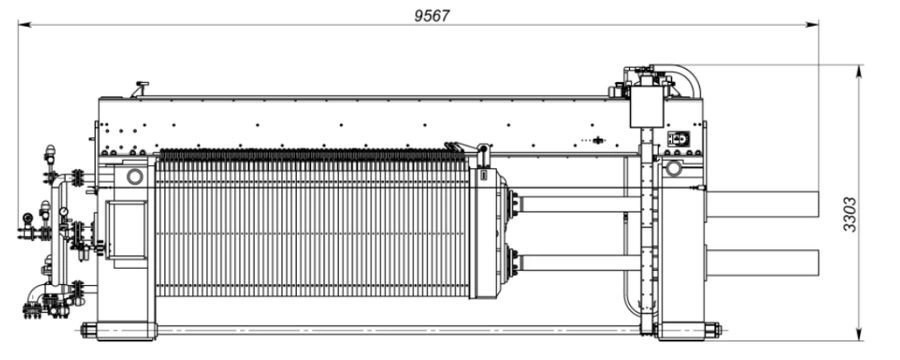

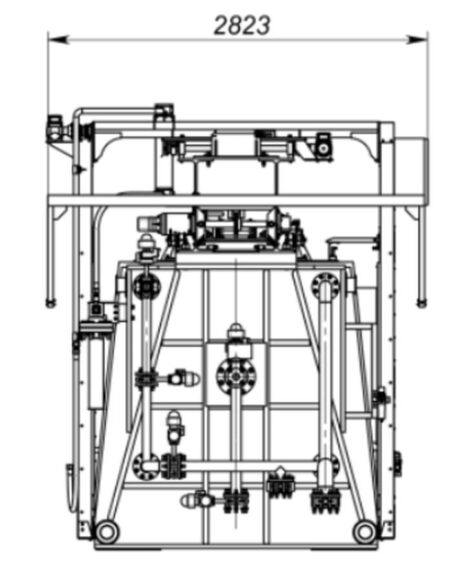

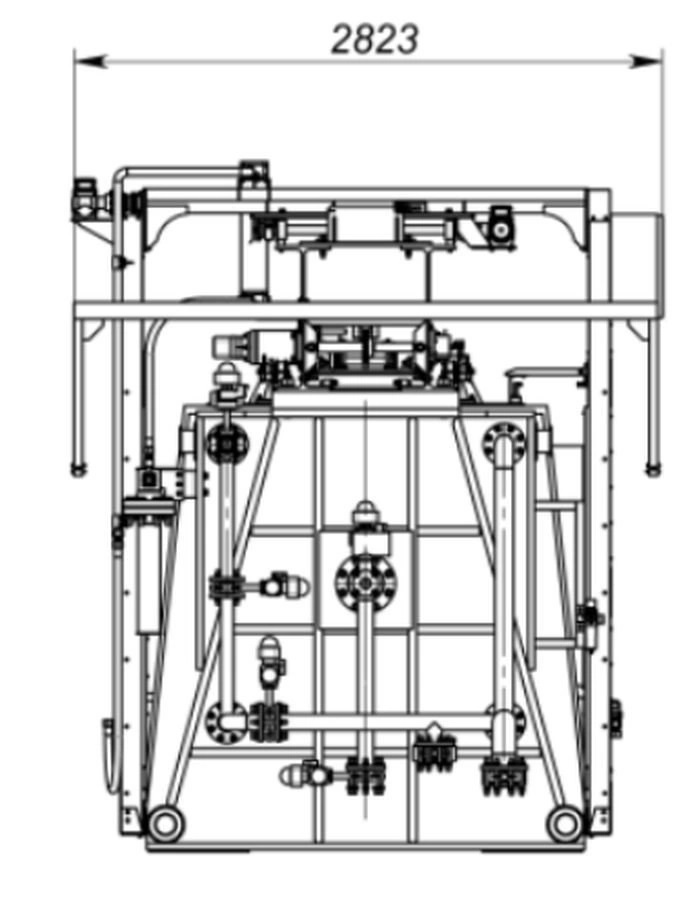

• dimensions (L x W x H): 11000 x 2400 x 2800 mm
• weight of the EKOTON PRODEKO-EŁK GK-8.230.20.H machine: 37000 kg
