ELEKTROTERM PKW16000-650M hardening furnace

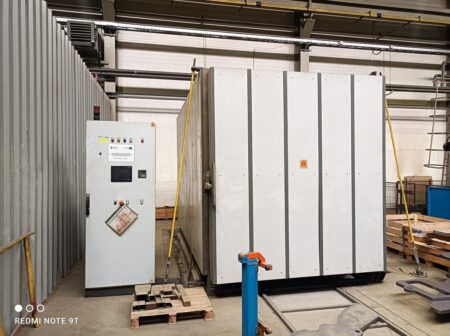

ELEKTROTERM PKW16000-650M hardening furnace was built by the Polish manufacturer Elektroterm in 2014. The hardening furnace is equipped with a usable chamber with dimensions (length x width x height) 4000 x 2000 x 2000 mm, and its volume is 16,000 dm3. The machine with a power of 190 kW produces a nominal temperature of 650 degrees C. The total weight of the furnace is 8500 kg.

Technical data of the ELEKTROTERM PKW 16000-650 M hardening furnace

– rated temperature: 650 degrees C
– working chamber volume of the furnace: 16,000 dm3
– rated charge weight: 3500 kg
– rated voltage: 3×400 V; 50 Hz
– rated current: 275 + 1.35 A
– rated power: 190 + 0.55 kW
– type of heating elements on the side walls: C-30-350-HS-691-130-930-350-0-970
– type of heating elements on the hearth: C-18-400-HS-1164-120-1420-350-0

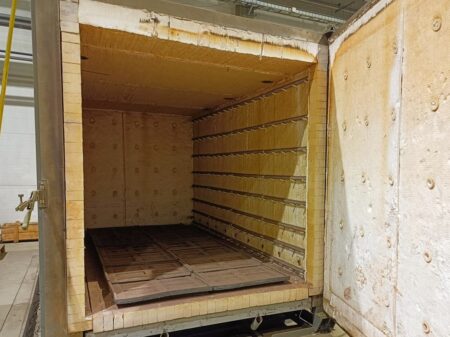

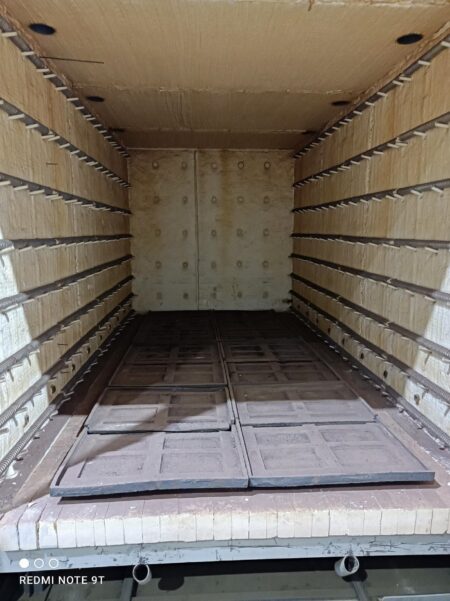

– dimensions of the furnace’s usable chamber (length x width x height): 4000 x 2000 x 2000 mm
– minimum dimensions of the space needed to set up the stove (length x width x height): 13000 x 4060 + 800 x 3500 mm
– overall dimensions (length x width x height): 4440 x 2460 x 2780 mm
– weight of the furnace ELEKTROTERM PKW16000-650M: 8500 kg
