ERMAK CNC HVR 3100 x 13 hydraulic guillotine shears

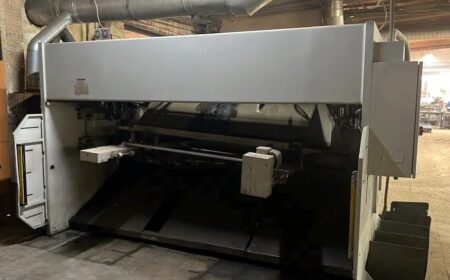

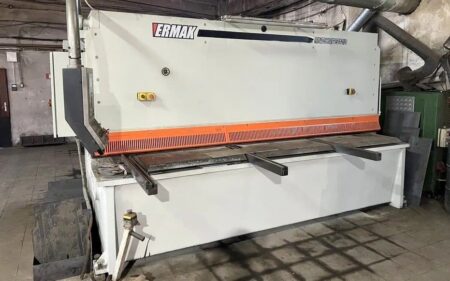

ERMAK CNC HVR 3100 x 13 hydraulic guillotine shears built in Turkey in 2008, are designed for cutting workpieces made of among others mild steel or stainless steel. The metal sheet with a maximum length of 3100 mm and a maximum thickness of 8 mm (plain steel) or 13 mm (stainless steel), is held during machining by 14 hydraulic clamps. The angle of the cutting blade can be freely adjusted in the range from 0.5° to 2.0°.

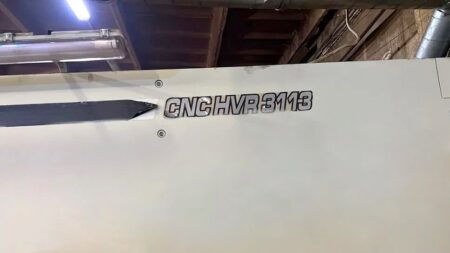

Full control over the operation of the CNC HVR 3113 machine is guaranteed by the control panel located on the guillotine shears body with installed CYBELEC DNC 60 CNC controller, allowing programming of many different machining processes. The guillotine shears is equipped with among others new cutting blades and a foot control pedal, making the operator’s work much more comfortable and simple. The total weight of the machine is 13400 kg. The machine has new knives installed, full set.

Technical specifications of the ERMAK CNC HVR 3100 x 13 guillotine shears

• maximum sheet length: 3100 mm
• maximum sheet thickness (mild steel): 13 mm
• maximum sheet thickness (stainless steel): 8 mm
• cutting speed: 11-20 pcs/min
• cutting angle adjustment: 0.5° – 2.0°
• motor power: 22 kW
• stroke of the back gauge: 1000 mm
• oil tank capacity: 310 l
• voltage: 380 V
• dimensions (L x W x H): 4215 x 2315 x 2260 mm
• total weight of the CNC HVR 3100 x 13 machine: 13400 kg

Equipment of the hydraulic guillotine shears

• CNC controller: CYBELEC DNC 60
• set of new knives
• foot control pedal
• hydraulic clamps holding the workpiece (14 pcs.)
• stepless blade angle adjustment
• central lubrication system
