ERMAKSAN EPL 2660 plasma-gas cutting machine

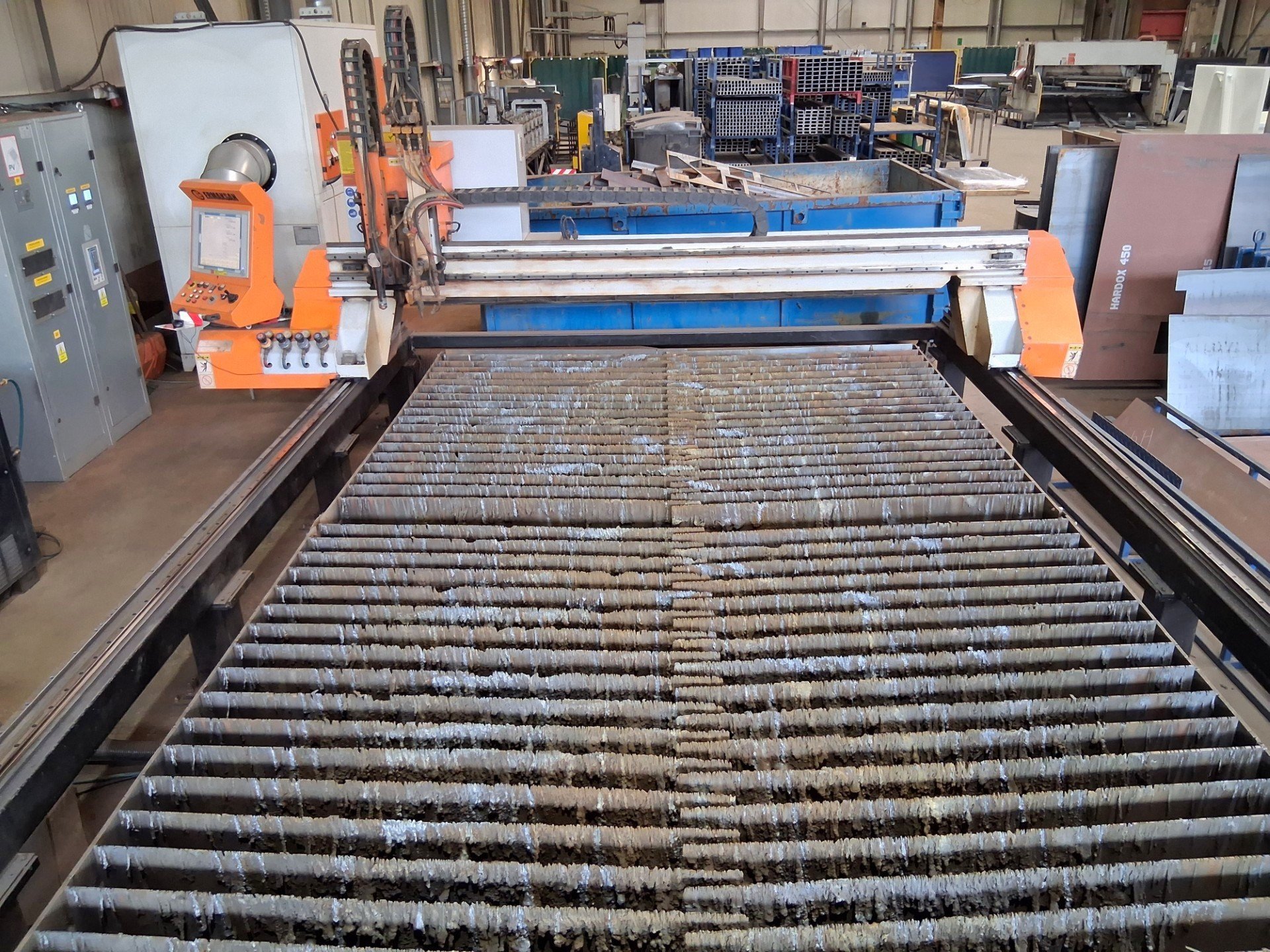

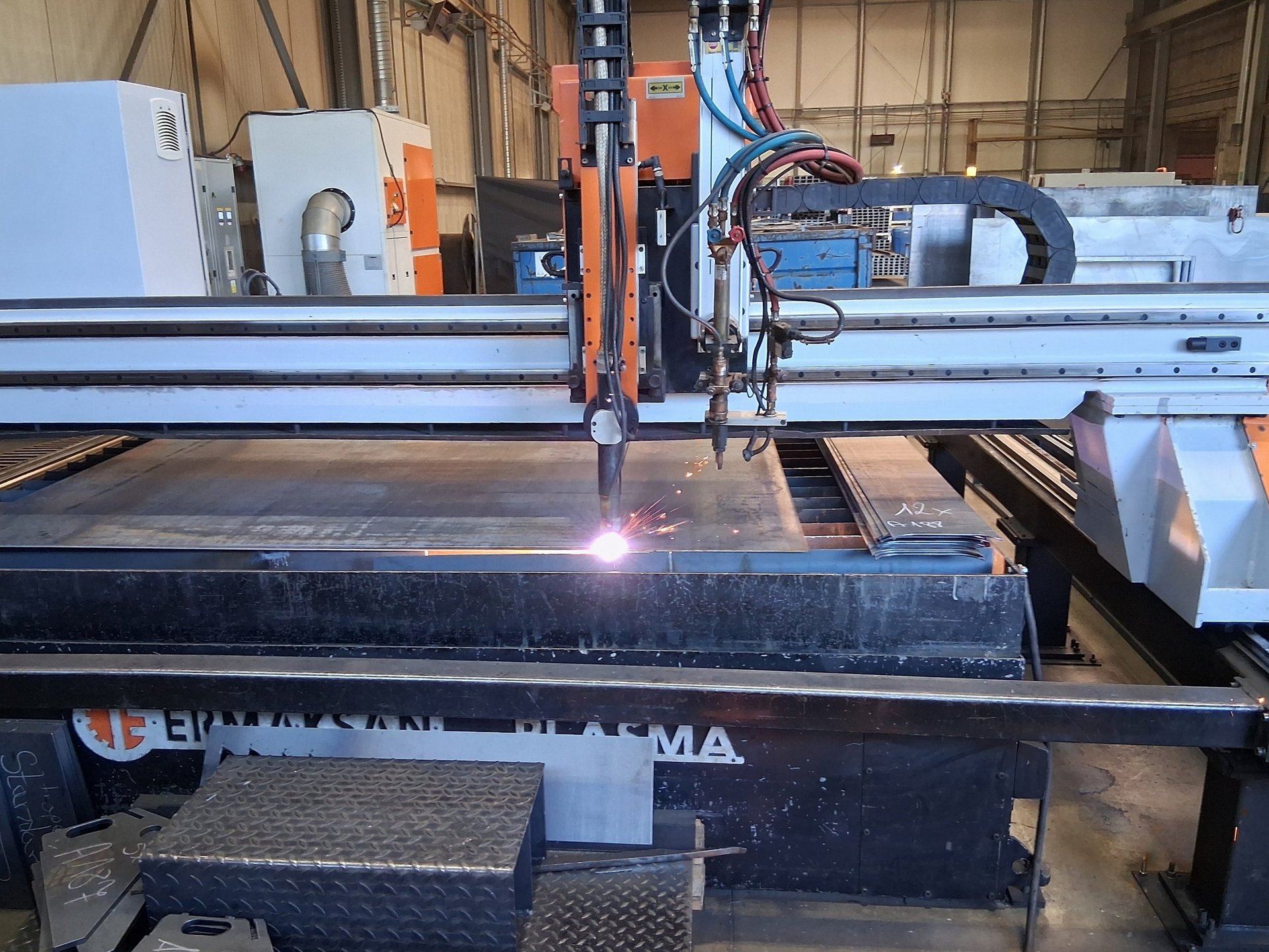

ERMAKSAN EPL 2660 plasma-gas cutting machine was built in 2017 in Turkey by ERMAKSAN MAKINA SANAYI TIC. AŞ. The machine, designed for precision cutting of workpieces made of mild steel, stainless steel and aluminium, is an excellent choice for any industrial plant. The machining process is performed by two torches on a large working area, which allows the machining of two sheets simultaneously. The extensive equipment includes , among others, an advanced CNC controller, CAD/CAM software and a plasma source with the highest energy efficiency.

The offered EPL 2660 plasma-gas cutting machine has undergone regular maintenance and service. During the last service, carried out at the beginning of 2025, the chopper and the electro-valves in the filter-fan were replaced.

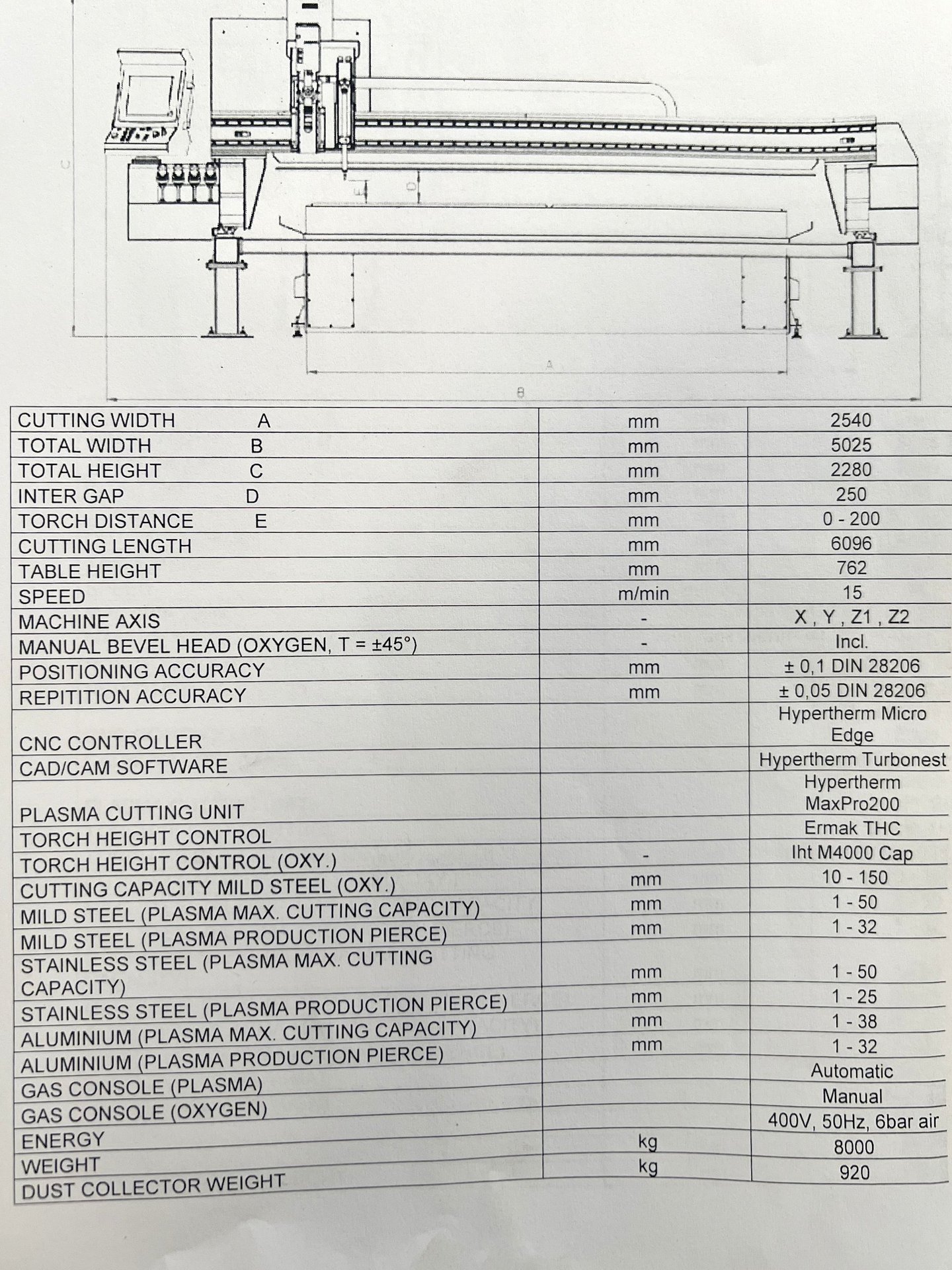

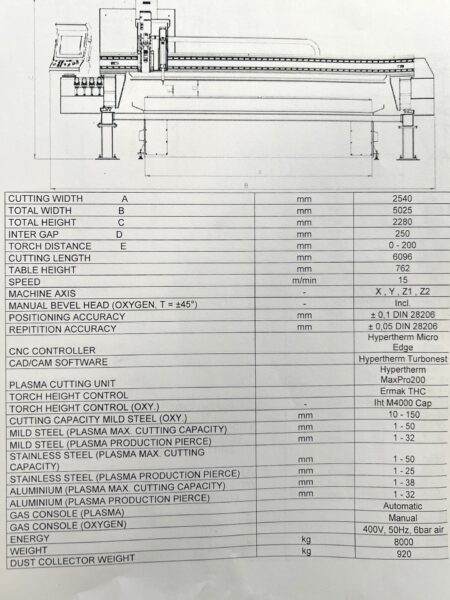

Technical data of the ERMAKSAN EPL 2660 plasma-gas cutting machine

• number of axes: 4 (X,Y,Z1,Z2)
• workpiece thickness (mild steel, plasma cutting): 1-50 mm
• workpiece thickness (mild steel, oxygen cutting): 10-150 mm
• workpiece thickness (mild steel, plasma piercing): 1-32 mm
• workpiece thickness (stainless steel, plasma cutting): 1-50 mm
• workpiece thickness (stainless steel, plasma piercing): 1-25 mm
• workpiece thickness (aluminium, plasma cutting): 1-38 mm
• workpiece thickness (aluminium, plasma piercing): 1-32 mm
• cutting area (L x W): 6096 x 2540 mm
• torch feed in Z axis: 200 mm
• maximum axis positioning speed: 15 m/min
• work table height: 762 mm
• positioning accuracy in accordance with DIN 28206: ± 0.1 mm
• repeatability accuracy in accordance with DIN 28206: ± 0.05 mm
• air pressure: 6 bar
• power supply: 400 V; 50 Hz
• dimensions (L x W x H): 7600 x 5025 x 2280 mm
• weight of the ERMAKSAN EPL 2660 machine: 8000 kg

Equipment of the ERMAKSAN plasma cutting machine

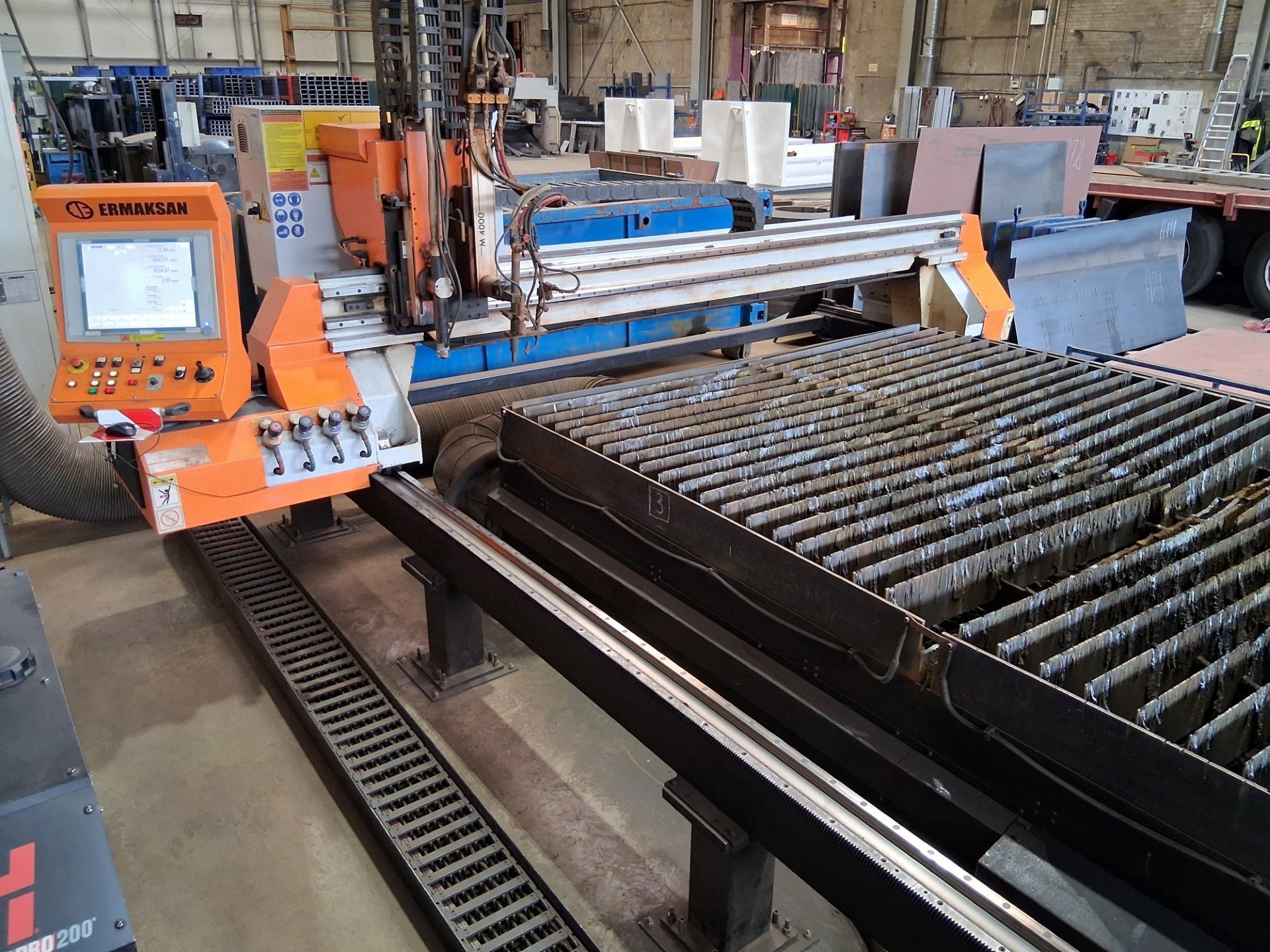

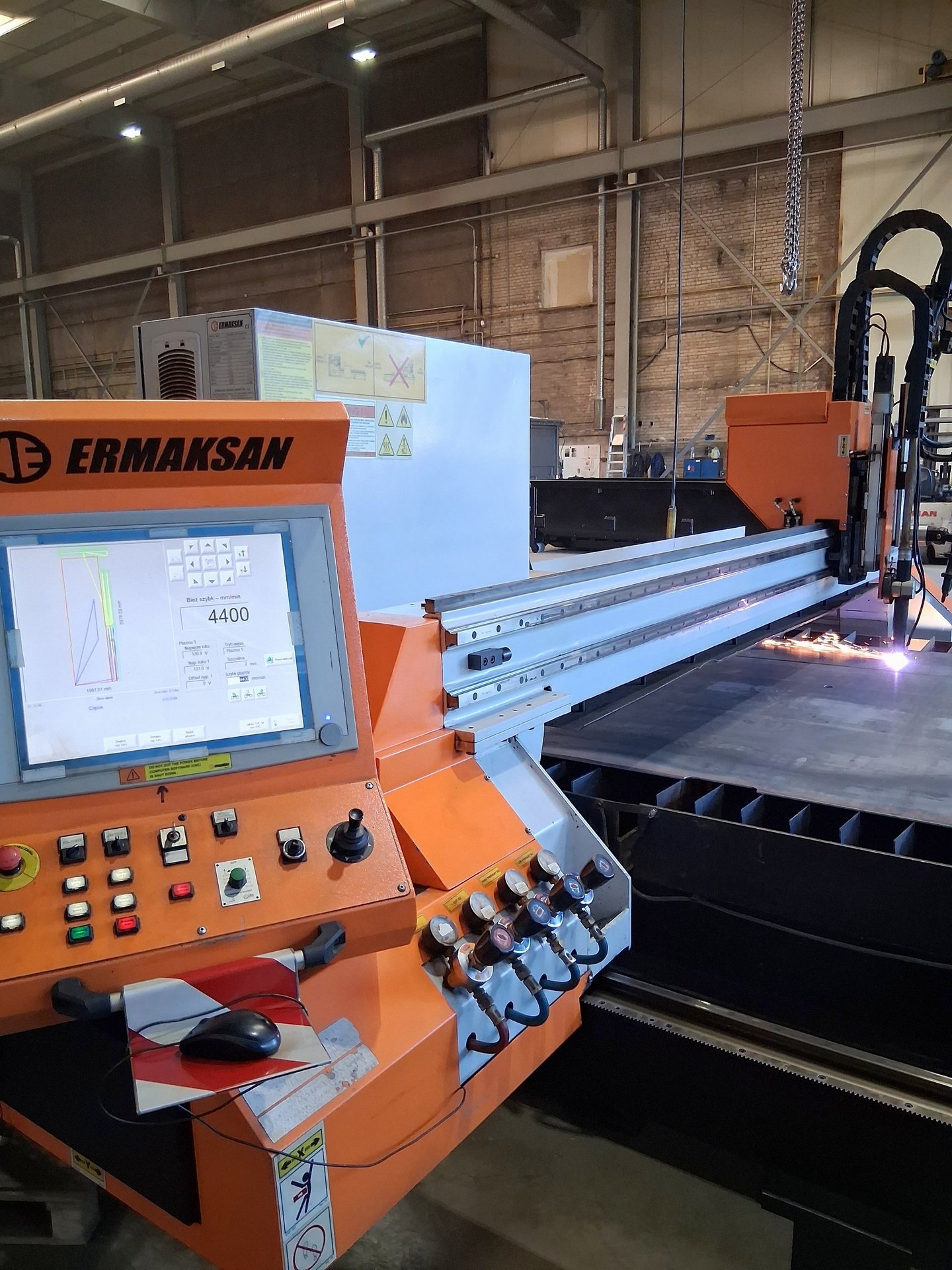

• CNC controller: HYPERTHERM MICRO EDGE
• CAD/CAM software: HYPERTHERM TURBONEST

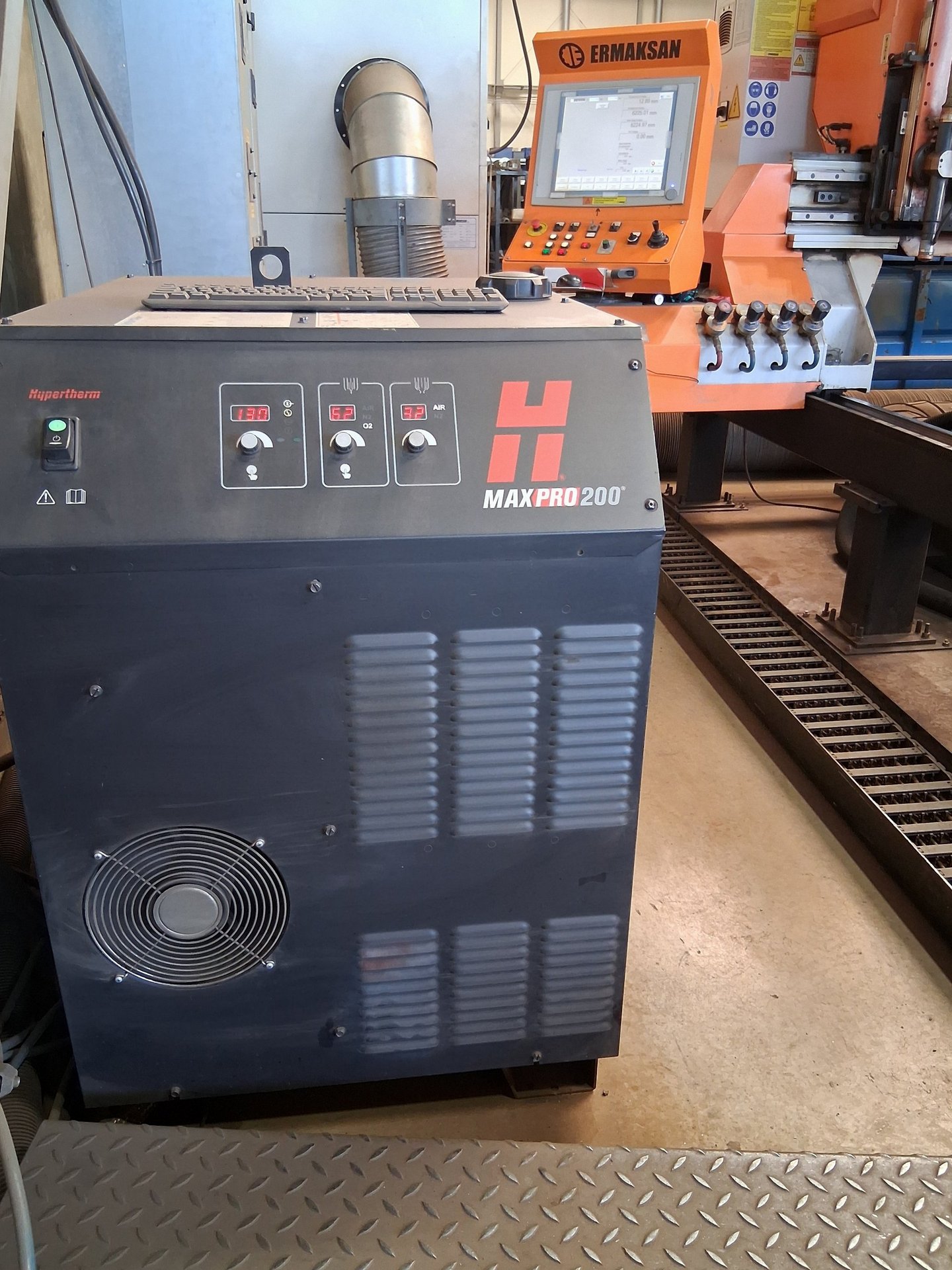

• plasma source: HYPERTHERM MAXPRO200

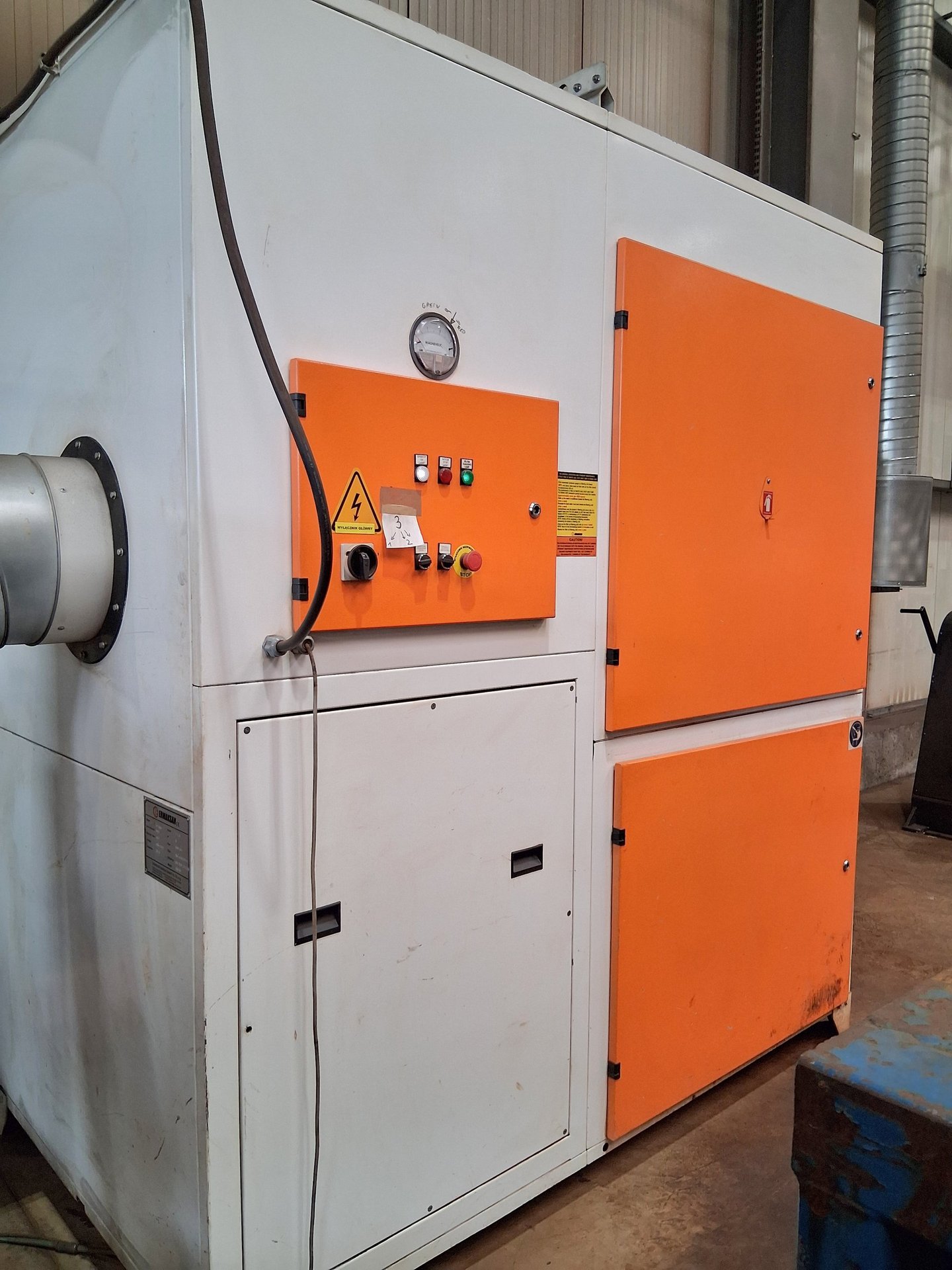

• filter fan: ERMAKSAN ER 6000
• manual bevel head 45° for oxygen torch
• THC torch height control (plasma)
• IHT M4000 CAP torch height control (oxygen)
• automatic gas console (plasma)
• manual gas console (oxygen)
