ERNST EG3M deburring machine

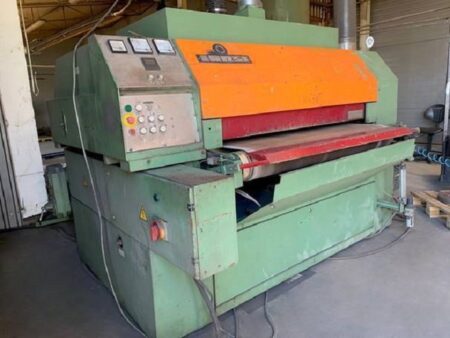

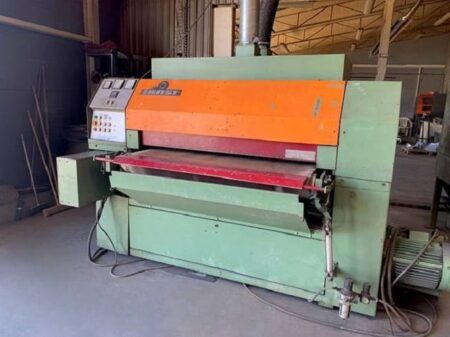

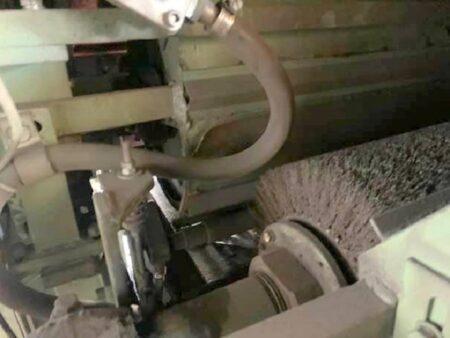

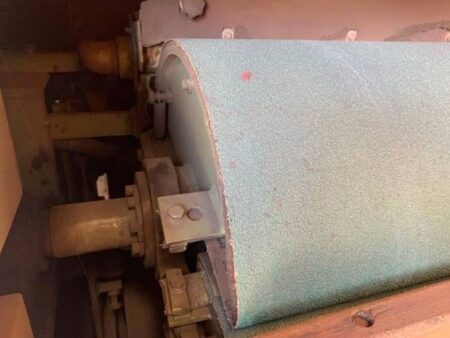

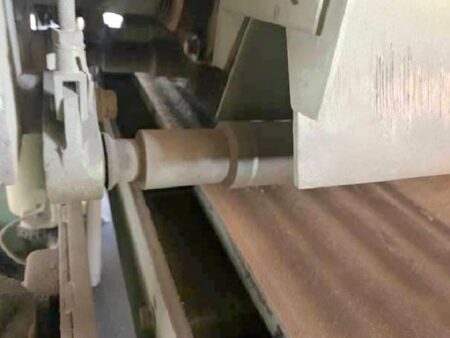

ERNST EG3M deburring machine was built in 1988 in Germany. The surface machining of workpieces with a maximum thickness of 70 mm is performed “dry” by means of a burr-removing sanding roller installed in the machine and two brush rollers moving in the opposite direction intended for edge rounding. To prevent the workpiece from being drawn into the centre of the ERNST EG 3 M deburring machine, the sheet to be deburred is pressed onto the conveyor belt via a driven roller on slack bearings. The ERNST EG 3/M 1400 automatic deburring machine also allows the use of a magnetic belt to process smaller workpieces. The total weight of the deburring machine is 3500 kg.

Technical data of the ERNST EG3M deburring machine

• maximum workpiece thickness: 70 mm
• minimum workpiece thickness: 1 mm
• minimum workpiece length: 350 mm
• minimum workpiece length on magnetic band: 80 mm
• minimum workpiece length with suction device: 100 mm
• minimum sheet surface on magnetic belt (without notches): 40 cm2
• minimum sheet surface with suction device: 100 cm2
• sanding paper size: 1540 x 1400 mm
• sanding paper speed: 14 m/s
• traverse speed: 1-7 m/min
• fixed working height: 1000 mm
• total power: 35 kW
• air speed: 25 m/s
• compressed air connection: R 3/8
• minimum compressed air pressure: 6 bar
• minimum compressed air volume: 100 N1/min
• amount of suctioned used air: 1.2 m3/s
• operating voltage: 400 V AC
• control voltage: 230 V AC
• frequency: 50 Hz
• EG3M machine weight: 3500 kg
