ESAB EAGLE 2000 plasma cutting machine

ESAB EAGLE 2000 plasma cutting machine was built in 2009 in Germany. The machine is designed for machining stainless steel, structural steel, low-alloy steel and aluminium with a maximum thickness of 30 mm and has a very stable and vibration-free welded construction. Excellent cutting precision with simultaneous low operating costs is ensured by the ESAB Precision Plasmarc 201 plasma source with a power of 200 A, which generates a narrow plasma beam with high energy density per small area of material.

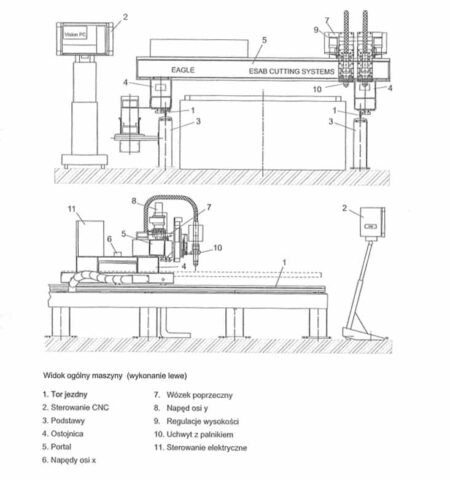

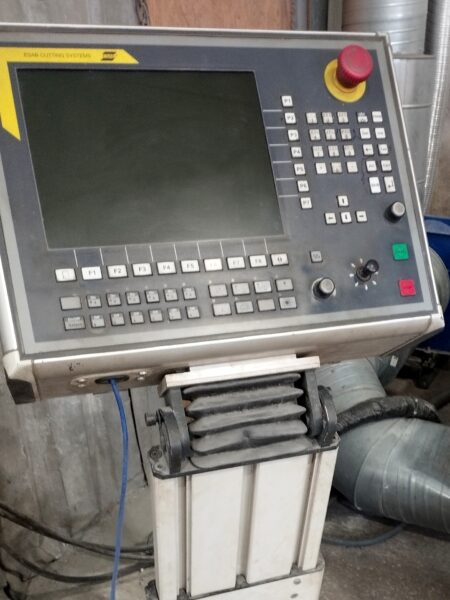

The plasma cutting machine portal was fixed by two dynamic servo drives operating with low backlash on the machined profile rails (X axis). The dynamic servo drive in the transverse carriage drives the spur gear, which then meshes with the toothed bar of the machine portal, causing transverse movement (Y axis). The plasma cutting machine is equipped with an ESAB CNC control with the latest solid-state technology to control all travel axes and functions of the machine. The control panel can be mounted both on the portal and within the operating area of the cutting machine. The total weight of the machine is approximately 550 kg.

Technical data of the ESAB EAGLE 2000 plasma cutting machine

• maximum workpiece dimensions (L x W): 3000 x 1500 mm
• maximum workpiece thickness: 30 mm
• table height: 700 mm
• running track height: 600 mm
• running track length: 5000 mm
• maximum positioning speed: 35000 mm/min
• plasma unit power: 200 A
• power consumption: 2 kVA
• power supply: 230 V; 50 Hz
• dimensions (L x W x H): 1600 x 2950 x 1700 mm
• EAGLE 2000 machine weight: approx. 550 kg

Equipment of the plasma cutting machine

• CNC control: ESAB

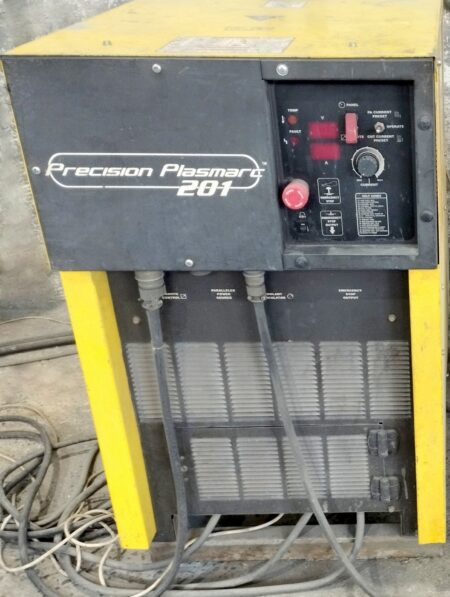

• plasma source: ESAB Precision Plasmarc 201

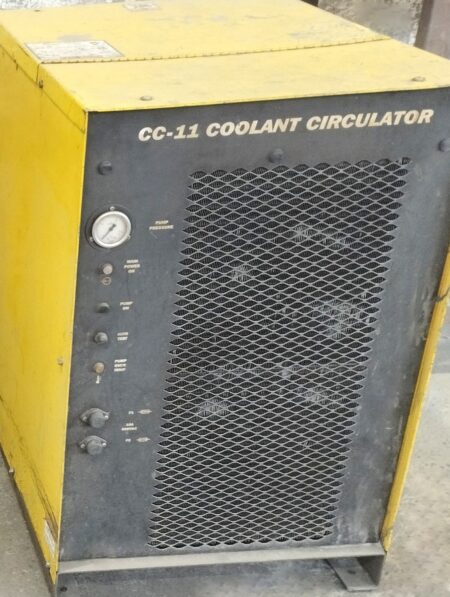

• plasma coolant circulator: ESAB CC-11
• torch plate height adjustment system: MX 150
