EUROMAC MTX INDEX hydraulic punching machine

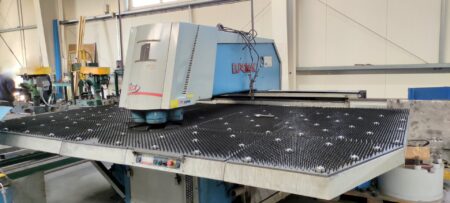

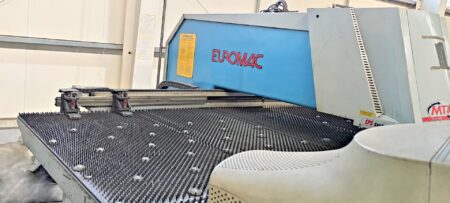

EUROMAC MTX INDEX hydraulic punching machine was manufactured in 2005 in Italy. The punching machine works with a force of 30 tonnes and is designed to perform very precise and accurate punching in sheets made of e.g. black steel, up to a maximum thickness of 5 mm. The hydraulic punching machine is equipped with a tool magazine capable of storing up to 6 tools and a brush table with a large working area to prevent scratches and nicks on the workpiece surface. The total weight of the machine is 8400 kg.

Technical parameters of the EUROMAC MTX INDEX punching machine

• maximum press force: 30 t
• feed rates in the X/Y axis: 2250/1250 mm
• automatic repositioning in X axis: up to 10000 mm
• punching speed (nibbling mode): 780 1/min
• punching speed (marking mode): 2000 1/min
• punching speed (20 mm stroke): 300 1/min
• number of D stations: 6 (including 3 auto indexed stations)

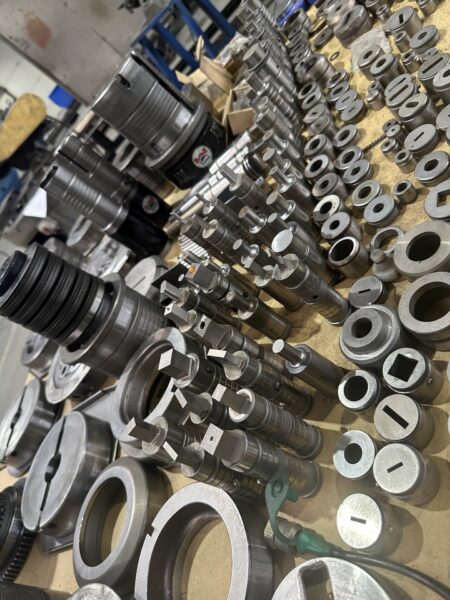

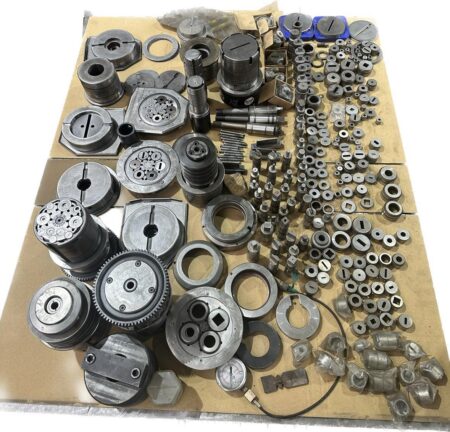

• tool magazine capacity: 6 pcs.
• maximum workpiece thickness: 5 mm
• minimum workpiece thickness: 0,5 mm
• maximum workpiece weight: 150 kg
• positioning accuracy: ± 0.05 mm
• brush table
• safety barriers
• automatic tool lubrication
• USB port
• power: 7.5 kW
• power supply: 400 V; 50 Hz
• dimensions (L x W): 3970 x 3430 mm
• total weight of MTX INDEX machine: 8400 kg
