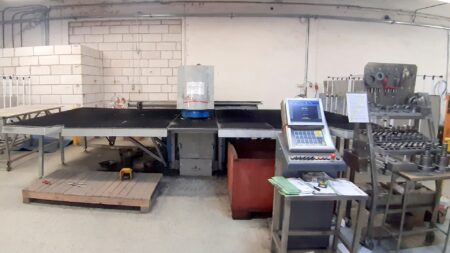

EUROMAC MTX INDEX punching machine

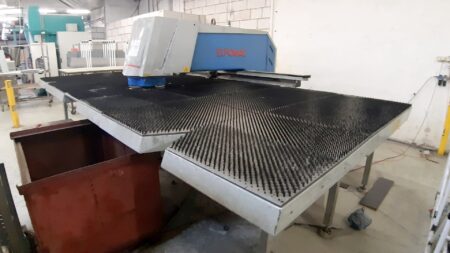

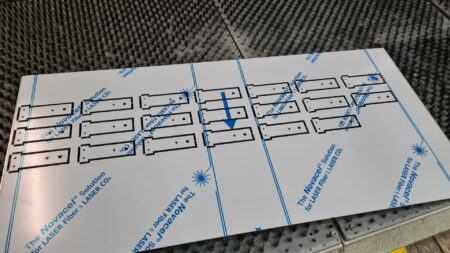

EUROMAC MTX INDEX punching machine made in Italy in 2009 is designed for quick and precise punching in sheet metal made of e.g. black steel. The machining process is performed on a large brush table, which significantly reduces noise levels and protects the surface of the workpiece from various scratches and nicks.

The hydraulic punching machine, operating with a force of 30 tons, allows punching in metal sheets with thickness from 0.5 mm to 10 mm and a weight of up to 150 kg. The tool magazine, with a large capacity, holds top quality tools performing the machining with the highest precision, speed and accuracy.

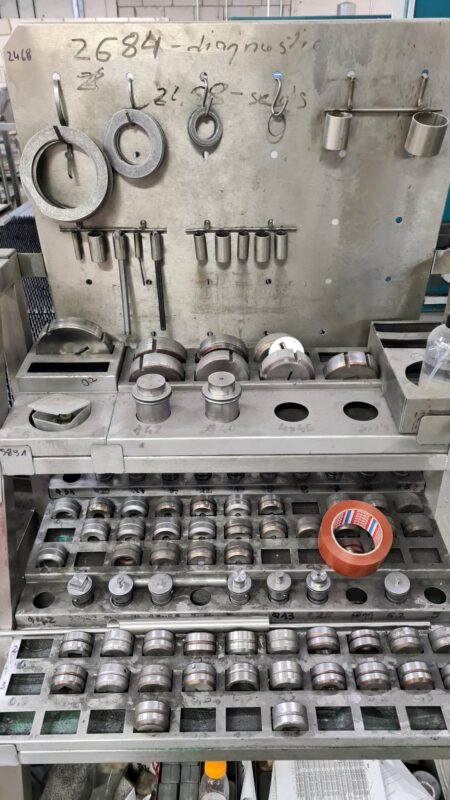

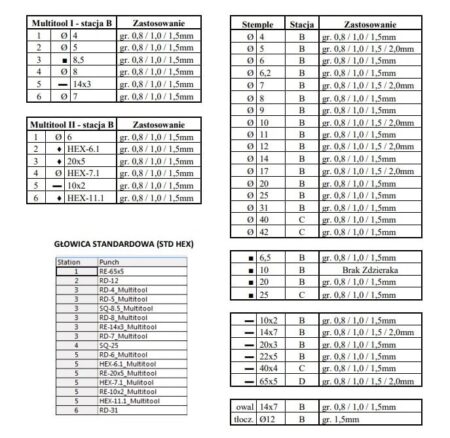

The machine is offered with a full set of punching tools and with two additional Multitool MT 6-24 mm tools, which increase the number of punching tools. The total weight of the EUROMAC MTXR 1250/30-2250 Autoindex machine is 8400 kg.

Technical data of the EUROMAC MTX INDEX punching machine

• press force: 300 kN (30 t)

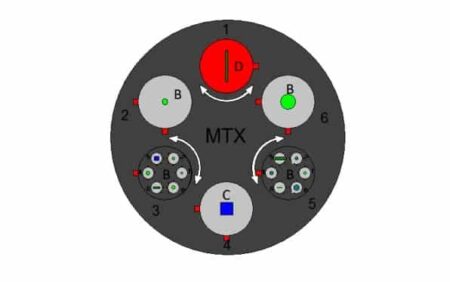

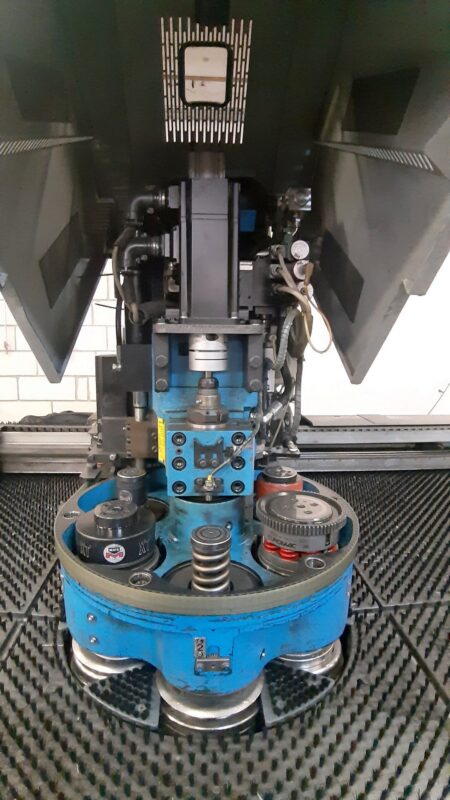

• number of D stations: 6 (including 3 auto indexed stations)
• maximum number of tools in the tool magazine: 60
• feed in the X/Y axis: 2250/1250 mm
• automatic repositioning in the X axis: up to 10000 mm
• positioning accuracy: +/- 0.05 mm
• punching speed (nibbling mode): 780 1/min
• punching speed (marking mode): 2000 1/min
• punching speed (20 mm pitch): 300 1/min
• thickness of sheet metal: 0.5 – 10 mm
• maximum weight of sheet metal: 150 kg
• brush table
• additional tool: Multitool MT 6-24 mm (2 pcs.)
• USB port
• safety barriers
• automatic tool lubrication
• installed power: 7.5 kW
• power supply: 400 V/ 50 Hz
• total weight: 8400 kg
• machine dimensions (L x W): 3970 x 3430 mm
