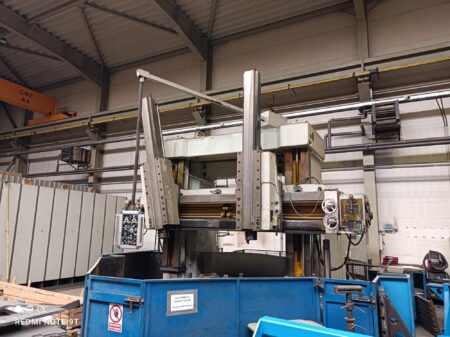

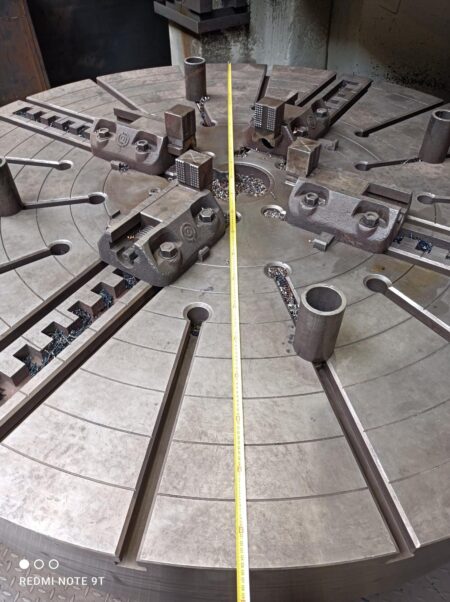

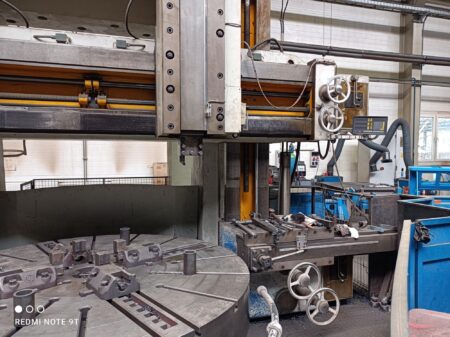

EUROMETAL LV2500A/1 vertical carousel lathe was built by Eurometal Sp. zoo. in 2014. A vertical carousel lathe processes a workpiece weighing up to 20 t, a height of up to 1600 mm and a maximum turning diameter of 2500 mm. The dimensions of the tool shaft cross-section are 40×50 mm. The working table has 16 gears, and its rotation speed ranges from 2.5 to 80 revolutions per minute. The maximum cutting force for the right bottom bracket is 35 kN, for the left bottom bracket is 28 kN, and the total maximum cutting force is 53 kN in total. The total weight of the machine is 33 tons.

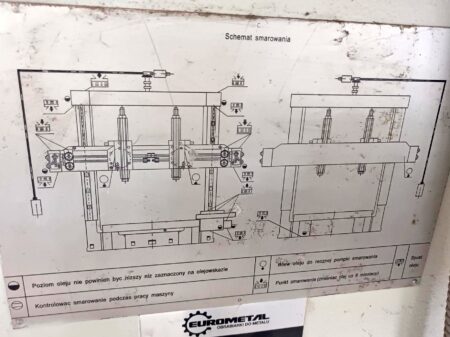

Technical data of the EUROMETAL LV2500A/1 vertical carousel lathe
– maximum turning diameter: 2500 mm
– maximum height of the detail: 1600 mm
– maximum workpiece weight: 20 tons
– working table rotational speed range: 2.5 – 80 rpm
– cross beam travel: 1250 mm
– vertical travel of supports: 1400 mm
– horizontal travel of slides: 1400 mm
– accelerated feed of slides: 1550 mm/min
– maximum cutting force of the right support: 35 kN
– maximum cutting force of the left support: 28 kN
– maximum total cutting force: 53 kN
– maximum torque: 63 kNm
– number of gear ratios of the working table: 16
– feed range of the right / left slide: 0.2-145 mm/min (18 gears)
– maximum angle of inclination of supports: +/- 30 degrees
– maximum diameter of the side head processing: 2300 mm
– vertical travel of the side head: 1200 mm
– horizontal travel of the side head: 700 mm
– tool shaft cross-section: 40×50 mm
– main engine power: 55 kW
– overall dimensions (length x width x height): 5180 x 5200 x 4870 mm
– weight of EUROMETAL LV2500A/1 machine: 33,000 kg
