FANUC Arc Mate 100iC robotic welding station

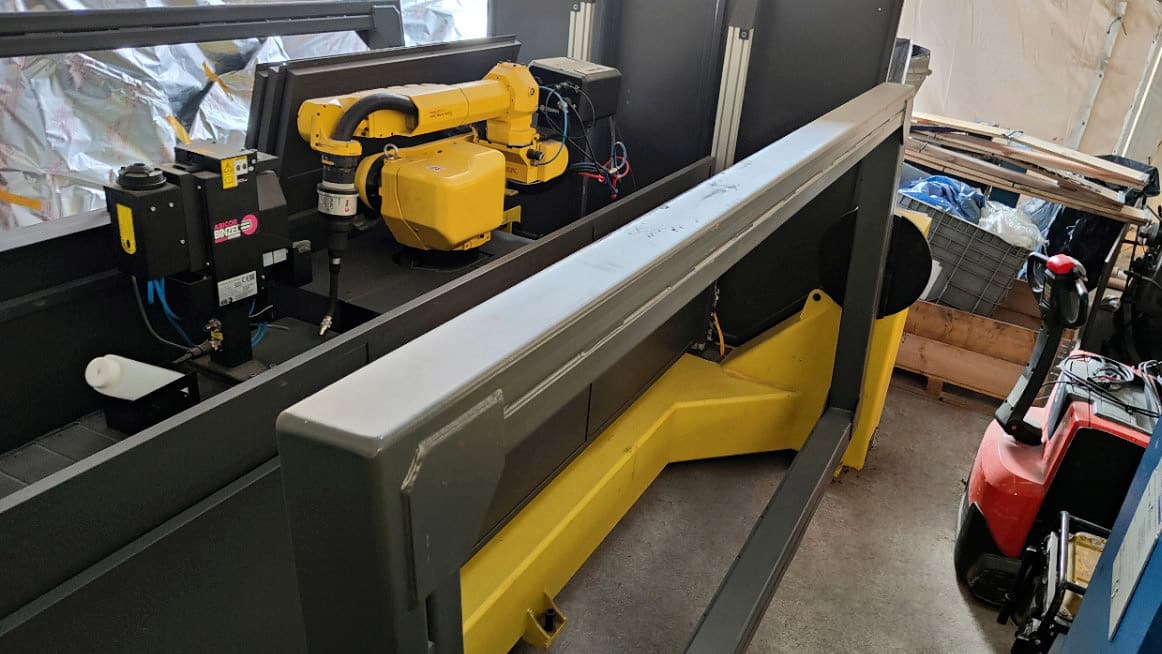

FANUC Arc Mate 100iC robotic welding station was built in 2019. The system configured for fully automatic MIG/MAG welding of workpieces is the perfect solution for the production of e.g. electrical cabinets, metal structures or agricultural equipment. The machining process is performed by a powerful industrial robot which, in combination with a rotary table, enables the machining of workpieces with even the most complex shapes. All the components of the workstation are integrated inside a single structure, making it easy to install or reposition.

The MOTOFIL ROBOTICS MONOBLOC MCT1110 robotic welding station consists of the following parts:

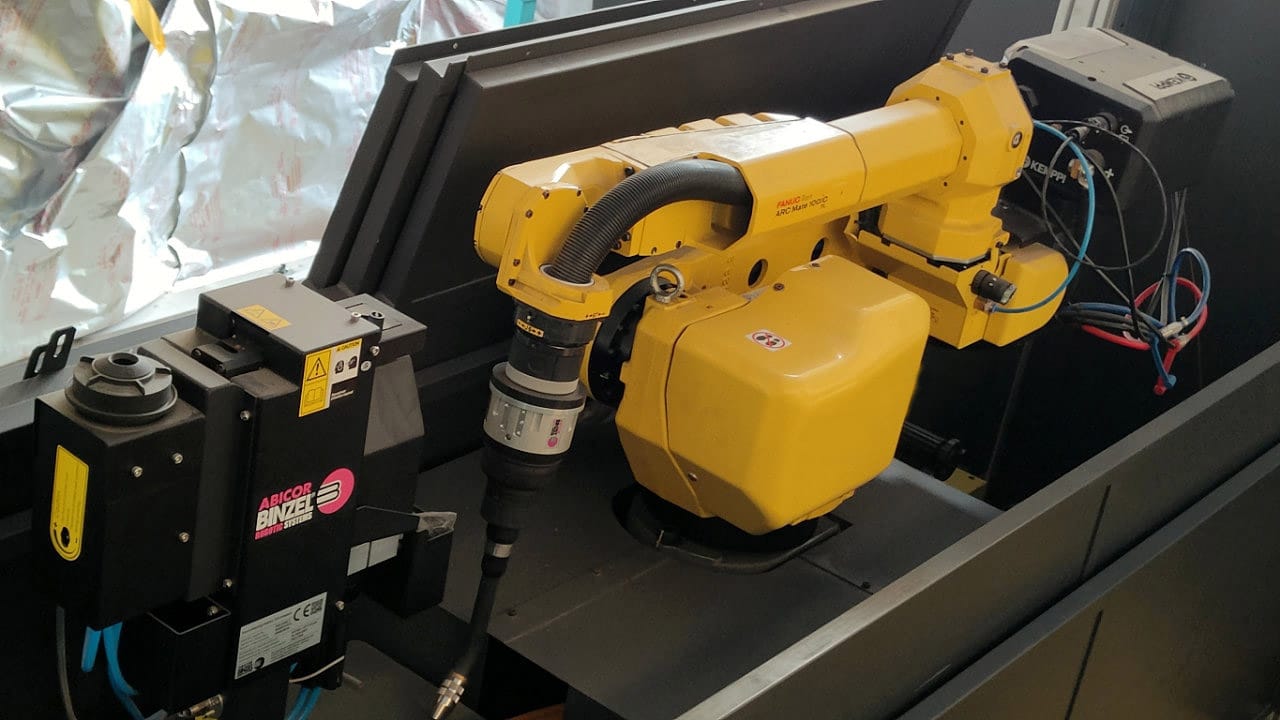

– robot arm: FANUC Arc Mate 100iC

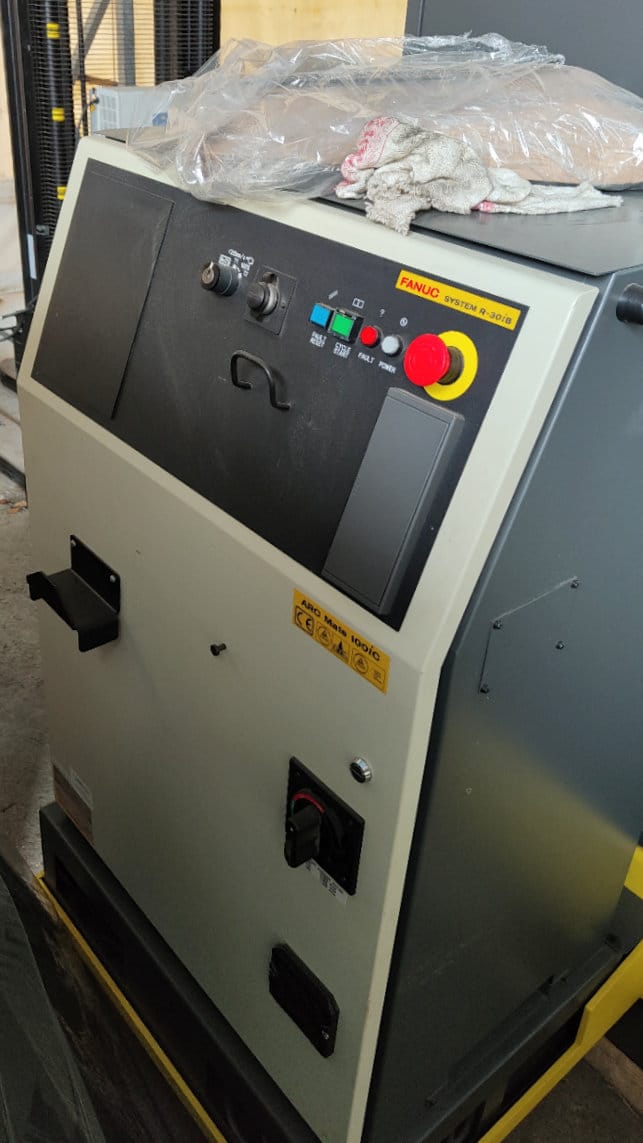

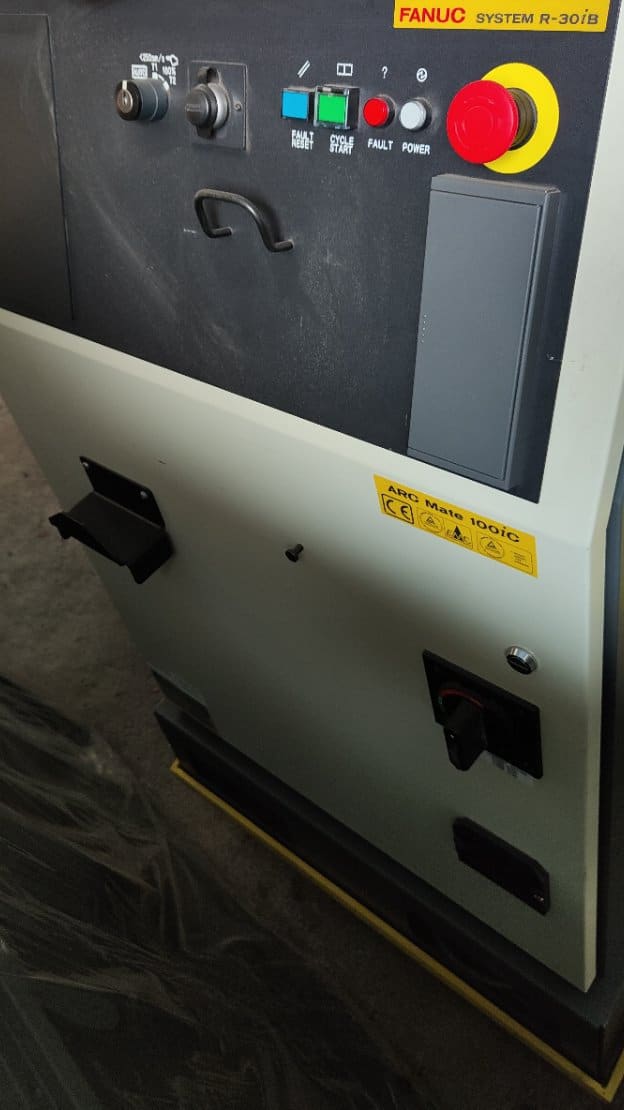

– controller: FANUC SYSTEM R-30iB

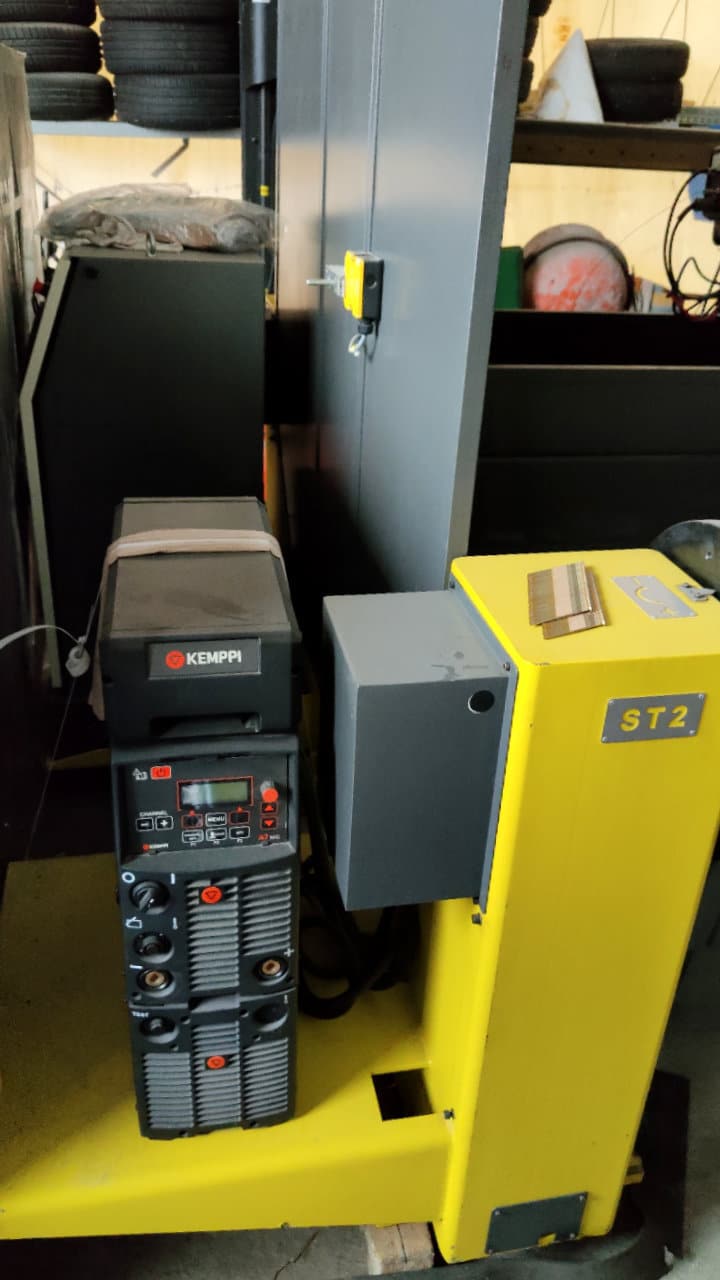

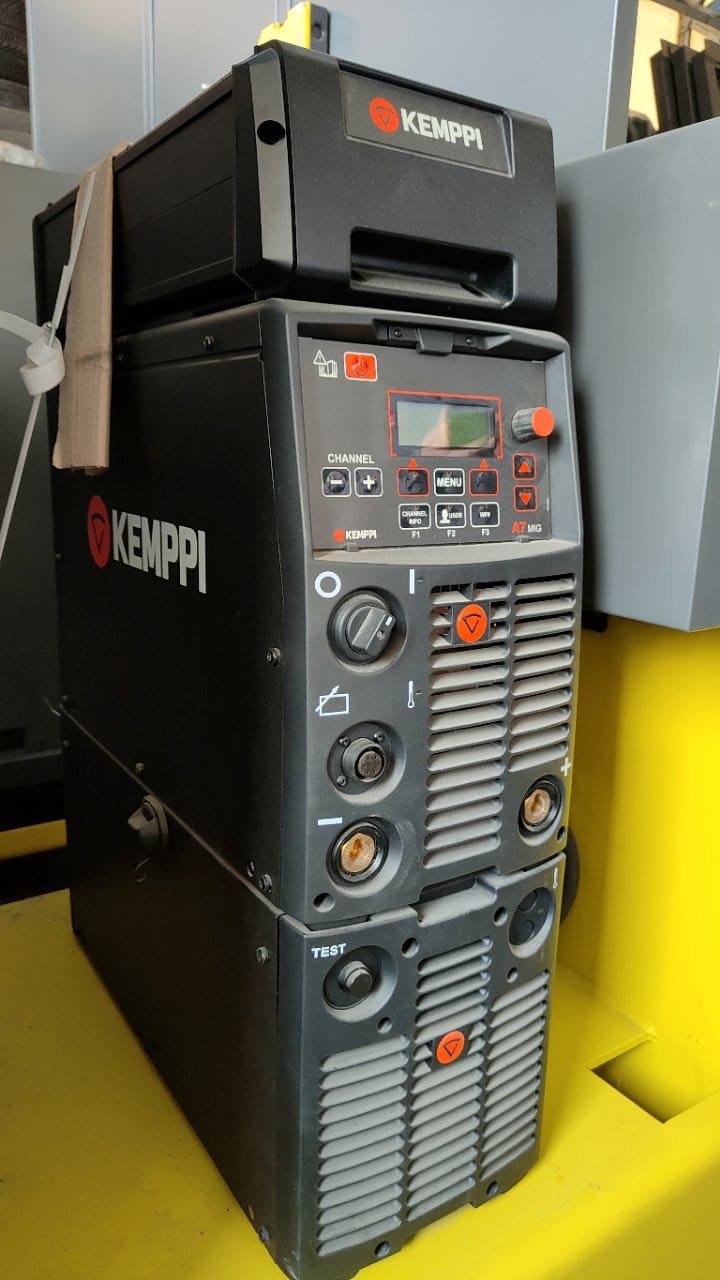

– welding source: KEMPPI A7 MIG Power Source 450

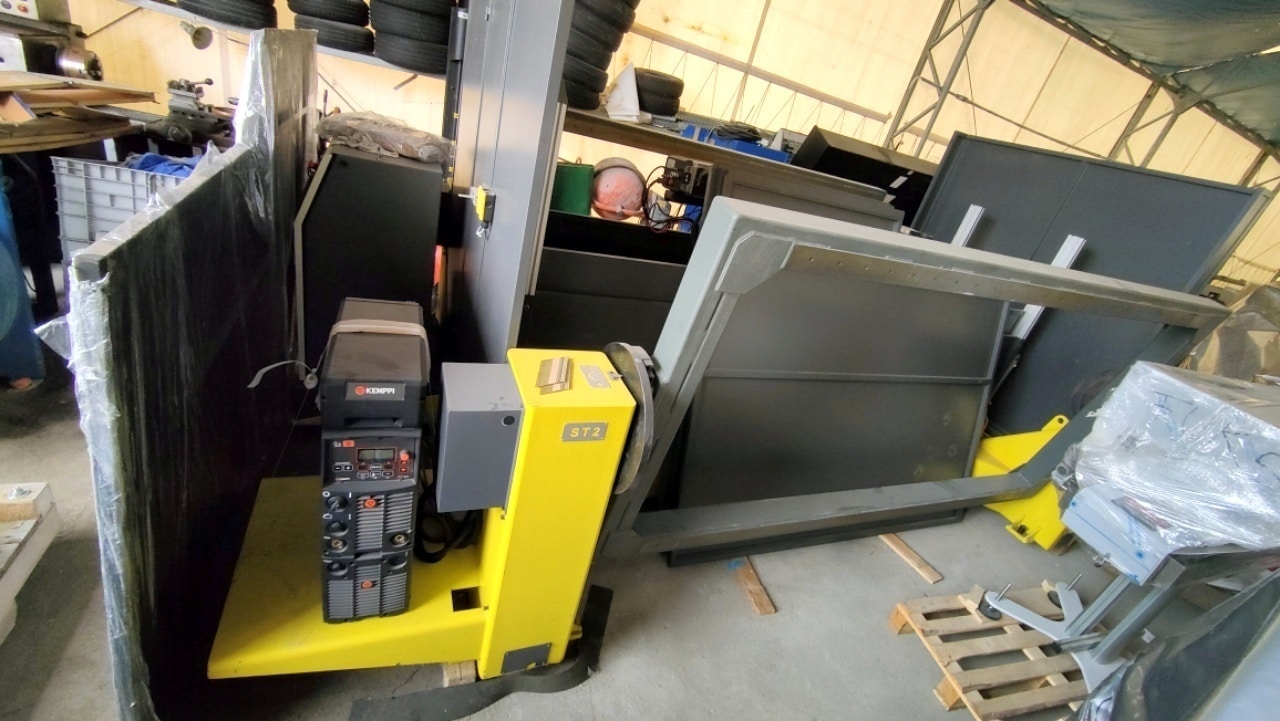

– welding positioner

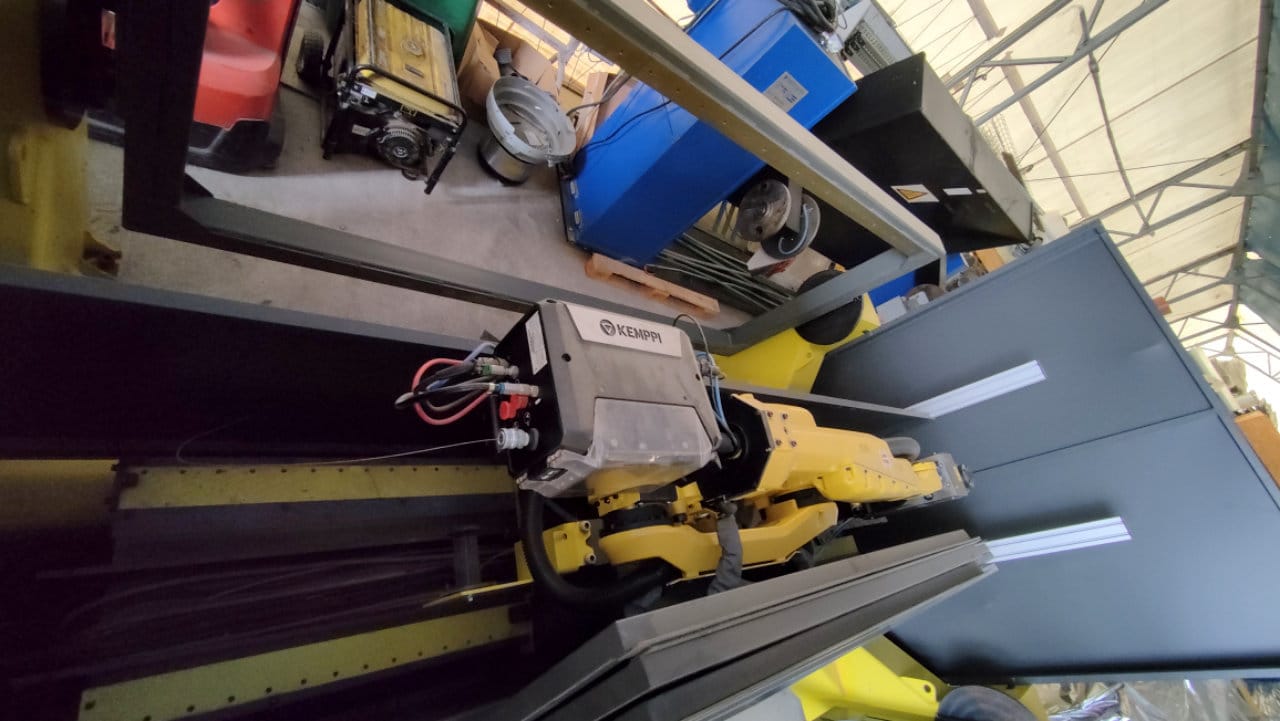

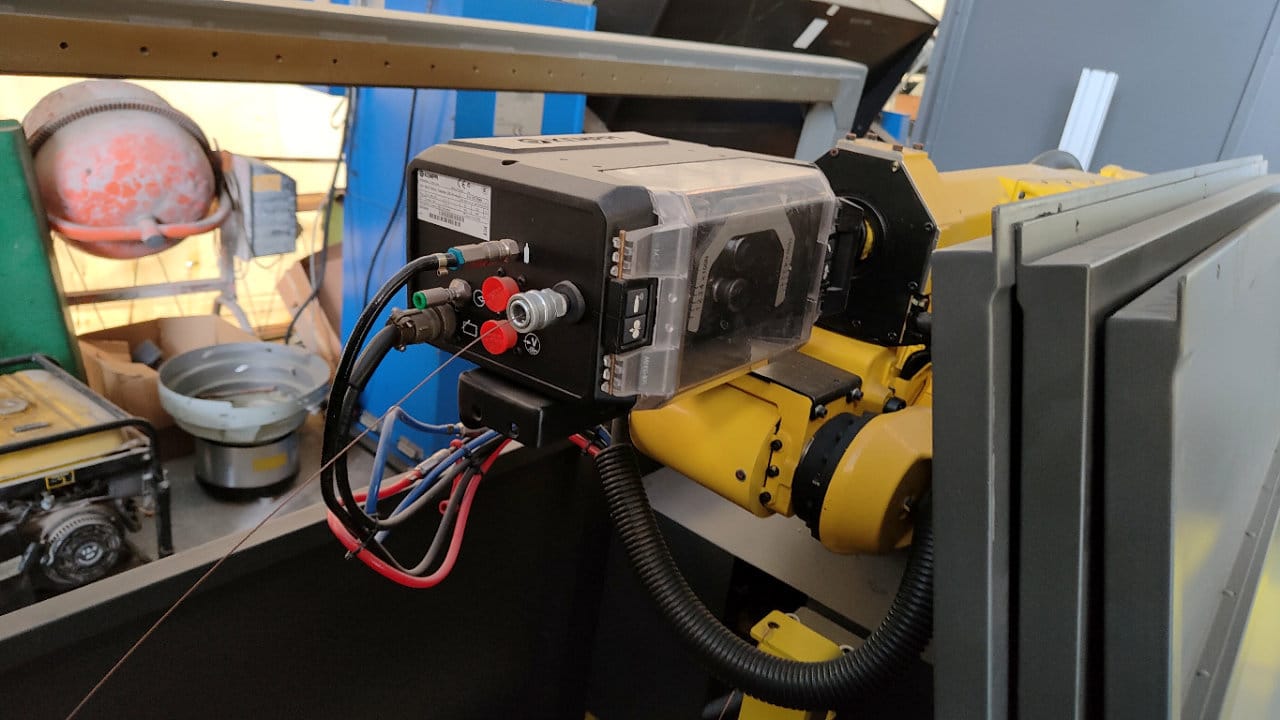

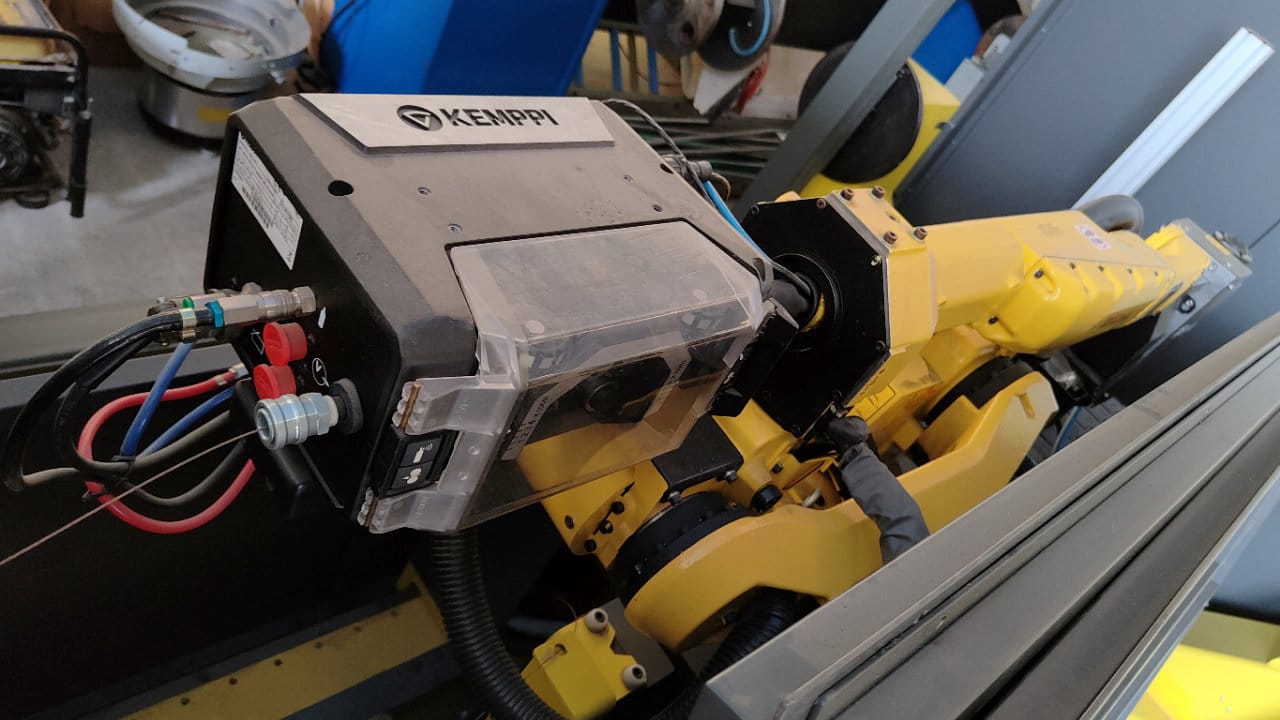

– wire feeder: KEMPPI A7 MIG Wire Feeder 25-LH-EUR

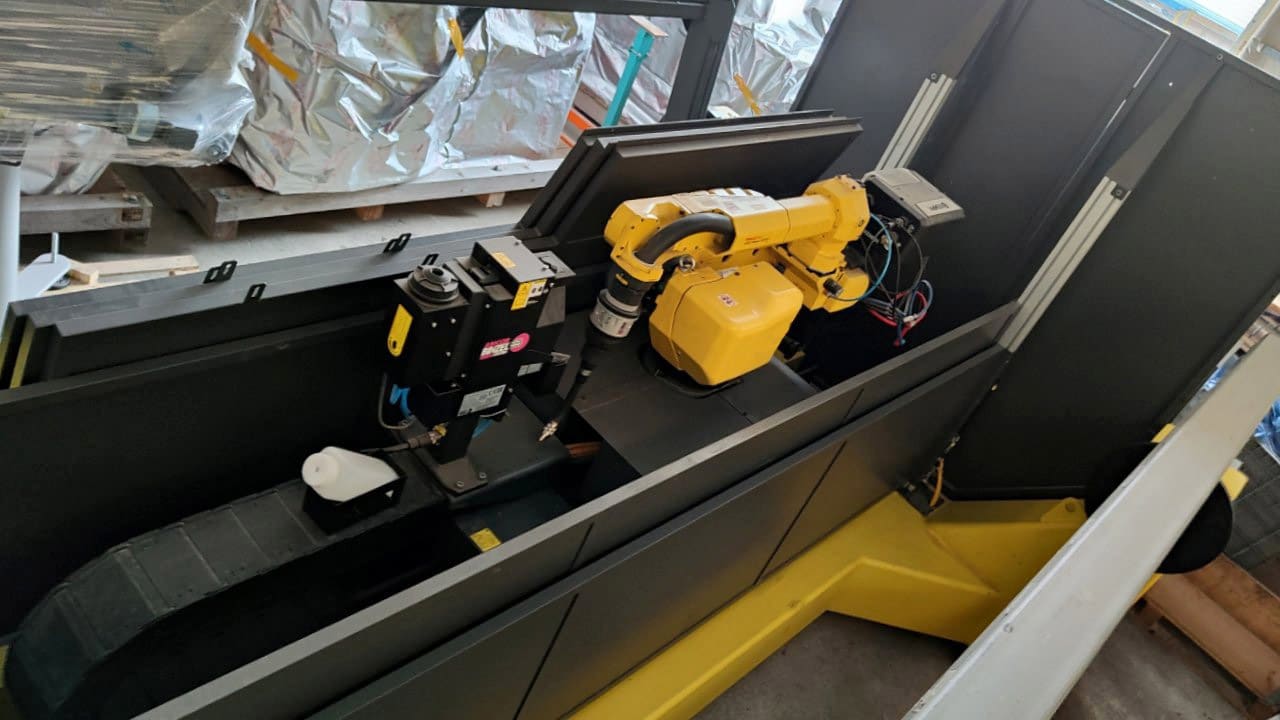

– ABICOR BINZEL torch cleaning device with welding wire cutting system and oil injection

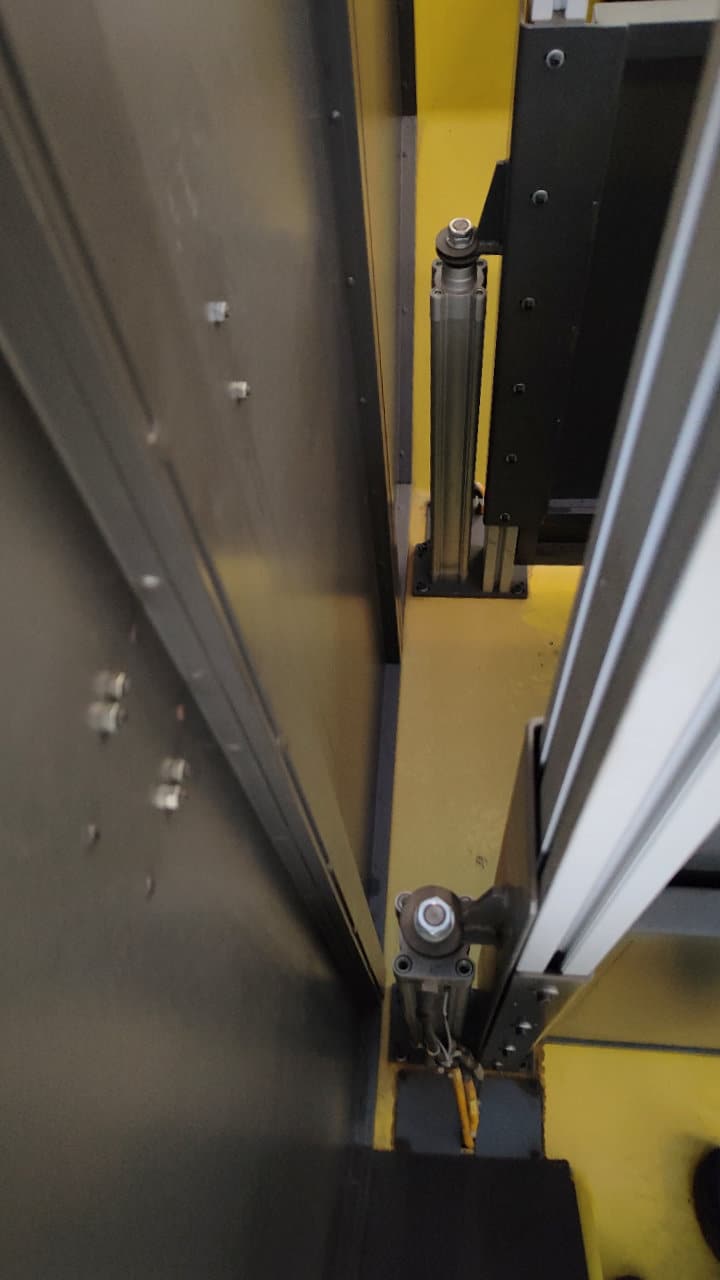

– vertical safety curtains

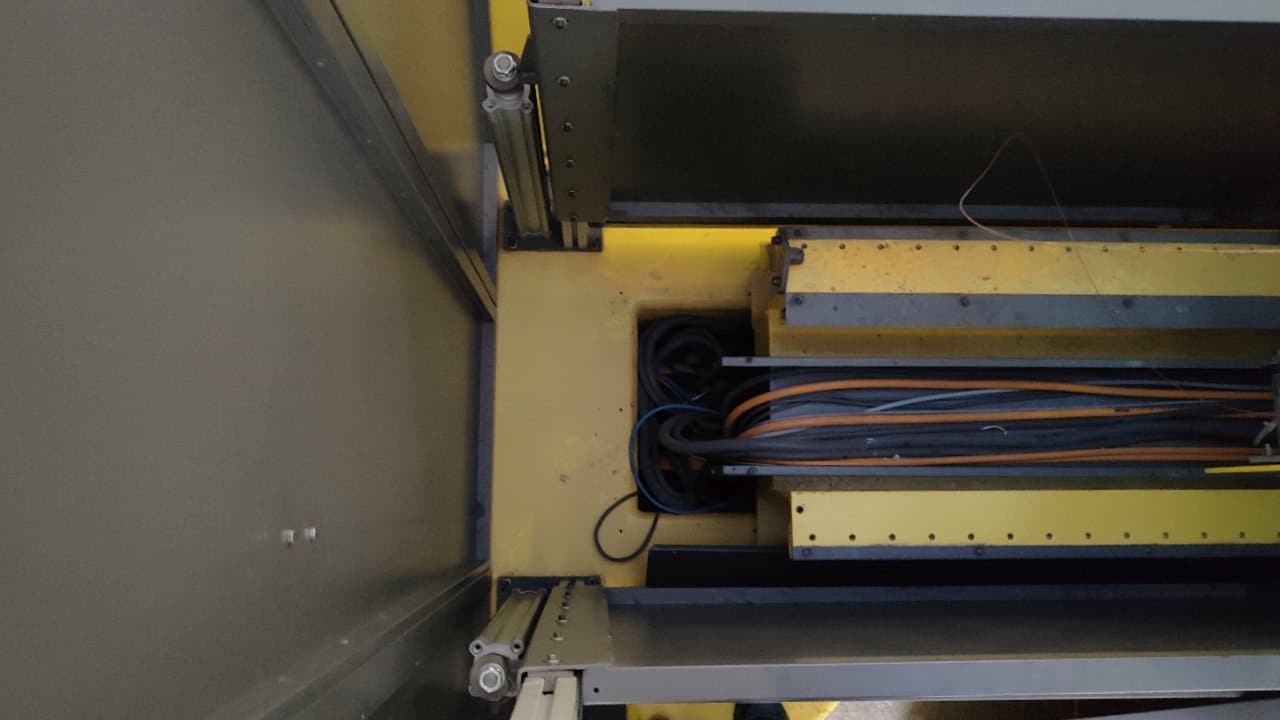

– servo-motor driven track

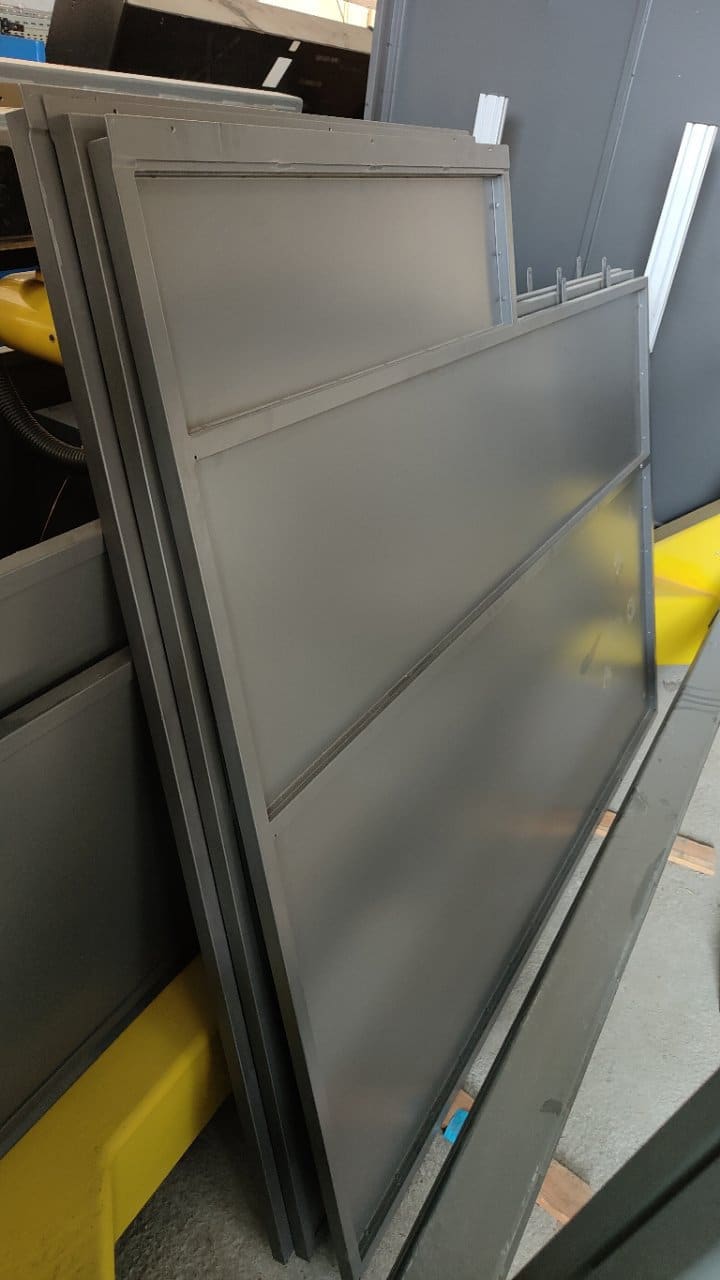

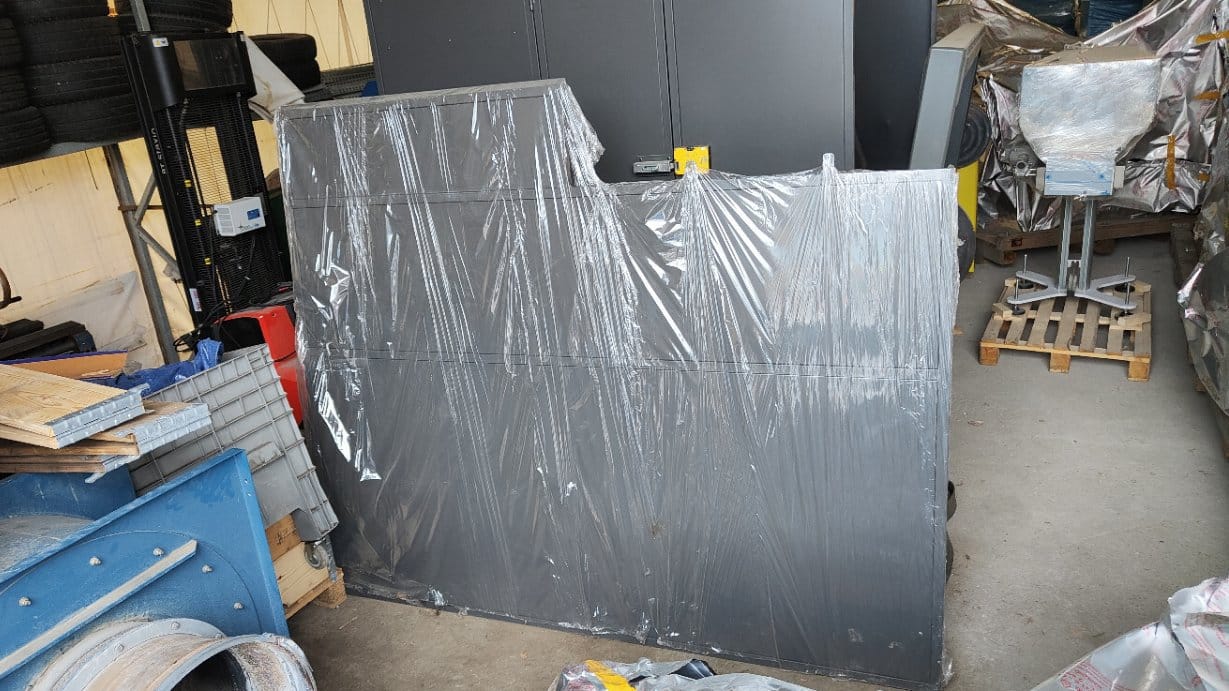

– fixed guards

Technical specifications of the FANUC Arc Mate 100iC robotic welding cell

• welding method: MIG/MAG
• maximum workpiece weight: 1000 kg
• maximum welding diameter: 1400 mm
• welding positioner length: 3000 mm
• current consumption: 28 kVA
• noise level: <80 dB(A)
• power supply: 3x 400 V; 50/60 Hz
• workstation weight: 3990 kg
