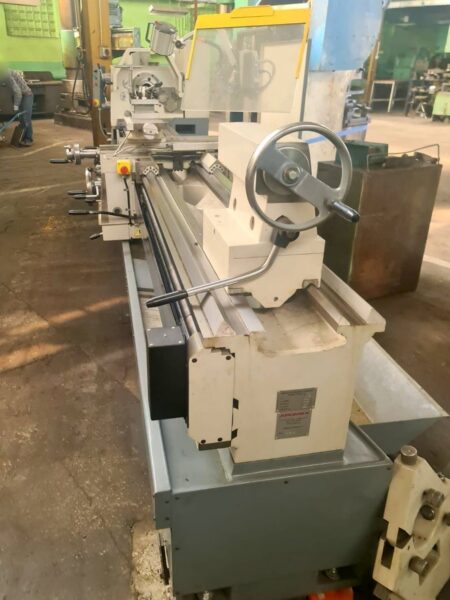

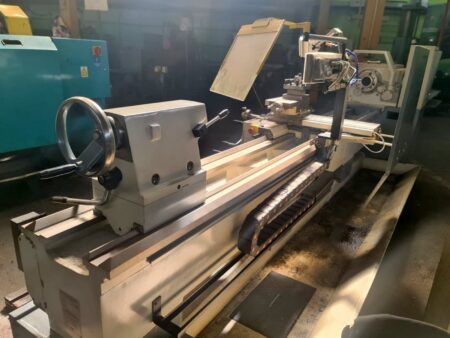

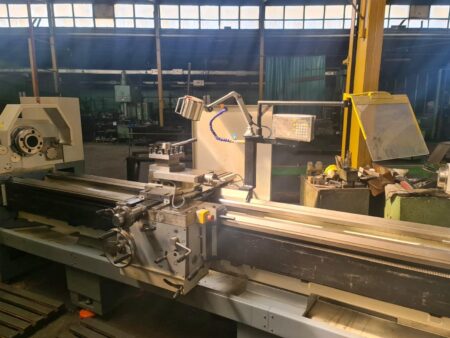

FAT TUR 630 M universal lathe

FAT TUR 630 M universal lathe was produced in 1986 in Poland.In 2018 the machine underwent a major overhaul including grinding the guideways, replacing the bearing and installing digital readouts. After the overhaul, the lathe was practically not in operation.

The machine, of stable construction and high efficiency, performs precise machining of workpieces with a maximum turning length of 3000 mm and a diameter of 380 mm (above the support) or 630 mm (above the bed). The installed spindle runs at speeds from 18 to 1800 rpm and has a 90 mm diameter bore. The lathe is equipped with an MT-5 tailstock sleeve cone and scales and digital readout. Total weight of the machine is 3700 kg.

Technical data of the lathe FAT TUR 630 M

• maximum turning length: 3000 mm
• maximum turning diameter above the bed: 630 mm
• maximum turning diameter above the support: 380 mm

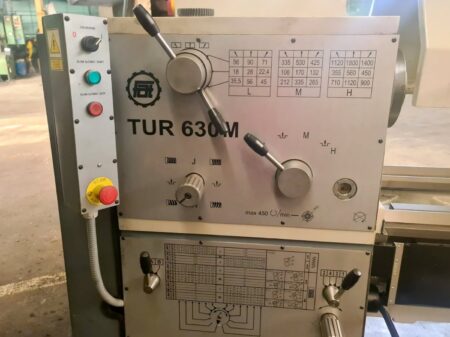

• spindle speed range: 18 – 1800 rpm
• number of spindle speeds: 21
• spindle bore diameter: 90 mm
• scales
• digital readout
• tailstock sleeve cone: MT-5
• tailstock sleeve extension: 200 mm
• motor power: 15 kW
• machine dimensions (L x W x H): 4700 x 1420 x 1650 mm
• weight: 3700 kg
