FGU 32 conventional milling machine

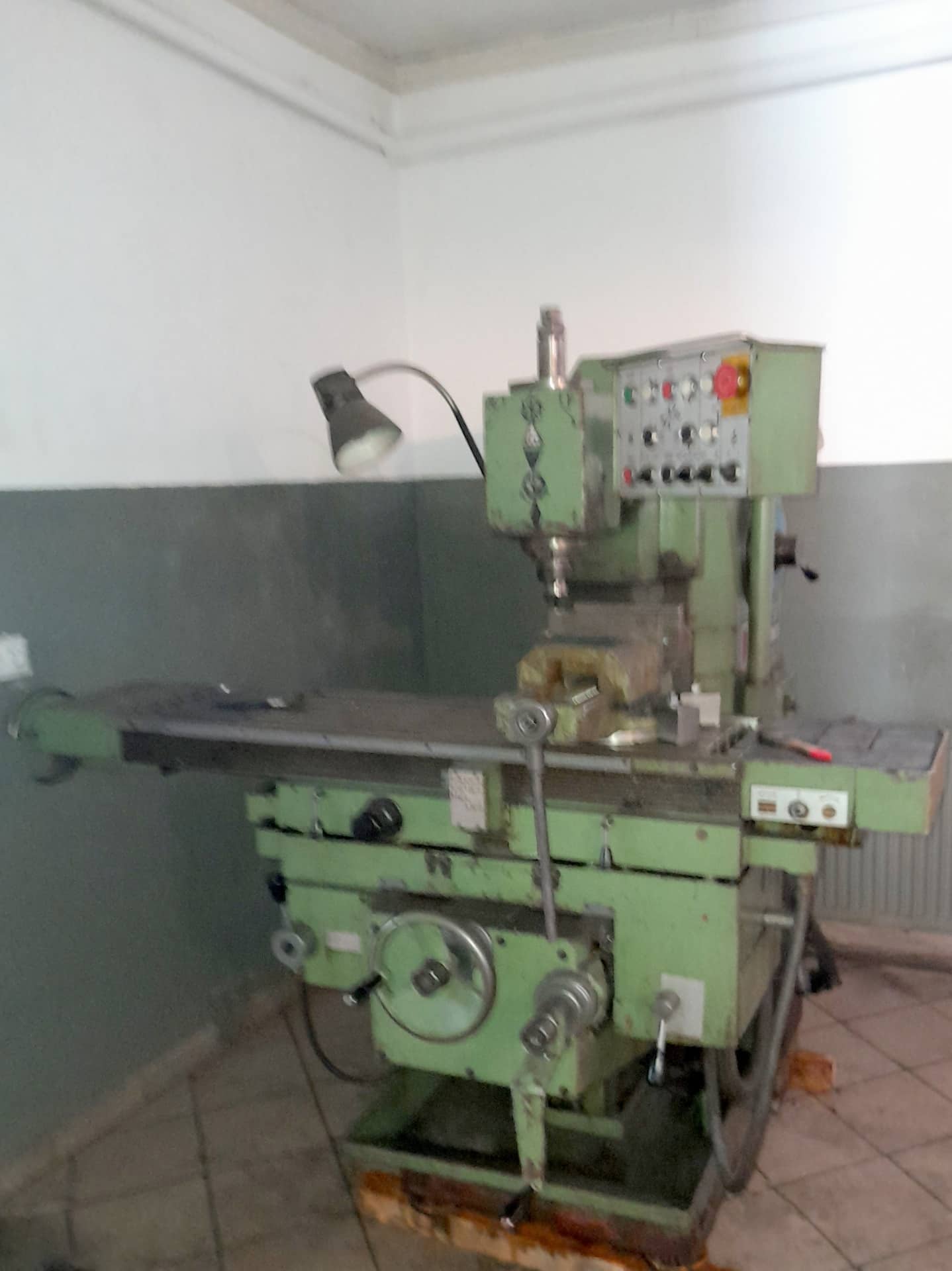

FGU 32 conventional milling machine was built in 1989 in Czechoslovakia. The machine used in production plants for precision machining of workpieces, provides effective and efficient milling in all conditions, thanks to its reliable 5.5 kW spindle. The solidly constructed work table with workplace illumination offers the possibility to machine workpieces with a maximum weight of 300 kg and to easily mount tooling on the four T-slots. The TOS OLOMOUC FGU-32 universal milling machine weighs 2615 kg.

Technical specifications of the FGU 32 milling machine

• work table dimensions (L x W): 1250 x 320 mm
• maximum workpiece weight: 300 kg
• work table feed rate in X/Y/Z axis: 850/420/275 mm
• speed of feeds in X axis: 14-900 mm/min
• speed of feeds in Y axis: 4-250 mm/min
• speed of feeds in Z axis: 14-900 mm/min
• rapid traverse in X axis: 2800 mm/min
• rapid traverse in Y axis: 800 mm/min
• rapid traverse in Z axis: 2800 mm/min
• number of feed rates: 13
• maximum spindle speed: 2000 rpm
• number of spindle speed stages: 12
• spindle power: 5.5 kW
• maximum distance between spindle axis and work table: 420 mm
• minimum distance between spindle axis and work table: 0 mm
• spindle taper: ISO 50
• spindle torque: 900 um
• work table rotation: ± 45°
• bracket lowering distance with work table: 0.3-0.5 mm
• T-slot number: 4
• T-slot width: 18 mm
• workspace illumination
• maximum feed force of longitudinal screw: 18000 N
• maximum axial drag force on transverse screw: 18000 N
• maximum axial drag force on vertical screw: 60000 N
• feed motor power: 1.1 kW
• total power requirement: 6.8 kW
• dimensions (L x W x H): 2500 x 1500 x 1700 mm
• electrical cabinet weight: 185 kg
• TOS OLOMOUC FGU 32 milling machine weight: 2615 kg
