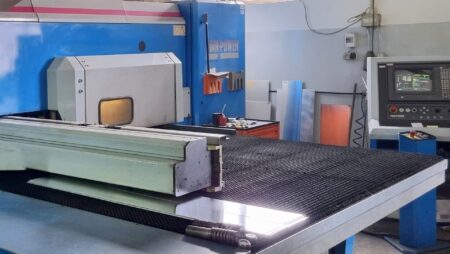

FINN-POWER A5-25 FB punching machine

FINN-POWER A5-25 FB punching machine was built in 1999 in Finland and is distinguished by its high reliability and productivity. The machine used for punching holes in sheets with a maximum thickness of 4 mm provides excellent machining results proven by the absence of scratches and nicks on the workpiece surface. The offered FINN POWER hydaulic punching machine has an intuitive FANUC CNC control with all the necessary functions, JETCAM software and the tools shown in the photos. The total weight of the FINN-POWER A5-25FB punching machine is 12000 kg.

Technical data of the FINN-POWER A5-25 FB punching machine

• CNC control: FANUC
• maximum press force: 23 t (230 kN)
• maximum sheet thickness: 4 mm
• feed rates in the X/Y axis: 2500/1250 mm
• software: JETCAM

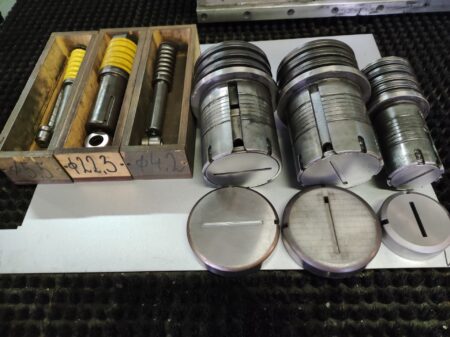

• tools
• brush table
• maximum hydraulic pressure: 300 bar
• power supply: 3x 400 V; 50 Hz
• dimensions (L x W x H): 6000 x 6000 x 2000 mm
• A5-25 FB machine weight: 12000 kg
