FOSHAN OCPACK PACKAGING MACHINERY OC-420AZ packaging machine

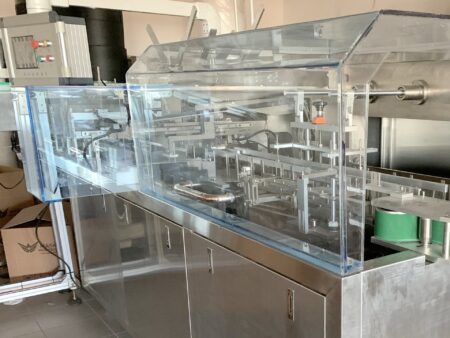

FOSHAN OCPACK PACKAGING MACHINERY OC-420AZ packaging machine was built by the Chinese brand FOSHAN OCPACK PACKAGING MACHINERY CO.,LTD. in 2021. Reliable and easy to operate machine, performs the process of automatic packaging of a wide range of products i.e. food, medicines and cosmetics into cardboard boxes with maximum dimensions of 130x80x210 mm.

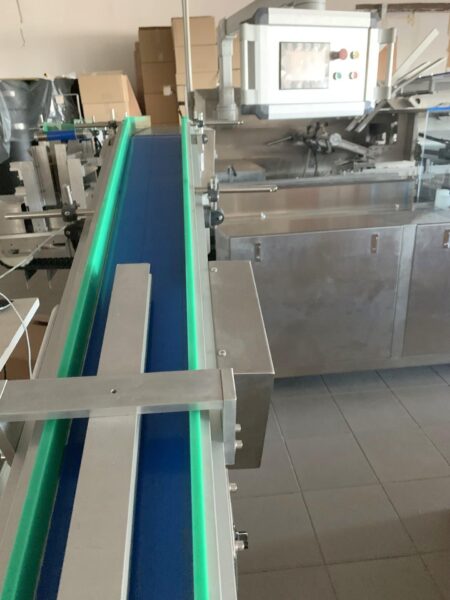

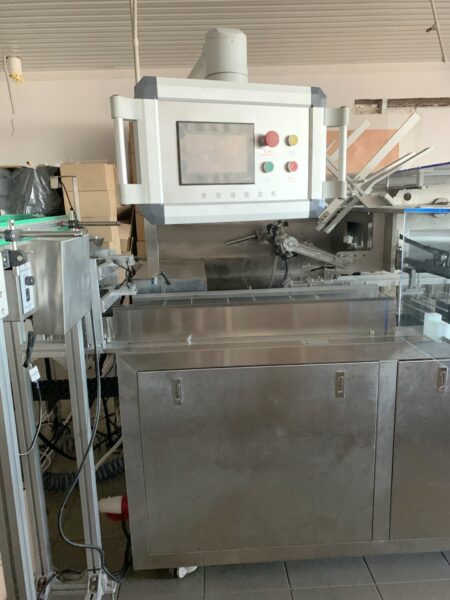

The items are transported by conveyor belt to a designated area, where they are stacked and pushed inside the box. A microcomputer together with a photocell controls and ensures that the packing process is performed accurately. The automatic carton box packaging machine is equipped with an OMRON HMI panel and an emergency stop button. The total weight of the machine is approx. 1300 kg.

Technical specifications of the FOSHAN OCPACK PACKAGING MACHINERY OC-420AZ packaging machine

• HMI panel: OMRON

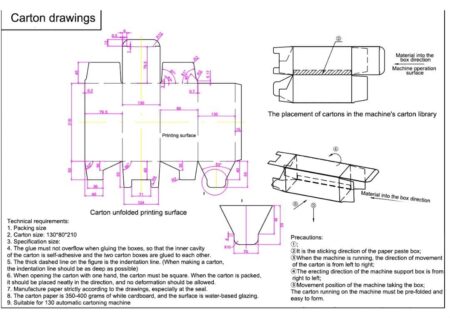

• maximum box dimensions (L x W x H): 130x80x210 mm
• microcomputer
• photocell to control the process and packaging accuracy
• conveyor belt
• emergency stop button
• dimensions for transport (L x W x H): 4240x2270x2010 mm
• weight of the OC-420AZ machine: approx. 1300 kg

The automatic carton box packaging machine has never been used and is in very good technical condition.
