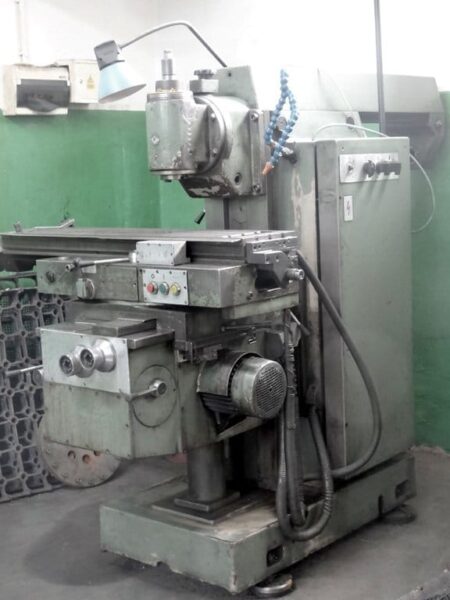

FU 251 universal milling machine

The FU 251 universal milling machine was produced in 1983. The machine is equipped with a working table with dimensions (L x W) 1120 x 250 mm. The mechanical feeds of the working table in the X / Y / Z axis are respectively 765/230/390 mm, and manual feeds are 785/250/410 mm. The universal milling machine has a steady rest and three T-slots with a spacing of 14 mm. The total weight of the machine is 2 tons.

Technical data of the FU 251 milling machine

– working dimensions of the table (length x width): 1120×250 mm
– mechanical table feeds in the X / Y / Z axis: 765/230/390 mm
– manual table feeds in the X / Y / Z axis: 785/250/410 mm
– accelerated longitudinal and transverse feed: 2500 mm/min
– accelerated vertical feed: 1040 mm/min
– longitudinal and transverse feed speed range: 12.5-630 mm/min,
– vertical feed speed range: 5.2-262 mm/min
– speed range of the longitudinal and transverse feed (1 range): 16-800 mm/min
– vertical feed speed range (1 range): 6.7-334 mm/min
– speed range of the longitudinal and transverse feed (2nd range): 20-1000 mm/min
– vertical feed speed range (2nd range): 8.3-415 mm/min
– number of T-slots: 3
– spacing of T-grooves: 14 mm
– steady rest
– main engine power: 4 kW
– machine dimensions (length x width x height): 1490x1710x1630 mm
– total weight of the FU 251 milling machine: 2000 kg
