FULLTONTECH TBF6111B horizontal boring machine

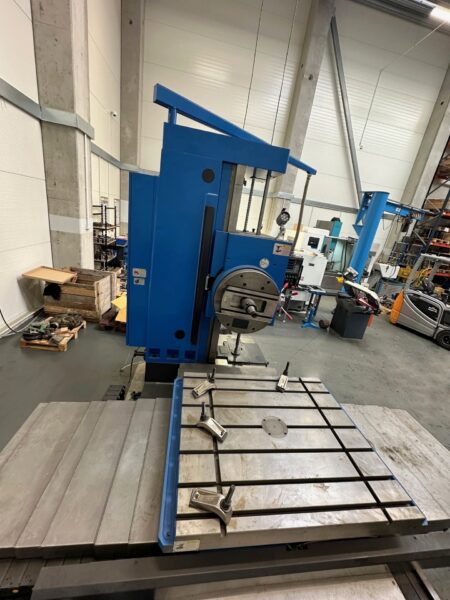

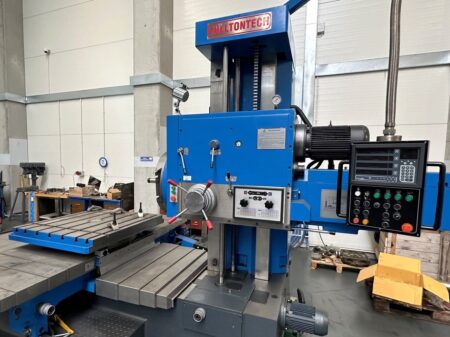

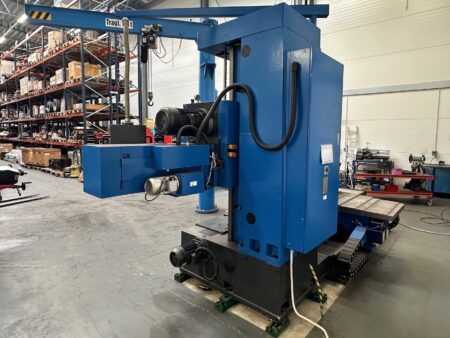

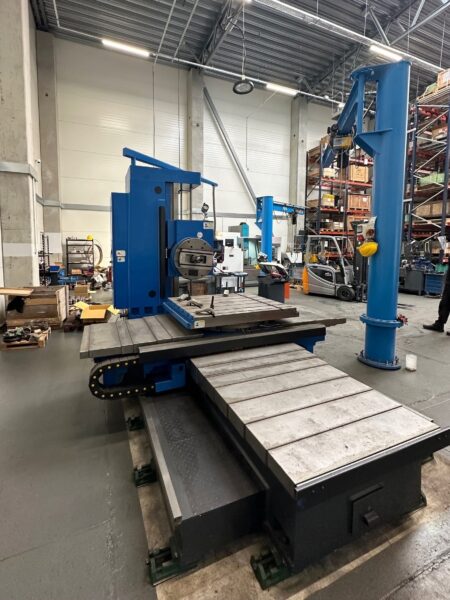

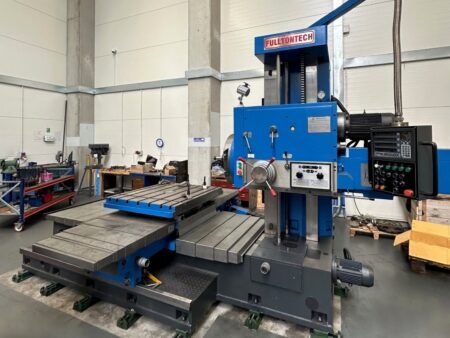

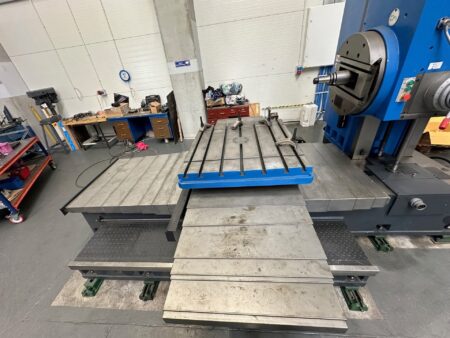

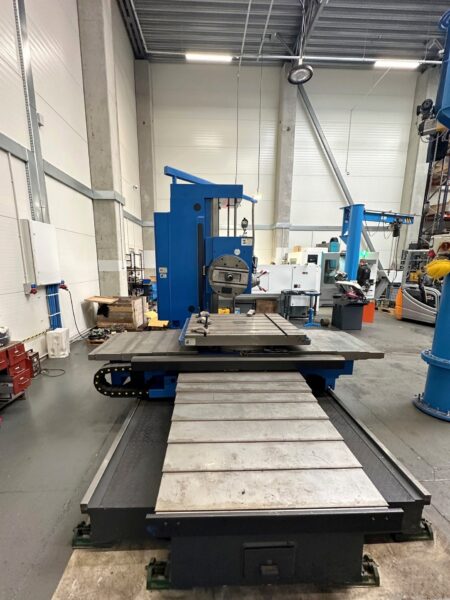

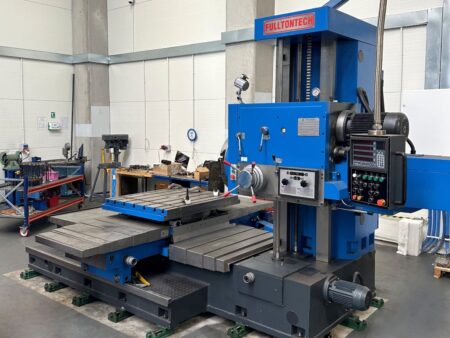

FULLTONTECH TBF6111B horizontal boring machine was built in 2022 in China by Dalian Fullton Machinery Co., Ltd. The machine enables a number of complex operations to be performed, i.e. precision drilling, milling and boring, on workpieces with complex geometries and heavy weights. All these operations are performed on a stable work table, whose rotary design enables the workpiece to be machined from all 4 sides.

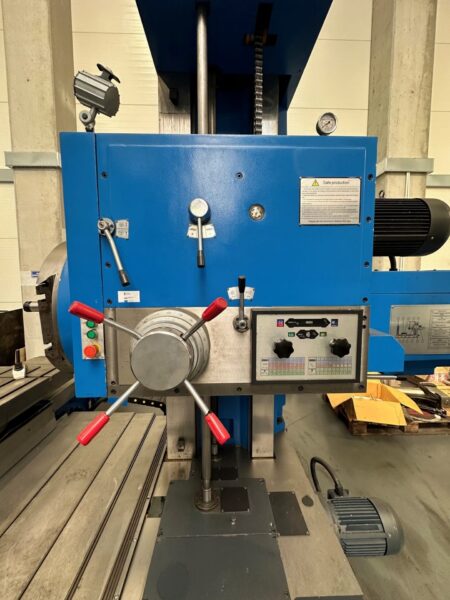

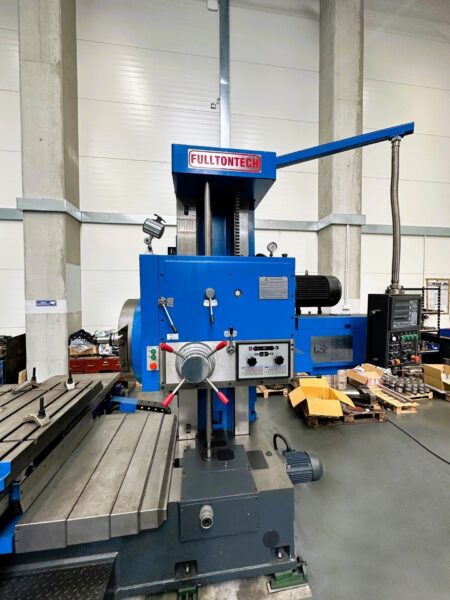

The spindle, rotating at a maximum speed of 1000 rpm, runs on induction-hardened guideways with scrapers. The spindle has a special safety clutch which prevents the machine from being overloaded. A powerful hydraulic system, consisting of two parts, is responsible for changing the spindle speed and feed rate. The position of the head in all linear axes is in turn controlled by a NEWALL digital readout, which provides a measurement accuracy of 0.005 mm. The FULLTONTECH boring machine weighs 13000 kg.

Technical specifications of the FULLTONTECH TBF6111B drilling and milling machine

• feed in the X/Y/Z/U/W axis: 1250/900/1400/180/600 mm
• B axis rotation range: 360°
• rapid traverse in X,Y,Z axis: 2500 mm/min
• work table dimensions (L x W): 1100 x 960 mm
• maximum workpiece weight: 5000 kg
• spindle rotational speed range: 8-1000 rpm
• number of spindle speeds: 22
• spindle diameter: 110 mm
• spindle taper: Morse 6
• spindle drive power: 7.5 kW
• spindle torque: 1225 Nm
• spindle axis resistance: 12250 N

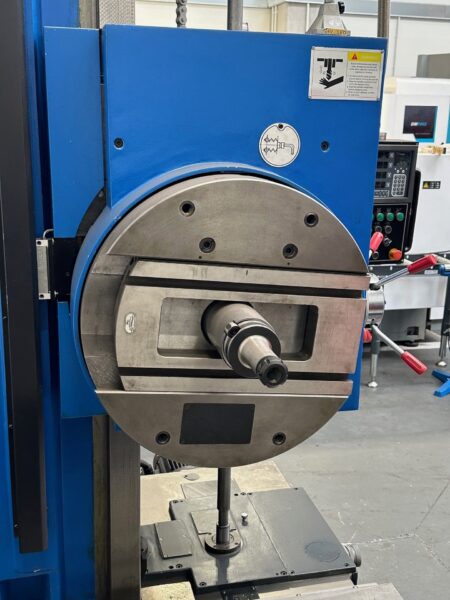

• spindle head diameter: 600 mm
• maximum face head torque: 1960 Nm

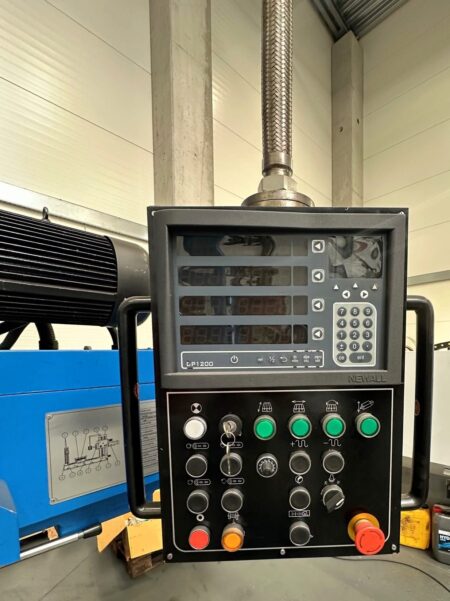

• digital readout: NEWALL DP1200
• positioning accuracy in X,Y,Z axis: 0.005 mm
• positioning accuracy in B axis: 0.001 mm
• T-slot number: 9
• T-slot width: 22 mm
• power supply: 3x 380 V; 50 Hz
• dimensions (L x W x H): 4950 x 2900 x 2800 mm
• weight of the FULLTONTECH TBF6111B machine: 13000 kg
