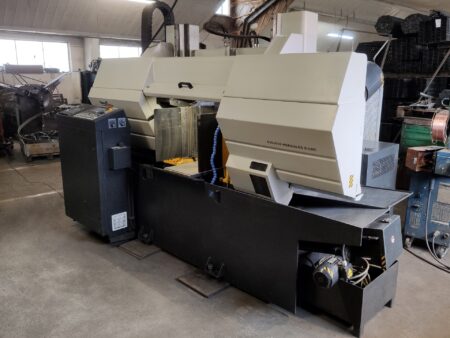

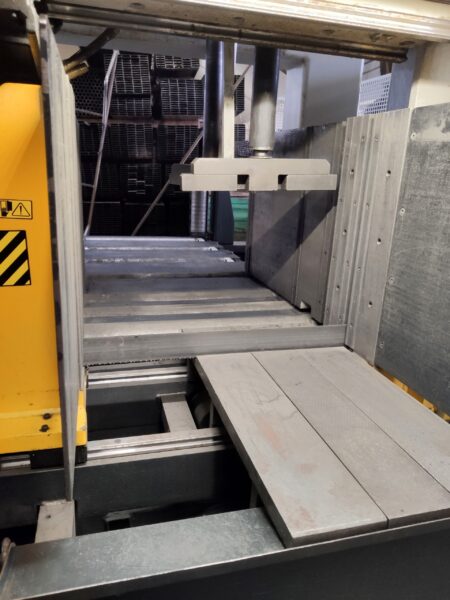

Gantry Bandsaw PEGAS 510×510 HERKULES X CNC

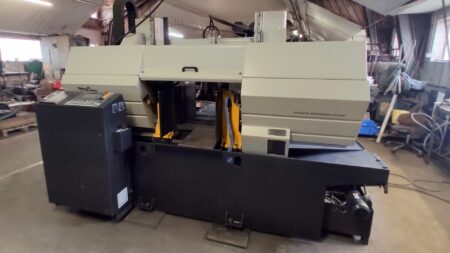

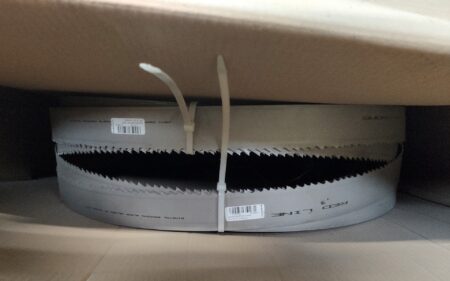

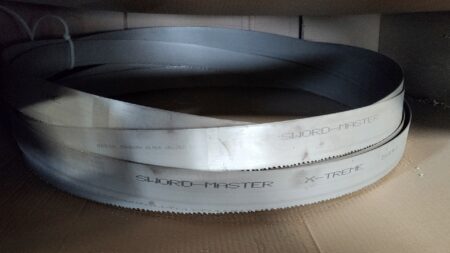

Gantry Bandsaw PEGAS 510×510 HERKULES X CNC was produced by the Czech company Pegas Gonda Ltd. in 2015. The machine has a saw with dimensions (L x W x H): 660 x 1.6 x 54 mm and blade speeds in the range of 15-80 m / min. The minimum diameter of the workpiece through the saw is 75 mm, and the maximum is 510 mm. The machine is equipped with PLC SIEMENS SIMATIC S7-1200 CNC numerical control. Additionally, the price of the machine includes 6 pieces of tape / blades. The total weight of the band saw is 6,220 kg.

Technical data of the PEGAS 510×510 HERKULES X CNC band saw

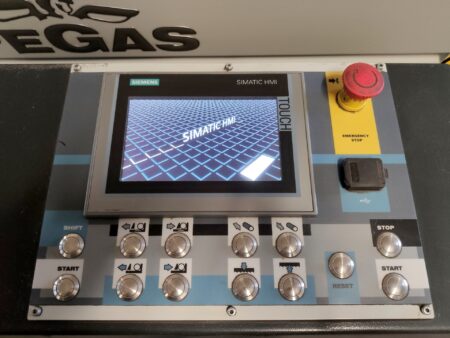

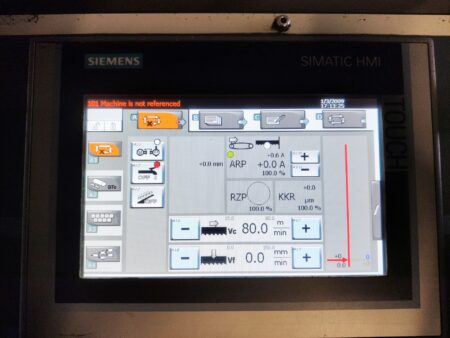

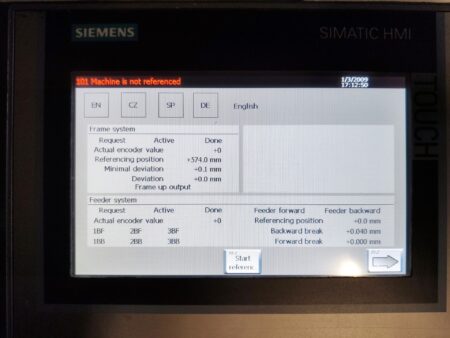

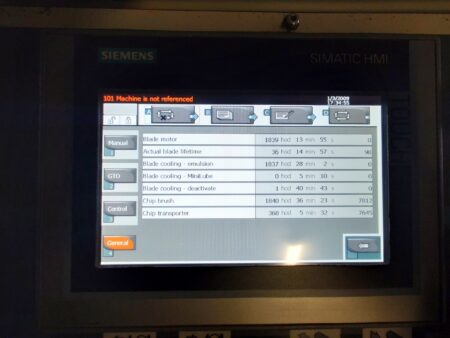

– CNC numerical control: PLC SIEMENS SIMATIC S7-1200
– blade speed: 15-80 m / min

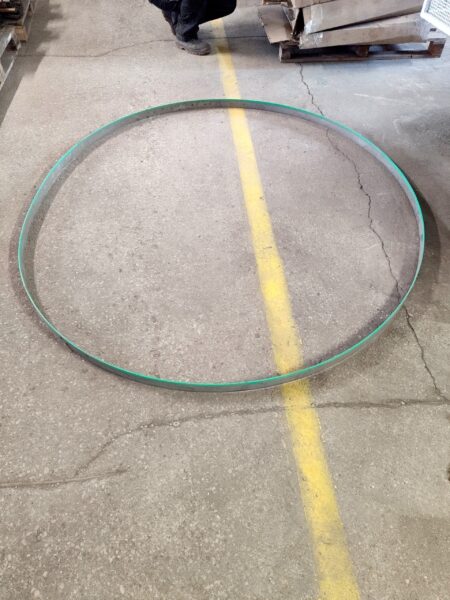

– band saw dimensions (L x W x H): 660 x 1.6 x 54 mm
– arm inclination: 25 degrees
– shortest cut-off length: 10 mm
– smallest cutting diameter: 75 mm
– maximum cutting diameter: 510 mm
– maximum square cut (W x H): 510 x 510 mm
– maximum rectangle cutting (H x W): 510 x 530 mm
– the smallest material cut-off during a single cut: 3 mm
– the largest material cut-off during a single cut: 670 mm
– power supply: 3 N PE, 300V, 50Hz, TN-S
– rated power: 19.1 kW
– electric power: 3x 400 V
– amperage at maximum load: 26.7 A
– breaking capacity: 10 Ik
– machine dimensions (L x W x H): 3360 x 2400 x 2100 mm
– total weight: 6220 kg
