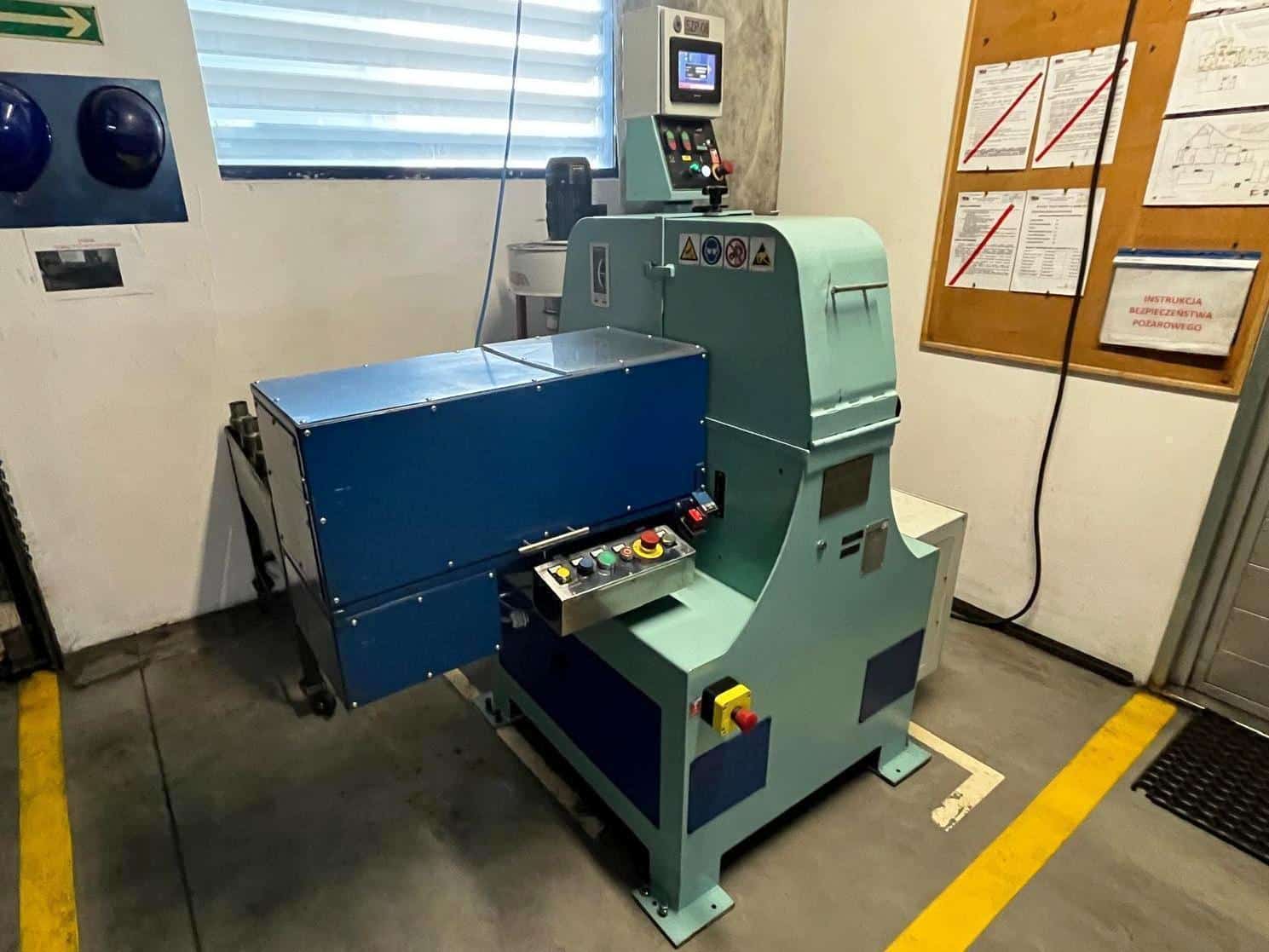

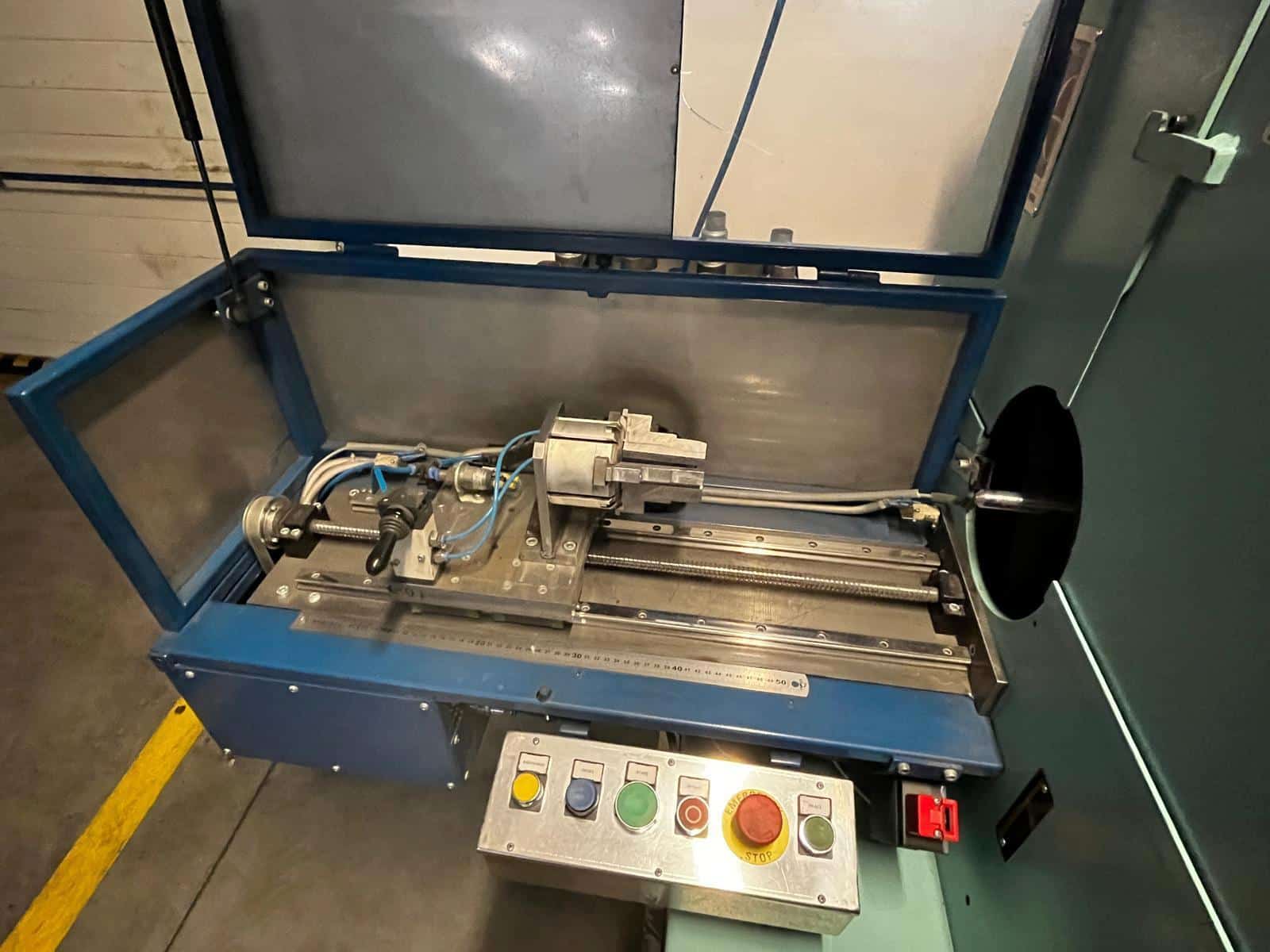

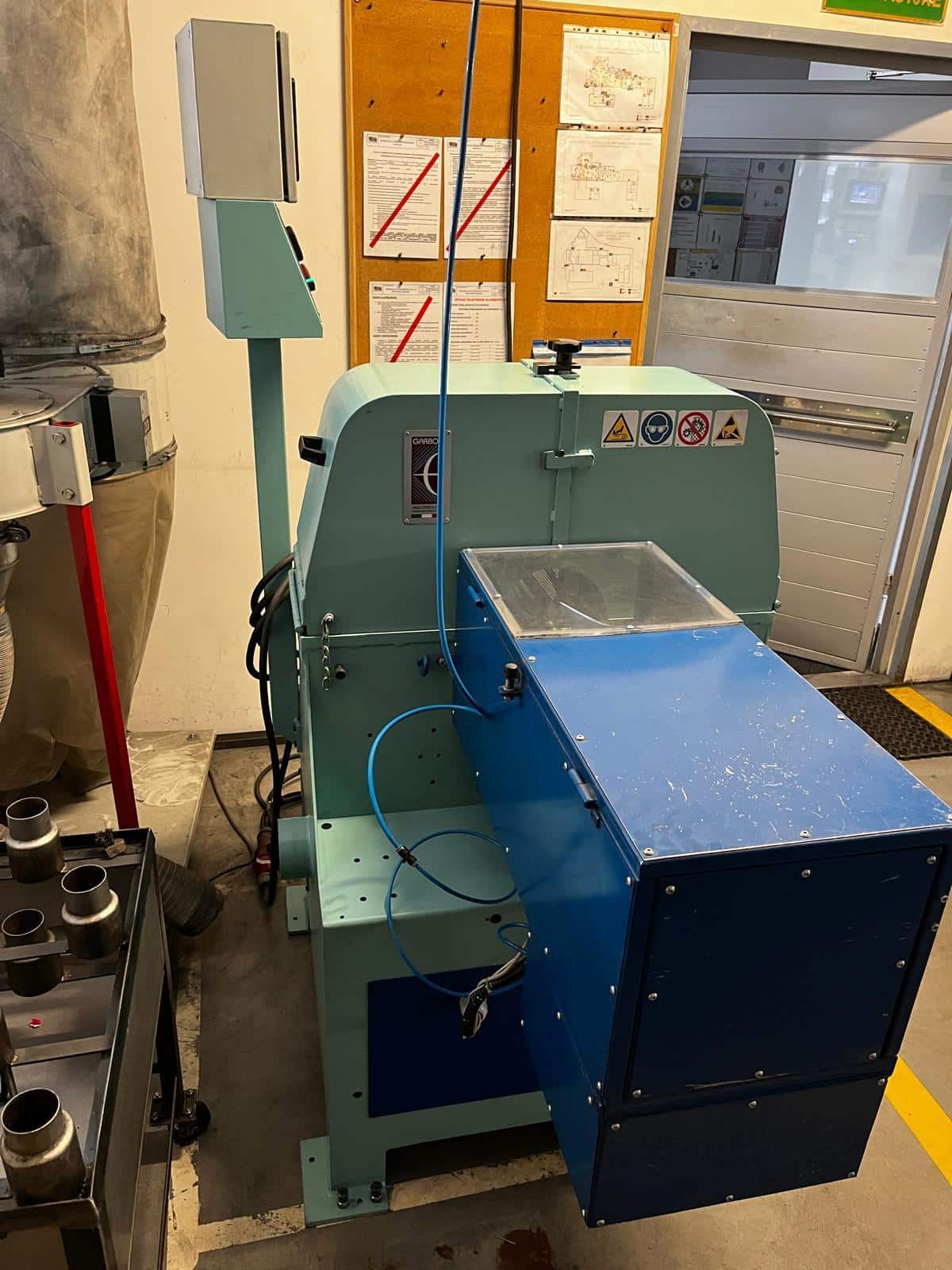

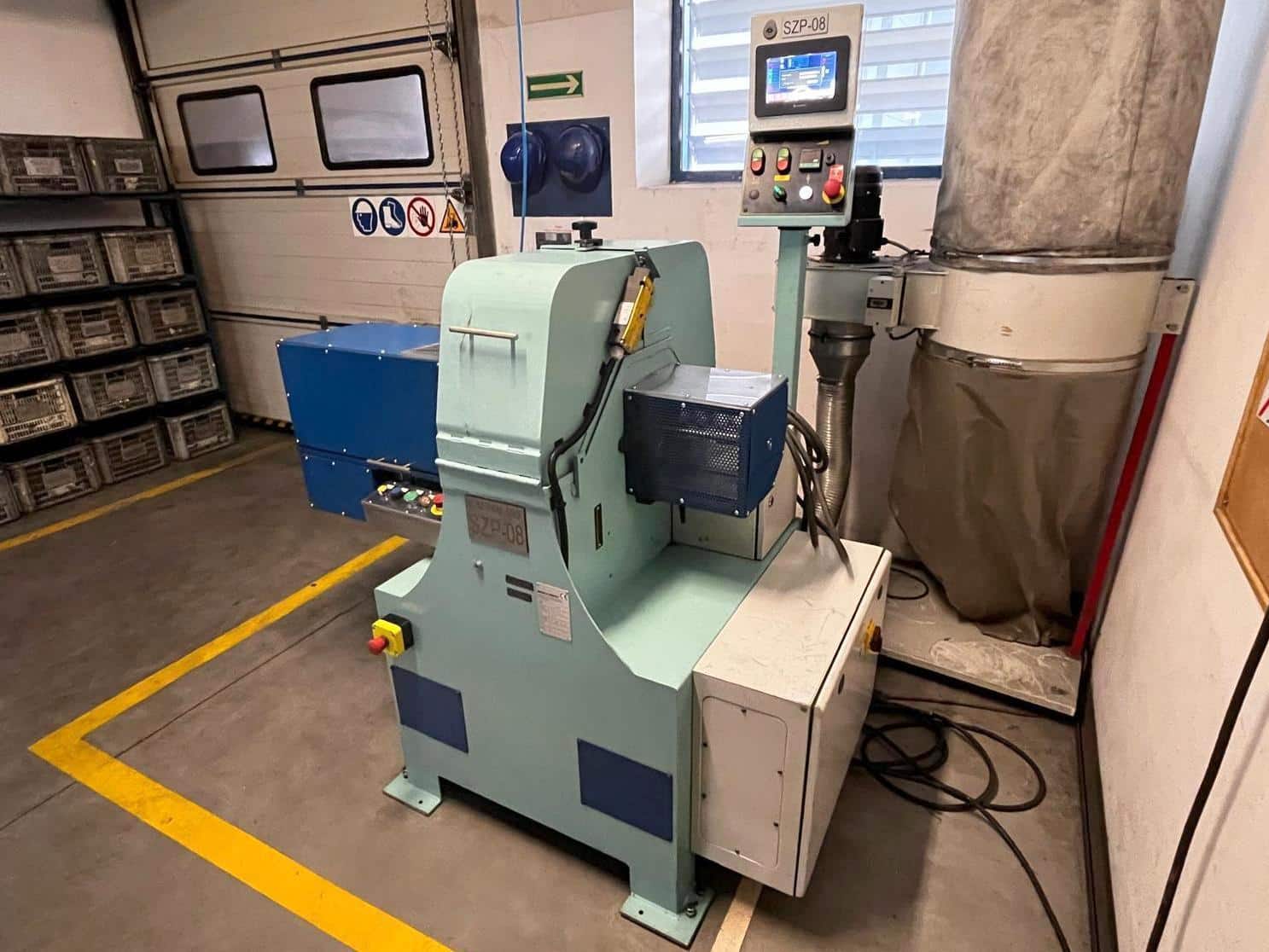

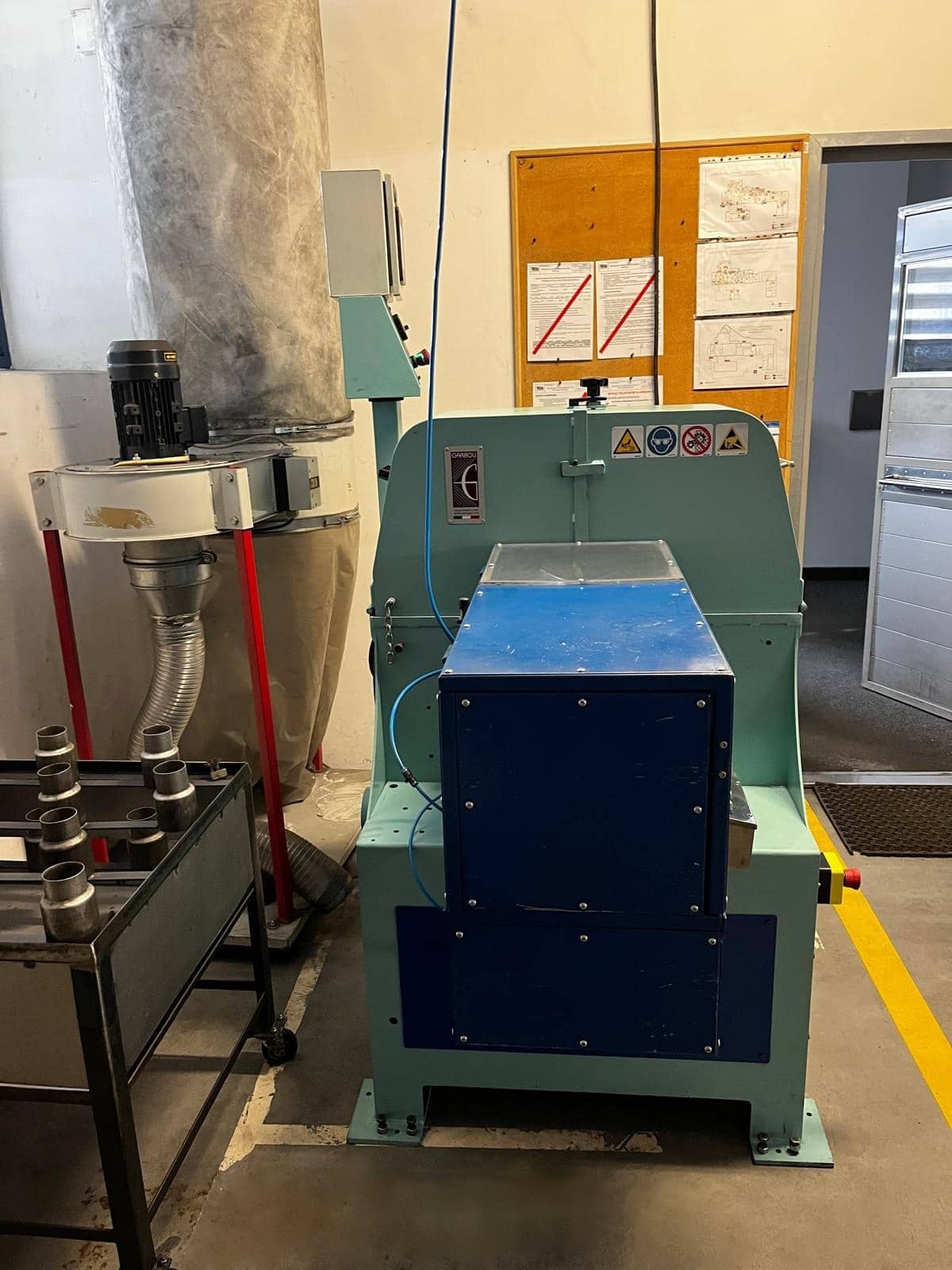

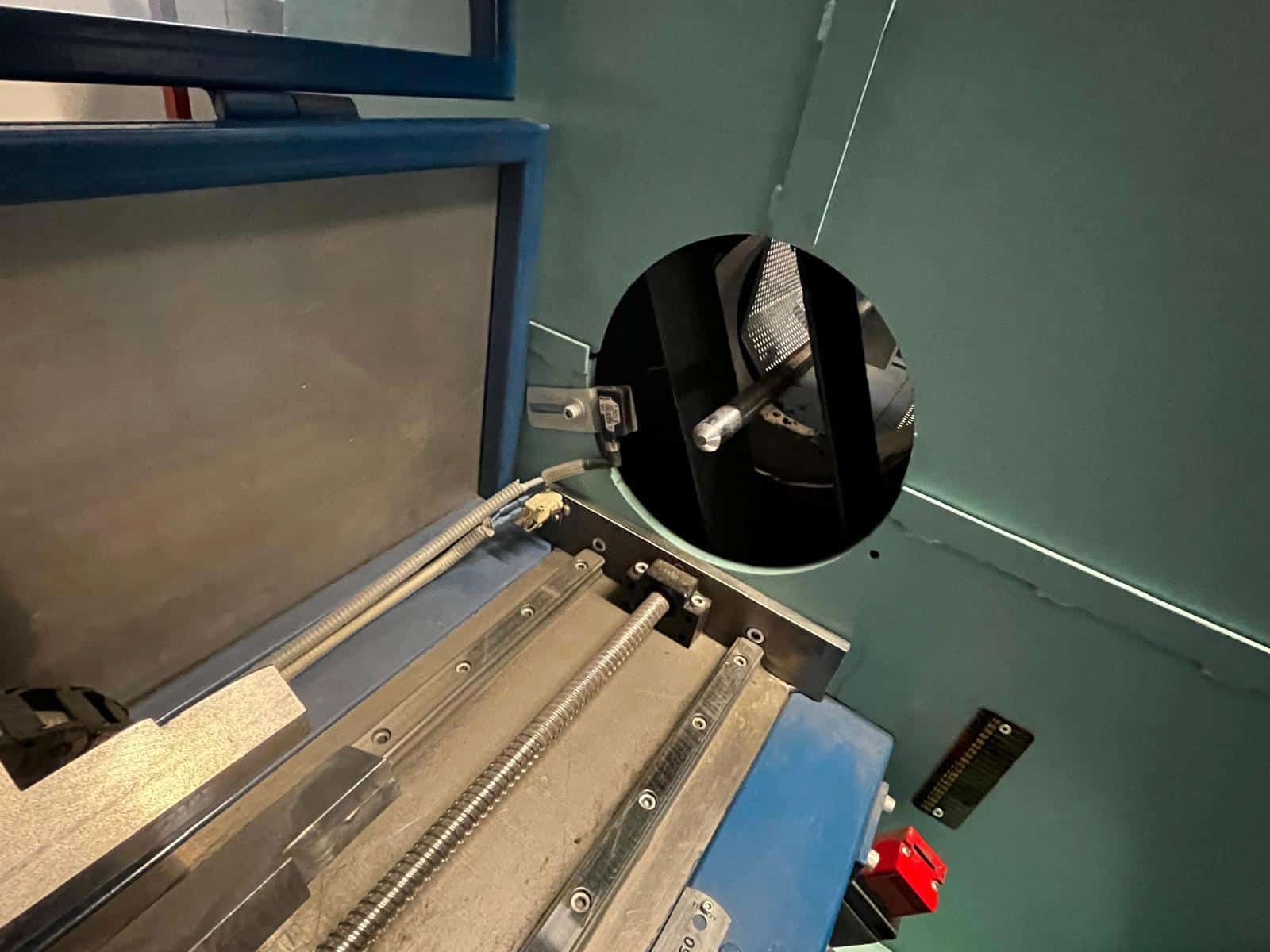

GARBOLI LPC 500 tube polishing machine

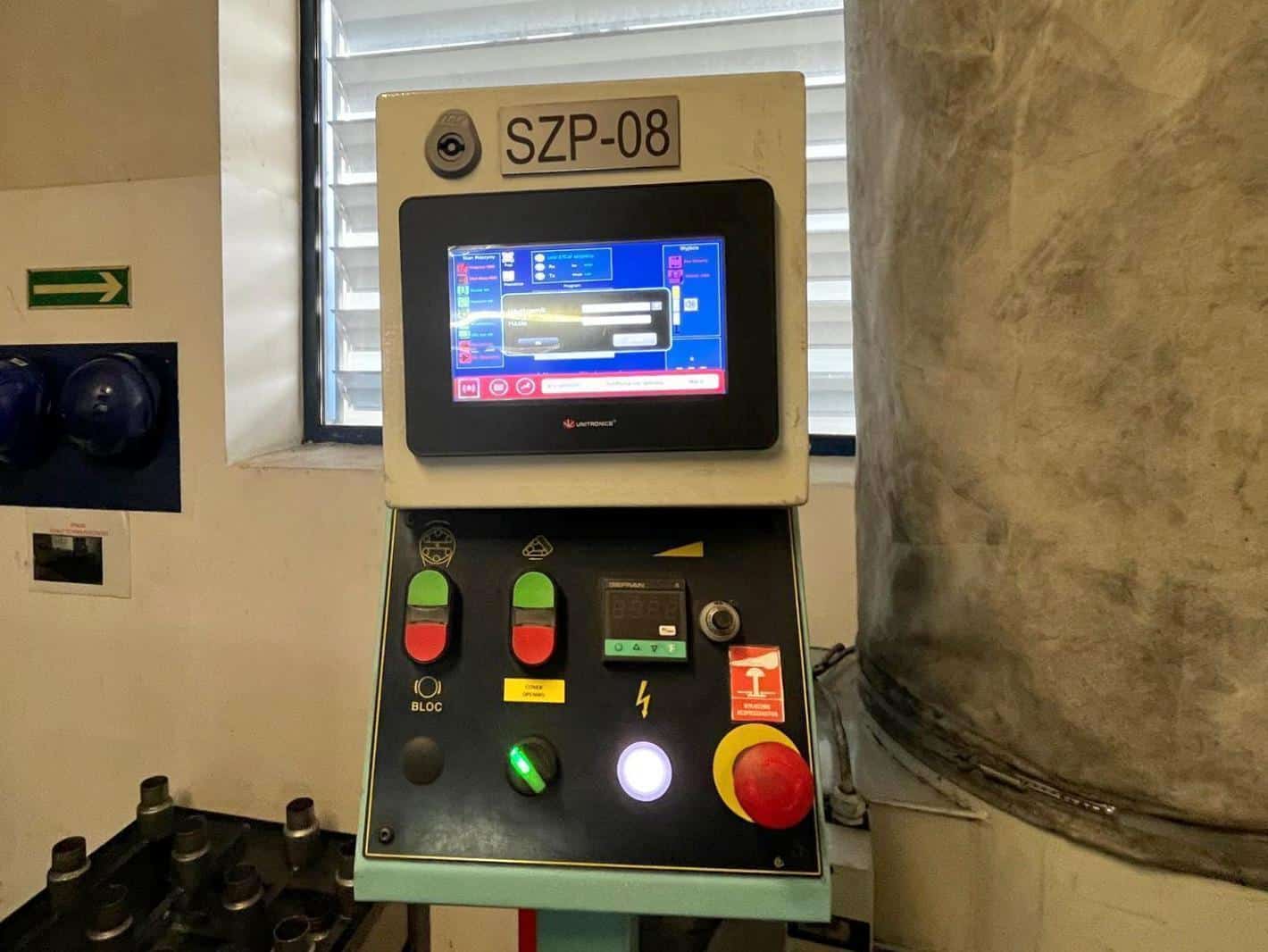

GARBOLI LPC 500 tube polishing machine was built in 2021 in Italy by BRUSA & GARBOLI. The machine is designed for the precision surface treatment of straight and bent tubes made of, among others, stainless steel and aluminium. The specially designed system of dry grinding, consisting of two opposing abrasive belts, ensures an even surface finish without any distortion, even on larger tubes. On the other hand, daily operation of the machine is facilitated by an intuitive control panel designed for precise setting of the working parameters. The BRUSA & GARBOLI tube grinding machine weighs 455 kg.

Technical specifications of the GARBOLI LPC 500 orbital tube polishing machine

• maximum tube diameter: 203 mm
• minimum tube diameter: 10 mm
• minimum tube radius: 225 mm
• abrasive belt size (L x W): 1500 x 90 mm
• control panel
• main motor power: 9.7 kW
• power supply: 400 V; 50 Hz
• dimensions (L x W x H): 1200 x 1150 x 1450 mm
• weight of the GARBOLI LPC 500 machine: 455 kg
