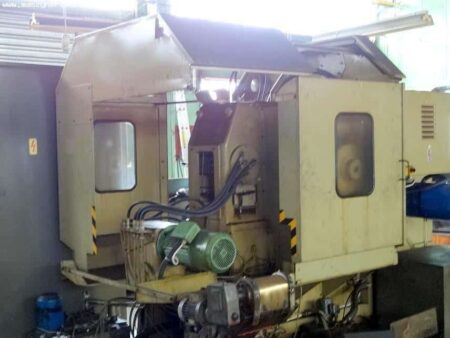

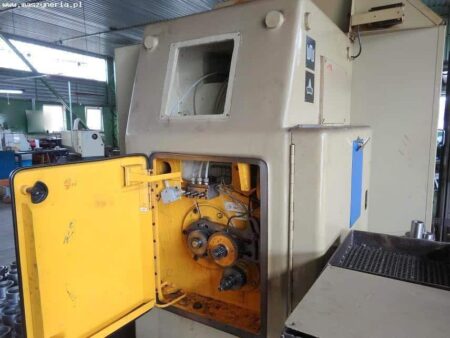

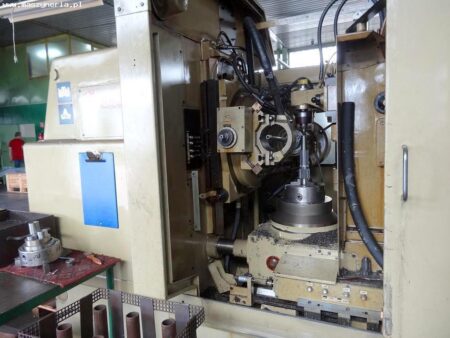

Gear hobbing machine WMW VEB Modul ZFWZ 250/3

The gear hobbing machine WMW VEB Modul ZFWZ 250/3 was built in 1982. The milling machine is used to process gears with a maximum milling diameter of 250 mm and a maximum milling length of 275 mm. The machine was hardly used, only worked about 8,000 man-hours. In addition, the price of the machine includes a set of spindles and change wheels. The total weight of the hobbing machine is 6.7 tonnes.

Technical data of the gear hobbing machine WMW VEB Modul ZFWZ 250/3

– milling diameter: 250 mm
– milling length: 275 mm
– module: 6 mm
– man-hours worked: approx. 8000 h
– dimensions (L x H x W): 3300 x 3475 x 2200 mm
– total weight: 6.7 t
– installed power: 20 kW

Accessories for WMW VEB Modul ZFWZ 250/3 milling machine

– a set of spindles (22, 27, 32, 40 mm)
– change wheels (30, 35, 40, 44, 48, 49, 52, 54, 57, 59, 61, 71, 74, 80, 89)
– DTR – technical and operational documentation
