GEKA HYDRACROP 55/S hydraulic ironworker machine

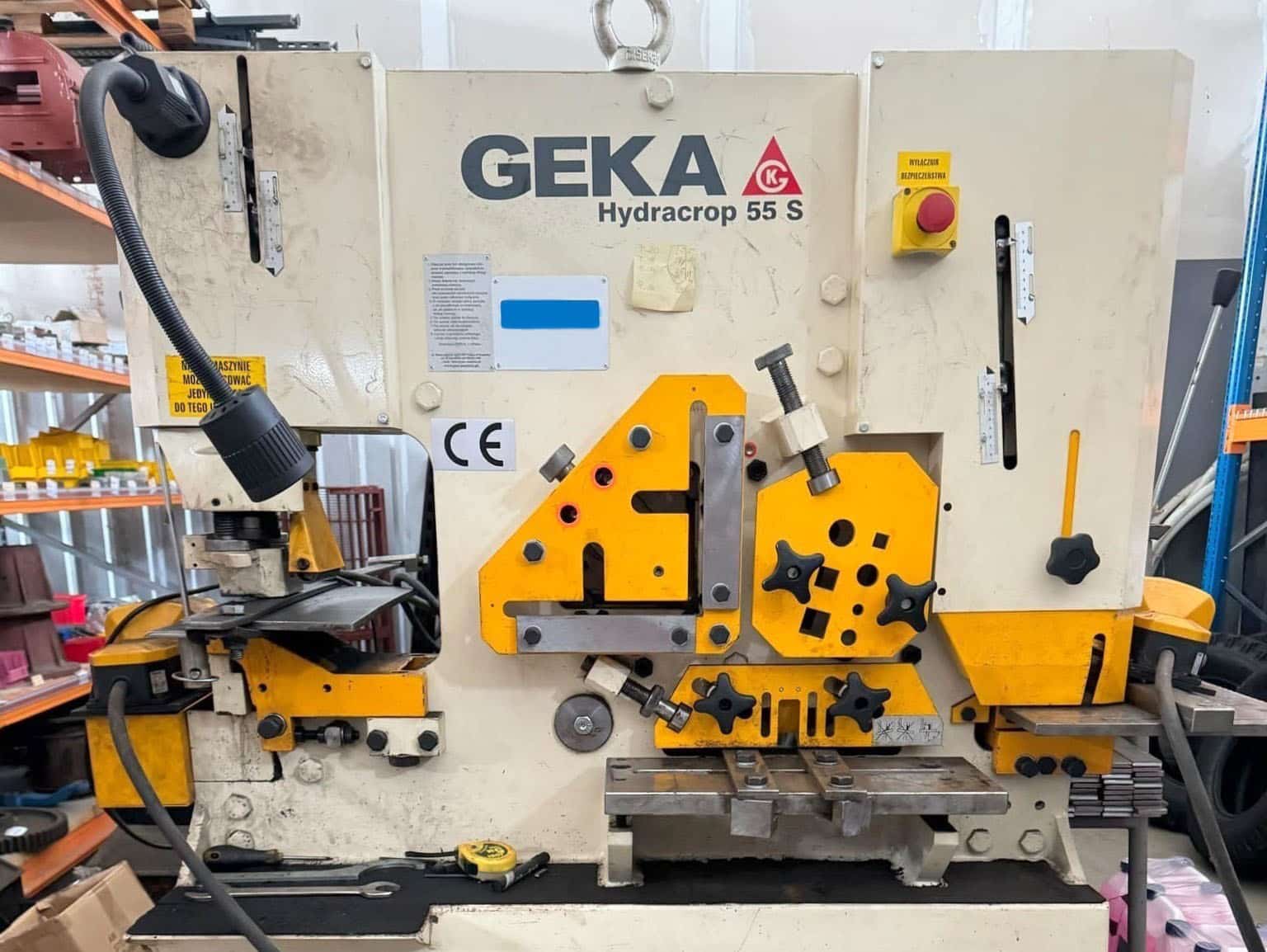

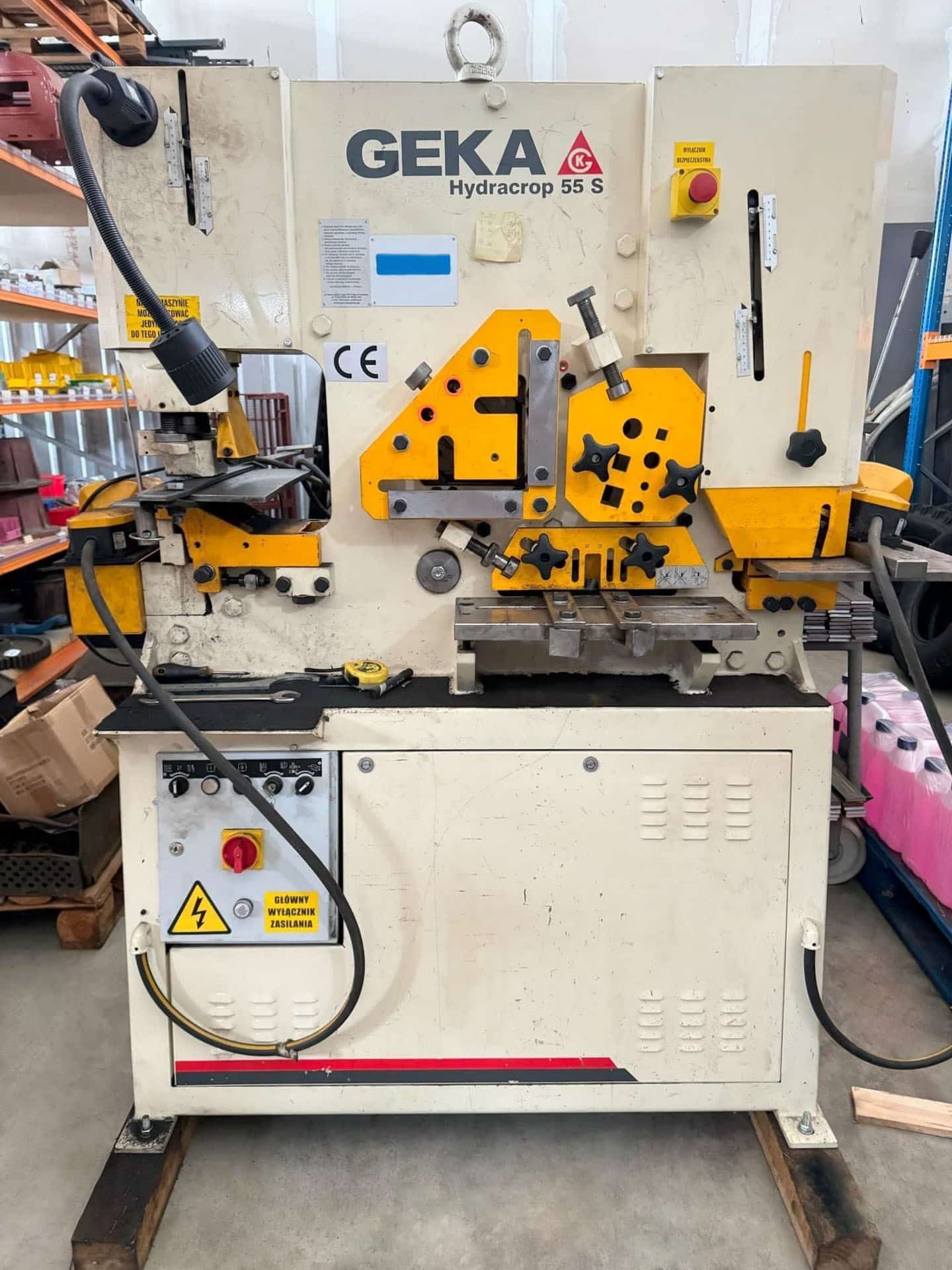

GEKA HYDRACROP 55/S hydraulic ironworker machine was built in 2018 in Spain by MAQUINARIA GEKA S.A. The machine, equipped with 5 work stations, is designed for precision machining of flat bars and angle bars. Each station is controlled by two hydraulic cylinders, which give the possibility to work independently or in parallel on two stations simultaneously. The GEKA HYD 55 S ironworker machine weighs 1390 kg.

Technical specifications of the GEKA HYDRACROP 55/S ironworker machine

General data

• maximum punching force: 55 t
• maximum cutting force: 110 t
• number of workstations: 5
• number of hydraulic cylinders: 2
• engine power: 5 kW
• weight of the GEKA HYDRACROP 55/S machine: 1390 kg

Flat bar shearing station

• flat bar dimensions: 300 x 15 mm; 200 x 20 mm
• blade length: 305 mm
• working height: 880 mm

Angle bar shearing station

• shearing of angle bar at 90°: 120 x 120 x 10 mm
• shearing of angle bar at 45°: 70 x 70 x 7 mm
• working height: 1068 mm

Square and solid bar cutting station

• solid bar diameter: ø 40 mm
• square bar diameter: 40 mm
• working height: 1100 mm

Rectangular notching station

• maximum notching thickness: 10 mm
• maximum incision dimensions: 100 x 100 x 10 mm
• blade length: 90 mm
• blade width: 42 mm
• working height: 942 mm

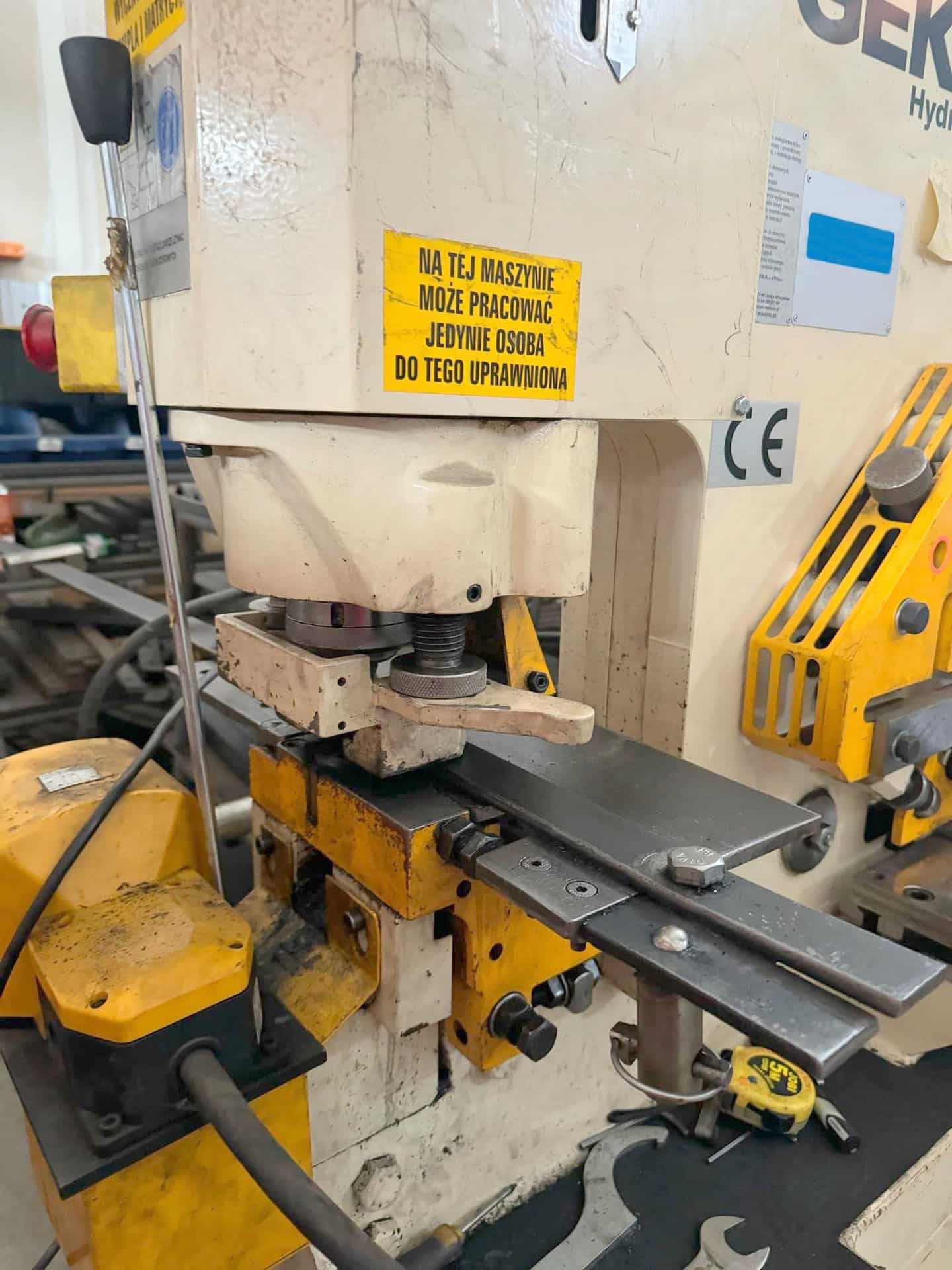

Hole punching station

• maximum hole diameter (10 mm sheet metal thickness): 40 mm
• maximum hole diameter (20 mm sheet metal thickness): 20 mm
• throat clearance: 250 mm
• maximum punch stroke length: 60 mm
• working height: 1085 mm
