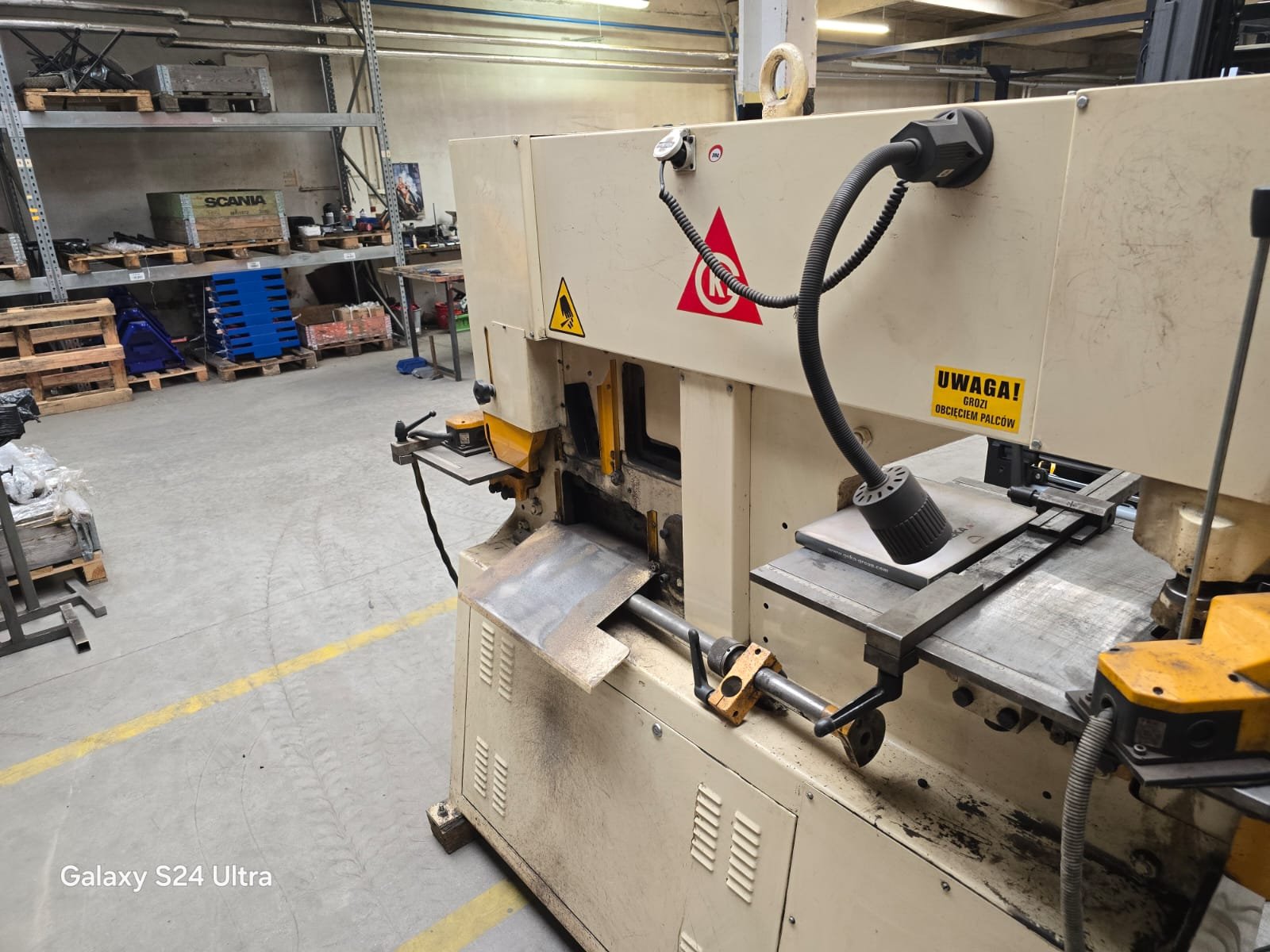

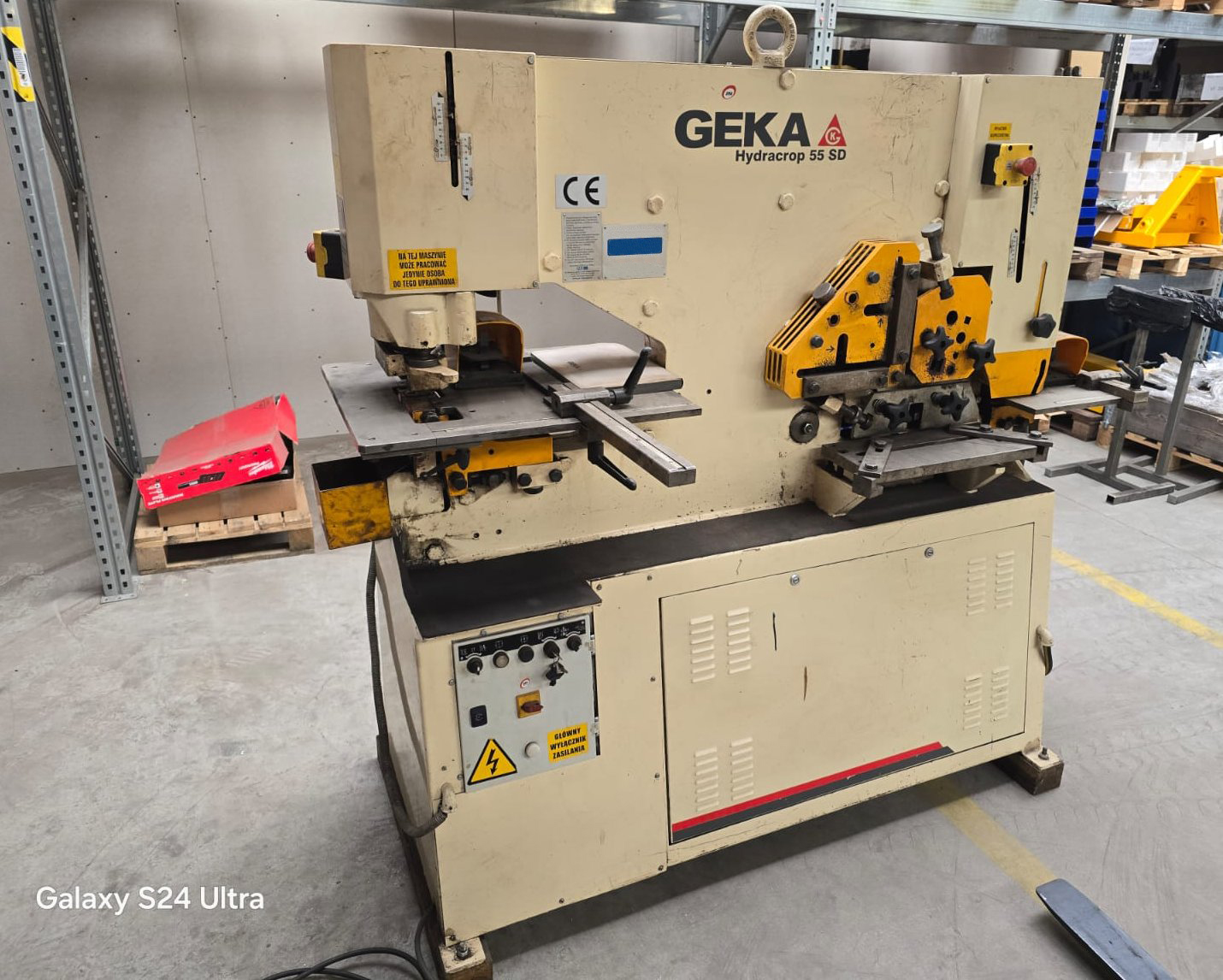

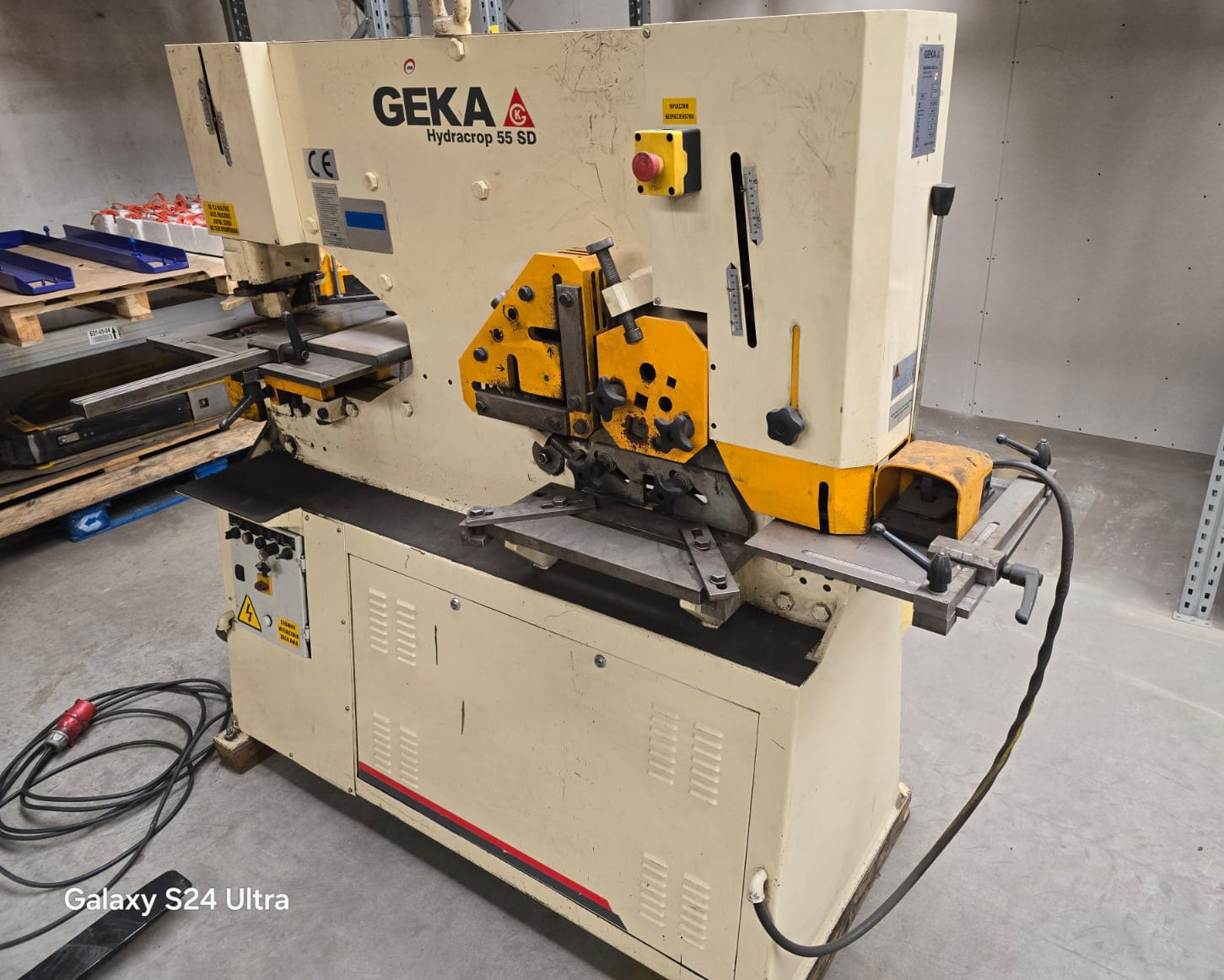

GEKA HYDRACROP 55 SD hydraulic ironworker machine

GEKA HYDRACROP 55 SD hydraulic ironworker machine was built in 2015 in Spain. The machine is equipped with 5 work stations for precise hole and corner punching, as well as shearing flat bars, angle bars and solid bars. Each work station is controlled by two hydraulic cylinders, which give the possibility to work independently or in parallel on two stations simultaneously. Thanks to its versatility and multifunctionality, the offered GEKA HYD 55 ironworker machine is the perfect choice for a significant increase of productivity in any production facility. The total weight of the machine is 1750 kg.

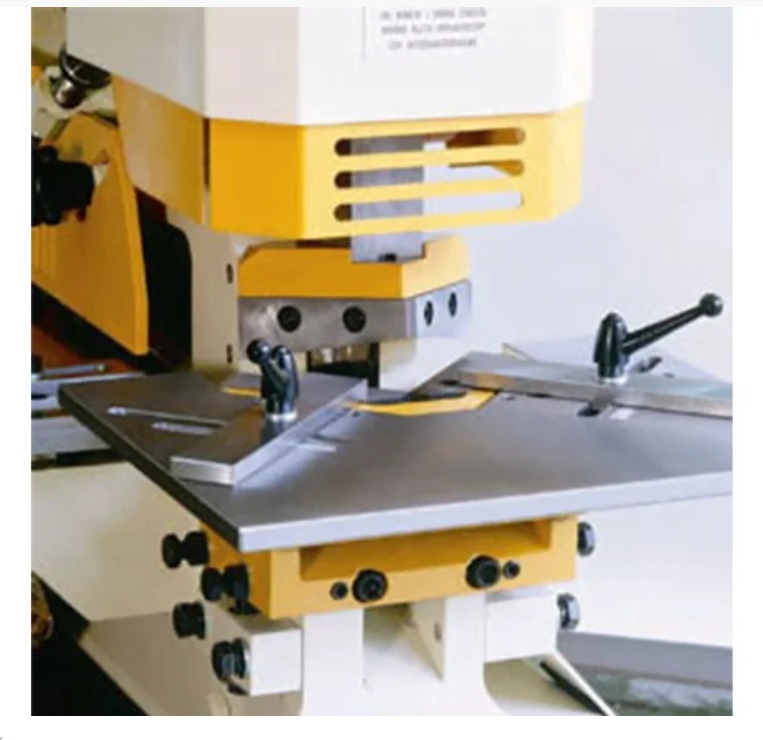

The offer also includes an additional, optional work table with a value of EUR 2000.

Technical specifications of the GEKA HYDRACROP 55 SD 2-cylinder ironworker machine

General data

• punching force: 55 t
• cutting force: 110 t
• number of workstations: 5
• number of hydraulic cylinders: 2
• engine power: 5 kW
• weight of the GEKA HYDRACROP 55 SD machine: 1750 kg

Flat bar shearing station

• flat bar dimensions: 300 x 15 mm; 200 x 20 mm
• blade length: 305 mm
• working height: 880 mm

Angle bar shearing station

• shearing at 90°: 120 x 120 x 10 mm
• shearing at 45°: 70 x 70 x 7 mm
• working height: 1068 mm

Square and solid bar cutting station

• solid bar diameter: ø 40 mm
• square bar diameter: 40 mm
• working height: 1100 mm

Rectangular notching station

• maximum notching thickness: 10 mm
• maximum notching dimensions: 100 x 100 x 10 mm
• blade length: 90 mm
• blade width: 42 mm
• working height: 942 mm

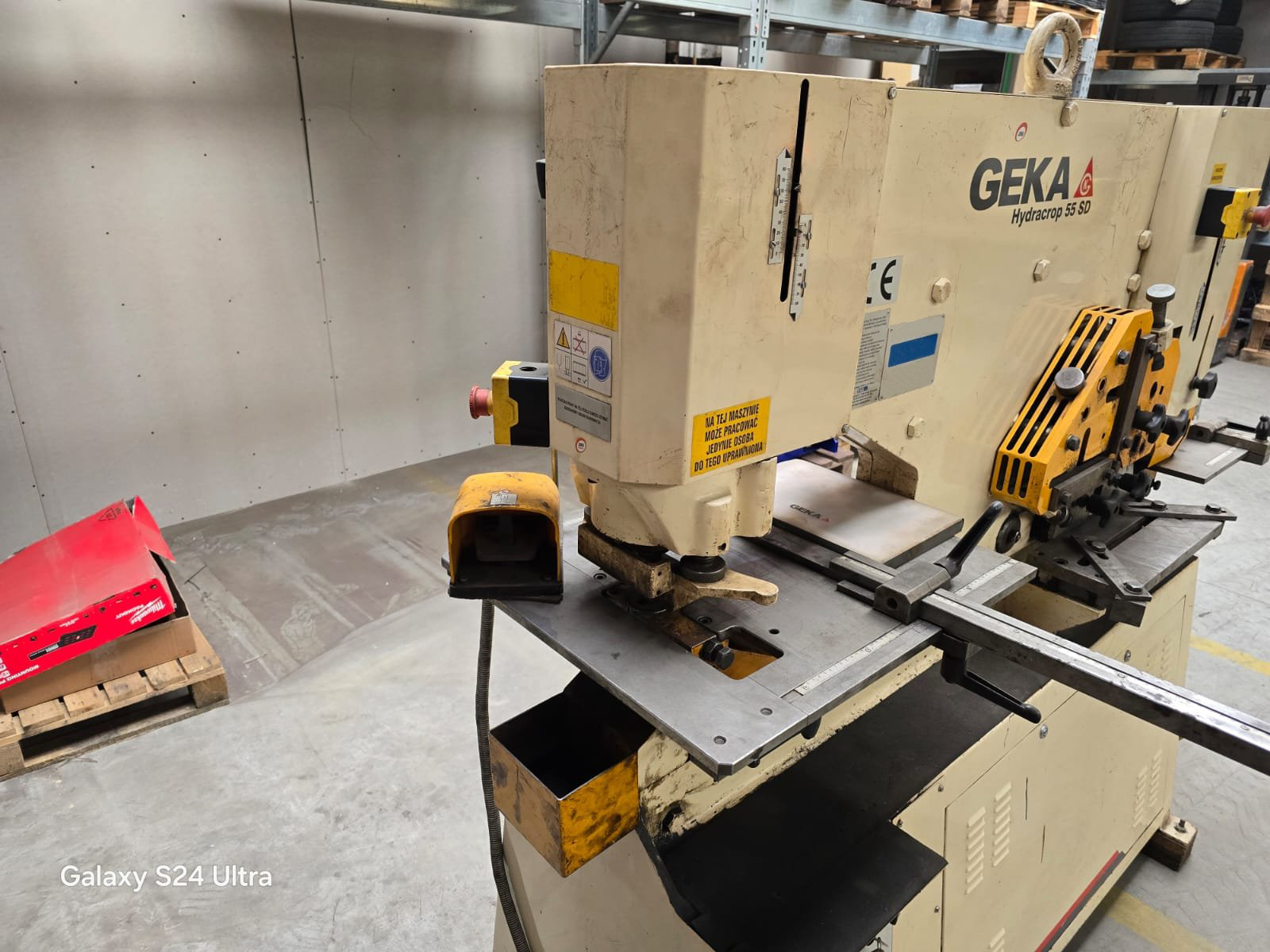

Hole punching station

• maximum hole diameter (10 mm sheet metal thickness): 40 mm
• maximum hole diameter (20 mm sheet metal thickness): 20 mm
• throat clearance: 500 mm
• maximum punch stroke length: 60 mm
• working height: 1085 mm
