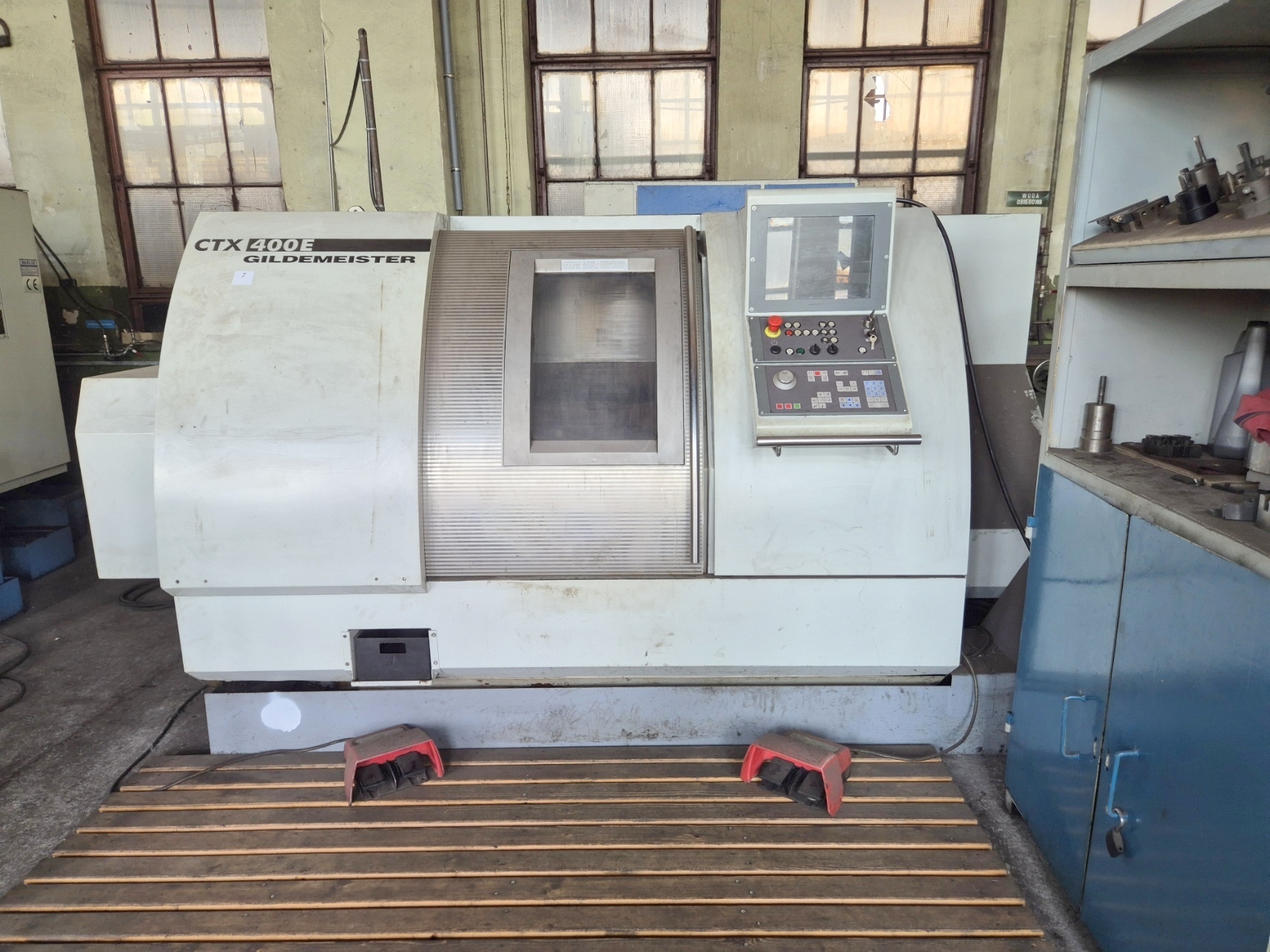

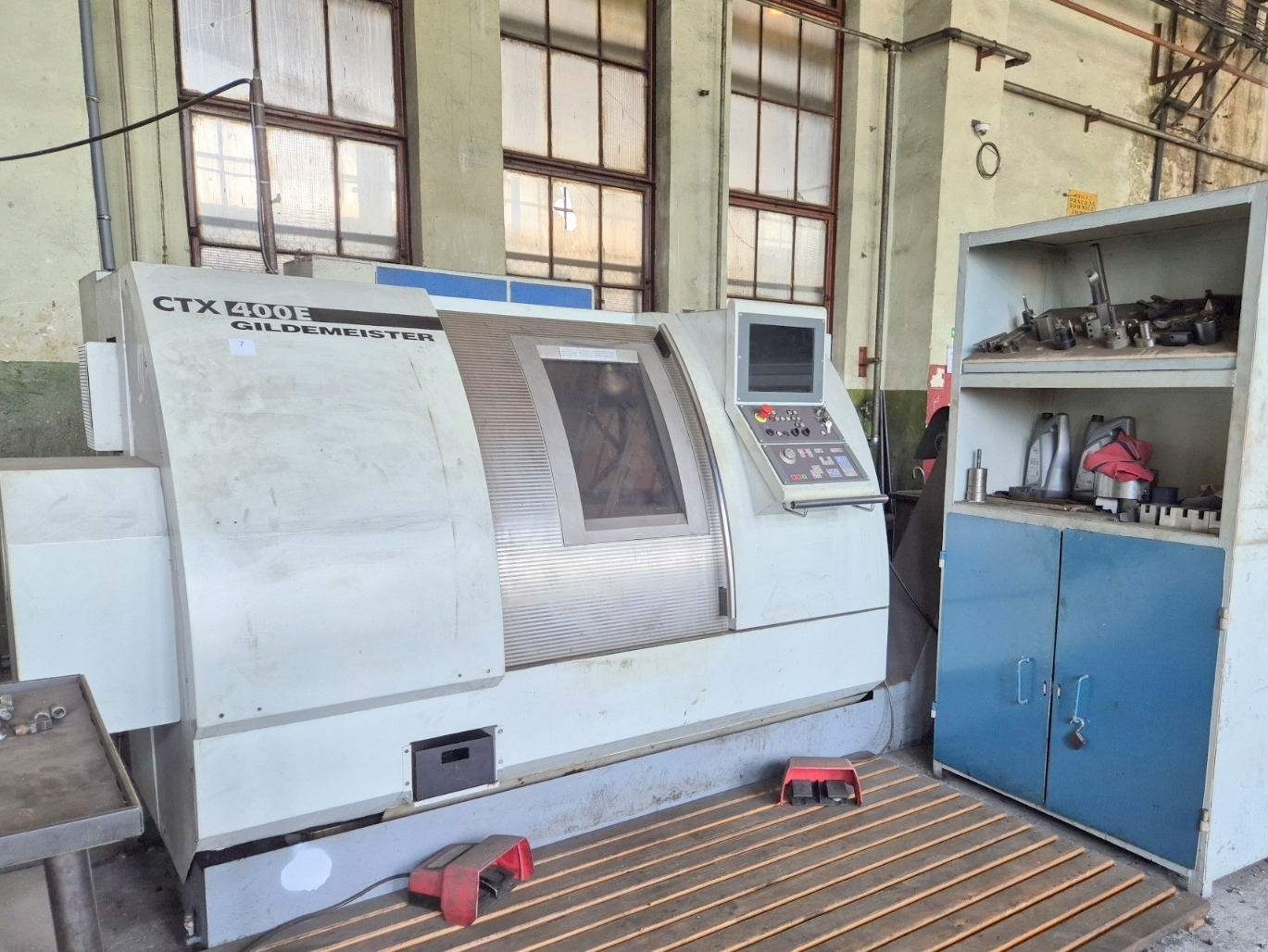

GILDEMEISTER CTX 400E CNC turning center

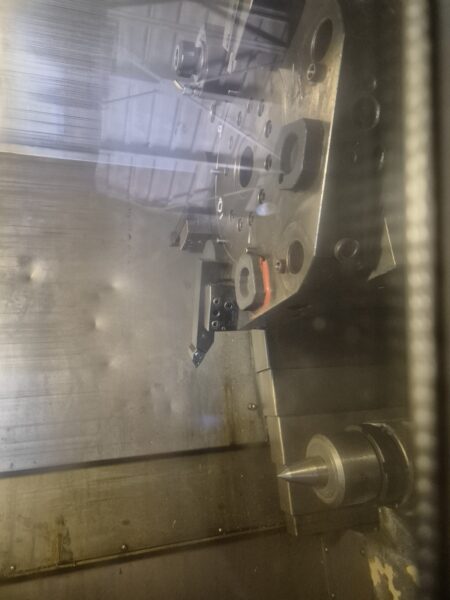

GILDEMEISTER CTX 400E CNC turning center was built in 2000 in Germany by GILDEMEISTER Drehmaschinen GmbH. The machine, designed for machining workpieces with a maximum diameter of 570 mm, is distinguished by its high precision and reliability. The large working area is equipped with a 12-position turret and a spindle, whose high-powered motor allows all modern cutting tools to be fully utilised. The CTX 400E CNC lathe weighs approximately 5300 kg.

Technical specifications of the GILDEMEISTER CTX 400E metal lathe

• maximum turning diameter: 440 mm
• maximum turning diameter over bed: 570 mm
• maximum turning diameter over slide: 420 mm
• maximum turning length: 635 mm
• distance between centers: 700 mm
• feed in the X/Z axis: 220/635 mm
• maximum spindle rotational speed: 5000 rpm
• spindle bore diameter: 79 mm
• spindle drive power: 21 kW

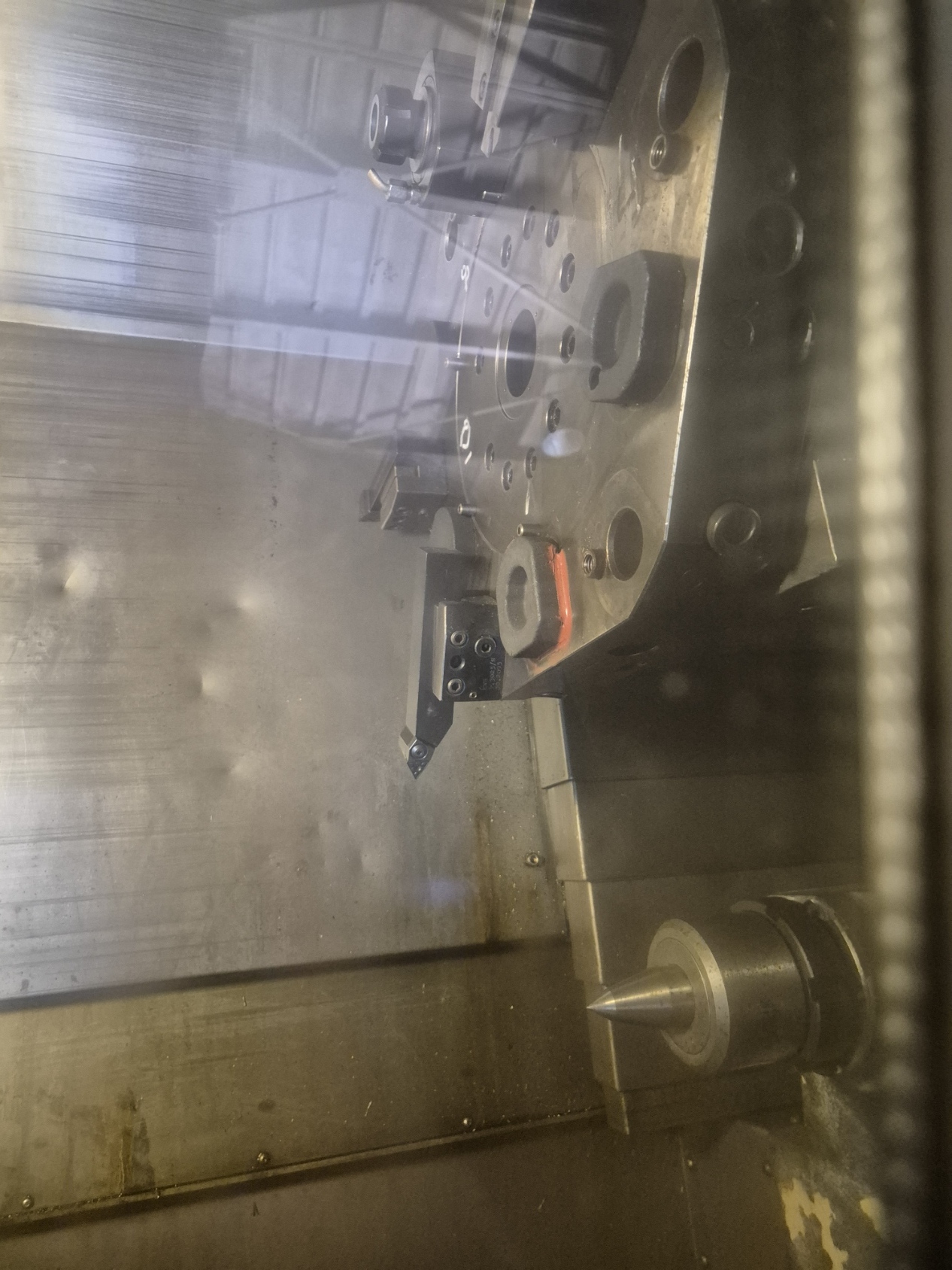

• 12-position turret
• number of rotary tools: 40
• power supply: 3x 400 V; 50 Hz
• dimensions (L x W x H): 4300 x 1800 x 2000 mm
• weight of the GILDEMEISTER machine: approx. 5300 kg
