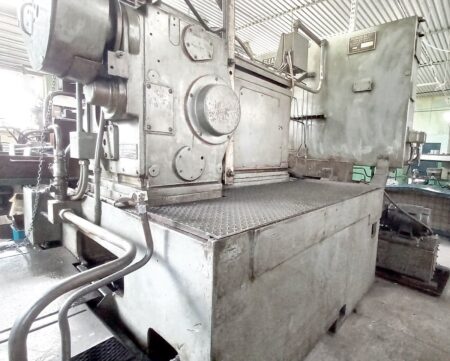

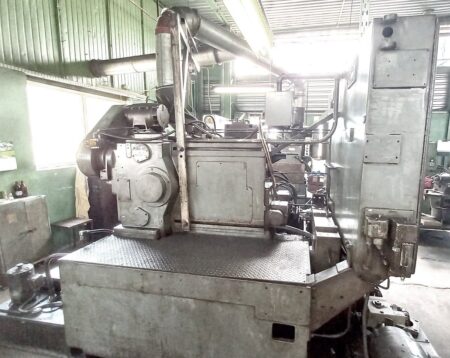

GLEASON 726 REVACYCLE straight bevel gear generator

GLEASON 726 REVACYCLE straight bevel gear generator was built in the United States. The machine performs the machining of bevel gears used in differential mechanisms, by milling with radial heads while relative movement of the machined wheel to the cutter head during rough machining.

The GLEASON 726 REVACYCLE bevel gear milling machine mills workpieces with the highest precision and accuracy. The root angle can range from 15° to 55° and the bevel wheel is machined at a high speed of 49.7 m/min. The GLEASON NO 726 machine weighs approximately 9 tonnes.

Technical data of the GLEASON 726 REVACYCLE straight bevel gear generator

• largest tooth height: 14.8 mm
• maximum face width at root: 28 mm
• maksimum root angle: 55°
• minimum root angle: 15°
• cutterhead speed: 32.6-49.7 m/min
• feed rates (seconds per tooth): 2-3,1
• index range: 8-50 mm
• diameter of taper hole at large end: 99 mm
• taper per foot: 15.4 mm
• taper depth: 15.8 mm
• counterbore behind taper: 57.2 x 77.9 mm
• diameter of hole through spindle: 22.3 mm
• power of main drive motor: 10 HP
• rotation of main drive motor (60 Hz/ 50 Hz): 1800/1500 rpm
• rotation of hydraulic motor (60 Hz/ 50 Hz): 1800/1500 rpm
• rotation of coolant pump (60 Hz/ 50 Hz): 3600/3000 rpm
• rotation of chip screw motor (60 Hz/ 50 Hz): 1800/1500 rpm
• floor space requirement (L x W): 320 x 221 cm
• total weight of the 726 REVACYCLE machine: approx. 9 t
