GRASO shrink wrapping machine with heat shrink tunnel

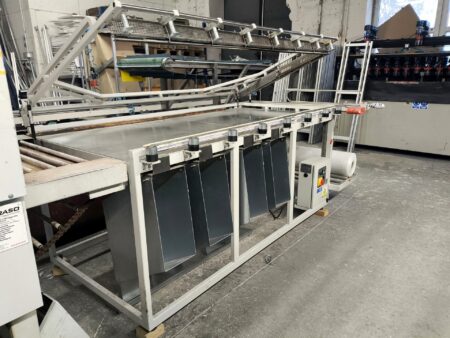

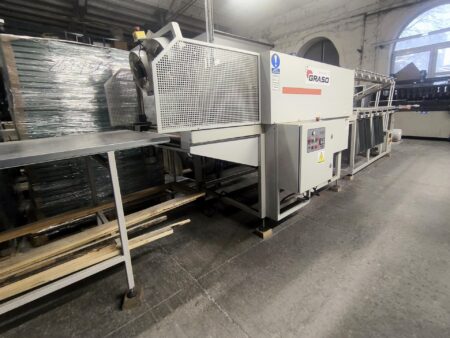

GRASO shrink wrapping machine with heat shrink tunnel was built in Poland in 2014 by the Graso company. The system is used in the process of packing various types of products into unit packs as well as collective packages made of shrink film. Once the product is placed in the working area, the GRASO PK030 packing machine performs a high-quality seal using a knurled bar. After the sealing is completed, a roller conveyor moves the product to the heating tunnel, where the film shrinking process takes place. At the very end, the finished package is cooled by fans. The packaging effectively protects the products from external factors, while enhancing their aesthetic qualities. The packing machine with heat shrink tunnel is the perfect solution for companies in many sectors, such as food and industry, that are looking for a way to increase packaging efficiency.

Technical specifications of the PK030 shrink wrap machine

• sealing arm dimensions (L x W): 1900 x 800 mm
• power: 3,3 kW
• power supply: 3x 230/400 V
• dimensions (L x W x H) : 2560 x 1300 x 1150 mm
• weight of the GRASO PK030 machine: 180 kg

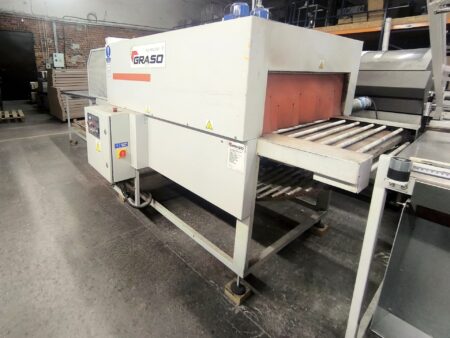

Technical specifications of the GRASO TGW 30/80 heat shrink tunnel

• heating chamber dimensions (L x W x H): 1300 x 800 x 300 mm
• roller conveyor active width: 700 mm
• power: 25 kW
• heater power: 24x 0.9 kW
• power supply: 3x 230/400 V
• dimensions (L x W x H): 2300 x 1050 x 1670 mm
• weight of the GRASO TGW 30/80 machine: 380 kg
